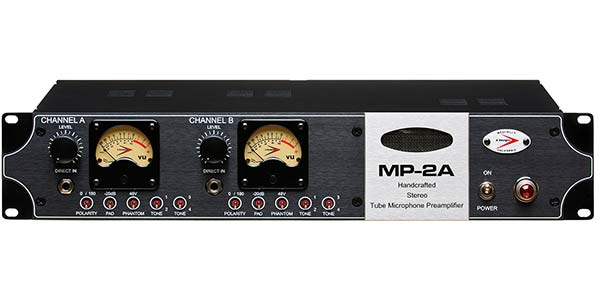

A Designs MP-2A

There aren’t many preamps that engineers and producers feel could be the only one they would use to make an entire  record; but, according to industry professionals, the all-tube MP-2A stereo preamplifier fits that bill. Designed to provide the  versatility and sonic flexibility sought after by discerning professionals around the world, the MP-2A “works and plays well  with others” - meaning that while some preamps can be finicky when it comes to certain mics, the MP-2A performs  spectacularly no matter what kind of mic you run through it: ribbon, dynamic, or condenser….old school, middle of the road,  or state of the art – MP-2A welcomes them all…but it doesn’t stop there!  MP-2A is also an excellent instrument pre/DI,  adding life and depth to basses, guitars, analog and digital keyboards.

Built to audiophile-quality standards with a price tag well below other boutique preamps in or near its class, the MP-2A has  no integrated circuits in the signal path - it relies solely on discrete components: the perfect combination of tubes (EF86 for  the inputs, 6N1-P on the outputs), Audience capacitors, and custom Cinemag Output transformers, and is meticulously hand  crafted with point to point wiring. Each channel sports a -20dB pad, a pair of Tone switches providing four distinctive possible  sonic signatures on each channel, and up to 60dB gain for use with even the most power-hungry ribbon mics.  Cinemag  input transformers coupled with custom-wound output transformers ensure the low noise top-quality performance expected  from a top shelf preamp. Additional features include balanced Neutrik XLR inputs, true VU metering, 48v phantom power,  polarity switches, and front-panel Hi-Z input jacks.

SPECIFICATIONS

• All-tube design.
• Selectable tone switches offer four sounds per channel.
• 60dB gain allows use of next-generation ribbon mics.
• EF86 input tubes / 6N1P output tubes.
• Cinemag input transformers and custom-wound output transformers.
• True VU meters.
• Dual level controls.
• -20dB pad switch (per channel).
• Polarity switch (per channel).
• Toroidal power transformer.

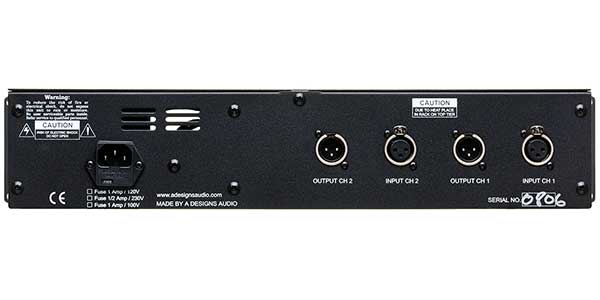

• Balanced XLR I/O and 1/4'' direct injections
• Custom-milled faceplate, solid vented metal frame (2U rack size).
• Frequency Response: 20Hz - 60kHz
• Distortion THD: > .08 @ 1kHz
• Noise (EIN): -128dBu.
• Input impedance: 1.4k ohm.
• Phantom power: +48V switchable power source.
• Mic input phase: 0-180 degree switchable.
• Instrument input: 1/4'' phono.
• Instrument input impedance min: >100k ohm.
• Output impedance: 600 ohm, switchable to 10k ohm.
• Maximum output level: +22dBu.
• Output: Low-Z, transformer-balanced.
• Power requirements: 100/120/230 VAC - 42W
• Dimensions: (W x H x D) 19'' x 3-1/2'' x 10''.
• Weight: 18 lbs. (8.16kg).
• Shipping weight 20 lbs.
