Designed, built, and extensively “ear-tested,” by long-time recording industry veterans, the A Designs Pacifica takes its sonic signature and name from the revered Quad Eight mixing console. However, the A-Designs Pacifica has a sound and character all its own. Praised by top professionals for having the depth of a Neve, the midrange of an API and the high-end of a Massenburg, the Pacifica has firmly established itself as the go-to preamp for an impressive list of Grammy-winning and platinum-selling engineers and producers.

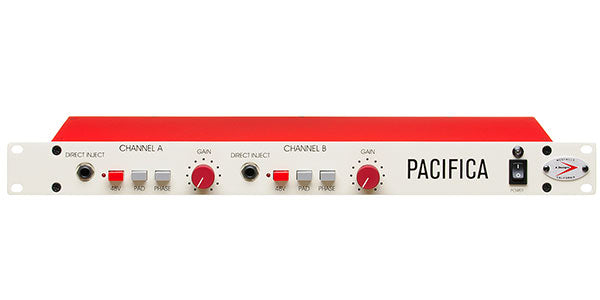

The streamlined feature set of the Pacifica delivers exactly what an audio professional needs to quickly record high-quality tracks. Paying homage to the color scheme of the Quad Eight Pacifica console, the hand-crafted A Designs Pacifica sports a rich, cream-colored finish with solid feeling red metal gain knobs, a red +48V phantom power push button with red LED indicator, and grey push buttons for phase reverse and –20dB pad - all giving the Pacifica a look reminiscent of California girls, beach boys, and classic Woodies.
SPECIFICATIONS
- Two-channel, solid state preamp with two front-panel Hi-Z inputs.
- Captures the sound quality of the legendary Quad Eight Pacifica console with even more presence and high-end.
- Very warm and full tone without being dark; wide bandwidth with a sweet top end.
- Custom-wound Cinemag input and output transformers.
- Input transformer: A-Designs proprietary input transformer with unique winding.
- Output Transformer: A-Designs proprietary alloy using the same massive design as the original Quad Eight.
- 72dB of quiet gain, great for use with ribbon mics.
- Unique D.I. design sends signal through the input transformer for two transformers in the signal path.

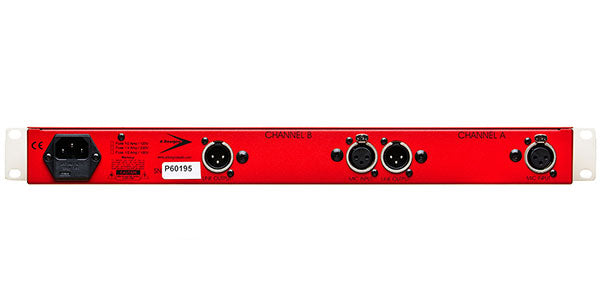

- Balanced XLR I/O.
- Phase reversal (each channel).
- -20dB pad (each channel).
- +48V phantom power (each channel).
- Solid construction, handmade in the USA.
- Frequency response: 9Hz-101KHz.
- Input impedance: 1500 ohm
- Gain range: 72dB.
- Noise (EIN): -128dB.
- Phantom power: Switchable 48V.
- Mic input phase: Switchable 0 -180°.
- Instrument Input Jack 1/4''
- Output: Balanced XLR
- Distortion: Less than 1%.
- Power requirements: 100/120/230 VAC - 23W.
- Dimensions: 19'' x 1-3/4'' x 10''
- Weight: 11 lbs.
- Shipping weight: 12.5 lbs.
