Lynx Studio Technology Mesa - Desktop Interface
- Description
- Tab
- Info
Mesa is a desktop-based Thunderbolt 3 audio interface and professional-quality standalone analog/digital/analog converter. Its desktop form factor makes it ideal for everyone from home/project recording setups to production rooms in commercial recording facilities. Compact and easily portable, Mesa offers four analog inputs and two outputs for monitoring, along with dual headphone outputs with independent level controls.

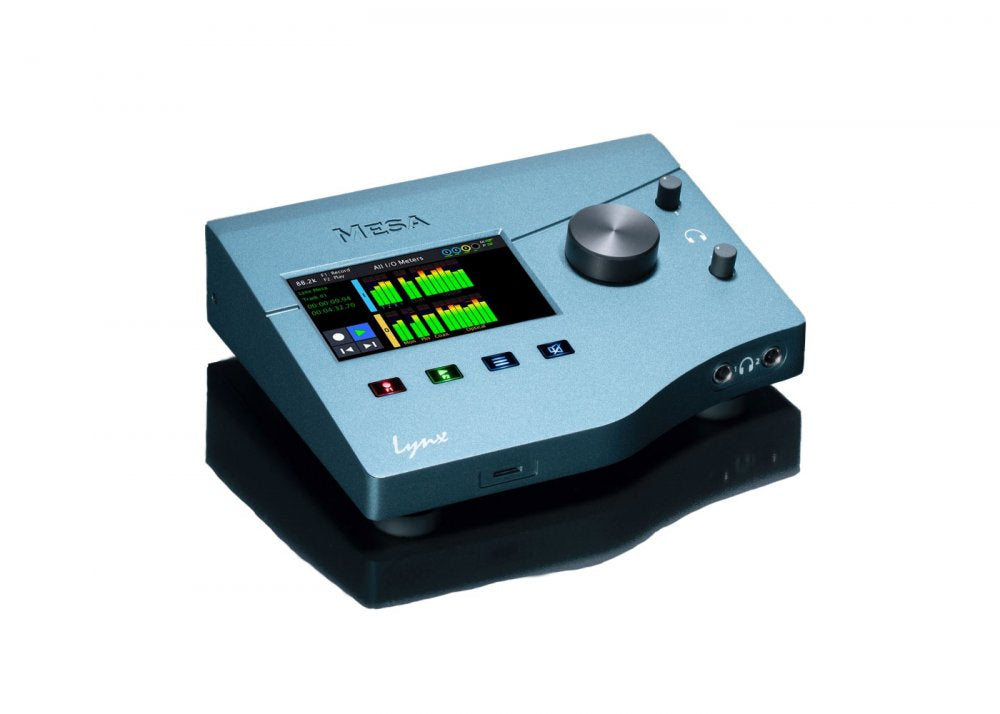

The Lynx Mesa offers a hi-contrast capacitive touchscreen interface — the same as in the company’s renowned Hilo 2 — making perfect for standalone use. Mesa owners will also be able to access its functions via the included Mesa Control software. A built-in MicroSD card slot allows Mesa to be used as a primary or backup recording device, making it useful for live/remote recording needs.
Designed for musicians, recording engineers, live sound engineers, and others who require the very best in pristine, detailed audio, Mesa offers the same level of audio quality and transparency as the company’s acclaimed Aurora(n) interface/converter. Other Mesa users include those involved in location recording — live performances, house of worship services and more — as well as for purposes including playback that can be done either via the onboard MicroSD card or its Thunderbolt 3 connection.

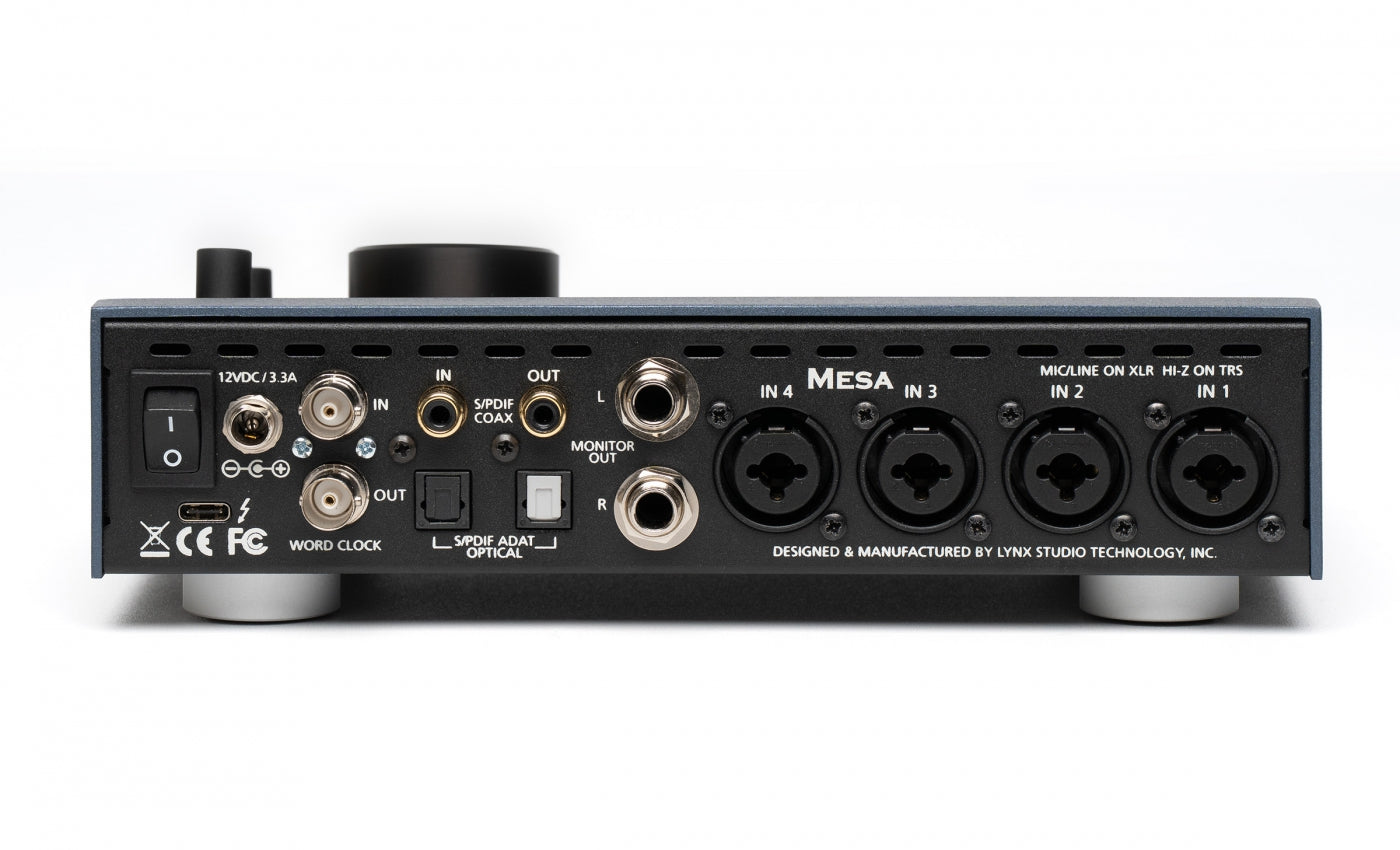

Mesa’s combo input connectors accept Mic, Line and D.I. signals, so users can plug in directly with instruments like electric guitars, bass, and keyboards, as well as microphones, and are selectable on a per-channel basis. Its monitor outputs are on ¼” balanced TRS connectors. Designed for professional applications, Mesa also features S/PDIF coaxial I/O, with its optical port supporting both S/PDIF (2 channel) and ADAT (8 channel) formats, and also includes Word Clock in and out.
Specifications:
Line in
- THD+N: ‐113dB @1kHz, ‐1dBFS, 20kHz filter
- Full scale input level: +20dBu
- Dynamic range: 119dB, A‐weighted, ‐60dBFS signal method
- Frequency response: ±0.010dB, 20–20kHz
- Crosstalk: ‐130dB maximum @ 1kHz, ‐1dBFS
- Common mode rejection: greater than 80dB
- Input Impedance: 200kΩ balanced, 100kΩ unbalanced
- All line input measurements made with 40Ω source applied to input
- Gain settings: Fixed
- Connector: Female XLR on combo jack
- Bypasses Microphone preamp when in Line mode
Mic In
- Features Per Channel: 48V Phantom Power Pad Hi-Pass Filter Polarity Reversal 48V Lockout Channel Pairing for Stereo Inputs
- THD+N: -111dB (0.00028%) @1kHz, ‐1dBFS, 20kHz filter @ 21.6dB gain
- EIN: -129dBu A-weighted @ 61.6dB gain
- Dynamic Range: 116dB A‐weighted, ‐60dBFS method @ 21.6dB gain
- Frequency Response: +0.01 / -0.08dB 20-20kHz
- Crosstalk: -127dB max. adjacent channel, -1dBFS, 1kHz @ 21.6dB gain
- Common Mode Rejection: 75dB min. -1dBFS, 60Hz and 1kHz @ 61.6dB gain
- Full-scale Input Level for A/D: 28.7dBu @ 5.6dB gain with pad enabled
- Input impedance: 2.1kΩ
- Gain Settings: 5.6dB or 13.6dB to 68.6dB in 1dB steps, pad disabled / -8dB or 0dB to 55dB in 1dB steps, pad enabled
- Pad Attenuation: 13.6dB
- High-Pass Filter: 80Hz, 12 dB / octave
- Connector: Female XLR on combo jack
Hi-Z In
- THD+N: -109dB (0.00035%) 1kHz, -1dBFS, 20kHz filter
- EIN: -115dBu A-weighted @ 21.6dB gain
- Dynamic Range: 114dB A-weighted, -60dBFS method @ 21.6dB gain
- Frequency Response: +0.01 / -0.05dB 20-20kHz
- Crosstalk: -132dB max. adjacent channel, -1dBFS, 1kHz @ 21.6dB gain
- Full-scale Input Level for A/D: 14.9dBu @ 5.6dB gain
- Input impedance: 1MΩ unbal. (TS), 2MΩ bal. (TRS)
- Gain Settings: 5.6dB or 13.6dB to 68.6dB in 1dB steps
- Connector: 1/4" TRS on combo jack
Monitor Out
- THD+N: -108dB @1kHz, -1dBFS, 20kHz filter
- Dynamic range: 120dB, A-weighted, -60dBFS method
- Frequency response: ±0.025dB, 20-20kHz
- Crosstalk: -130dB maximum @ 1kHz, -1dBFS
- Output level at max: +20 dBu
- Output Impedance: 100Ω balanced / 50Ω unbalanced
- Connector: Two 1/4” TRS jacks
Headphone Out
- THD+N: ‐107dB @1kHz, ‐1dBFS, 20kHz filter, volume at max
- Dynamic range: 120dB, A‐weighted, ‐60dBFS method
- Frequency response: ±0.025dB, 20–20kHz
- Crosstalk: ‐120dB maximum @ 1kHz, ‐1dBFS
- Output level: 18.4dBu maximum
- Output power: 68mW @ 600Ω, 135mW @ 300Ω, 383mW @ 60Ω, 212mW @ 32Ω, 100mW @ 16Ω
- Connector: Two 1/4" stereo headphone jacks
