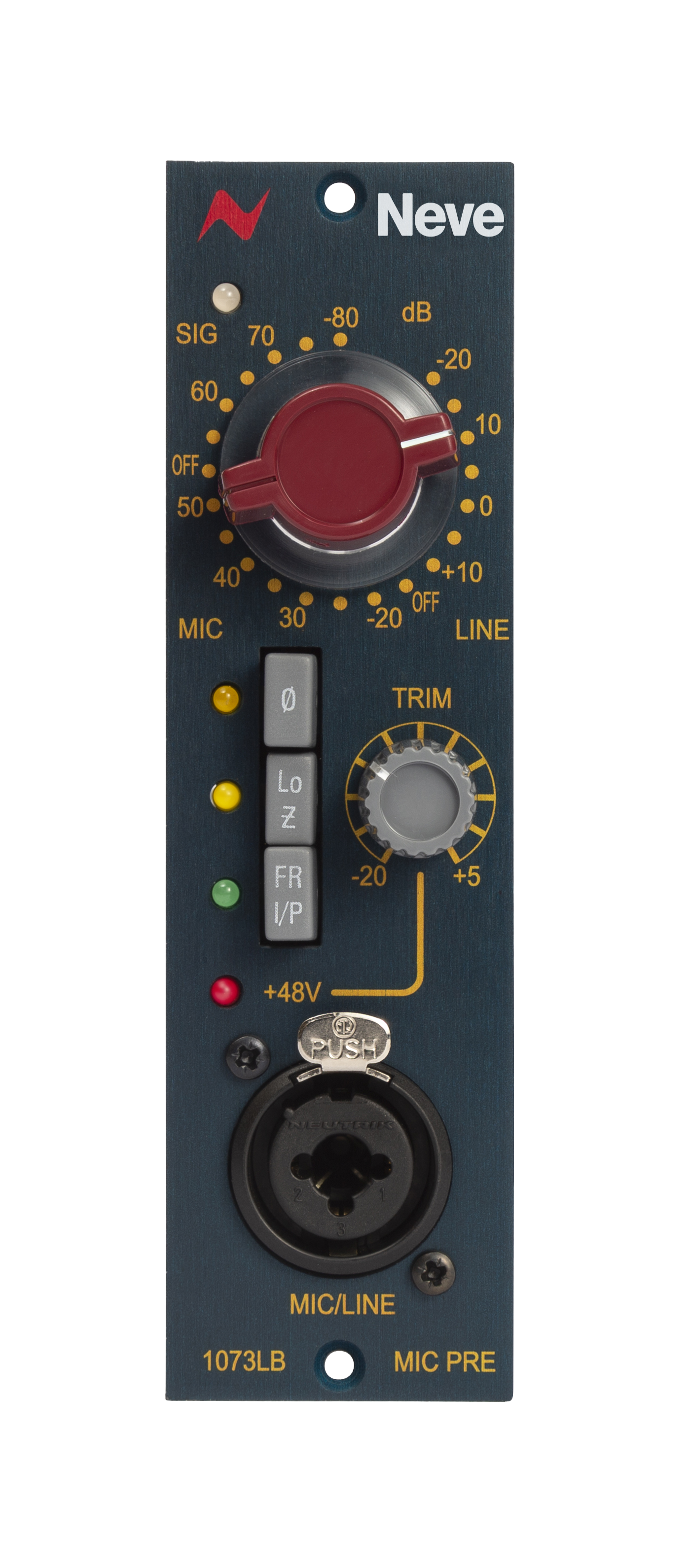

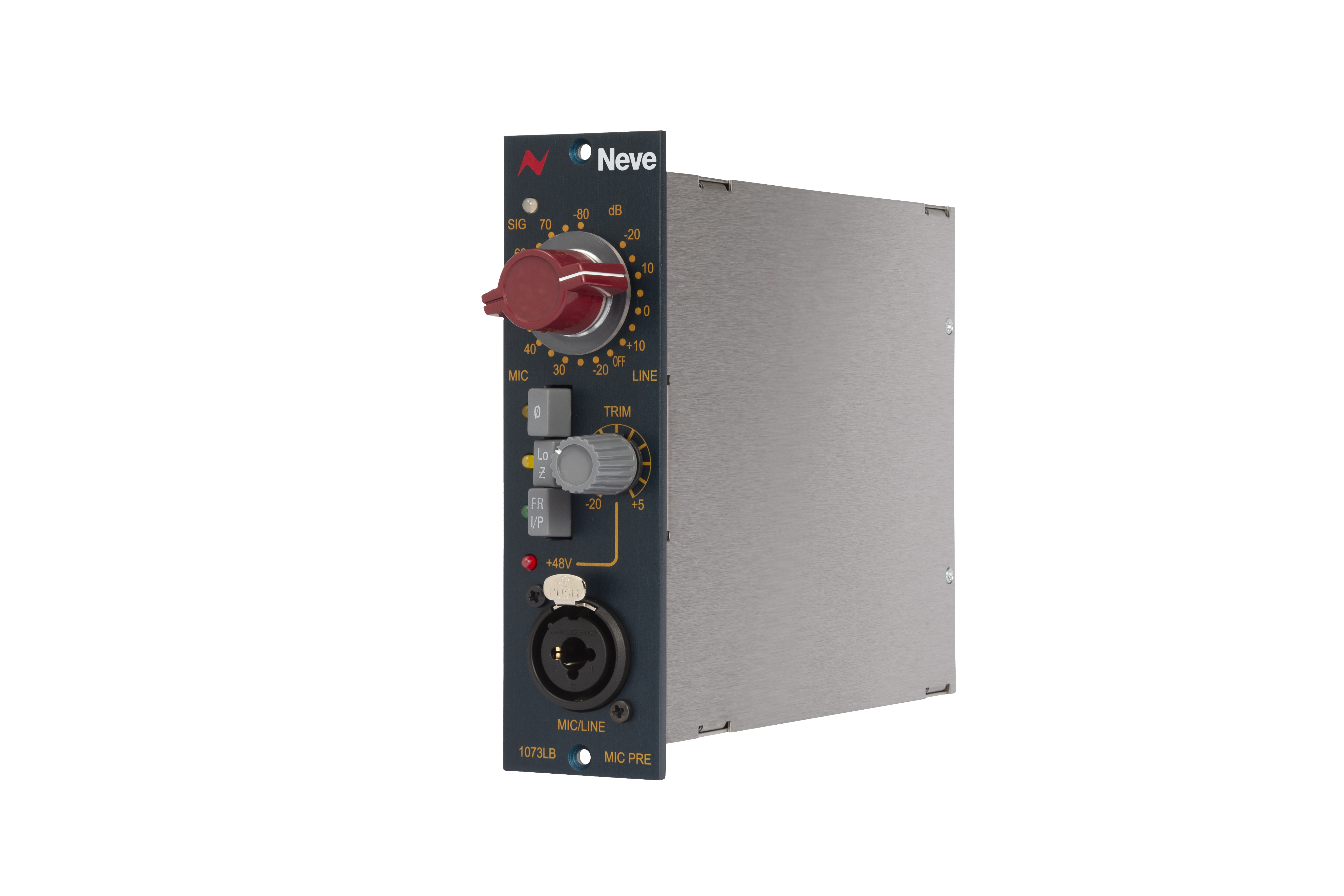

As magical as owning a rare piece of vintage kit can appear, the lack of modern conveniences can ultimately detract from the recording experience. That's why the boffins at Neve gave the 1073LB switchable microphone input impedance, signal presence LED and intelligent protected switching on the front combi-XLR input connector so you don't accidentally fry a line-level device with 48v.
The new Fine Trim control lets you squeeze the maximum level of sparkling clean signals or crank the gain for some Revolution distortion. The 1073LB Preamp's smart Audio Processing Input design and Lunchbox Insert architecture allows you to create a classic Neve 1073 channel strip when used with a Neve 1073LB Series EQ.
Specifications:
- Classic transformer microphone preamp amp (Class A design)
- Audio path is absolutely 100% discrete and the same design as the 1073 Classic module mic/pre circuit
- Neve designed hand-wound transformers
- Both Mic and Line inputs are transformer balanced and earth free
- Gain knob with Signal Presence LED
- +5/-10 dB level Trim control with integrated phantom power on/off switch
- Phase, Impedance and Front Input selector switches
- Front combi-XLR connector with intelligent switching of phantom power
- Audio Processing Insert design allows processing from adjacent Neve modules in the same 500 series rack to be inserted into the 1073LB's pre-output stage
- Microphone Input: Gain -80 db to -20 dB in 5 dB steps
- Line Input: Input impedance 4 kOhms bridging, gain -20 dB to +10 dB in 5 dB steps
- Output is transformer balanced and earth free
- Distortion: Not more than 0.07% from 50 Hz to 10 kHz at +20 dBu output (80 kHz bandwidth)
- Freq Response: ±0.5 dB 20 Hz to 20 kHz, -3 dB at 40 kHz
- Crafted in England by Neve engineers
