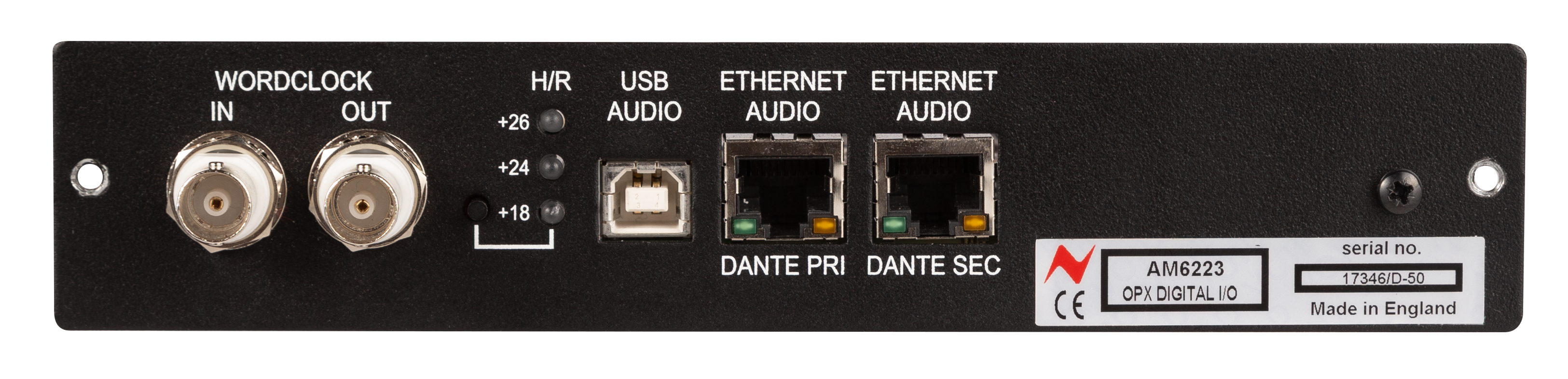

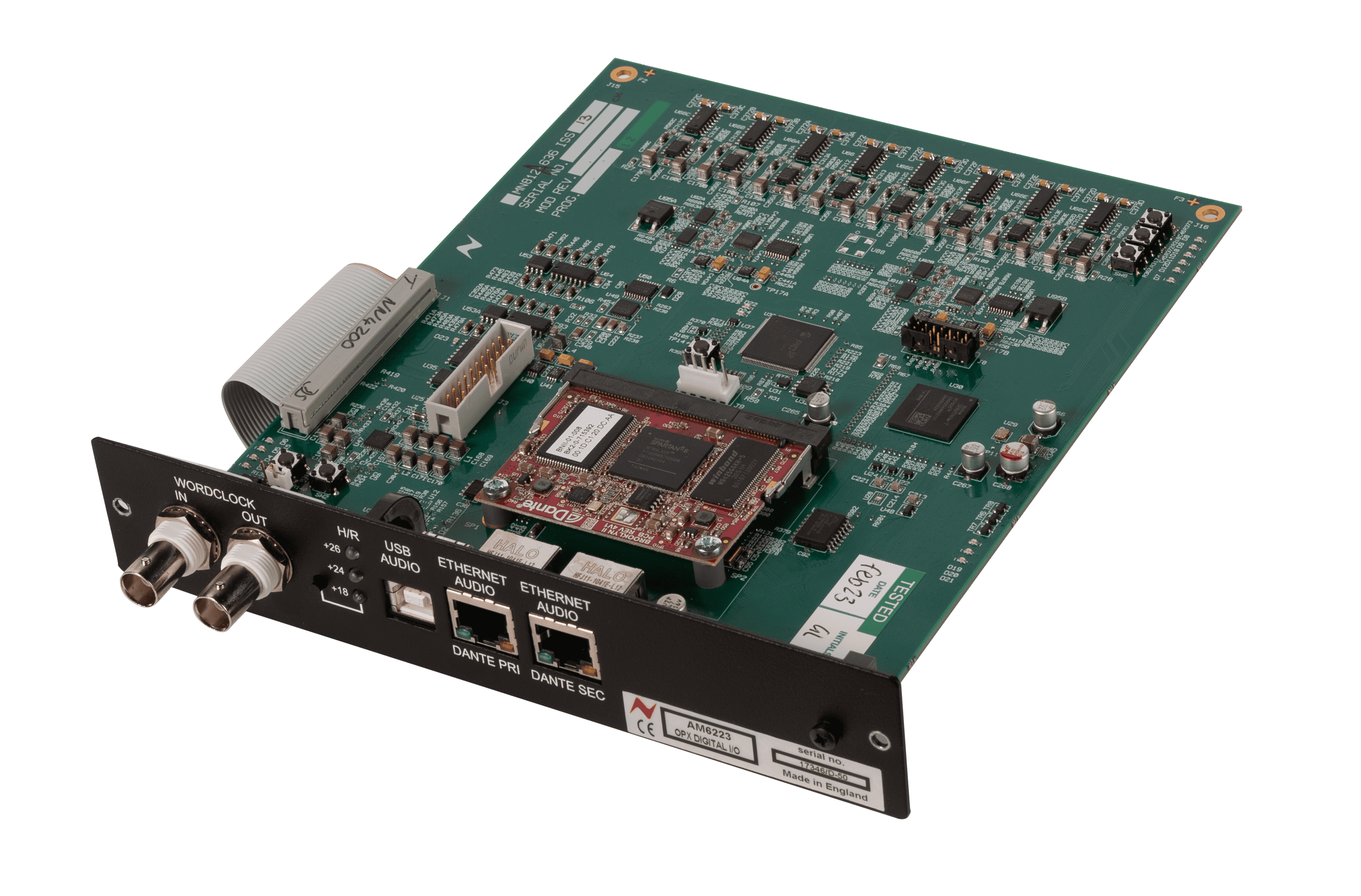

Factory installed in your AMS Neve 1073OPX, the Digital I/O card adds a USB and Dante AD/DA interface with eight channels of analog-to-digital conversion for each 1073OPX preamp output, plus two channels of digital-to-analog conversion for the digital monitor return signal path. The USB connection allows the 1073OPX to be connected to a DAW running on a PC or Mac and can serve as your primary/Core Audio interface. In addition to the USB connection, primary and secondary Dante connections permit the 1073OPX to be connected to any Dante Audio-over-IP network as a Dante-enabled preamp.
Specifications:
- 8 channels of remote-controlled 1073 mic/line/DI preamplifiers
- Proprietary Neve Marinair transformers on microphone input
- Class A transformer-less DI input
- Remote control software can control up to 8 1073OPX racks at a time (64 preamps)
- Automatic total recall of all settings
- Front-panel mic/line/DI combo input
- Rear-panel mic/line/DI D-type connection
- 80Hz highpass filter; 25dB pad; Polarity reverse
- Smart phantom power control
- Lo-Z button switches impedance from 1.3kΩ to 300Ω
- Microphone input: Gain 20dB to 70dB in 1dB steps
- Line input: Gain –20dB to +20dB in 1dB steps
- DI input: Gain 30dB to 60dB in 1dB steps
- Separate stereo monitor path with independent level control
- Latency-free monitoring of all signal sources
- 8 front-panel DI inputs for instrument tracking
- Front-panel headphone output
- Digital I/O module adds USB, Dante, and word clock connectivity
- Designed and crafted in England by AMS Neve engineers
