1073SPX-D

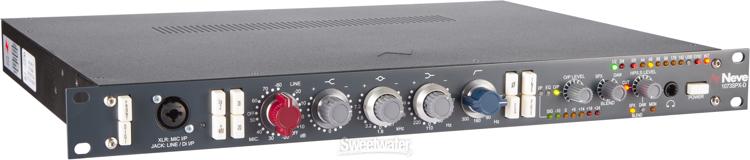

There’s never been a signal processor more famous or revered than the Neve 1073. With its uniquely euphonic tonal quality, seductive warmth, low-mid punch, and subtle harmonic distortion, the 1073 has provided studios with the industry’s most esteemed front end for producing radio-ready product that blasts right out of the speakers. Carrying on the 1073 pedigree, the Neve 1073SPX-D gives you a genuine 1073 preamp/EQ module seamlessly integrated with an innovative USB interface in a tidy 1U chassis with the superior build quality for which Neve is famous.

The 1073SPX-D also offers ADAT Lightpipe I/O that allows it to act as an audio expander for existing ADAT-equipped audio interfaces such as the Neve 1073OPX or another 1073SPX-D, making it easy to integrate a complete 1073 channel strip into your studio and expand your setup as necessary. Considering all that it does, the Neve 1073SPX-D is poised to simplify workflows across a broad range of audio production scenarios.

Specifications:

• Complete 1073 channel strip and audio interface in a 1U 19-inch rackmount chassis
• Seamless integration into modern studio configurations
• 1 Mic input, 1 Line input, 1 Line output, Insert send/return
• 8 x 8 ADAT Lightpipe optical I/O
• Discrete Class A circuit design delivers the legendary Neve sound
• 1073 Mic Preamp with 80dB of gain handles even your lowest output passive ribbon mics
• 48V phantom power accommodates your condenser microphones
• Classic 3-band 1073 inductor-based equalization
• 18dB/octave highpass filter, selectable at 50Hz, 80Hz, 160Hz and 300Hz
• Custom Neve Marinair input and output transformers
• Packed with versatile features, including balanced inserts, metering, output fader, and more
• Complete audio Interface provides a robust all-in-one solution for multiple studio workflows
• Pristine 24-bit/192kHz AD/DA conversion complements the classic 1073 analog circuitry
• Plug-and-play connectivity via class-compliant USB connection
• ADAT-to-USB integration enables I/O expansion for enhanced tracking and mixing capabilities.
• ADAT expansion mode augments an existing audio interface with a complete 1073 channel strip
• DIGI I/O routing lets you use the 1073 as a hardware insert in your DAW
• Multiple DAW monitoring pathways for enhanced flexibility
• Monitor Blend feature for customized, latency-free monitoring
• Powerful headphone amplifier drives any vintage or modern headphones
• Lo-Z button optimizes impedance for a wide range of vintage or modern mics
• Front-panel Combi input: XLR = Mic, 1/4-inch jack = Line/DI for instruments
• Stepped Elma rotary switch delivers accurate levels throughout the gain range, obviating the need for a mic/line switch
• 3 distinct gain stages provided by 2 independent preamps provide gain for DI, Line, and Mic signals
• USB-to-Host: Type-B USB 2.0 port for connection to Mac/PC
• L/R Monitor I/O
• Word clock out
• Meticulously crafted by Neve in the UK
