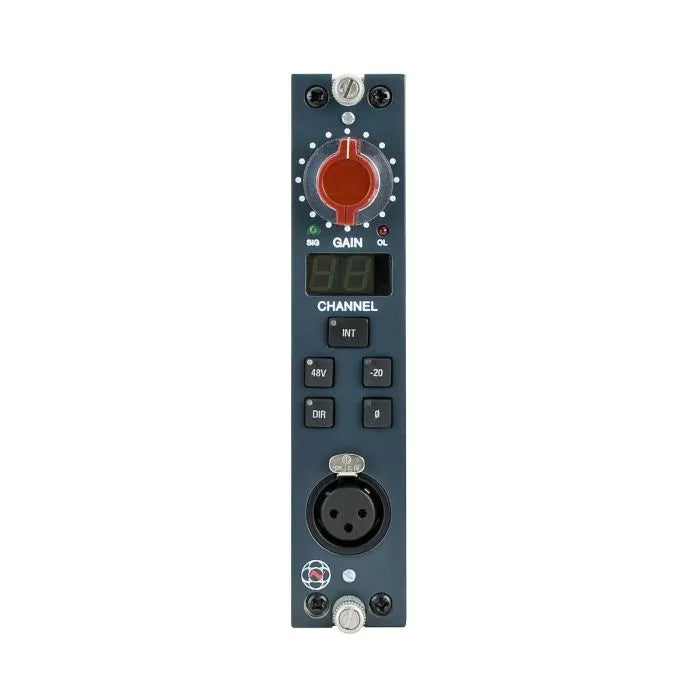

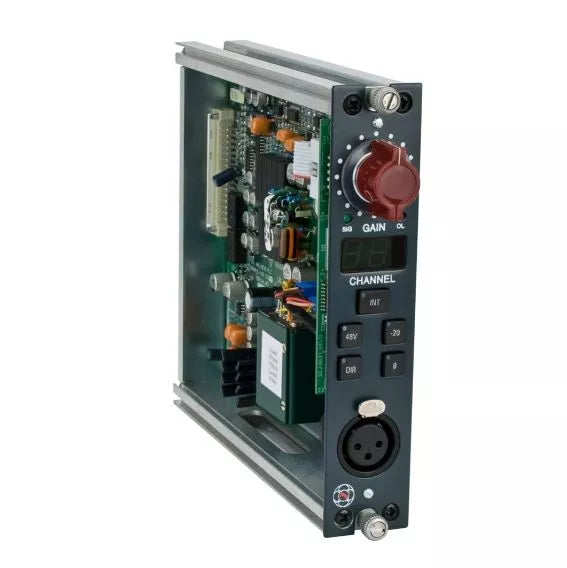

The Neve 1081R Classic Mono Mic Module is a remote controlled mic preamp for use in the Neve 1081R rack.
The 1081R is the ideal solution for engineers seeking multiple channels of Neve sound quality without investing in a new console. This system consists of a microprocessor-controlled 12-slot rack and a choice of two superb mic preamps, the Neve 1081 and Air Montserrat (from the vintage Air Montserrat console).
The 1081R (red knob) offers the perfect response for close miking of vocals, acoustic instruments, and percussion.
The 1081R rack is required to house 1081R modules (red knob or blue knob)
Specifications:
Audio Performance
Input Impedance: 1.2k Ohm, @1kHz
Gain: +20 to +70 in 5dB steps
Distortion: not more than 0.07% for 20dBm output from 50Hz to 10kHz @ 60dB gain
Noise: (22Hz to 22kHz bandwidth) EIN better than -123dB @ 60dB gain
Microphone Maximum Input Level with ‘pad’ in: +24dB
Max Output: +26dBu into 600 Ohms
Output impedance: 50 Ohms +/-5%@1kHz, balanced
Rack Specification (fully populated)
Power: < 40w, 100-240v auto sensing, 47-63Hz, 1.6A Anti Surge Fuse.
Mechanical: 4U x 19″ 260mm deep.
Audio Connections: 12 balanced circuits on a 56-way panel mounted female Varicon.
Control Connections: 2 x 9 Pin D Type ‘Male’ input and ‘Female’ output, RS485 format (adaptors required for serial RS232).
