- Heavy-duty SKB travel case
- SMS stereo bar
- Two NUVO Windscreens
- Posi-Lok Mic Hanger
- NUVO Blumlein coupler
- Mounting hardware

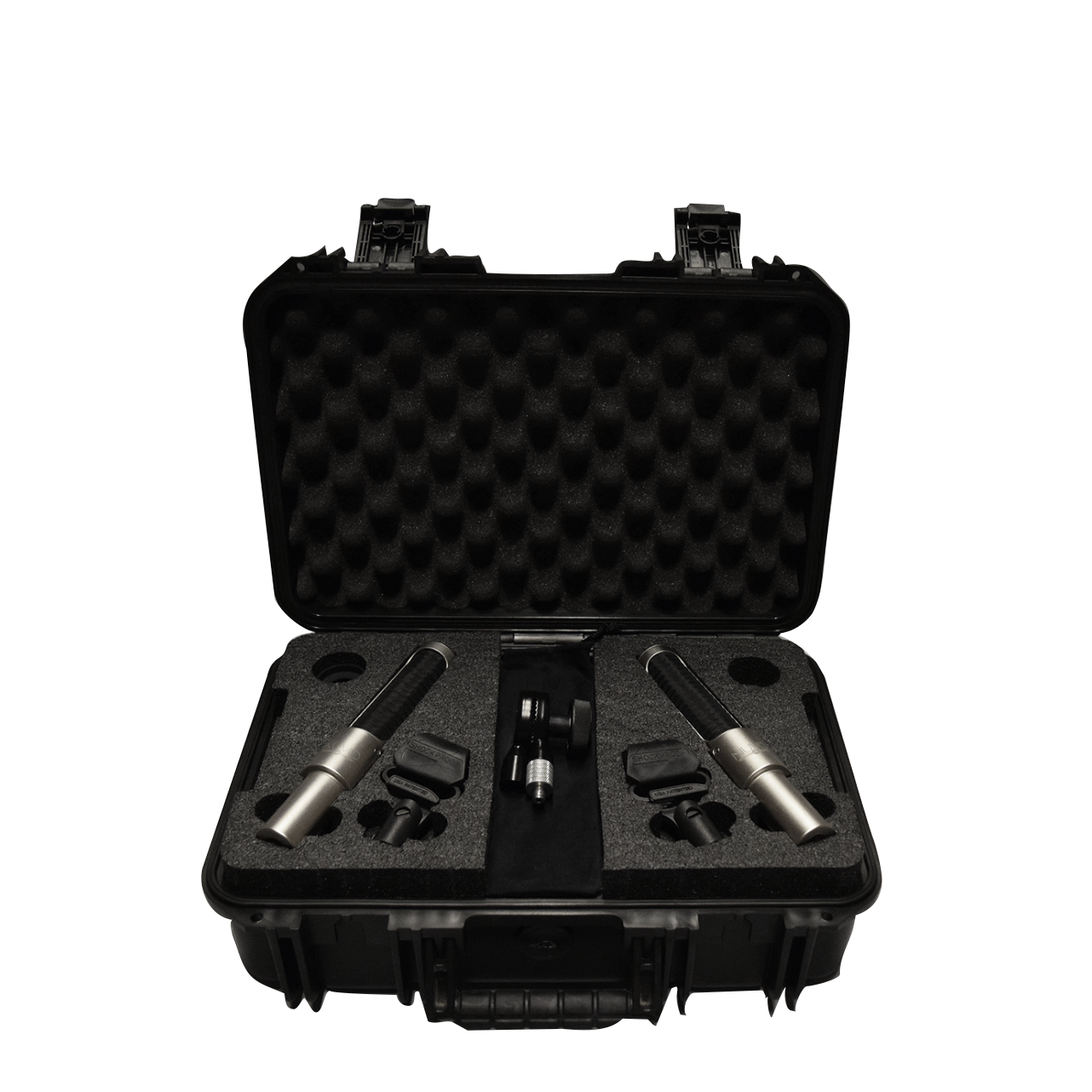

The NUVO Stereo Kit conveniently houses two N22s and comes with all of the accessories necessary to easily configure the figure-eight microphones in Blumlein and near-coincident.
MAKING YOUR MICS MORE FLEXIBLE

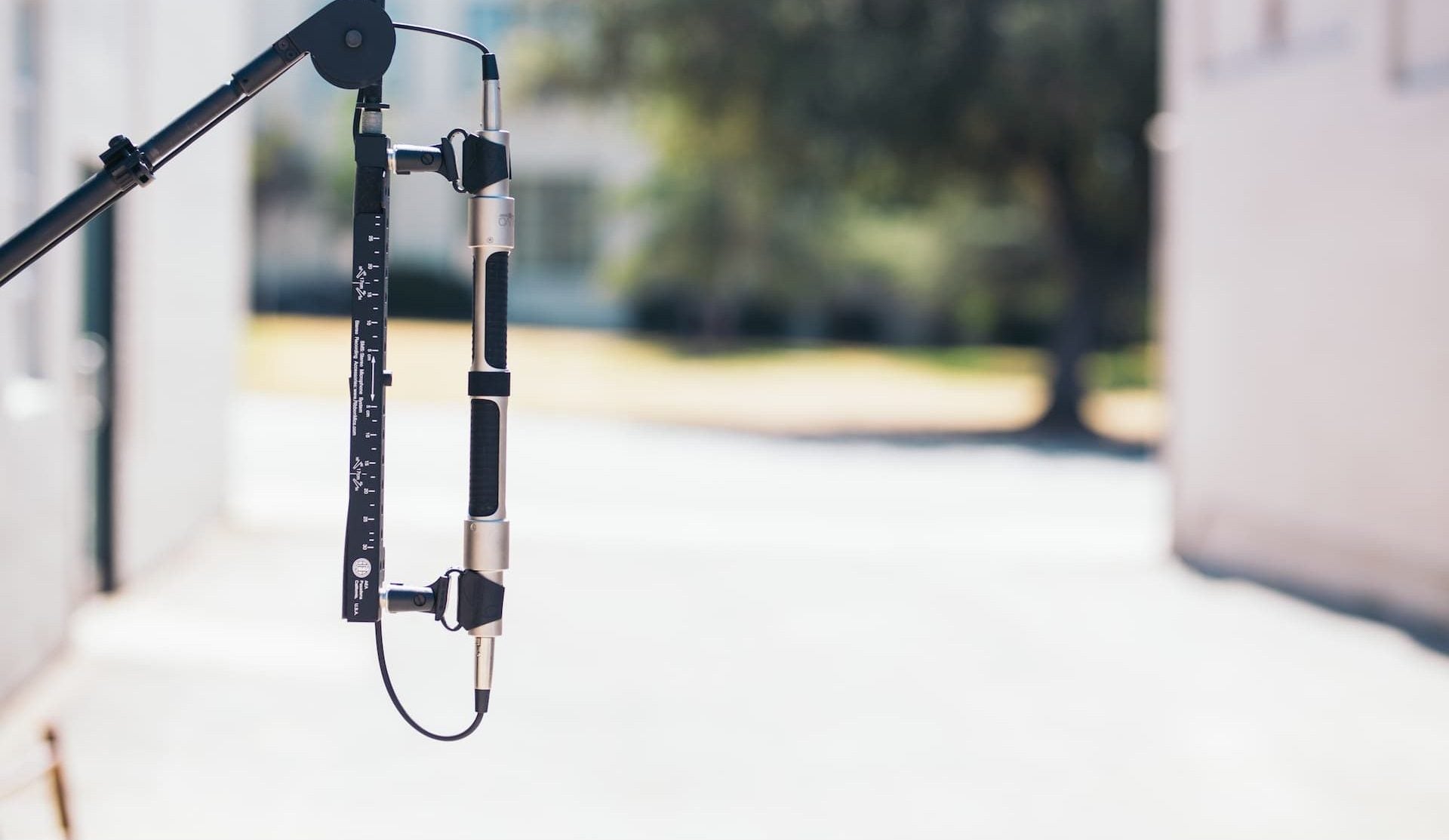

The NUVO Coupler allows you to easily connect two NUVO microphones top-to-top in Blumlein and Mid-Side configuration so that the two microphones will stay locked in place.
The kit also includes two NUVO Windscreens which allow you to bring your NUVOs outdoors, on the road, and even avoid using a pop-screen with your microphones.
WHAT'S IN THE KIT
Specifications
- Operating Principle: Pressure gradient microphone
- Directional Pattern: Bidirectional or Figure-of-8
- Frequency Range: 20 Hz to 20 kHz
- Maximum SPL: 141 dBSPL (1% third harmonic > 1 kHz)
- Output Sensitivity: 6.2 mV/Pa (-33.5 dBV) into unloaded circuit
- Output Impedance: 92 Ω broadband
- Recommended Load Impedance: 1.0 kΩ or greater
- Powering: P48 phantom power, 7 mA
- Polarity: Pin 2 high for positive pressure at the front of the microphone.
- Connector: XLR-3M
Off Axis Response:
- Polar Pattern: Native bidirectional pattern
- Horizontal: Level changes with angle, frequency response is consistent, –35 dB null at 90° / 270°
- Vertical: Level changes with angle, reduced HF response above and below 0° / 180° axis, –35 dB null at 90° / 270°
Transducer element:
- Ribbon Thickness: 1.8 μ (0.0000018 m) of pure aluminum
- Ribbon Width: 0.185” (4.7 mm)
- Ribbon Length: 2.35” (59.7 mm)
Accessories:
- Included: Storage / shipping case, microphone stand clip, custom protective mic sleeve, user manual
- Optional: Matched stereo pair, NUVO Windscreen, NUVO Stereo Kit
- Limited Warranty: One year parts and labor, shipping not included. Three year extended warranty if the product is registered.
- Weight with Cable: 1 lb 13 oz (810 g)
- Weight with case: 12 oz (335 g)
- Height: 8.83” (32.4 cm)
- Width: 1.62” (4.1 cm)
- Depth: 1.62” (4.1 cm)
