AEA

R88

  • Sale
  • Regular price R 50,440.00

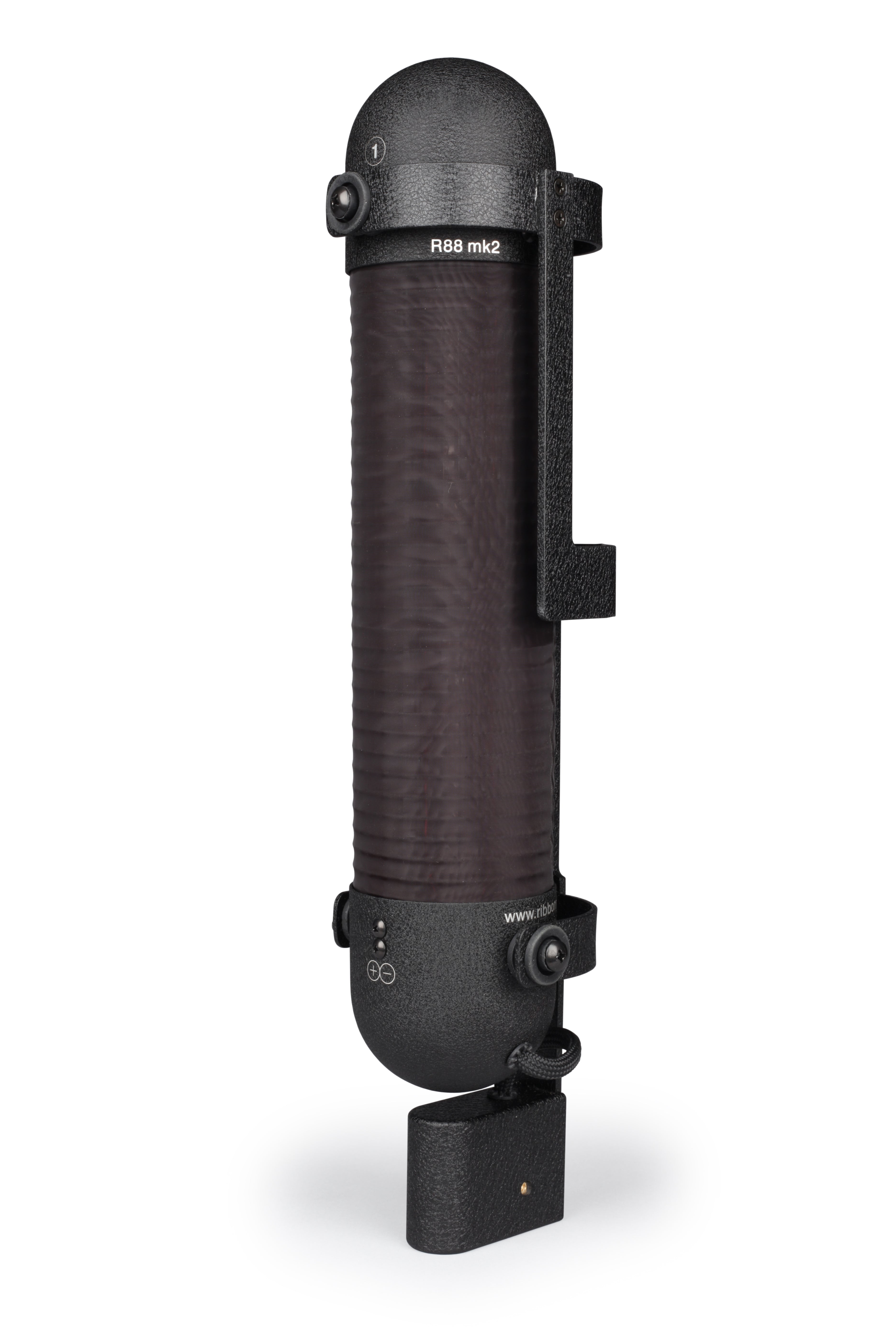

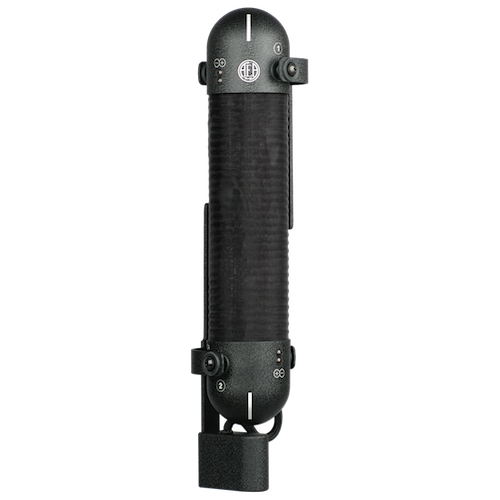

The stereo R88 captures a space as it sounds live and in person, with all the present subtlety and nuance. Its expansive frequency response and balanced low end make it superbly effective when capturing the full breadth of sound from the back of a room or above a drum set.

Alongside the mono AEA N8, it boasts the widest frequency range of any mic in the AEA lineup and effortlessly manages more complex source audio like drums, strings, piano, and other instruments that produce intricate transients, harsher highs, and bellowing lows. The Blumlein configuration of the ribbons allows for a sweeping range of perspective, so an entire ensemble and room can be captured by the R88 alone.

The R88A retains the same sonic character of the R88 but offers an additional 12dB of output and a stable impedance that allows flexibility when recording quiet sources through any preamp.

Specifications

  • Operating Principle: Pressure gradient microphone
  • Directional Pattern: Bidirectional (Figure-of-8)
  • Frequency Range: 20 Hz to 20 kHz
  • Maximum SPL: 165+ dBSPL (1% third harmonic > 1 kHz)
  • Output Sensitivity: 2.5 mV/Pa (-52 dBV) into unloaded circuit
  • Output Impedance: 270 Ω nominal
  • Recommended Load Impedance: 1.2 kΩ or greater
  • Powering: Not required or recommended
  • Polarity: Pin 2 and 4 high for positive pressure on front of microphone.
  • Connector: XLR-5M connector, includes breakout cable to 2x XLR-3M

Off Axis Response:Polar

  • Pattern: Native bi-directional pattern
  • Horizontal: Level changes with angle, frequency response is consistent, –35 dB null at 90° / 270°
  • Vertical: Level changes with angle, reduced HF response above and below 0° / 180° axis, –35 dB null at 90° / 270°

Transducer element:

Ribbon Thickness: 1.8 μ (0.0000018 m) of pure aluminum

Ribbon Width: 0.185” (4.7 mm)

Ribbon Length: 2.35” (59.7 mm)

Accessories:

  • Included: Custom storage / shipping case, manual, 12-foot breakout cable, swivel
  • Optional: Any length cable, inquire for price and delivery.
  • Limited Warranty: One year parts and labor, shipping not included. Three year extended warranty if the product is registered.
  • Weight with Cable: 5 lb 3 oz (2.36 kg)
  • Height: 15” (38.1 cm)
  • Width: 3”
