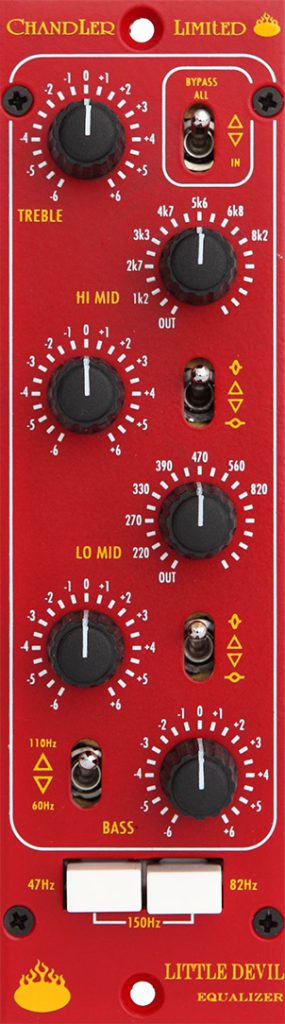

The Little Devil EQ is a small package with a huge sound; it is a Chandler-ized British console sound in a 500 package!
This Devil has all discrete circuits with custom transformers, an inductor-based EQ that modern gyrator circuits can't touch, and a classic Baxendall tone control that is simply huge sounding! These units are all handmade using through-hole components and handwiring. We don't use surface mount components which, in our opinion, lowers the quality. Chandler's units are extremely high-quality made the way your favorite vintage units were made to preserve that special sound.
Please note that all Devils feature increased compatibility! No power issues here!
Specifications:
Circuit Type | Class A, Discrete, Silicon Transistor |
Channels | Mono |
Feature Set | Treble shelf +/-18 dB, Treble 12 kHz, switchable Bass shelf +/-18 dB, 50/110 Hz switchable Hi and Lo Mid +/-18db with HI and LO “Q” switching on each band Hi Mid: 8k2, 6k8, 5k6, 4k7, 3k3, 2k7, 1k2. Lo Mid: 820, 560 470, 390, 330, 270, 220 Hz. Filter: 47, 82, and 150 Hz, switchable Bypass: True bypass |
I/O | 500 Series format (frame dependent) |
Power | 500 Series format: +/-16V Max. current draw: +16V @ +90mA / -16V @ -70mA |
