Chandler LTD

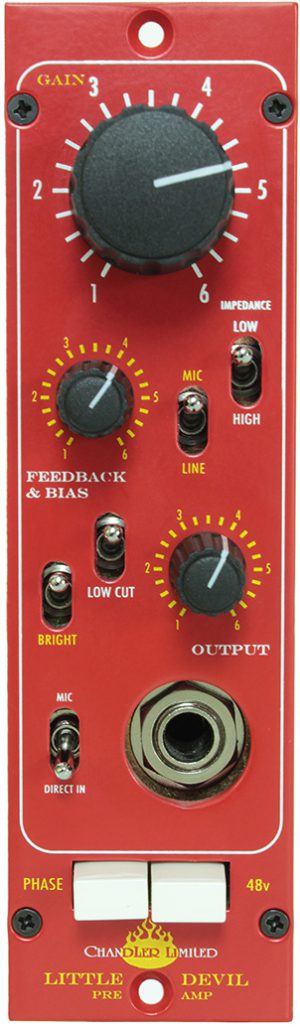

Little Devil Pre Amp

  • Sale
  • Regular price R 27,392.00


The Class A gain stage sounds like no other design we've done. It's big, yet open and full of life. Just about any parameter of the sound is changeable including the ability to change both the Feedback and Bias of the amplifier. The Feedback control increases harmonics thousands of times over the range of the control. The nature of clipping and distortion also changes and ranges from soft Class A clipping to super soft gushy tube type. The sounds range from a very colored and "overbiased" tone to a gently colored and "in your face" tone.

Other features of the Little Devil Pre include High and Low input impedance; transformer balanced line in for using the Devil as a color box on mixes or tracks; low cut; bright switch and more! This unit has no power-up issues with lunchboxes and rack systems.



Specifications:

Circuit Type Class A, Discrete, Silicon Transistor
Channels Mono
Feature Set Gain: Max 66.5db, continuous
Feedback & Bias
Input Impedance: 1200/300Ω (Ohms), switchable
Input: Mic/Line switchable
Mic— Transformer balanced, Impedance: 1200/300Ω (Ohms)
Line— Transformer balanced, Impedance: 10kΩ (Ohms)
Output control
Low Cut
Bright mode
D/I 1/4" mono
Phantom Power: +48V, switchable
Phase (Polarity): 0/180º, switchable
I/O 500 Series format (frame dependent)
Power 500 Series format: +/-16VDC
Max. current draw: +16V @ +105mA / -16V @ -70mA
