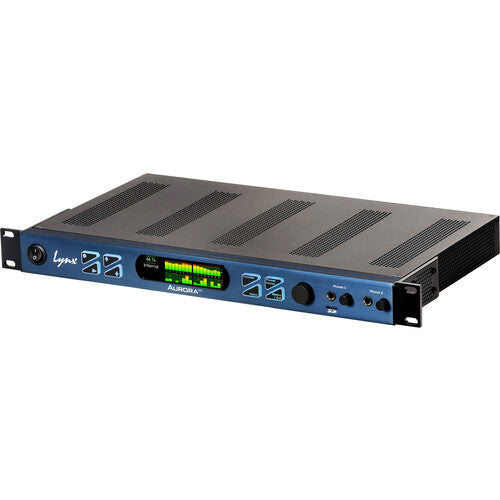

Lynx Studio Technology Aurora(n) 24 HD2

R 103,915.00

1
2
3
4
5
6
7
8
9
10 +

Quantity

Description
Tab
Info

Overview

The Lynx Studio Technology Aurora⁽ⁿ⁾ 24 HD2 is preconfigured with 24 analog ins and 24 analog outs on six DB-25 connectors. It is also equipped with a Lynx LT-HD2 Pro Tools HD and HDX interface card that emulates the interface characteristics of the Avid HD I/O converter, allowing seamless operation with Avid systems including HDX and HD Native.

The Aurora⁽ⁿ⁾ 24 HD2 is a mastering-grade 24-in / 24-out AD/DA converter, which supports up to 24-bit / 192 kHz conversion. Design and technology borrowed from the development of Hilo converters is used to significantly improve specifications and transparency over previous models, while attaining stunning Hilo-like performance. Ideal for audio engineers and producers who demand the most pristine recordings and mixes, the 24 HD2 delivers coloration- and degradation-free signal for mission-critical audio applications in studios, mastering facilities, remote recordings, broadcast and live performance facilities.

The unit features an onboard microSD player/recorder capable of up to 32 channels of direct recording and playback, ideal when working in the field. Two headphone outputs with independent volume control let you monitor your sound with audiophile-grade precision, while a bright TFT LCD display gives you immediate access to all levels and functions, right from the front panel.

Features at a Glance

Mastering-quality, 24-in / 24-out AD/DA conversion at up to 24-bit / 192 kHz.
24 analog ins and 24 analog outs on six DB-25 connectors.
Preinstalled Lynx LT-HD2 Pro Tools HD and HDX interface card.
Wordclock I/O: one input and three outputs on BNC connectors.
Onboard microSD player/recorder capable of up to 32 channels of direct recording and playback.
Two audiophile-grade headphone outputs with independent volume control.
480 X 128 TFT LCD display provides immediate access to all levels and functions and ensures that you see every piece of critical data, from just about any viewing angle.
Universal power supply built in, no wall warts.
1 RU rack-space design with no fan provides silent operation, so you can keep unit in the recording room, with no need for isolation from distracting fan noise.
Full Windows and OSX compatibility.

Specifications:

General

Form Factor: Rackmount (Rack-Mountable with Included Hardware)
Converter Type: AD/DA Converter
Number of Channels: 24x A/D, 24x D/A
Display: 1x Color TFT
Maximum Sampling Rate: 192 kHz / 24-Bit
Number of Microphone Inputs: 24

Signal Processing

Gain/Trim Range: DB-25 Mic/Line Inputs, Outputs:
+4 dBu (Pro)
-10 dBV (Consumer)

Connectivity

Analog Audio I/O: 3x DB-25 25-Pin Balanced Mic/Line/8-Channel Input, 3x DB-25 25-Pin Balanced Mic/Line/8-Channel Output, 2x 1/4" TRS Headphone Output
Phantom Power: No
Digital Audio I/O: No
Host Connection: 2x DigiLink Mini (on Interface)
Host Connection Protocol: Avid Proprietary
USB (Non-Host): No
Sync I/O: 1x BNC Clock Input, 3x BNC Clock Output Network I/O: No
MIDI I/O: No
Expansion Slots: No
Wireless: No

Performance

Frequency Response: DB-25 Line Inputs: 20 Hz to 20 kHz ±0.01 dB
1/4" Headphone Outputs: 20 Hz to 20 kHz ±0.025 dB
DB-25 Line Outputs: 20 Hz to 20 kHz ±0.025 dB
Maximum Input Level: 20 dBu
Maximum Output Level: 18.4 dBu
Headphone Output Power: 68 mW into 135 Ohms135 mW into 300 Ohms
383 mW into 60 Ohms
212 mW into 32 Ohms
100 mW into 16 Ohms

Impedance

Inputs100 Kilohm (Unbalanced)
200 Kilohm (Balanced)

Dynamic Range

Line Inputs: 119 dB
Line Outputs: 120 dB
Headphone Outputs: 120 dB

THD+N

Line Inputs: -113 dB
Line Outputs: -108 dB
Headphone Outputs: -107 dB

Crosstalk

Line Inputs: -130 dB (@1kHz -1dbFS)
Line Outputs: -130 dB (@1kHz -1dbFS)
Headphone Outputs: -120 dB (@1kHz -1dbFS)

Digital Audio

Sample Rates: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz
Sample Rate Conversion: No
Bit Depths: 24-Bit
Sync Sources: Word Clock
Clocking
Word Clock: Input Termination: 75 Ohms

Compatibility

OS Compatibility: Windows 7 or Later / macOS 10.9 or Later
OS Compatibility: Windows 7 or Later / macOS 10.9 or Later
Processor Requirement: 1.6 GHz Intel or Better (64-Bit)
RAM Requirements: 4 GB (64-Bit)
Mobile App Compatible: No
Mobile Device Compatibility: No
Required Hardware: DigiLink Mini Port

Power

Power Requirements: AC/DC Power Adapter (Included)
AC Input Power: 100 to 240 VAC, 50 / 60 Hz

Physical

Rackmount Size: 1 U
Dimensions: 19 x 10 x 1.7" / 482.6 x 254 x 43.2 mm
