Lynx Studio Technology Aurora(n) LM-A24
- Description
- Tab
- Info

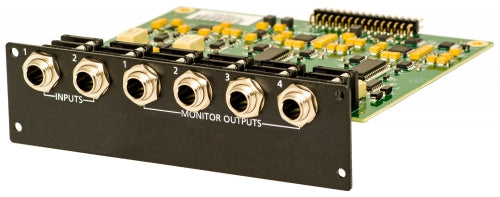

The LM-A24 is a specialty analog module that provide line-level I/O on TRS connectors. Designed to the same exacting standards Lynx converters are known for, it offers pristine transparency, excellent imaging, and ruler-flat frequency response.
The module provide an excellent solution for installations requiring a small number of dedicated I/O’s without the requiring an additional break-out cable. It also offers I/O levels up to +24dBu for extended compatibility with other pro studio equipment. An excellent example application is providing separate monitor outputs when other Aurora(n) line outputs are being fed to a summing mixer or to a patch-bay for inserts.
Key Features
- Lynx proprietary 24-bit A/D and D/A conversion
- Four electronically balanced outputs on TRS
- Output level adjustments in 0.5dB increments up to +24dBu
- Two electronically balanced inputs accept levels up to +24Bu on TRS
- Fully-differential transparent design
- Line level performance identical to LM-AIO8E
- Anti-pop relays on outputs for silent power-ups and -downs
- Seamless integration with Aurora(n)’s mixing and routing engine
Analog Specs
Line In (includes A/D Conversion)
-
THD+N: -113dB @1kHz, -1dBFS, 20kHz filter, +20dBu trim
-
Dynamic range: 119dB, A-weighted, -60dBFS signal method
-
Frequency response: ±0.010dB, 20–20kHz
-
Crosstalk: -130dB maximum @ 1kHz, -1dBFS signal
-
Common mode rejection: greater than 80dB
-
Full-scale trim settings: +20dBu, +24dBu
-
Connection: Electronically Balanced TRS
Line Out (includes D/A Conversion)
-
THD+N: -108dB @1kHz, -1dBFS, 20kHz filter, +20dBu FS setting
-
Dynamic range: 120dB, A-weighted, -60dBFS signal method
-
Frequency response: ±0.025dB, 20–20kHz
-
Crosstalk: -130dB maximum @ 1kHz, -1dBFS signal
-
Output level: -71.5dBu to 24dBu, adjustable in 0.5dB increments in the analog domain
-
Connection: Electronically Balanced TRS
