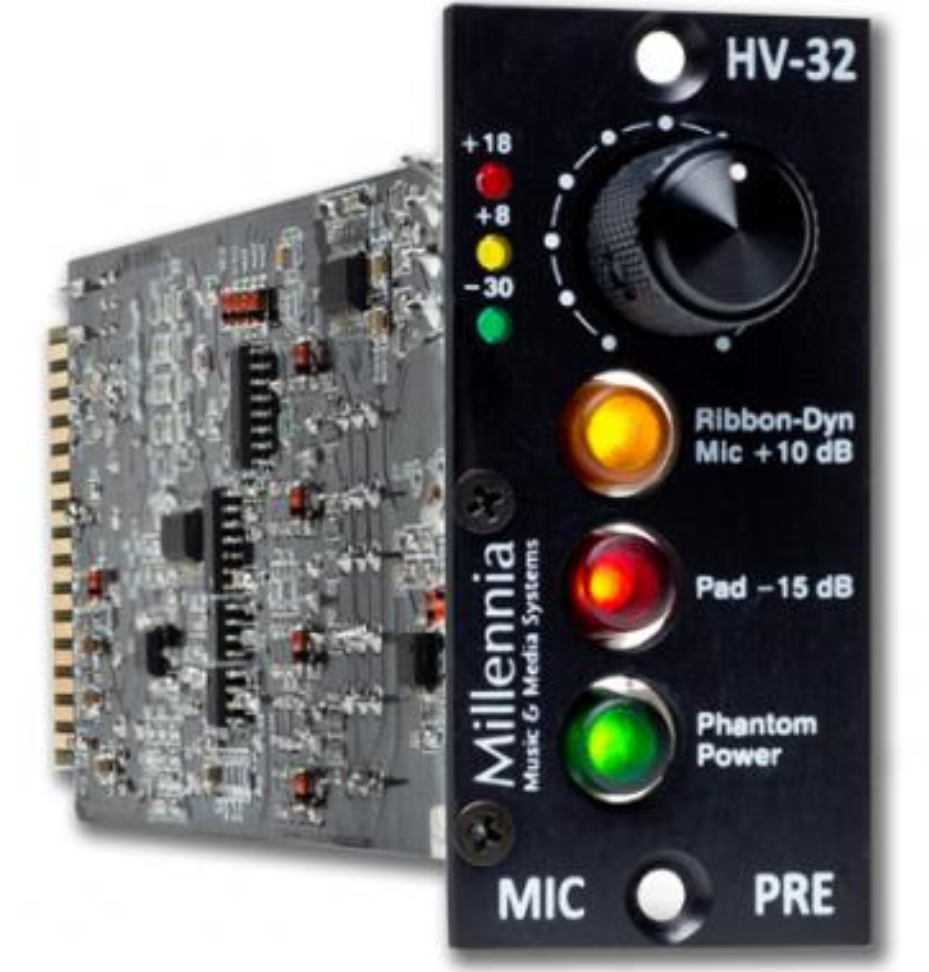

HV-32
Single Channel API 200-Rack Microphone Preamp
Authentic Transparency for Unrestricted Creativity
- Fits in API 200 frame and API Legacy and Vision consoles
- Continuously variable gain control
- DC coupled ribbon mic with 10dB gain boost setting
- 48V phantom power
- 15 dB Pad
Specifications
- otal Harmonic Distortion + Noise
- (35 dB Gain, 10 Hz - 20 kHz bandwidth, +27 dBu Out): < .001%, Typ. < .0005% (< 5 ppm)
Inter-modulation Distortion
- (50 Hz & 7 kHz) 35 dB Gain, +27 dBu Out): < .0009%
Phase Response
- (35 dB Gain, 50 Hz - 20 kHz bandwidth, +27 dBu Out): < 2 degrees deviation
Common Mode Rejection Ratio
- (35 dB Gain, 10 Hz - 20 kHz bandwidth, 100 mV C.M.): > 65 dB, Typ > 85 dB
- Slew Rate (35 dB Gain, +27 dBu Out): > 25 Volts per microsecond
- Maximum Input Level (20 Hz - 40 kHz): +20 dBu (no attenuator pads required)
- Maximum Output Level (20 Hz - 40 kHz): +28 dBu
- Phantom Input Impedance (1 kHz): 6,750 ohms
- Output Impedance: 24.3 Ohms (x2)
- Phantom Powering: +48 V dc, +/- 2 V dc
- Dimensions/Shipping Weight: 1-1/8” W x 2-5/8” H x 5-7/8” D, 1 lb.
