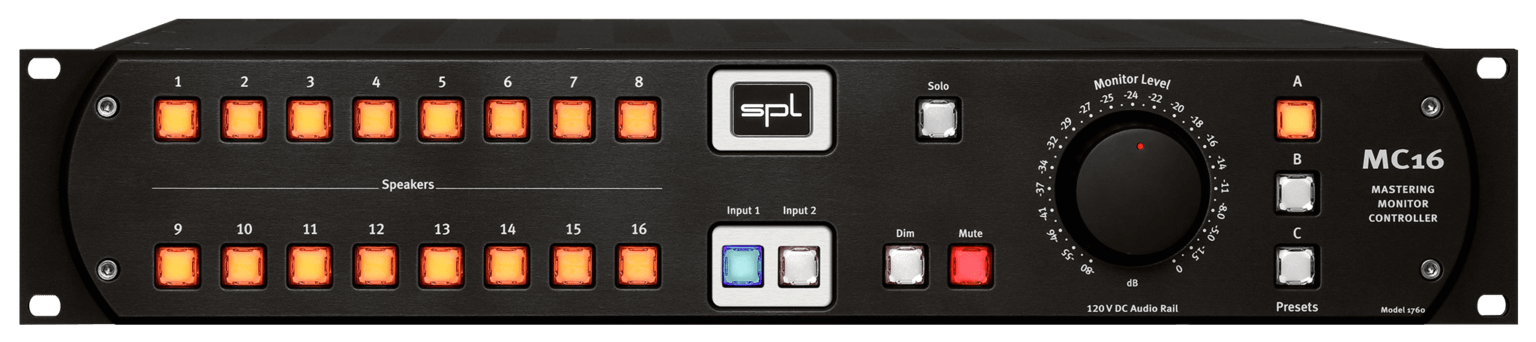

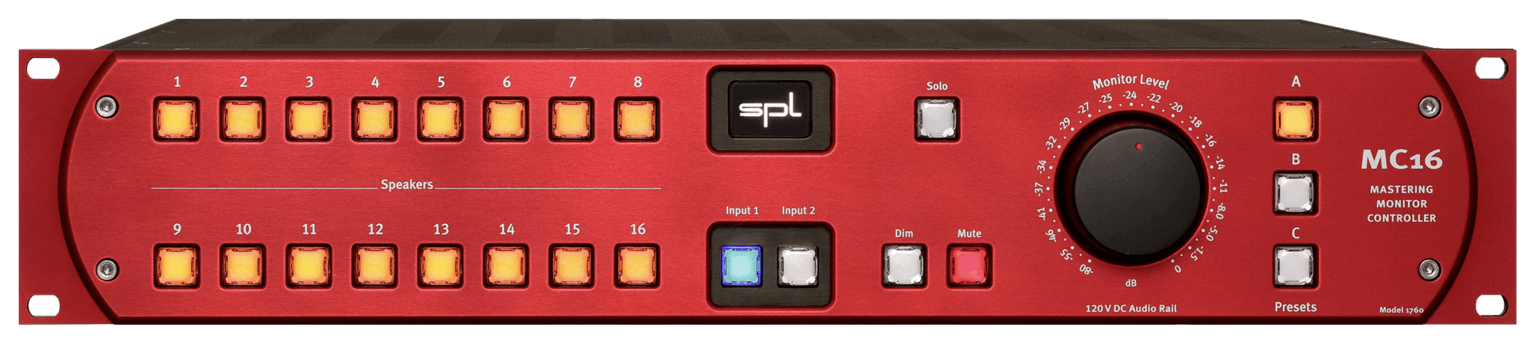

Designed for today's modern mastering environment, the SPL MC16 is a 16-channel analog monitoring controller accommodating multiple formats, including Dolby Atmos and Auro 3D. It's intended for use with the DMC stereo mastering console, allowing users to work in all current playback formats without repatching their speakers or gear.
For level control, SPL has provided a gang-precision pontentiometer that controls the relational level of all 16-channels in a seamless way, so that no one channel is affected more than any other. You'll find your usual solo, mute, and dim options, but one of the key innovations lies under the hood: 120V DV audio rails that allow for exceptional headroom, giving you clean sound at all levels.

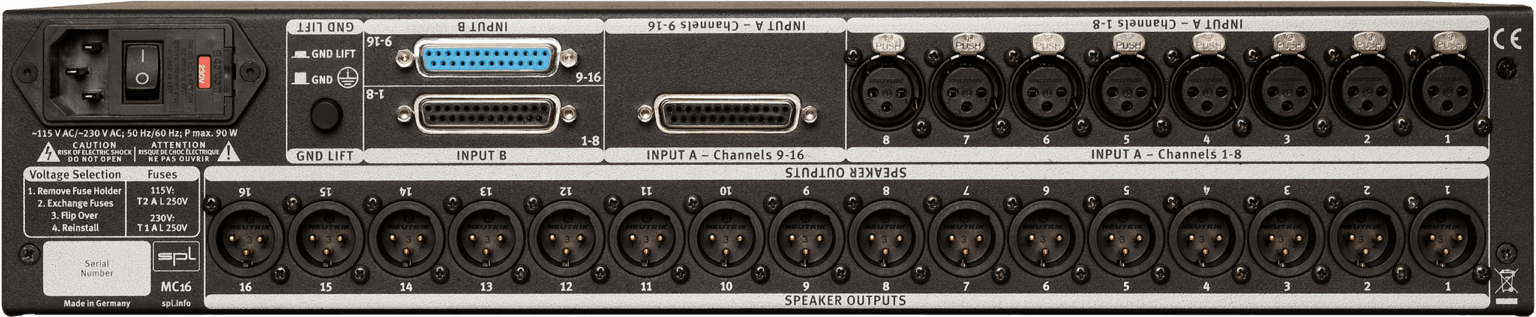

On the rear of the device you'll find connection points for XLR and DB25 terminations. You can program three monitoring presets in the A, B, and C slots. Select among banks of inputs with switches on the front panel. Mute and unmute any of the 16 speaker outputs with the press of a button. A power cord is included.
Key Features
- Accommodates Atmos & Auro 3D Formats
- 16 XLR Speaker Outputs
- XLR & DB25 Connections
- Ganged Potentiometer for Even Control
- 3 Programmable Presets
- Solo, Dim, Mute Controls
- 120 V Rails for High Headroom
- Power Cord Included
