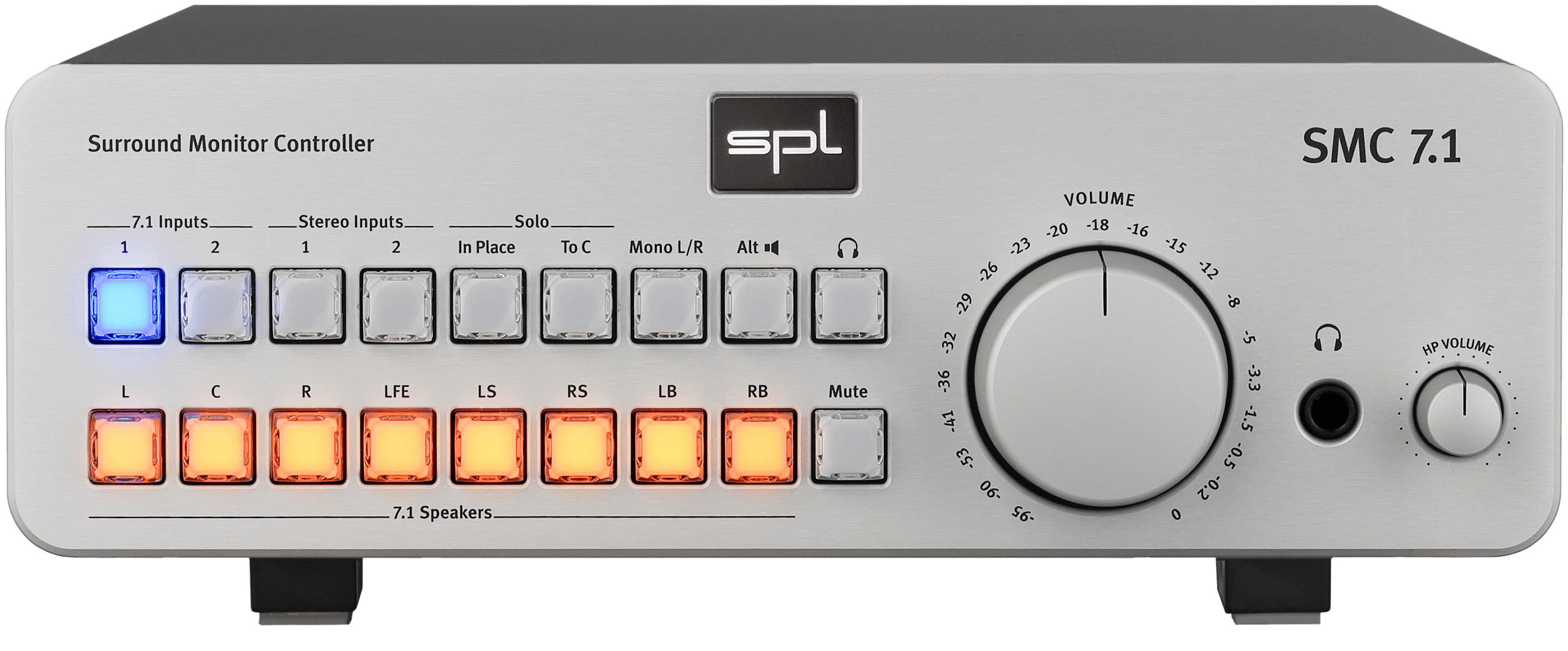

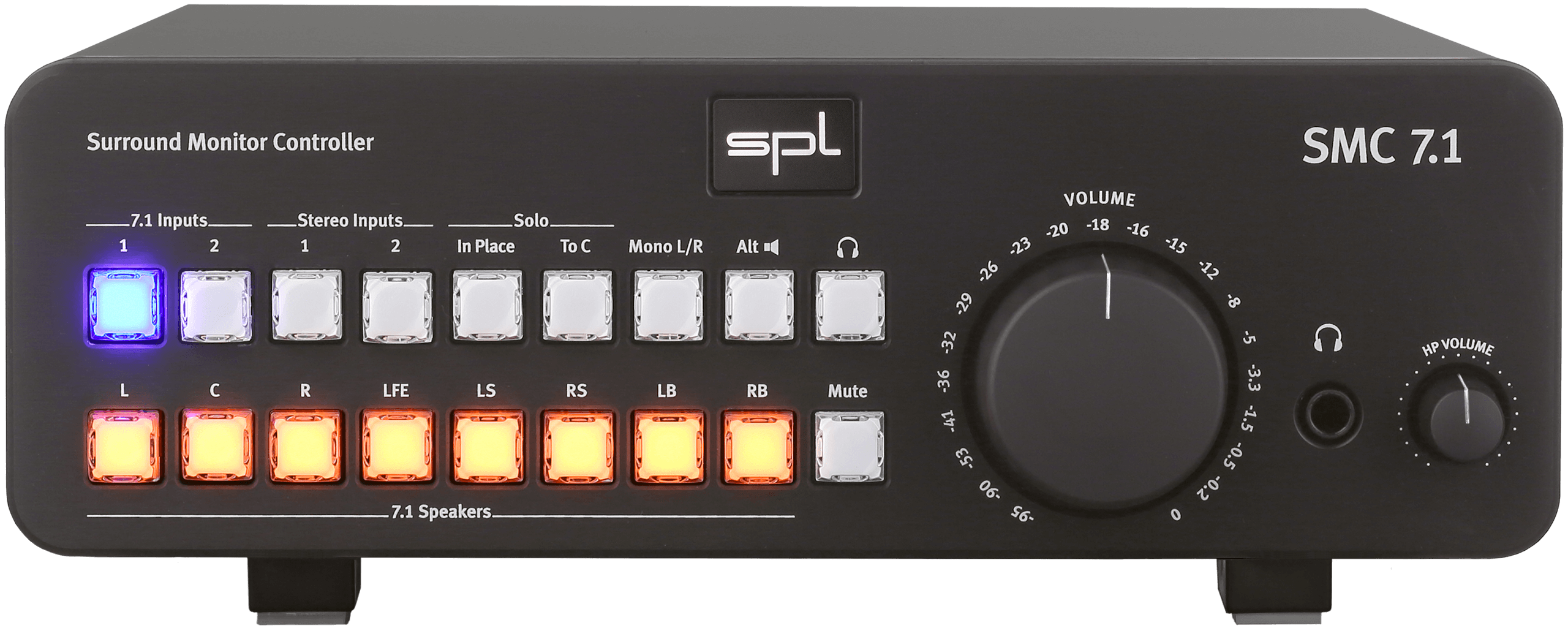

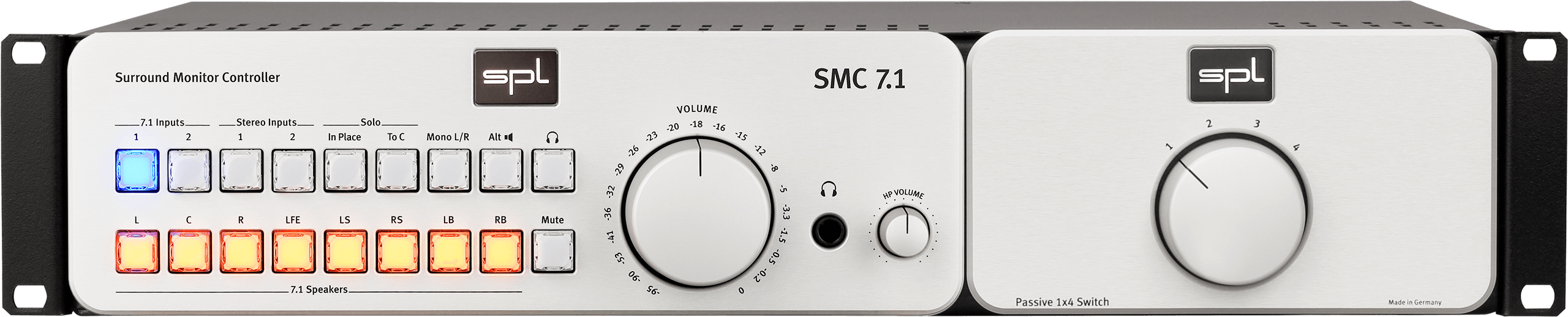

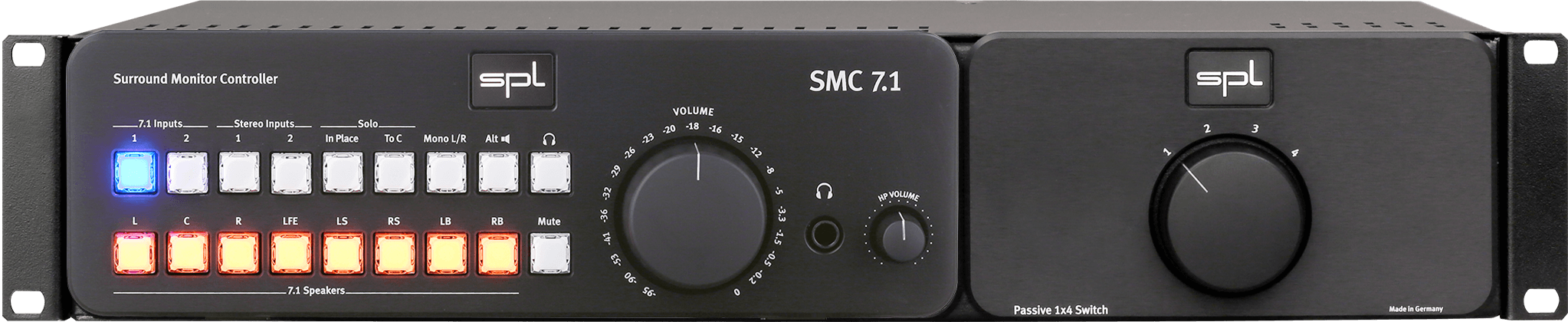

The SPL SMC 7.1 Surround Monitor Controller is an analogue controller for 7.1 and stereo sources. Each of the two balanced 7.1 inputs and the two balanced stereo inputs can be routed to the balanced 7.1 output. The L/R signals of the active input can be routed to the alternative stereo output is desired, and with the high-quality headphone amplifier, you can listen to the L/R signal of the active input as well as to single channels of the 7.1 inputs. The eight-ganged potentiometer controls the volume of all channels directly. The SMC 7.1 is built up in high-quality analogue circuitry that ensures a linear frequency response up to 100 kHz as well as an outstanding dynamic range.
The main features of the SPL SMC 7.1 Surround Monitor Controller include:
- Inputs: Sub-D-25, Neutrik XLR
- Input Impedance: 20 kOhms
- Input CMR: -82 dB
- Max. Input level: +22 dB
- Outputs: Sub-D-25, Neutrik XLR Balanced, 6.3mm TRS Headphones
- Output Noise (A-weighted): -93 dB
- Power Supply: Analogue: +/- 18V PSU
- Mains Voltage (Switchable): 230V AC / 50Hz or 115V AC / 60Hz
- Fuses: 230V = T 500mA; 115V = T 1A
- Power Consumption: 25VA
- Dimensions: 278 x 103 x 333 mm
- Weight: 4.1 kg
