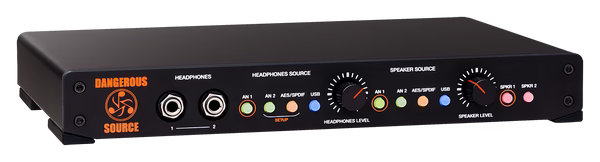

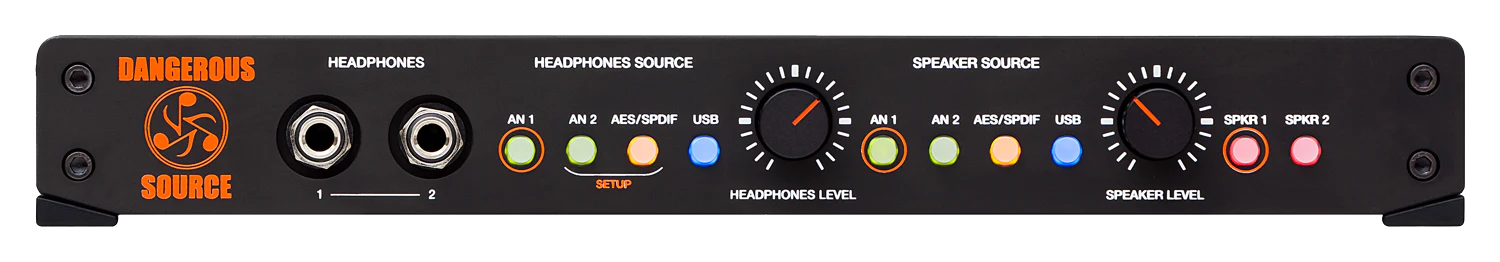

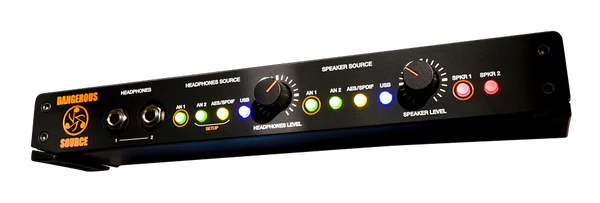

SOURCE Portable Monitor Controller

Just because you’re on the move with a portable rig or working in a project studio doesn’t mean you should sacrifice a single thing when it comes to monitoring. If anything, these are environments where you need the most accurate monitoring possible, so that absolutely nothing is left to guesswork! The SOURCE from Dangerous Music is a compact and affordable solution to all your monitoring needs with a no-compromise Chris Muth design strategy that’s made Dangerous monitoring products the worldwide standard among top professionals. Throw it in your backpack or use the rackmount kit for permanent installs, the SOURCE is ready for any job.

Specifications:

Input 1 to Selected Line Out and Speakers:

• Frequency Response: +0, -0.5dB from <10 Hz to >80 kHz

• THD+N: < 0.0025%  @+4dBu

• IMD  (SMPTE):  < 0.0025%  @ +4dBu

• Crosstalk rejection:  >108dB

• Noise: < -93 dB, unweighted

• NOTE: Speaker outs can run at -6dB (factory setting) or unity gain (remove jumpers 3 and 4)

• Maximum input level: > +26 dBu


Input 2 to selected line out and Speakers:

• Frequency Response : +0, -0.5dB from <10 Hz to >80 kHz

• THD+N: < 0.0025%  @ +4dBu

• IMD  (SMPTE): < 0.0026%  @ +4dBu

• Crosstalk rejection: > -98dB

• Noise: < -90 dB, unweighted

• NOTE: Input 2 can run at -10dBV or -16dBV (by setting JP1 and JP2. Remove for -10dBV)

• Default factory setting is -16dBV to accommodate 1/8” headphone outputs of iPhones and cell phones

• Frequency Response: +0, -0.5dB from <10Hz to >50kHz


Outputs:

• The meter and speakers outputs are fully balanced and 600 ohm drive capable to >+26dBu.

• Volume knobs track better than +- 0.5dB from unity to -40dB.

• The headphone amp can easily drive several sets of cans.

• Maximum output level: > +26 dBu

• Shipping weight (in carton): 7 lbs.

• Dimensions: 12 3/4″ Wide x 8″ Deep x 1 5/8″ High


Digital inputs:

• The AES inputs lock from 32kHz to 192kHz sample rates with the following: <0.004% THD+N

• -0.2dB at 10 Hz and 22kHz (48kHz sample rate)

• -0.2dB at 10Hz and 34kHz (higher rates)

• Crosstalk Rejection: >103dB

• Power Supply: 12 volt, 2 Amp (Part number PSU-SRC)

• Optional Rack Kit: SRC (Source Rack Kit)
