The model 2960 brought a facelift to one of our best-selling products. Now the new SPL design represents the common origin of our channel strips Frontliner, Channel One and Track One.
However, technically we did not change anything to continue with tried and tested quality.

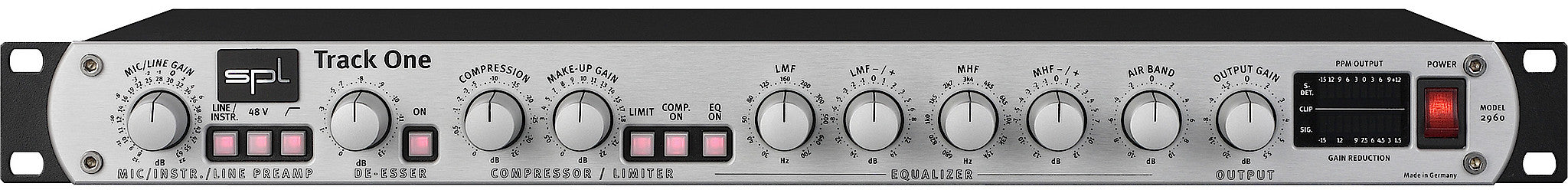

The Track One is a complete mono channel strip with a very attractive price/performance ratio. It is a perfect tool for the fast and safe recording of voices and instruments and especially popular in the German broadcasting industry.
The Track One meets highest demands in sound quality and reliability and covers an unlimited application range from studio over live to post production applications.
- Preamp stages optimized for all microphone types and instruments
- Auto Dynamic De-Esser
- Compressor/limiter
- 3-band EQ
- Output stage with metering

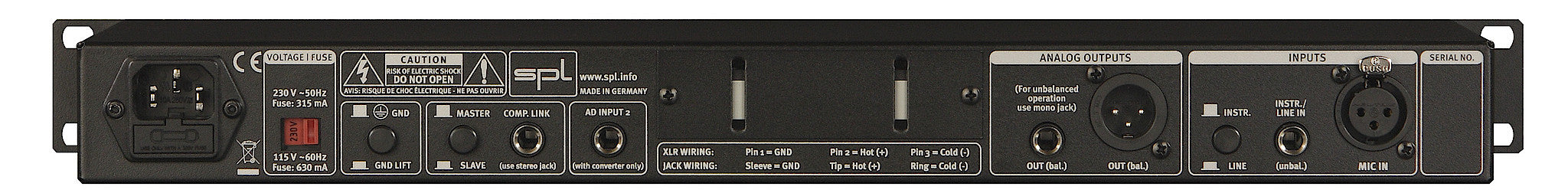

- Balanced XLR and 1/4 inch TRS connectors
- Options: AD converter and mic input transformer
- Made in Germany
Specifications:
Analog inputs & output; XLR & TRS Jack (all balanced, except INSTR./LINE IN: unbalanced)
Maximum input gain (Line): 28 dBu
Maximum input gain (Instrument): 12 dBu
Input impedance (Line): 12 kΩ
Input impedance (Instrument): 1 MΩ
Output impedance: 50 Ω
Frequency range (-3 dB): 10 Hz – 180 kHz
Noise (A-weighted, Mic Preamp, 20 dB Gain): -97.5 dBu
Noise (A-weighted, Mic Preamp, 40 dB Gain): -91.0 dBu
Noise (A-weighted, Mic Preamp, 62 dB Gain): -67 dBu
E.I.N. (150 Ω): -129 dBu
Noise (A-weighted, Line/Instr Preamp, 7 dB Gain): -98.4 dBu
Noise (A-weighted, Line/Instr Preamp, 20 dB Gain): -95.8 dBu
Noise (A-weighted, Line/Instr Preamp, 42 dB Gain): -77.2 dBu
Common mode rejection (1 kHz): 80 dB
Dynamic range: 115 dB
Internal Linear Power Supply with Shielded Toroidal Transformer
Operating voltage for analog audio: +/- 15 V
Mains Power Supply
Mains voltage (selectable): 230 V AC / 50; 115 V AC / 60 Hz
Fuse for 230 V: T 315 mA
Fuse for 115 V: T 630 mA
Power consumption: max. 20 W
Dimensions & Weight
W x H x D: 482 x 44 x 300 mm / 19 x 1.73 x 11.8 inch
Unit weight: 4.15 kg / 9.15 lbs
