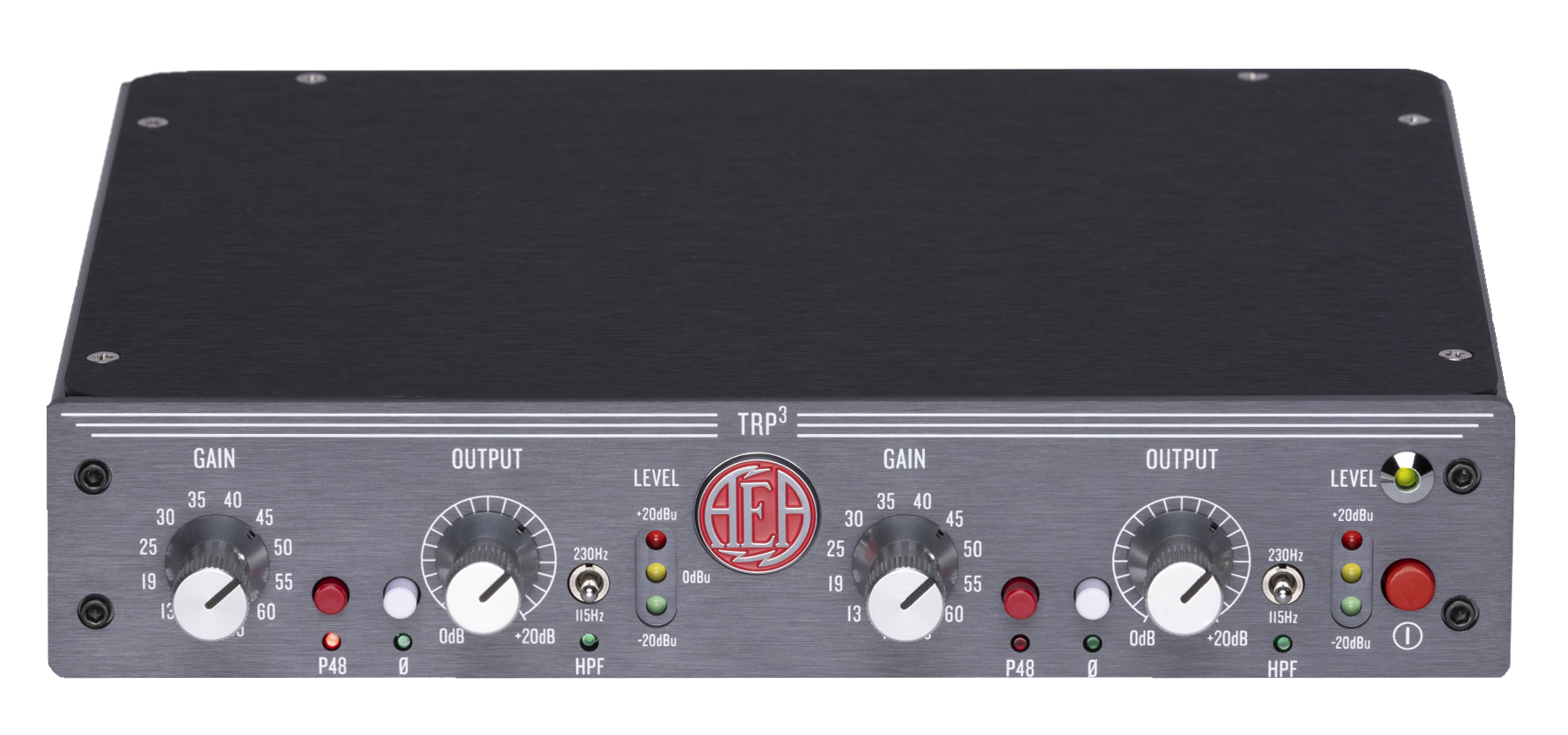

The AEA TRP3 Ribbon Preamp provides two channels of high-output, high-impedance, and low-noise gain with a rich and natural sound that brings out the full potential of your microphones.
Specifically designed for ribbon microphones, the TRP3 excels at drawing out the warmth and lush sound that ribbons are uniquely known for. Our 3rd generation circuitry is the cleanest and most musical design we've done yet.
TRP3 SPECIFICATIONS
Max Gain at 1 kHz: 85 dB
EIN (Max gain, 22 Hz to 22 KHz, unweighted):
● 130 dBu (typical), 40 Ω source
● 128 dBu (typical), 150 Ω source
Frequency Response:
● 30 dB gain: (-0.5 dB from <10 Hz to 200 kHz)
● 85 dB gain: (-3 dB 9Hz to >200 kHz)
THD+N: 0.0015% (1 kHz, 22 Hz-22 kHz @30 dB Gain +4 dBu output)
XLR Output Max Level: +27 dBu into 600 Ω load
Input Impedance: 11.3 kΩ (with Phantom), 68 kΩ (no Phantom)
Output Impedance: 50 Ω
Max Input Signal Level: +20 dBu (minimum gain)

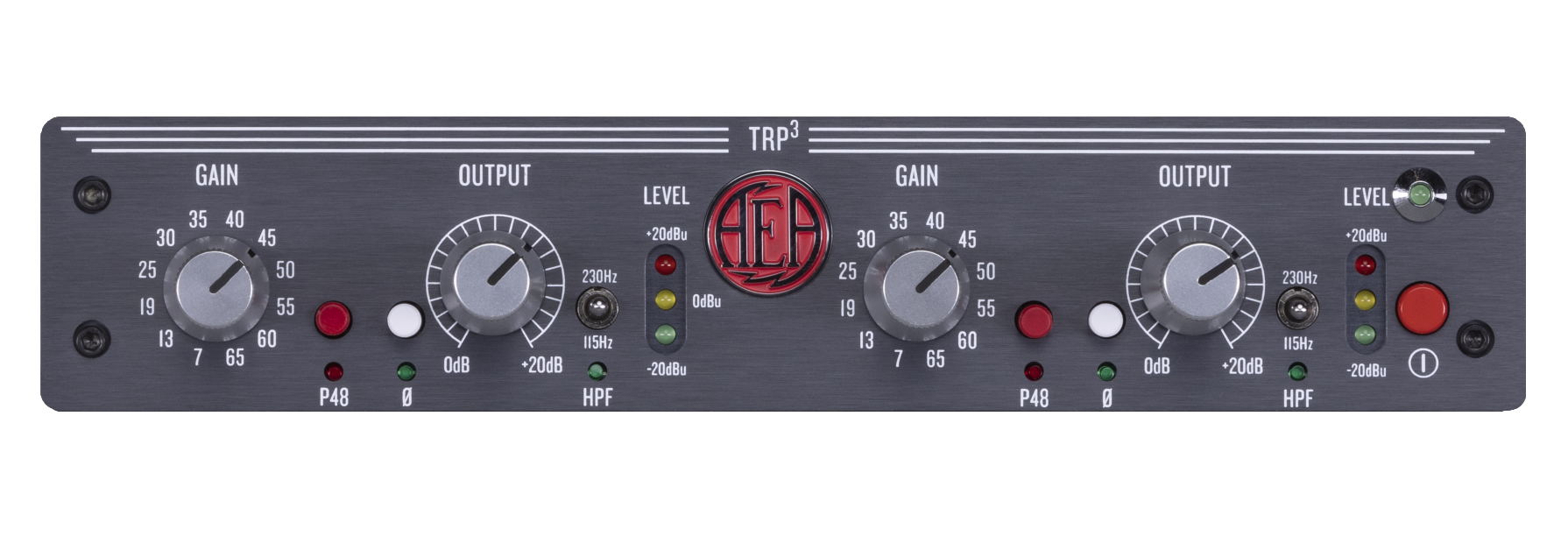

Stepped Gain Control: 12-position switch from +7 dB to +65 dB
Output Trim: Continuously variable from 0 dB to +20 dB
EQ Circuitry:
● Switchable, passive first-order high-pass filter
● Selectable frequencies (-3 dB) at either 115 Hz or 230 Hz

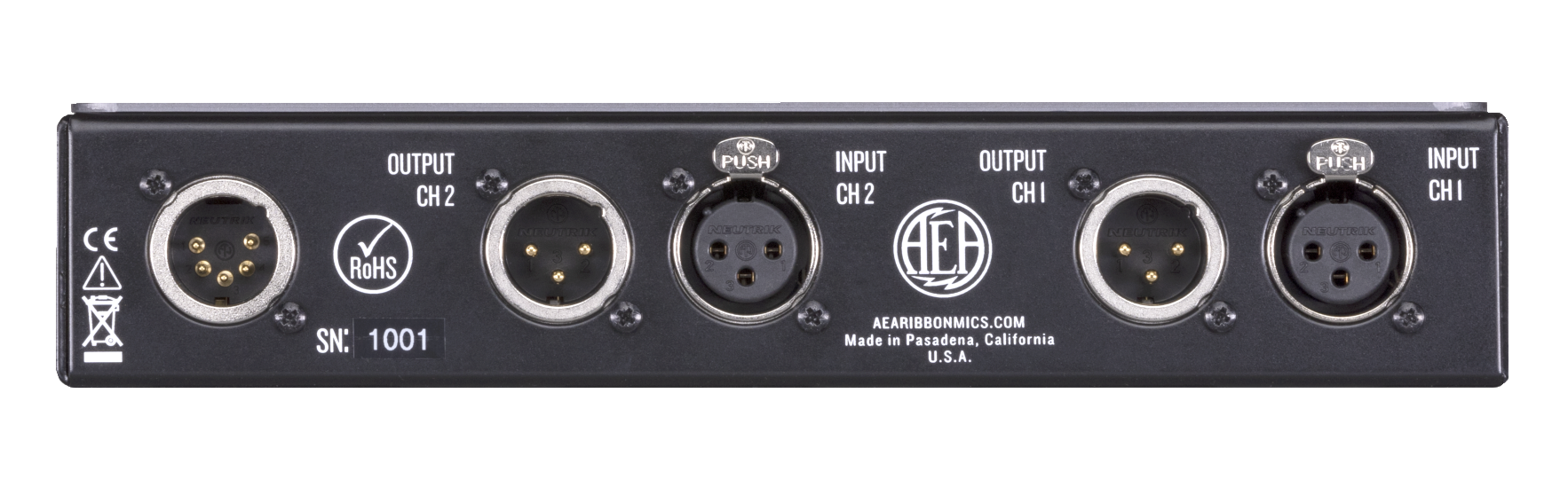

Input and Output XLR Polarity: Pin 2 hot
LED Signal Level Indicators:
Green LED ≅ -20 dBu;
Yellow LED = 0 dBu;
Red LED ≅ +20 dBu (clipping +27 dBu)
