Rupert Neve Designs

5059 Satellite 16 x 2+2 Summing Mixer

  • Sale
  • Regular price R 77,130.00


Built around many of the topologies and custom transformers made famous with the 5088 mixer and Portico II Series, the 5059 is designed to deliver the ultimate “out of the box” sonics and ergonomics in a 2U, rack-mountable chassis.

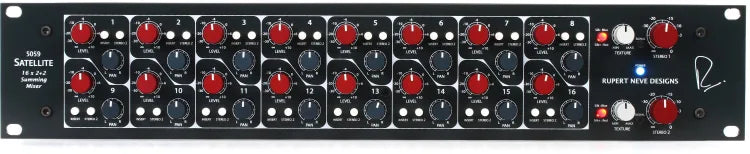

The 5059 features 16 channels with individual level, pan, inserts, stereo-2 sends, and master texture controls, providing easy integration with outboard equipment, complete control for two separate stem mixes, and the ability to dial in analogue mojo in two modes.

The Signature of Excellence

The most important element of the 5059 is its legendary sound. The keys to the sonic prowess of the 5059 are the custom transformers and true class-A topologies found within. The +/- 24V class-A topologies in the 5059 have been fine-tuned over a number of years to provide exceptional sonic performance and completely eliminate cross-over distortion.

When combined with Mr. Rupert Neve’s transformer design and implementation, the 5059 achieves a remarkable purity, while also conveying the signature warmth and larger-than-life sound reminiscent of Rupert’s classic designs.

Specifications

FREQUENCY RESPONSE
100K Ohm Load.
+/- 0.1 dB from 20 Hz to 20 kHz
-3 dB @ 3.5 Hz / 185 kHz

NOISE
IEC-A-weighted.
Bus Outputs: -106 dBV
Single Channel assigned @ -∞: -104 dBV
Single Channel assigned @ Unity: 103 dBV

NOISE
Un-weighted, 22 Hz - 22 kHz.

Single Channel assigned @ +10 dB - 100 dBV

BUS OUTPUTS
Single Channel assigned @ -∞: -101 dBV
Single Channel assigned @ Unity: -100 dBV
Single Channel assigned @ +10 dB -97 dBV

SIGNAL TO NOISE
+20 dBu output un-weighted, 22 Hz - 22kHz: 116 dB
+20 dBu output, IEC A weighted: 119 dB
+4 dBu output unweighted, 22 Hz - 22 kHz: 100 dB
+4 dBu output, IEC A weighted: 103dB

OUTPUT LEVEL
Summing Buses to XLR outputs, Maximum Output Level, 20 Hz to 40 kHz: +26 dBu
Single Channel to Bus, Maximum Output Level, 20 Hz to 40 kHz: +24.5 dBu

TOTAL HARMONIC DISTORTION AND NOISE
1 kHz @ +20 dBu output: Better than 0.003%
20 Hz @ +20 dBu output: Better than 0.005%

TOTAL HARMONIC DISTORTION, SILK ENGAGED
BLUE SILK

100 Hz @ +20 dBu output, texture control 12 o’clock: 0.2% typical
100 Hz @ +20 dBu output, texture control fully CW: 0.65% typical

RED SILK
100 Hz @ +20 dBu output, texture control 12 o’clock: 0.1% typical
100 Hz @ +20 dBu output, texture control fully CW: 0.35% typical

SLEW RATE
4V/uS

CROSSTALK
From Bus 1 to Bus 2.
1 kHz: Better than -90 dB
10 kHz: Better than -70 dB

POWER CONSUMPTION
AC Mains, 100VAC to 240VAC, 50/60 Hz: 45 Watts
Fuses – not user accessible, internal on power supplies

DIMENSIONS
3.5”H (2U), 19”W, 8”D

WEIGHT
23lbs

SHIPPING DIMENSIONS
22” x 17” x 8”

SHIPPING WEIGHT
25 lbs
