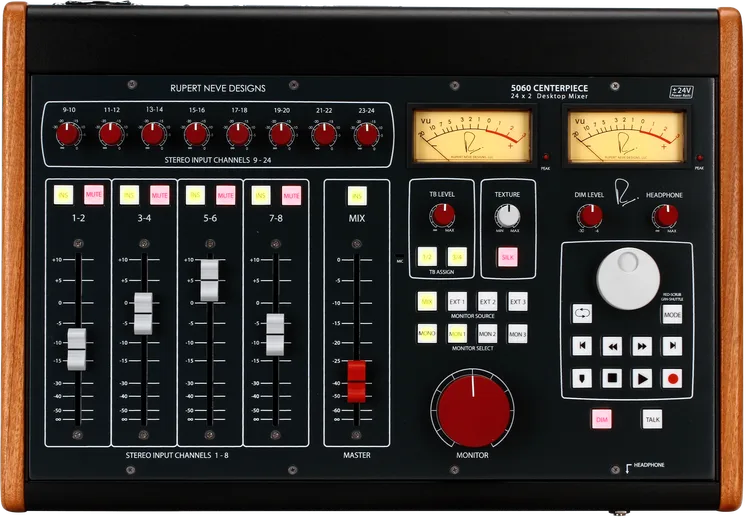

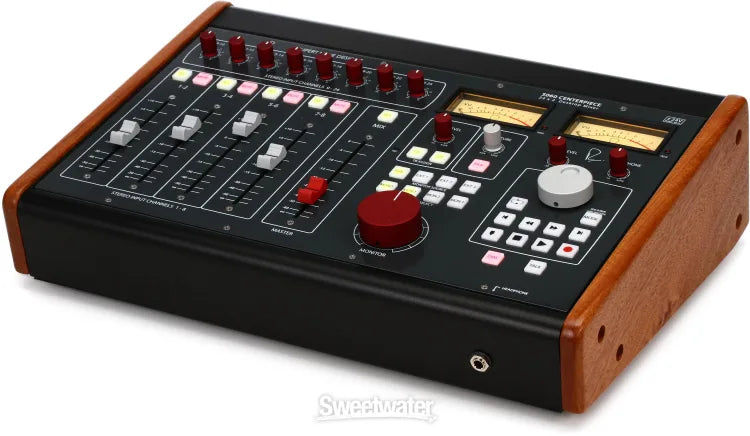

5060 Centerpiece 24x2 Desktop Mixer

From the father of the recording console comes the 5060 Centerpiece: the Class-A analog heart of your 21st-century studio. Sized for your desktop, the 5060 delivers the tonality and center section features of Rupert’s flagship 5088 console at your fingertips, cementing outboard together with serious custom transformers, flexible monitoring, DAW transport controls, and the raw power of a Rupert Neve-designed 24×2 mix-buss.

Define Your Workflow

With a modular, hybrid analogue/digital mix system built around the 5060, you can outfit your studio with exactly what you need – and nothing that you don’t.

Utilizing modern DAW control technologies, the 5060 seamlessly integrates stem outputs from the DAW with the rest of your control room, sums the final mix, and provides 2-track outputs, source selection, and speaker feed outputs from the monitor section.

Define Your Tone

With custom transformers, a class-A mix buss and variable Silk, the 5060 can provide a wide range of tonal flavors. Drive the mix buss hard and crank the Texture knob for a rich, saturated, vintage vibe – or disengage Silk entirely for clear, wide-open sonic beauty.

Silk reduces the negative feedback on the output transformer, adding harmonic content as the texture is increased. Silk red mode accentuates the saturation in the high-mids and highs, while silk blue mode features more saturation in the lows and low mids.

SPECIFICATIONS:

MAX INPUT LEVEL
Channels 1 - 8, fader at 0dB: greater than +26 dBu
Channels 9 - 24, level trim at 0dB: greater than +22 dBu

STEREO OUTPUTS
Unless otherwise specified, frequency is 1 kHz.

MAX OUTPUT LEVEL
Any combination of inputs: greater than +27 dBu

THD+N
Channels 1 - 8, fader at unity, BW <10 Hz – 80 kHz
+20 dBu, 20 Hz: 0.03%
+20 dBu, 2 kHz: 0.003%
+20 dBu, 20 kHz: 0.02%

Channels 9 - 24, trim at unity, BW <10 Hz - 80 kHz
+20 dBu, 20 Hz: 0.03%
+20 dBu, 2 kHz: 0.004%
+20 dBu, 20 kHz: 0.02%

NOISE (BW 22 Hz - 22 kHz)
Channels 1 - 24 at unity: Better than -90 dBV
Channels 9 - 24 at unity, 1-8 muted: Better than -100 dBV

X-TALK
Channel to Channel: better than 60 dB

CMRR
1 kHz input to channel 1, 0 dBu fader at unity: -70 dBu

FREQUENCY RESPONSE
10 Hz to 120 kHz: +/- 0.25 dB

IMD
+4 dBu, CCIF/DFD: Better than 0.0008%

SILK BLUE / SILK RED (Texture control at maximum)

DISTORTION
+20 dBu in, 20 Hz: Up to 5%
+20 dBu in, 200 Hz: Up to 0.2%

MONITOR OUTPUTS

MAX OUTPUT LEVEL
1 kHz: +25 dBu

THD+N
+20 dBu, 20 Hz: Better than 0.03%
+20 dBu, 2 kHz: Better than 0.02%
+20 dBu, 20 kHz: Better than 0.02%

MINIMUM LOAD
Monitor and Line Outputs: 3K Ohms

HEADPHONE OUT

MAX OUTPUT LEVEL
Greater than +20 dBu, unloaded

THD+N
2 kHz into 68 Ohms, 16 dBu output: Better than 0.02%

NOISE
From 22 Hz – 22 kHz: Better than -85 dBV

MINIMUM LOAD (headphone out)
16 Ohms recommended

PEAK LEDs
Engage Threshold: +22 dBu

POWER CONSUMPTION
AC Mains, 100VAC to 240VAC, 50/60Hz: 110 Watts Max
Fuses: not user accessible, internal on power supplies

DIMENSIONS

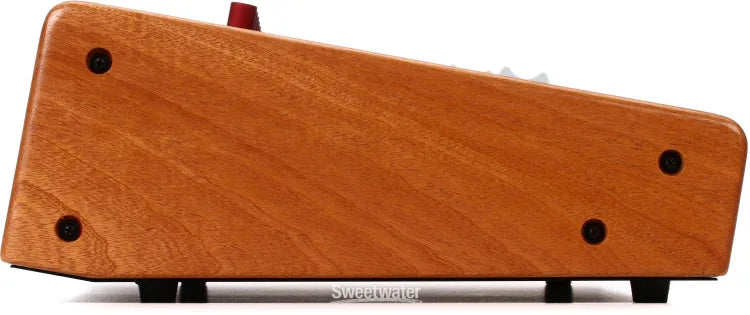

18.5″ W x 12.5″ D x 5.75″ high in the back (3.5″ in the front)

WEIGHT
22lbs

OPERATING TEMPERATURE RANGE: 0 to 35 degrees C

STORAGE TEMPERATURE RANGE: -10 to 50 degrees C

OPERATING HUMIDITY RANGE: 10% to 95% Non-Condensing
