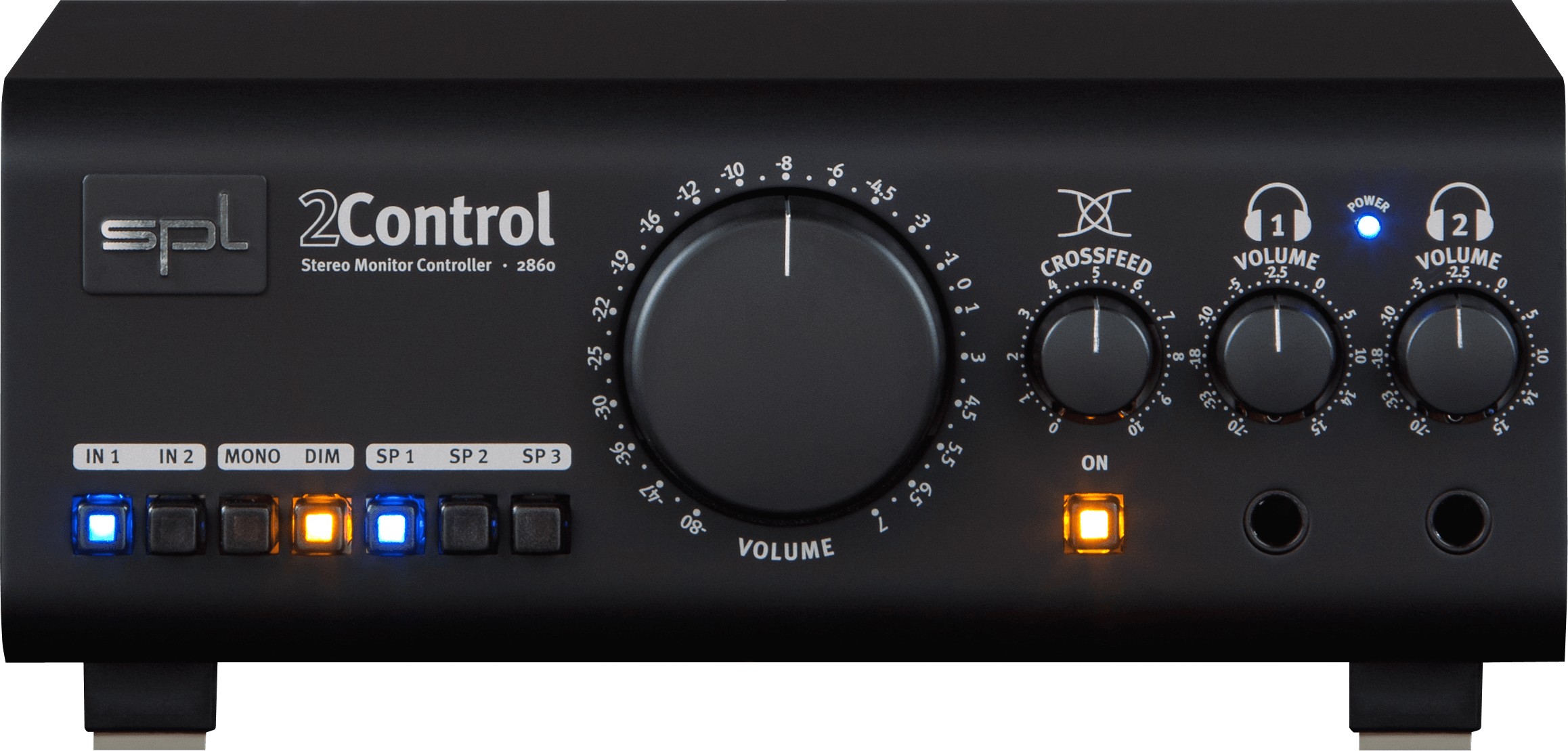

The 2Control is an excellent sounding compact monitor controller that perfectly controls your near-field and full-range monitors. It is equipped with our crossfeed control for headphone monitoring to create mixes on phones that translate on speakers.
The 2Control, which is analog throughout, allows the connection and selection of two stereo sources. These can be monitored via two stereo speaker sets and two headphones.
A third mono output is used to connect a subwoofer or mono loudspeaker.
The inputs are additive! The 2Control mixes the input signals together.

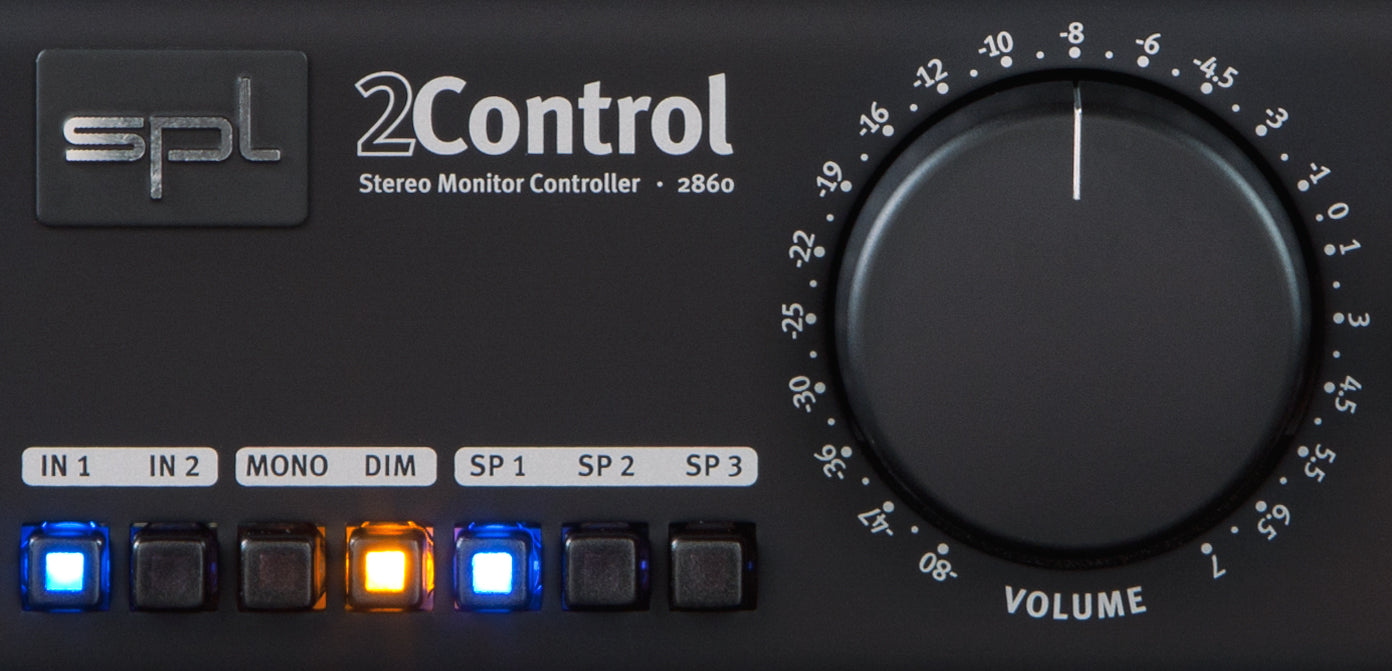

The volume is controlled by a high quality potentiometer (ALPS RK27 “Big Blue”) with active control and a 45mm full aluminium rotary knob.
Specifications:

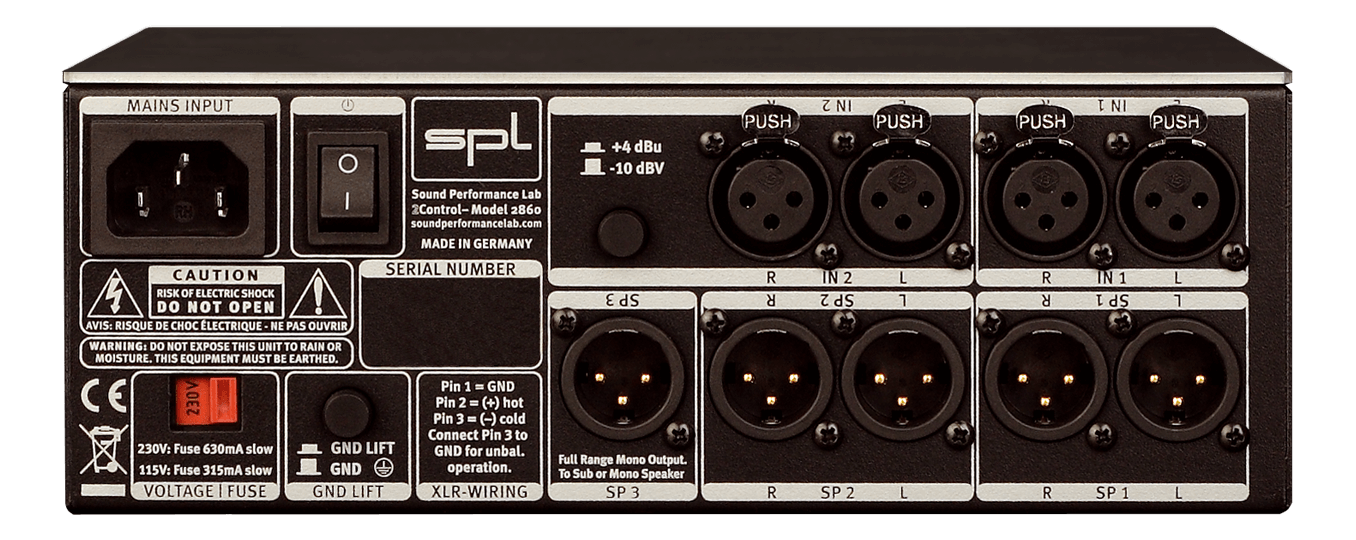

Analog inputs & outputs; XLR (balanced)
Maximum input & output gain: 21.5 dBu
Input impedance: 20 kΩ
Output impedance: 75 Ω
Frequency range (-3 dB): 10 Hz – 100 kHz
THD +N (0 dBu, 10 Hz – 22 kHz)): 0.005 %
Noise (A-weighted): -96 dBu
Crosstalk (1 kHz): -70 dB
Common mode rejection (1 kHz): 60 dB
Dynamic range: 117 dB
Standard Headphones Output, 6.35 mm (1/4") TRS Jack
Wiring: Spitze = links, Ring = rechts, Schaft = GND
Source impedance: 22 Ω
Noise (A-weighted, 600 Ω): -85 dBu
Internal Linear Power Supply with Toroidal Transformer
Operating voltage for analog audio: +/- 15 V
Operating voltage for relays and LEDs: + 12 V
Mains Power Supply
Mains voltage (selectable): 230 V AC / 50; 115 V AC / 60 Hz
Fuse for 230 V: T 315 mA
Fuse for 115 V: T 630 mA
Power consumption: max. 10 W
Dimensions & Weight
W x H x D: 215 x 100 x 220 mm / 8.46 x 3.58 x 8.66 inch
Unit weight: 2.1 kg / 4.63 lbs
