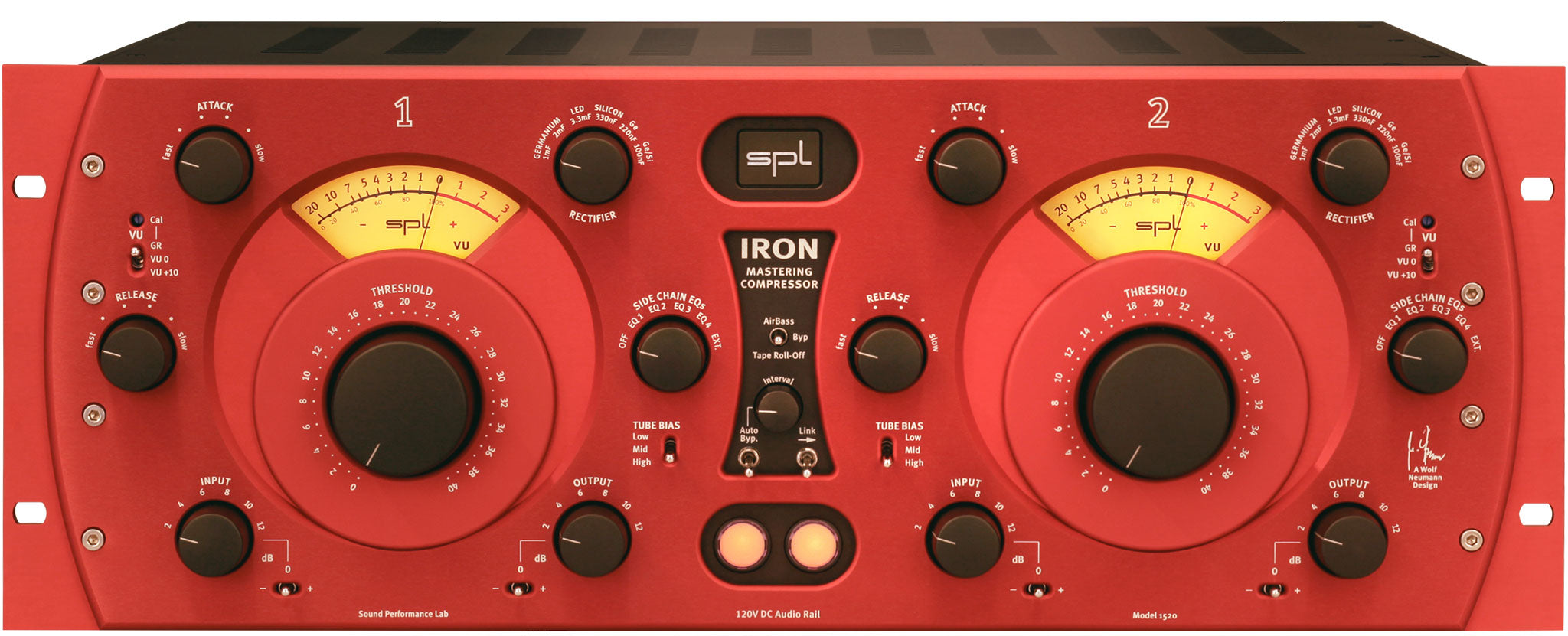

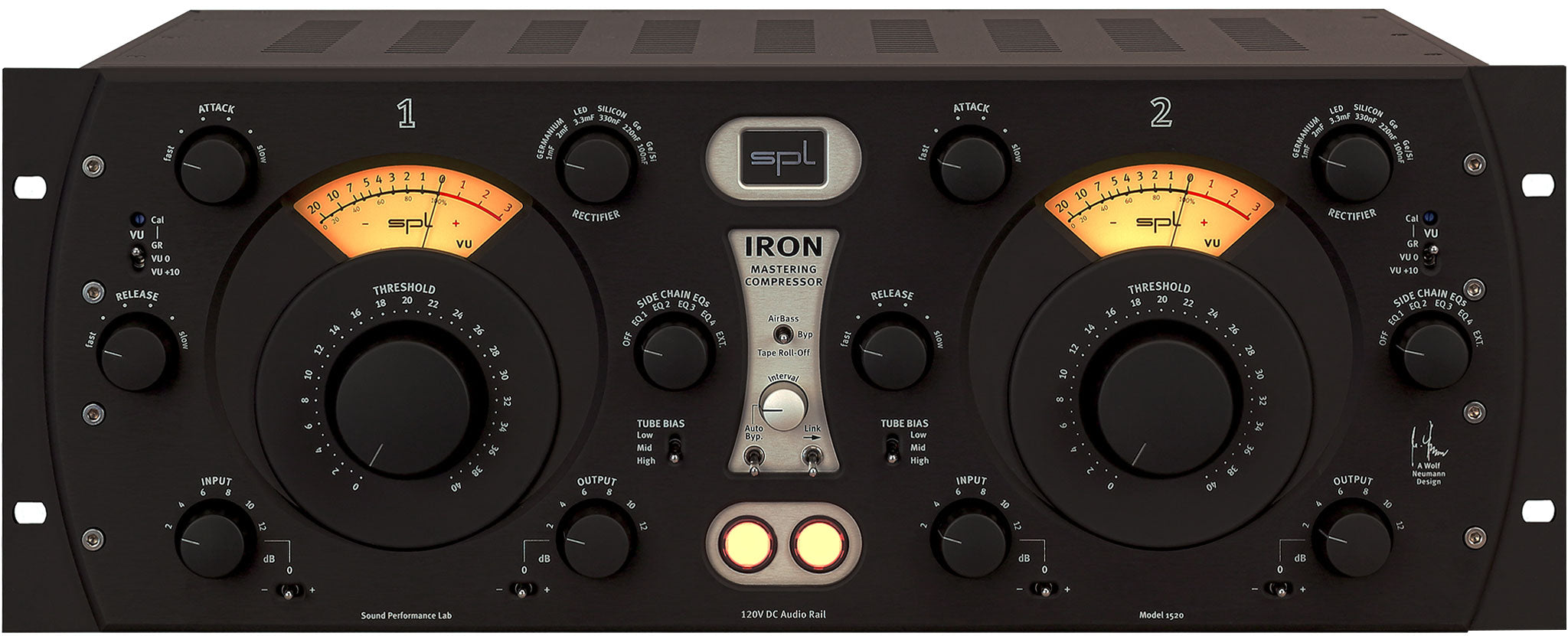

As a mastering compressor, IRON is inspired by the legendary vintage tube compressors à la Fairchild, Collins or Gates and has been developed in a way to give modern productions more energy and power with the advantages of the 120V technology.
INPUT & OUTPUT
Input and output levels are switchable in a control range of +/- 12dB. An increase of the input level leads to more intensive compression. When mastering full scale material, the reduction can be useful. The output is used to adjust the level ratios of input and output.
ATTACK & RELEASE
The time parameters Attack and Release are switchable in six steps from Slow to Fast. The times vary depending on the rectifier circuit selected.
SIDE CHAIN EQS
With the side chain EQs, compression can be focused on frequency ranges. In addition to an inserted EQ, there are four internal EQ presets with a partly complex frequency response.
RECTIFIER
The tube stage is controlled by a rectifier circuit. There are six diode control characteristics generated by germanium, silicon and LED diodes or combinations there
VARIABLE-BIAS LIMITER/COMPRESSOR
The IRON Mastering Compressor is a variable-bias (variable µ) limiter/compressor from the basic concept.
IRON works on the principle of the bias controlled remote cutoff tube. Parallel to this, a medium-variable-bias triode (sharp-cutoff tube) with a steeper characteristic is connected. The tube bias voltage (BIAS) can be adjusted in three steps.
The tubes are integrated into special Lundahl manufactured balanced high-level double core mu-metal-iron transformers.
Specifications:
