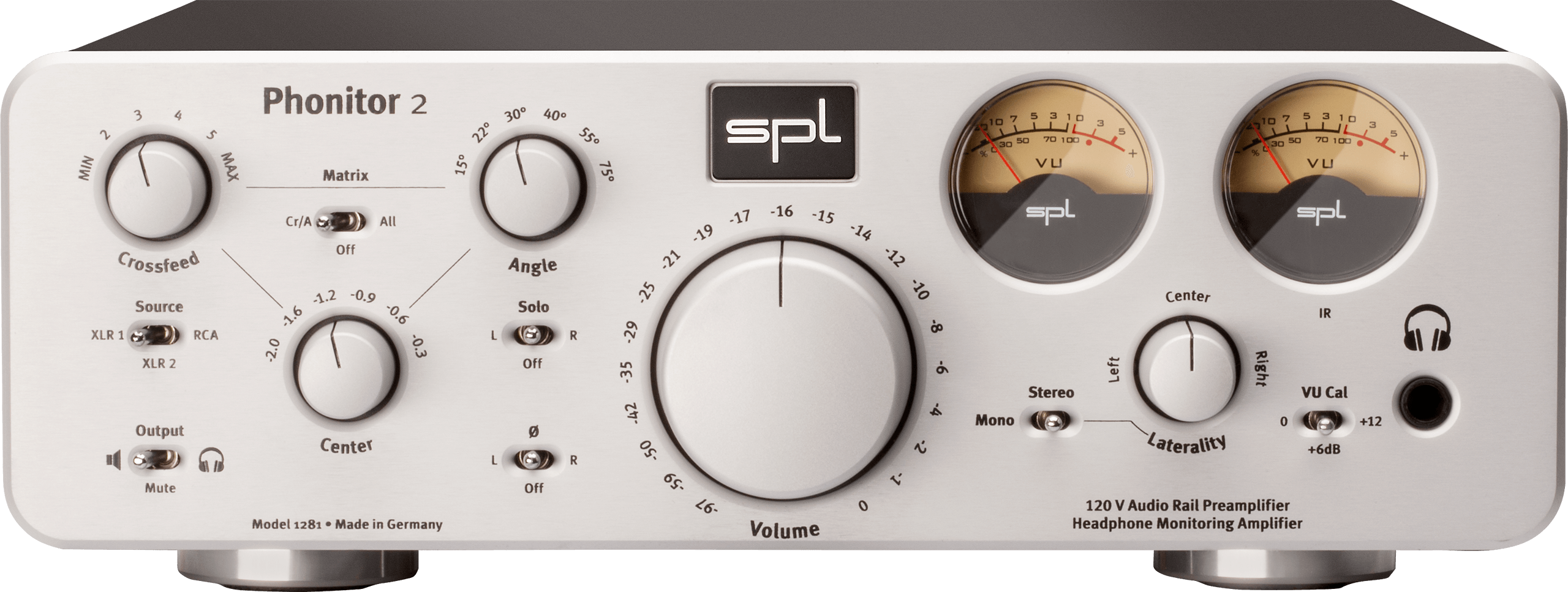

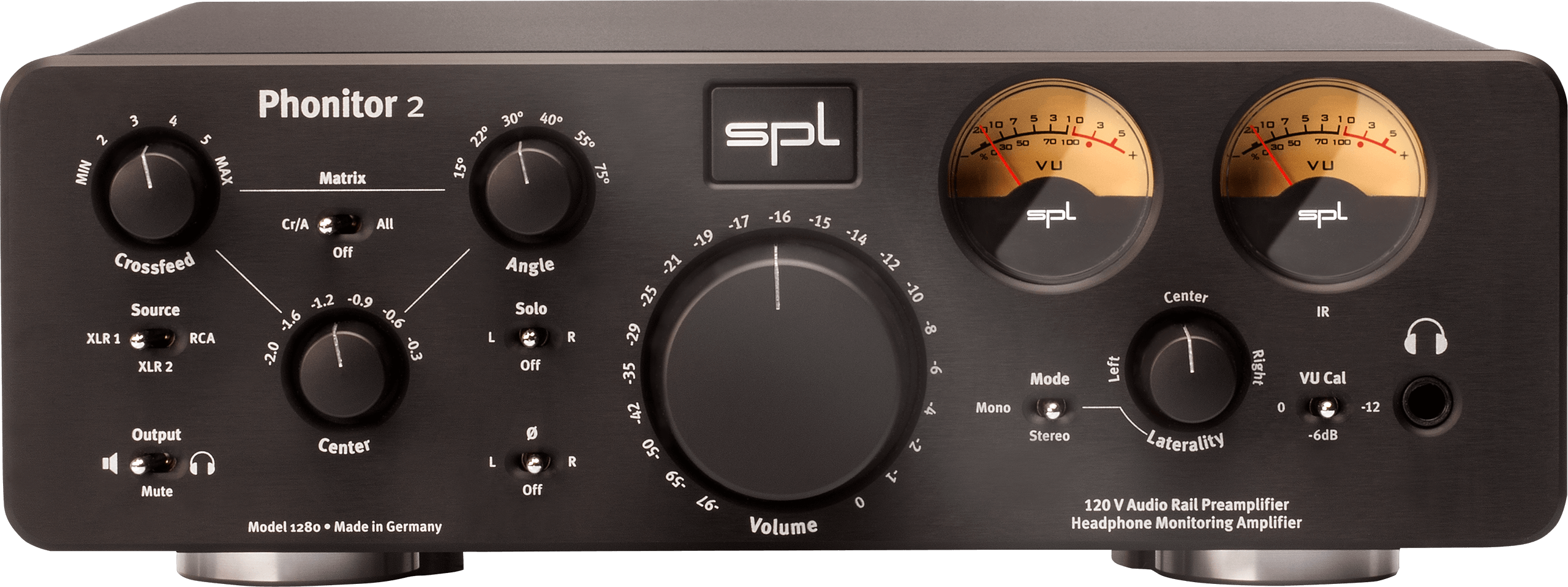

Phonitor 2 is the ultimate headphone amplifier for sound and mastering engineers who also mix and master on headphones. Speakers can also be connected, making Phonitor 2 a full-fledged monitor controller.

Milled from the solid

aluminum is the 45mm large volume knob. Its mass in combination with the motorized Alps RK27 “Big Blue” potentiometer further enhances the “spoon in honey” turning feeling.

Remote control

The volume can be adjusted with any infrared remote control, which Phonitor 2 simply learns. Just press the IR programming button on the back and then the buttons for louder and softer.

The Sources

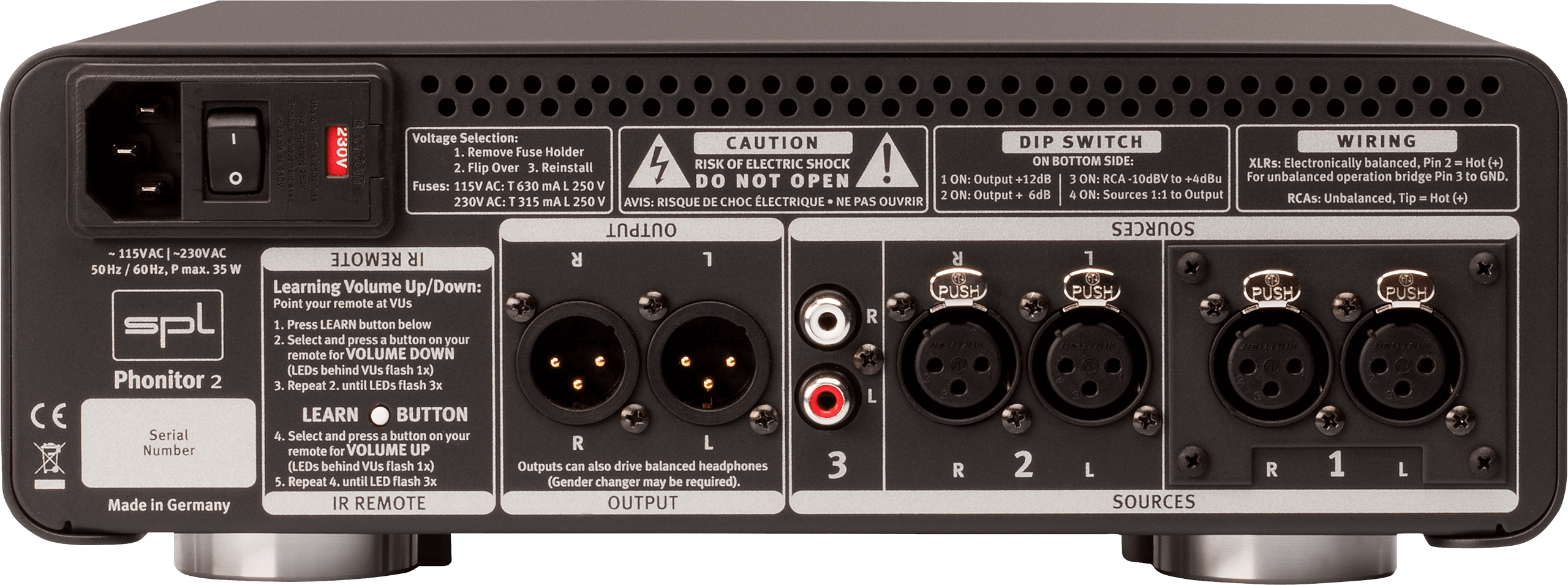

Two balanced and one unbalanced stereo sources can be connected to Phonitor 2.

If a CD player or other HiFi equipment is connected to the RCA jacks, the consumer level can be raised from -10 dBV to 0 dBu using a dip switch on the bottom of the unit. In this way the sources are comparable in level.

Laterality

By its very nature, hearing can be directed more to the left or more to the right. This is particularly evident when listening with headphones.

That’s why Phonitor 2 has the finely resolved Laterality control. With it the center can be set perfectly.

The Revolution

In the headphone amplifier is the Phonitor Matrix, with adjustable crossfeed, thanks to which you can create mixes with headphones that sound the same on speakers.

The Phonitor Matrix in its largest expansion stage has three setting parameters: Crossfeed, Speaker Angle and Center Level.

In the Crimson 3, the center level is preset to -1 dB and the speaker angle to 30°. These are the most commonly used values.

The crossfeed function determines the crosstalk of the channels, the so-called interaural level difference. The intensity of the crossfeed is fully variable. ces: 2x XLR, 1x RCA

Solo L/R
Phase reversal for L and R
Output switchable to headphones or speakers
Mute
Phonitor Matrix with crossfeed, speaker angle and center level (the latter can be switched off)

Specifications:

Analog inputs & outputs; XLR (balanced), RCA

Maximum input & output gain: 32.5 dBu

Input impedance (RCA): 10 kΩ

Input impedance (XLR): 20 kΩ

Output impedance (XLR): 75 Ω

Common mode rejection (XLR): -82 dB

Frequency range (-3 dB): 4 Hz – 300 kHz

THD +N (10 Hz – 22 kHz, 0 dBu): 0,00085 %

Noise (A-weighted): -103,8 dBu

Crosstalk (1 kHz): -106 dB

Dynamic range: 136,3 dB

Standard Headphones Output, 6.35 mm (1/4") TRS Jack

Wiring: Tip = Left, Ring = Right, Sleeve = GND

Source impedance: 0.18 Ω

Damping factor (40 ohms): 180

Frequency range (-3dB): 10 Hz – 300 kHz

Crosstalk (1 kHz): -90 dB

THD +N (10 Hz – 22 kHz, 0 dBu): 0.00091 %

Noise (A-weighted): -103 dBu

Output power (1 kHz, 1% THD, 600 Ω): 2 x 2.7 W

Output power (1 kHz, 1% THD, 250 Ω): 2 x 5 W

Output power (1 kHz, 1% THD, 32 Ω): 2 x 1 W

Dynamic range: 135.5 dB

Internal Linear Power Supply with Shielded Toroidal Transformer

Operating voltage for analog audio: +/- 60 V

Operating voltage for relays and LEDs: +12 V

Mains Power Supply

Mains voltage (selectable, see fuse chamber): 230 V AC / 50; 115 V AC / 60 Hz

Fuse for 230 V: T 630 mA

Fuse for 115 V: T 1.25 A

Power consumption: max. 40 VA

Dimensions & Weight

W x H x D: 278 x 100 x 300 mm / 11 x 4 x 11.81 inch

Unit weight: 4.3 kg / 9.5 lbs
