2Control

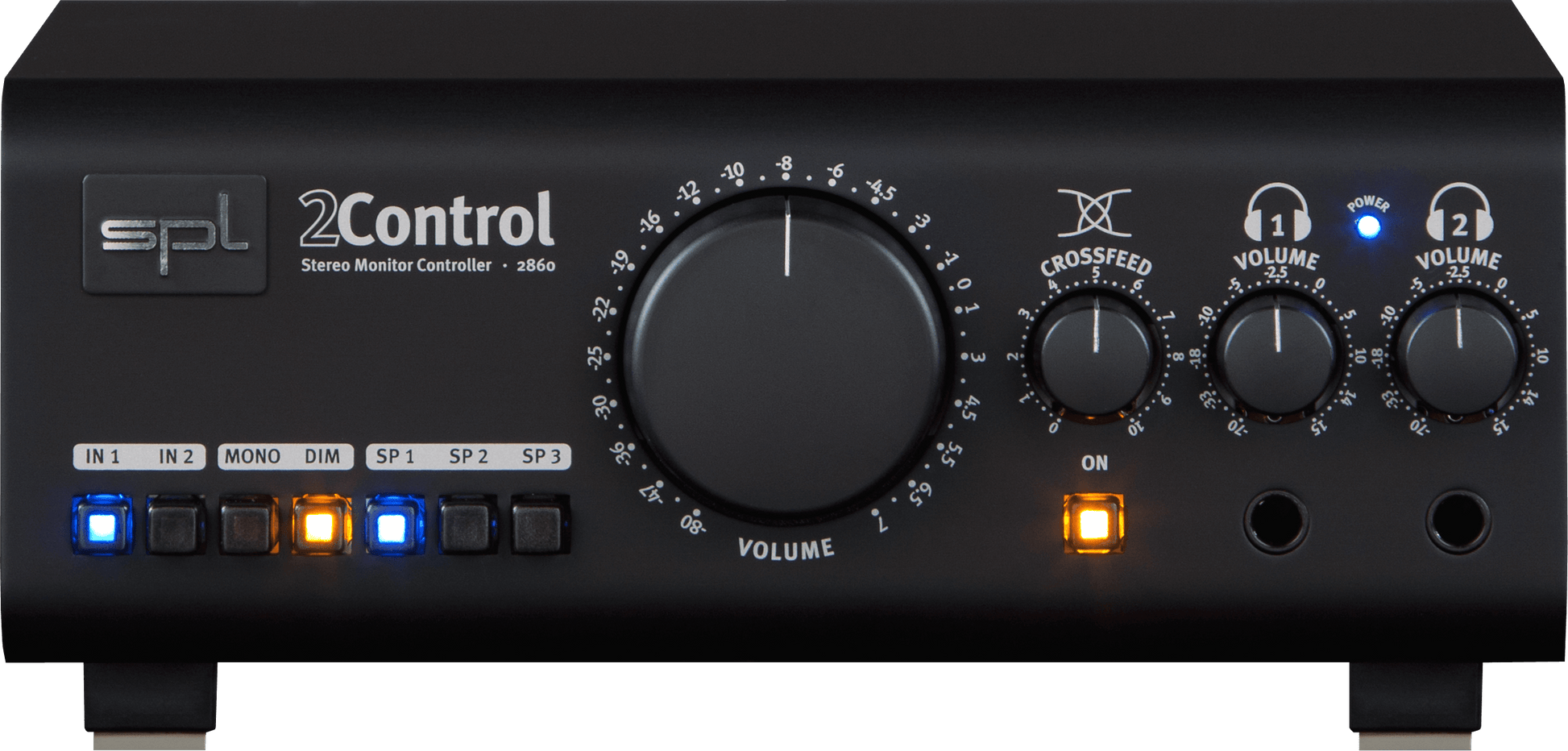

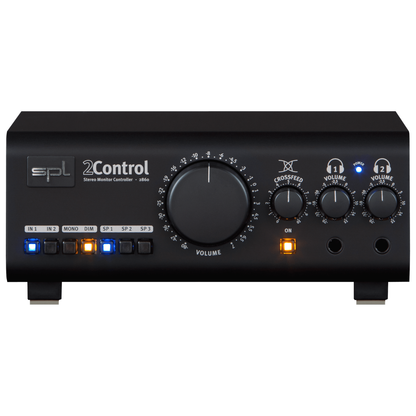

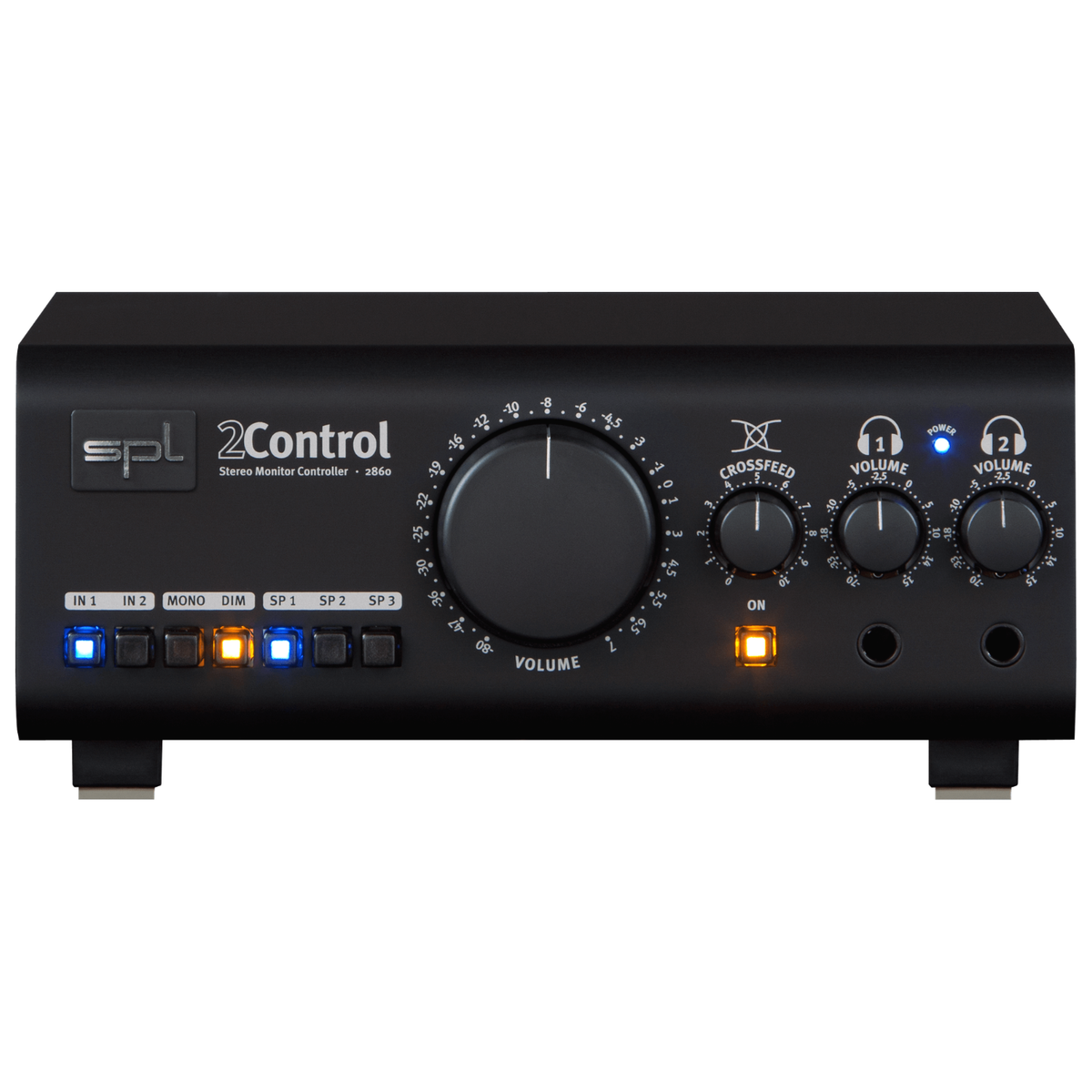

Speaker & Headphone Monitoring Controller

The 2Control is an excellent sounding monitor controller. With its innovative Phonitor matrix with adjustable Crossfeed it allows to mix on headphones just like on loudspeakers.

  • 2 balanced XLR inputs/sources
  • 2 headphone amplifier with individual Volume controls
  • 3 balanced XLR speaker outsputs (2x stereo for e.g. full range and near field speakers and 1x mono for i.e. a subwoofer)
  • Phonitor matrix with adjustable Crossfeed for both headphones
  • 45mm aluminium knob RK27 Alps "Big Blue" potentiometer
  • Mono switch
  • Dim switch
  • Extendable front feet
  • Made in Germany



Specifications

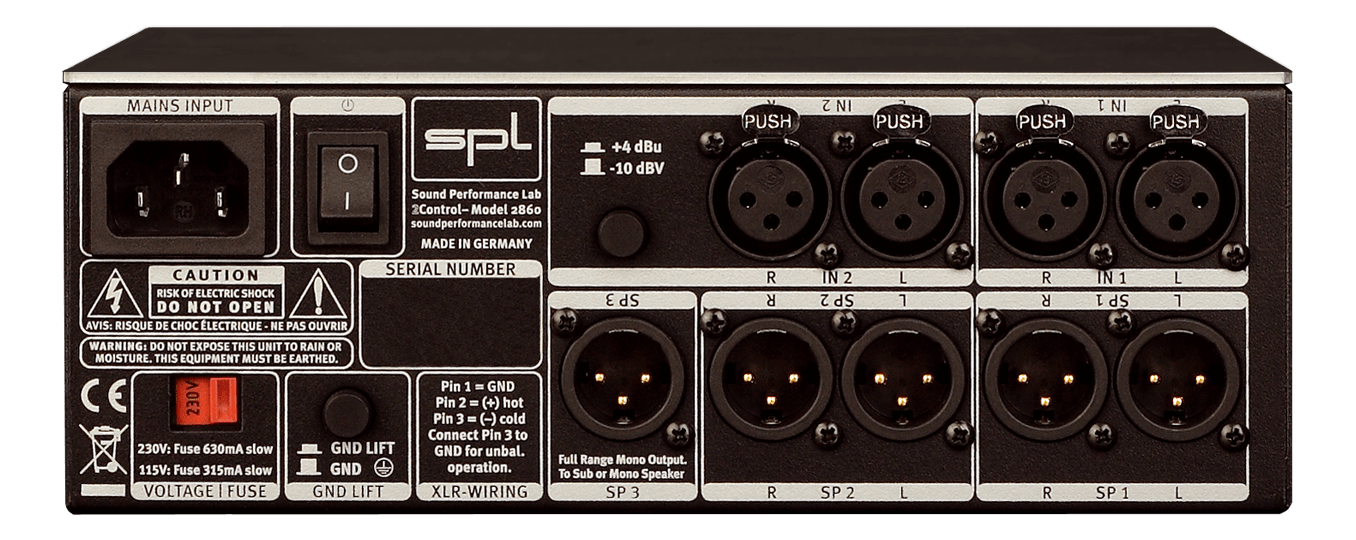

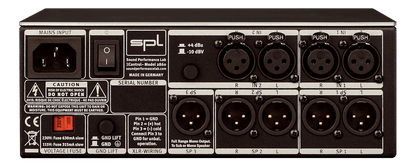

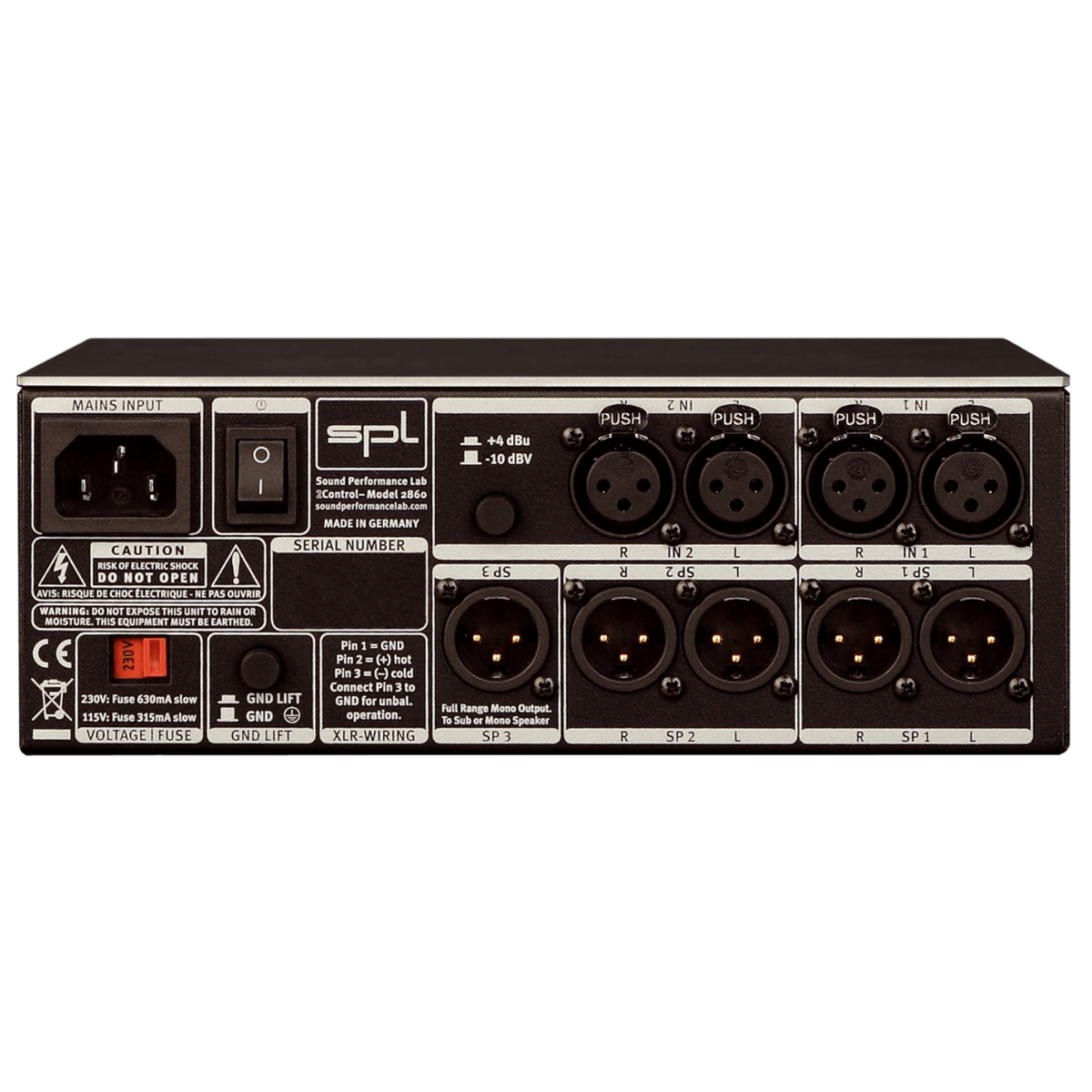

Inputs & Outputs

  • Electronically balanced instrumentation amplifiers
  • Input sockets: XLR
  • Output sockets: XLR, Stereo TRS
  • Nominal input level: IN 1: +4dBu, IN 2: +4dBu/-10dBV
  • Input impedance: 22kOhm
  • Output impedance: 75Ohm/Headphones: 22Ohm
  • Max. input level: 21.3dBu
  • Max. output level: 21.3dBu
  • Volume control range: -80dB to +6.6dB
  • Headphones: -65dB to +14.9dB

Measurements

  • Frequency range: 10Hz to 100kHz (-3dB)
  • CMRR: ›60dB (@1kHz, 0dBu input level, unity gain)
  • THD&N: 0,002% (@1kHz, 0dBu input level, unity gain)
  • Signal to noise ratio: -96dB/Headphones: -85dB (A-weighted)
  • Crosstalk L/R: ›70dB (@1kHz)
  • Dynamic range: 116dB

Power Supply

  • Toroidal transformer with voltage selector
  • Fuses (slow blow): 230V/50Hz: 315mA, 115V/60Hz: 630mA
  • Power consumption: ca. 25W

Dimensions and Weight

  • WxHxD: 215 x 80 x 220mm; 8.5" x 3.15" x 8.66"
  • Depth w/ controls & sockets: 245mm; 9.65"
  • Height w/ feet: 95mm; 3.74"
  • Front height w/ opened feet: 126mm; 4.96"
  • Weight: 2,1kg; 4.63lbs

0dBu = 0.775V. Subject to change without notice.
