543 Mono Compressor / Limiter

  • Sale
  • Regular price R 22,034.00


543

500 Series Compressor

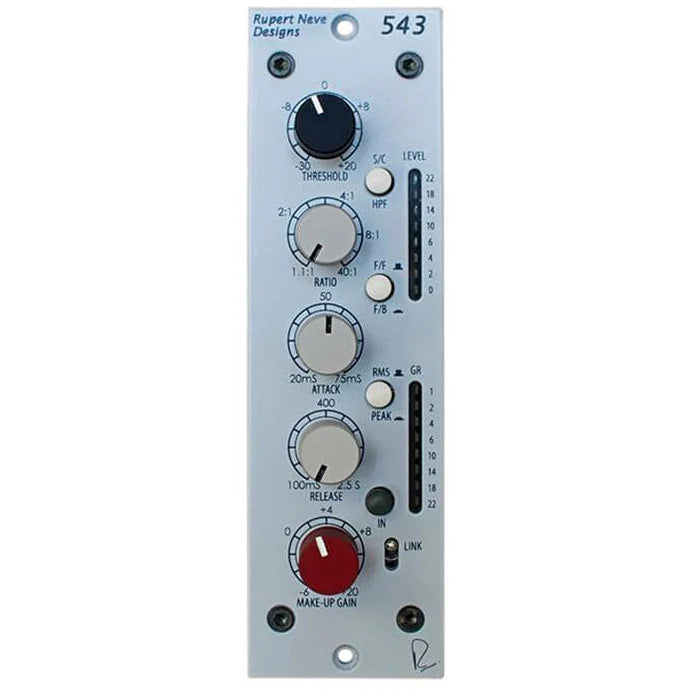

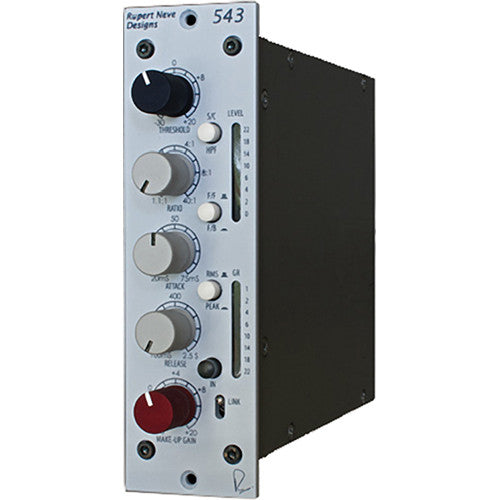

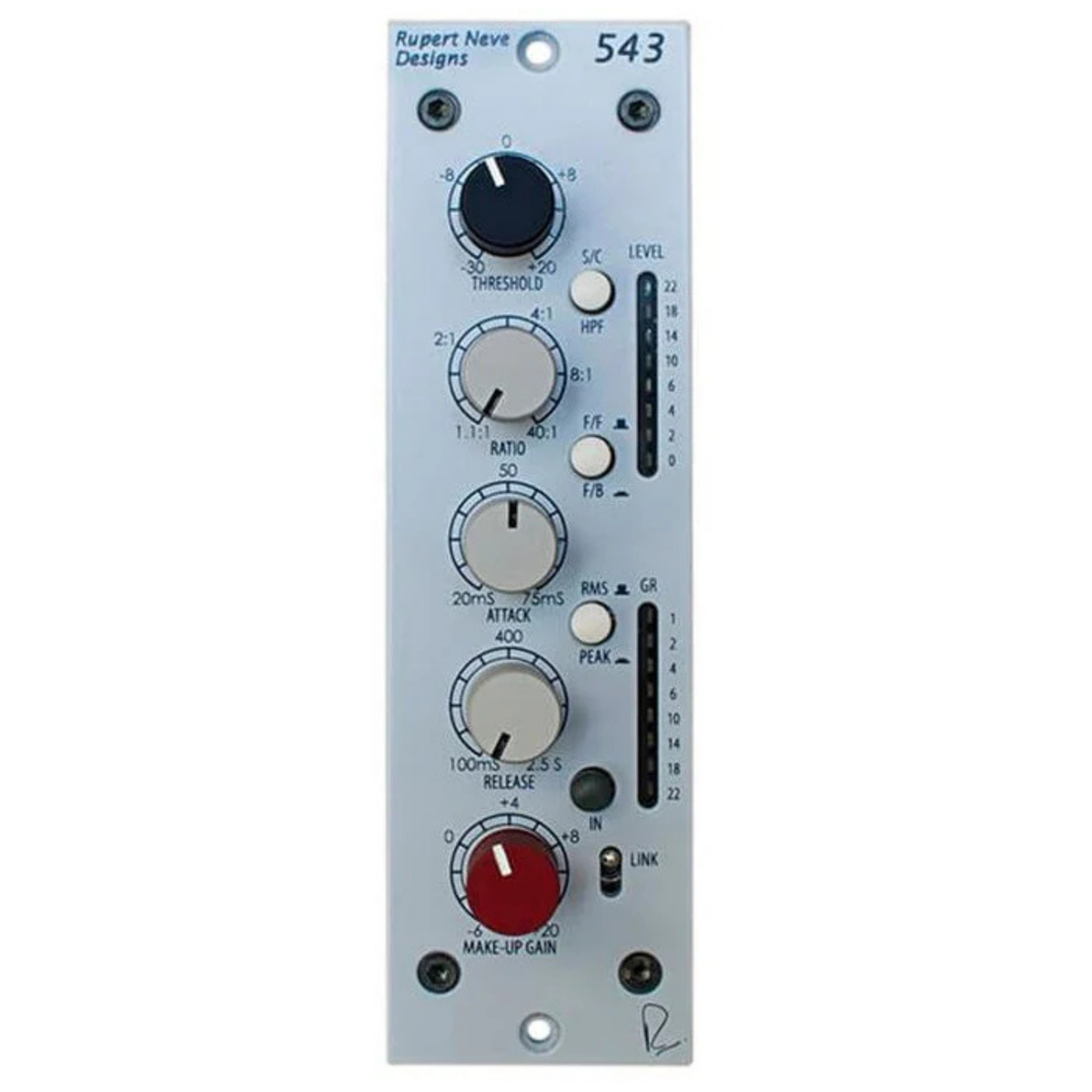

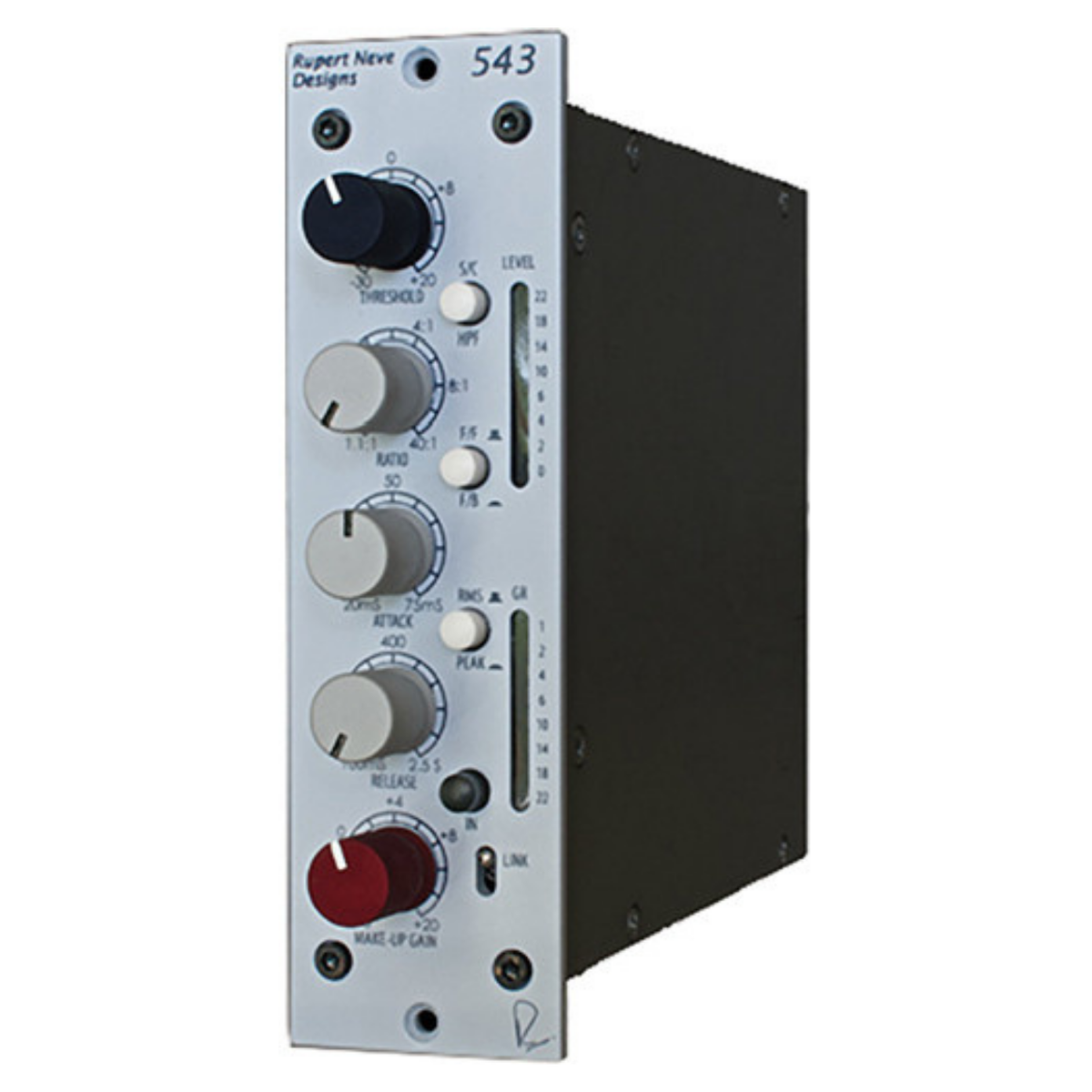

The 543 Mono Compressor delivers the unobtrusive, musical-sounding dynamic control and brick-wall limiting made famous in the Portico 5043 to the 500 series format.

The 543 features a fully controllable compressor-limiter with feed-forward / feedback modes, Peak / RMS detection and a built in side chain high pass filter. With an unrivaled heritage and a tremendous feature set, the 543 yields a combination of rich warmth, flexibility and precision that is sure to resonate in the ears of sound engineers the world over.

Built around Mr. Rupert Neve’s custom transformer designs, each 543 module encompasses individually controllable threshold, attack, release, makeup gain, ratio, side chain HPF, Feed-Forward / Feed-back selection and Peak/RMS detection modes.

With the compressor inactive, the 543 may be used as a transformer-coupled, high-performance line amplifier, and two 543 may be linked for stereo operation as well. The chassis is built to standard 500 series specifications, with power and I/O provided by the rack.

How the Compressor Works

In order to control gain, a V.C.A. or Voltage Controlled Amplifier (or Attenuator) is used. There are many types of V.C. including the use of tubes, discrete and integrated solid state circuits and naturally non-linear devices, each one having its characteristic behavior that reflects sonically on the final performance, and gives it a character or signature that can be musically attractive or not!

The 543 makes use of a very accurate, low noise, low distortion V.C.A. having, essentially, no signature of its own.

A part of the audio signal is rectified and smoothed to produce a suitable control voltage for the V.C.A. which has to respond very quickly and have low distortion. If the response is too fast, low frequency signals will themselves, be gain controlled! If the response is too slow, the signal will overshoot and the first few cycles will not get compressed.

The speed and accuracy of the response, known as the "attack", and the time frame that gain remains under the initial control, known as "release" or "recovery" and plays a large part in the way a compressor sounds.

Feed-Forward or Feed-Back?

The 543 also has the ability to switch between feed-forward and feed-back modes. If the V.C.A. Control voltage is taken from the 543 output, (i.e. after the V.C.A.) it cannot act immediately on the V.C.A. because it has already been modified by settings of the V.C.A. and circuits through which it has passed.

This is known as a "Feed-Back" compressor. The two compression characteristics are quite different; there is more "Overshoot" and both the attack and recovery ramps are changed, providing the user with powerful choices.

In most of Mr. Rupert Neve earliest designs, feed-back detection controlling the VCA with a rectified voltage from the unit output was intrinsic to the musical dynamic response.

However, the very nature of a feedback compressor limits the attack time of the compression circuit. To offer faster, more technically accurate response times, feed-forward detection was implemented on Mr. Rupert Neve’s more modern designs.

With the FF / FB switch, both classic and modern VCA responses are available.

RMS or Peak?

One of the more unique features of the 543 is the new Peak / RMS mode also found in the Portico II Channel. This switch allows the VCA (voltage control amplifier) to respond to both RMS (Root Mean Square) and peak levels.

RMS circuits are considered to better mimic the way the ears perceive apparent loudness, while peak circuits tend to directly respond to the waveform voltage which may be more of a concern for prevention of clipping and maximizing levels.

In this case, peak mode uses a combination of both methods to get the best of both worlds, and avoids the drawbacks of each method on its own.





Ratio and Threshold

Above a given "THRESHOLD" signals are reduced by an adjustable amount ranging from 1:1, (which is linear, or no reduction at all), to more than 40:1 which is a very high ratio, equivalent to that of a Limiter.

RATIO is sometimes referred to as "Slope" because when depicted on a graph, the slope of the graph representing Output versus Input, is what changes.

Ratio and Threshold are closely inter-dependent. If a RATIO as high as 40:1 has been set, then if the THRESHOLD is set at 0 dBu, even when a massive signal of +40 dBu (unlikely!) is presented to the input, the output signal will only be +1 dBu.

RATIOS as high as this would normally be set somewhere above 0 dBu – say at +14 dBu, in order to prevent the output signal level exceeding just over +14 dBu to protect, for example, a digital recorder. Similarly, if a RATIO of 5:1 has been set, an input signal which is 10dB above THRESHOLD will only rise by 2dB above that THRESHOLD at the output.

THRESHOLD control covers the Range from below -30dB to +22dBu. When THRESHOLD set at a low level, with a fairly high RATIO the amount of gain reduction will be considerable and it may be necessary to use some GAIN after the compressor to restore the apparent signal level.

Attack Time

The ATTACK time is the time taken for the compression circuits to start compressing. A long ATTACK time allows short duration peaks to "escape" and go through uncompressed. This may cause overload on subsequent digital circuits. A very short attack time sounds un-natural and robs the signal of "life" by removing transients. Some transients are extremely fast and have little effect on the sound quality.

Setting a long attack time often means that almost no gain reduction occurs because the transient is history (!) before compression has had time to operate. However, even the fastest circuits take time to operate which means that there is always some "Overshoot". Small amounts of "Overshoot" are musically desirable – there are exceptions, of course.

Setting the right values of RELEASE and ATTACK is what compression is all about! Once the principles are understood a Compressor-Limiter such as the 543 provides a powerful tool that actually appears to enhance the dynamic range of a recording and so provide greater musical enjoyment.

Release / Recovery

The notes above explain how the 543 handles signals of constant amplitude such as pure tones. Real program signals, however, are continually changing in level. The way in which a compressor deals with actual program material depends upon the magnitude and duration of peaks in the program level.

If the RELEASE TIME is set to be very short, a short duration signal will be compressed but the gain will return to normal very quickly, giving a fluctuating and un-natural sound known as "Pumping" when the background, or other signals, are forced up and down. The gain will also tend to follow the wave form of low frequency signals.

RELEASE TIME should be set long enough for the gain to remain reasonably constant between each bass note or between speech syllables.

Specifications

Gain Range:

  • Continuously variable from 6 dB to +20 dB.

Threshold Range:

  • Continuously variable from 36 dB to +22 dB.

Ratio Range:

  • Continuously variable from 1.1:1 to Limit (40:1).

Attack Range:

  • Continuously variable from 20mS to 75mS

Release Range:

  • Continuously variable from 100mS to 2.5 Seconds.

FF/FB:

  • Feed-Forward or Feed-Back VCA control.

Maximum Output Level:

  • Balanced and Floating Transformer Output
  • Maximum output from 20 Hz to 40 kHz is +23 dBu.



Total Harmonic Distortion and Noise:

  • @ 1kHz, +20 dBu output level, no load.
  • Main Output, compressor bypassed
  • Better than 0.0006%.
  • Main Output, compressor engaged
  • Better than 0.02%

Noise:

  • Measured at Main Output, un-weighted, 22Hz-22kHz, Terminated 40 Ohms.
  • With Gain at Unity, Compressor disengaged
  • Better than 103 dBu.
  • With Gain at Unity, Compressor engaged:
  • Better than 92 dBu

Frequency Response:

  • Main Output, Unity Gain
  • @ 18 Hz, +/- .1dB
  • @ 150 kHz -3 dB.

Crosstalk

  • Measured Channel to Channel:
  • Better than 90 dB @ 15kHz.

METERS:

  • Monitor INPUT LEVEL and GAIN REDUCTION
