SPL Audio

MC16 16-Channel Mastering Monitor Controller

  • Sale
  • Regular price R 108,595.00

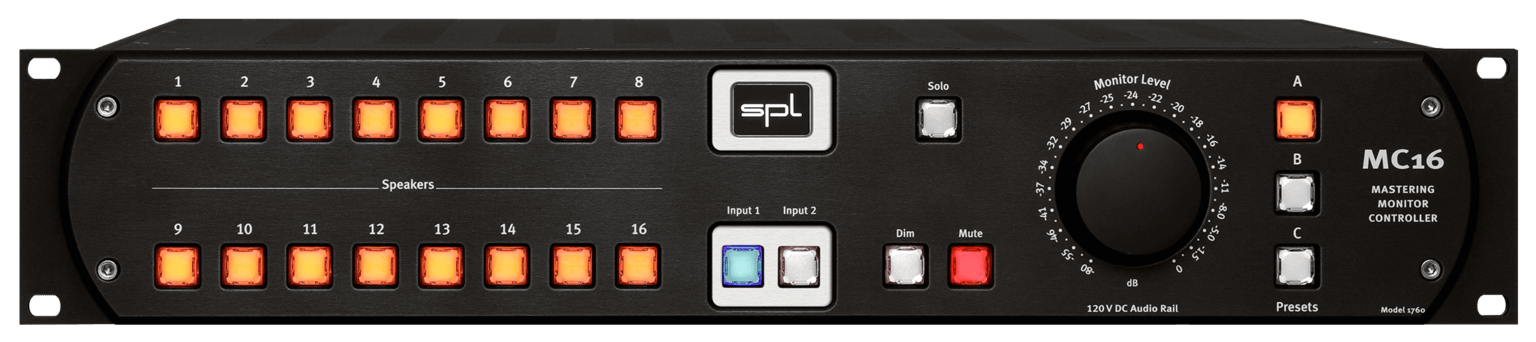

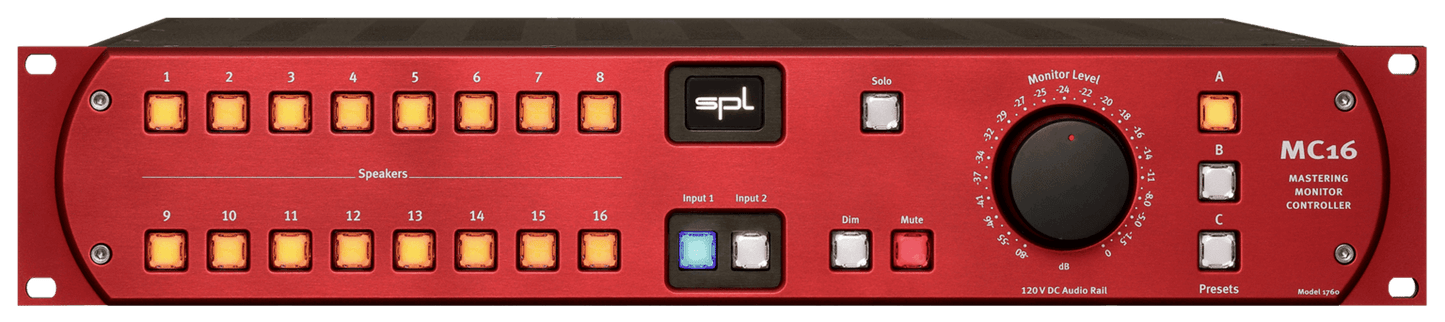

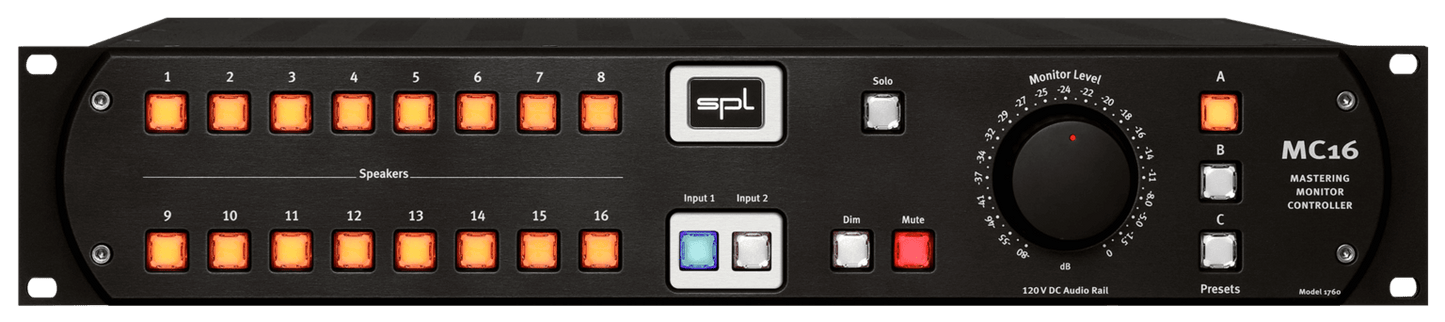

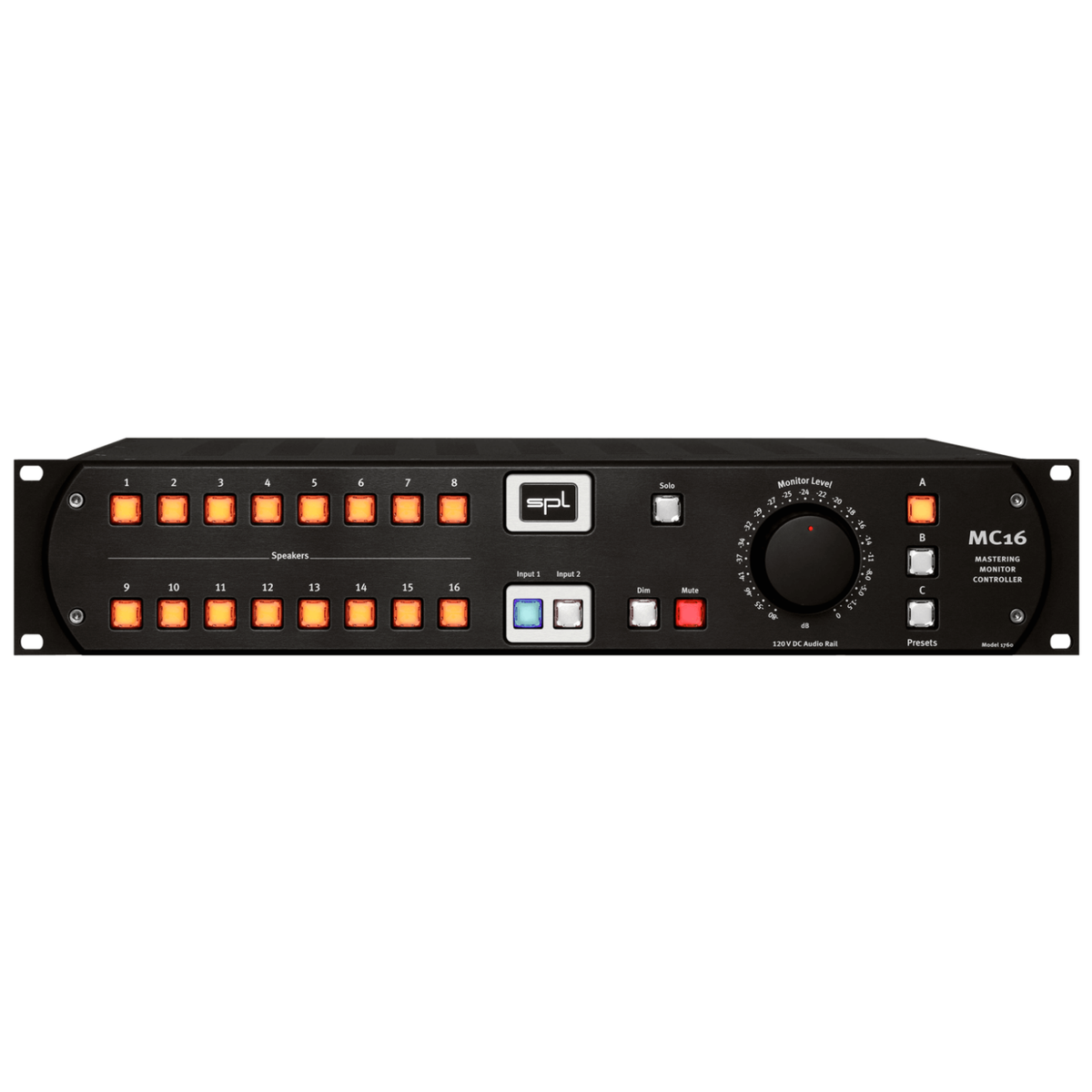

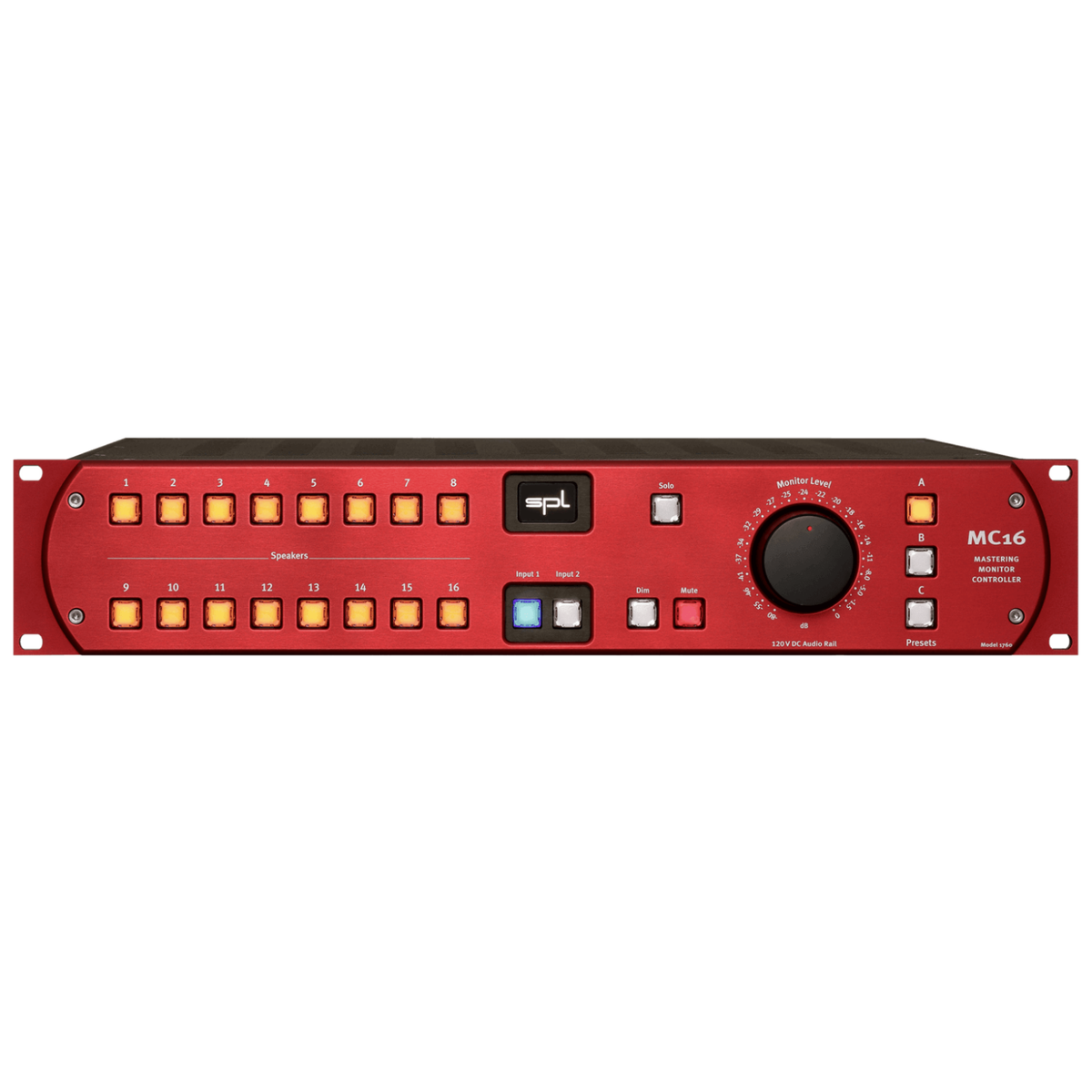

Designed for today's modern mastering environment, the SPL MC16 is a 16-channel analog monitoring controller accommodating multiple formats, including Dolby Atmos and Auro 3D. It's intended for use with the DMC stereo mastering console, allowing users to work in all current playback formats without repatching their speakers or gear.

For level control, SPL has provided a gang-precision pontentiometer that controls the relational level of all 16-channels in a seamless way, so that no one channel is affected more than any other. You'll find your usual solo, mute, and dim options, but one of the key innovations lies under the hood: 120V DV audio rails that allow for exceptional headroom, giving you clean sound at all levels.

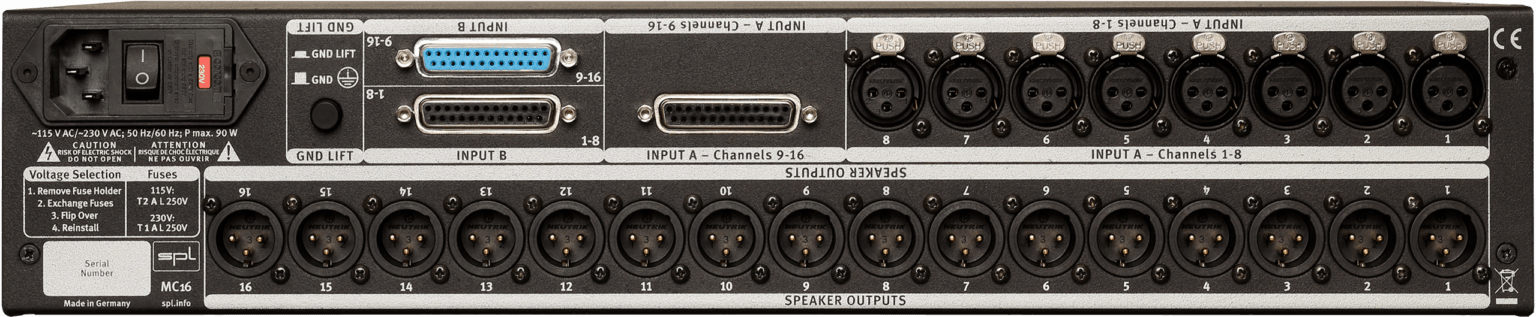

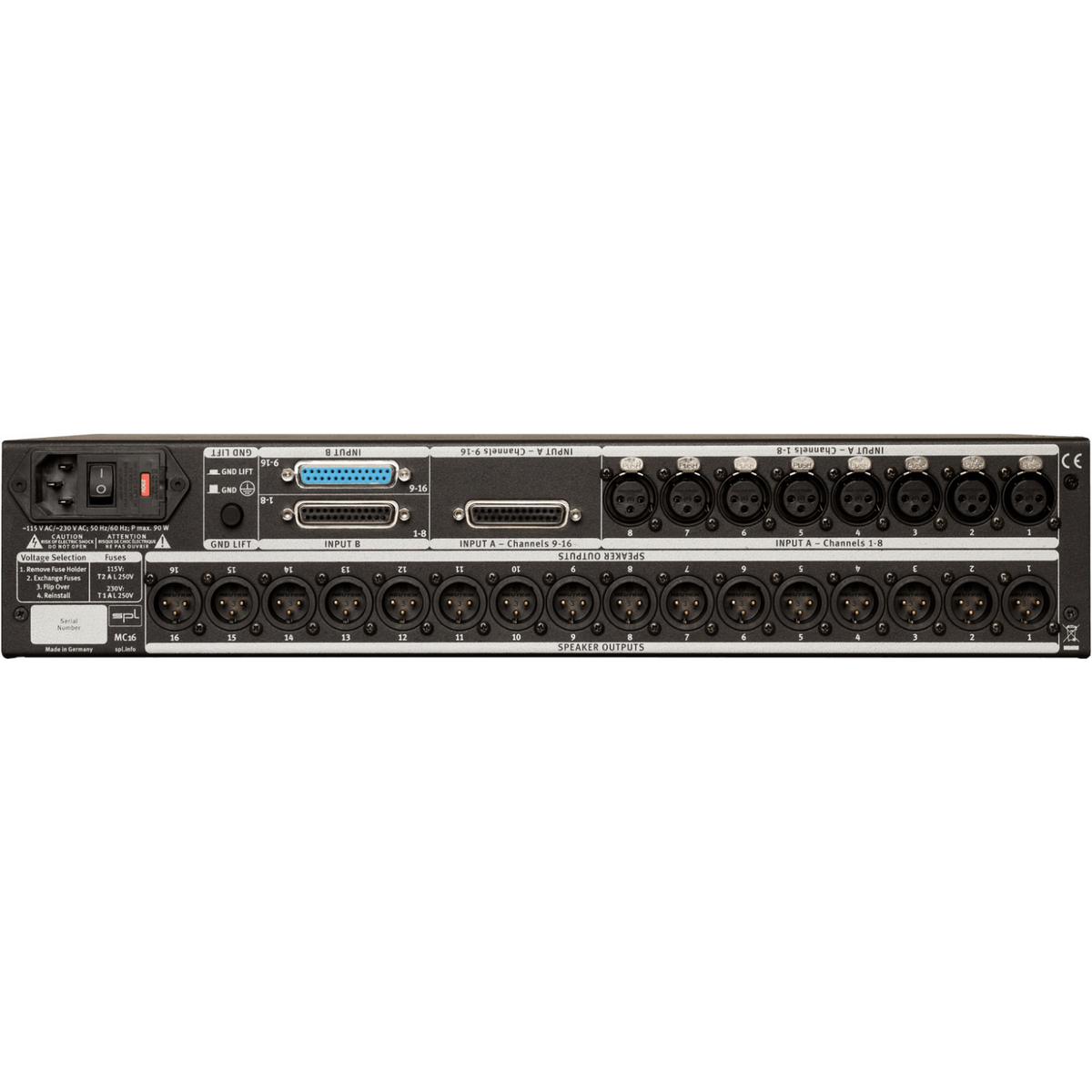

On the rear of the device you'll find connection points for XLR and DB25 terminations. You can program three monitoring presets in the A, B, and C slots. Select among banks of inputs with switches on the front panel. Mute and unmute any of the 16 speaker outputs with the press of a button. A power cord is included.

Specifications:

Analog inputs & output; XLR & DB25 (balanced)

Maximum input & output gain: 32.5 dBu
Input impedance: 20
Output impedance: 75 Ω
Common mode rejection: -82 dBu
Frequency range (-3 dB): 4 Hz – 300 kHz
Crosstalk (1 kHz): -100 dBu
THD + N (+24 dBu): > 112 dB
Noise (A-weighted): -102.4 dB

Internal Linear Power Supply with Shielded Toroidal Transformer

Operating voltage for analog audio: +/- 60 V
Operating voltage for relays and LEDs: + 12 V

Mains Power Supply

Mains voltage (selectable, see fuse chamber): 230 V AC / 50; 115 V AC / 60 Hz
Fuse for 230 V: T 1 A
Fuse for 115 V: T 2 A
Power consumption: max. 70 VA

Dimensions & Weight

W x H x D: 482 x 88 x 300 mm / 19 x 3.46 x 11.8 inch
Unit weight: 8.4 kg / 18.52 lbs
