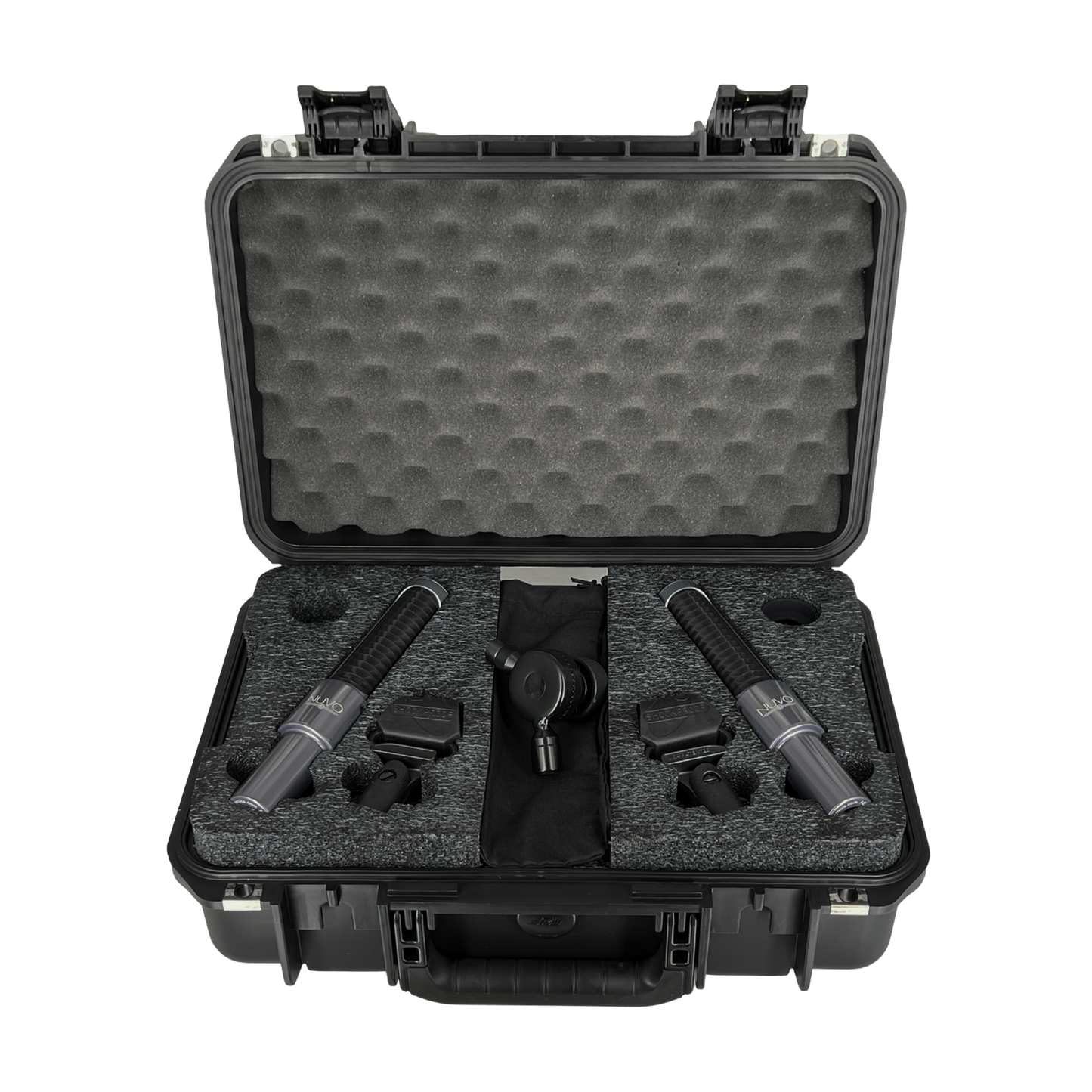

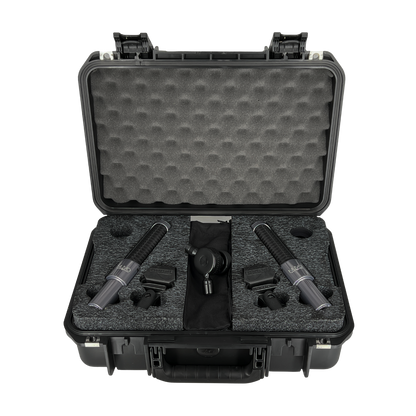

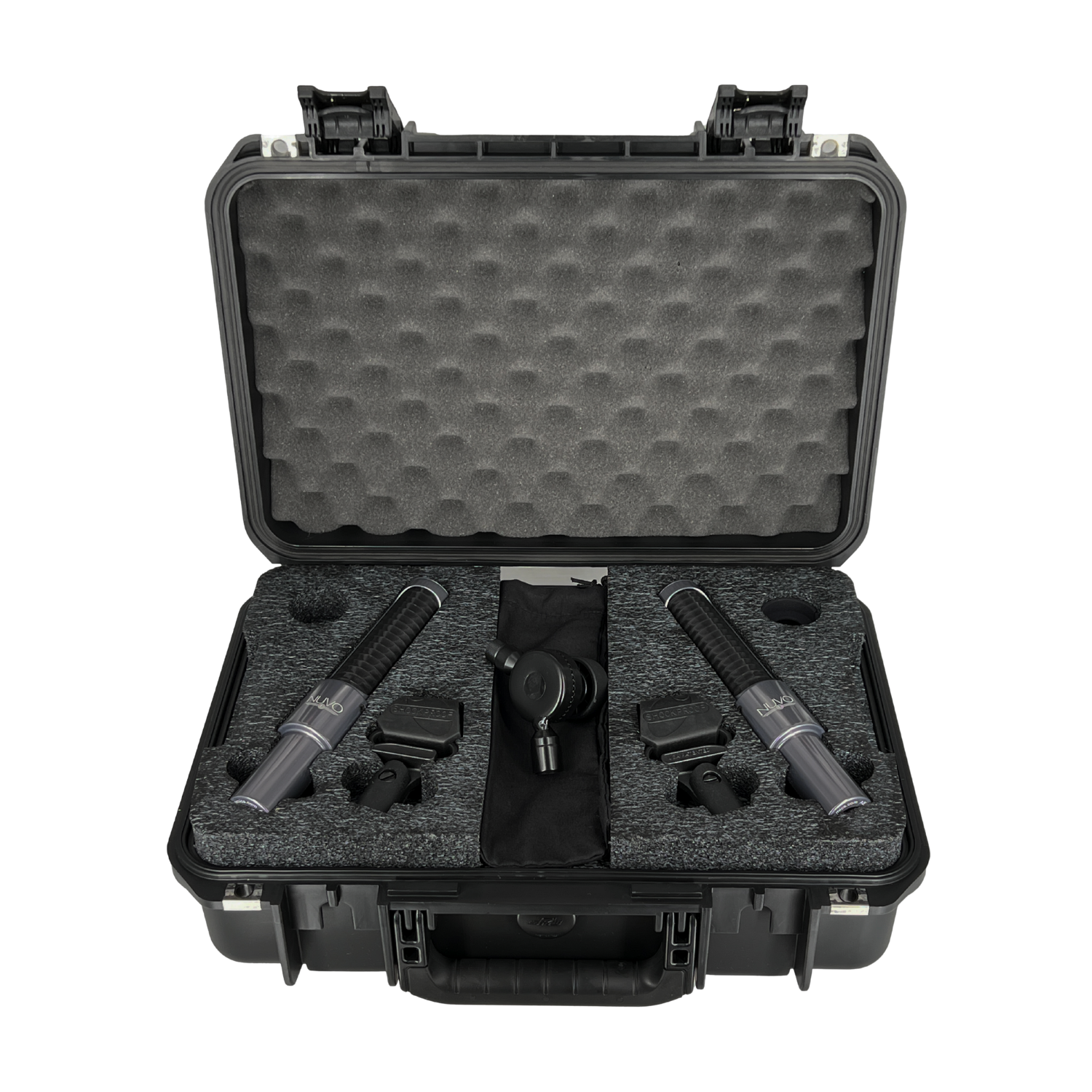

AEA's NUVO Series Stereo Kit enables serious musicians and engineers to rapidly set up and accurately record in stereo on a single stand. The NUVO Stereo Kit can fit two mics and comes with all of the accessories necessary to easily configure the figure-eight microphones in Blumlein and near-coincident.

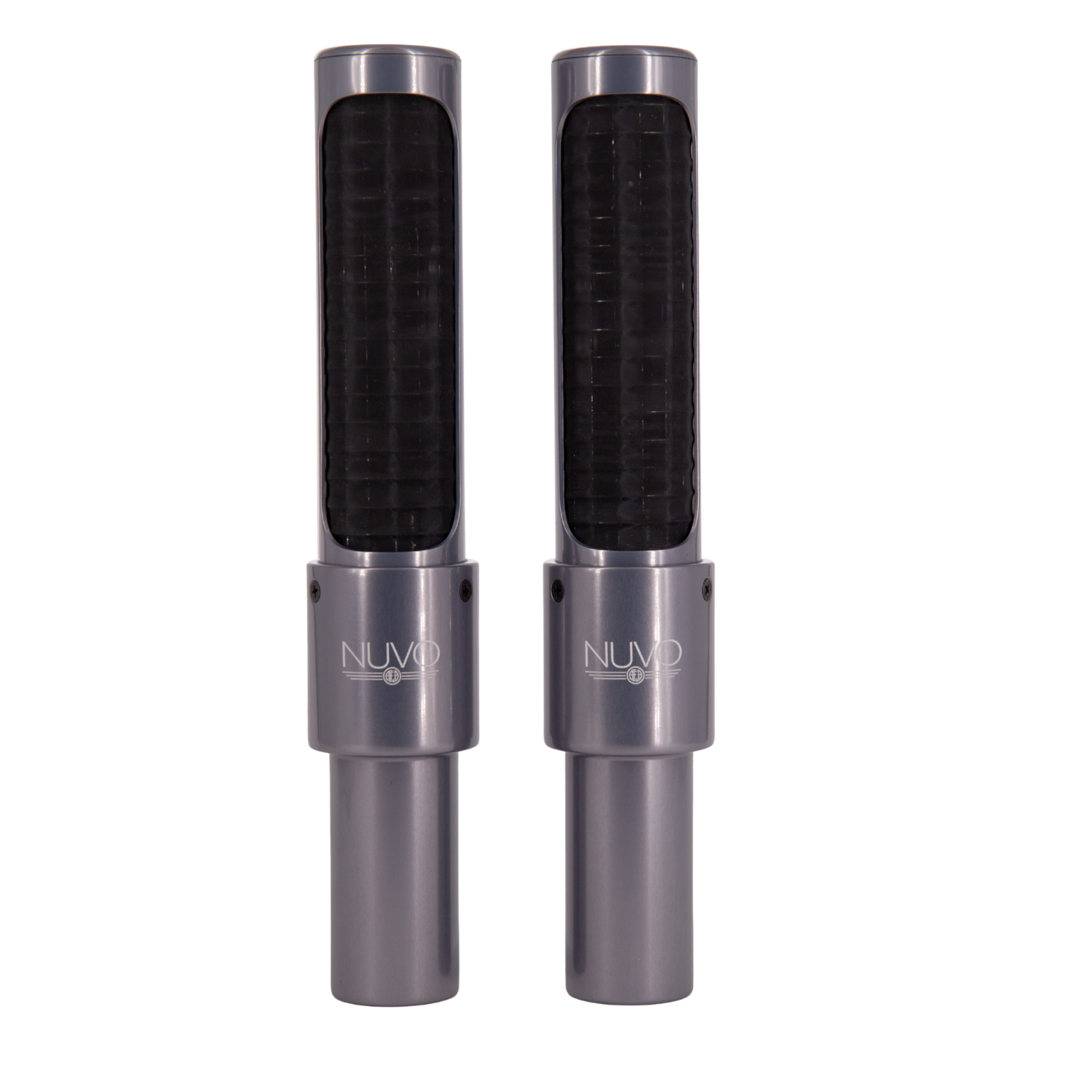

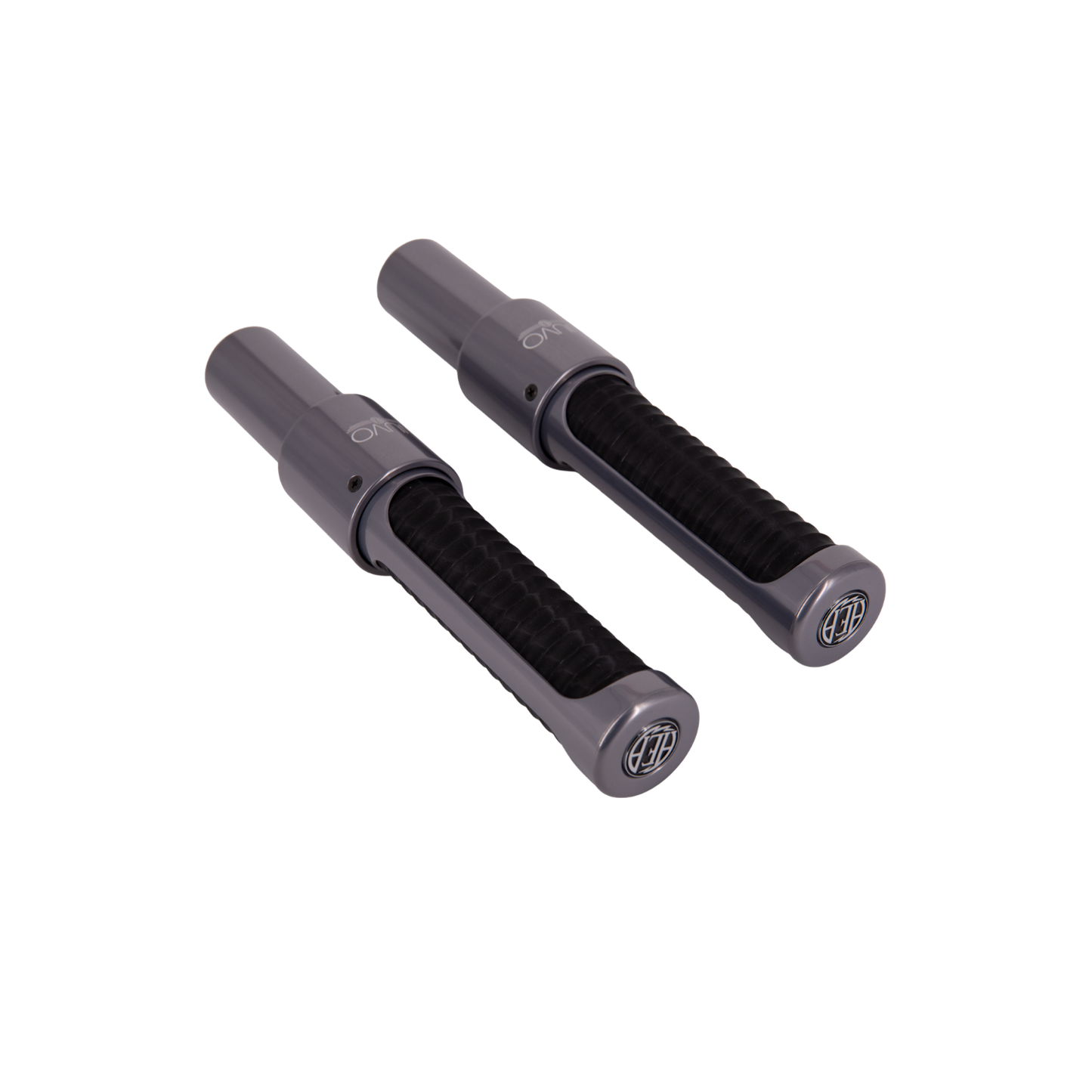

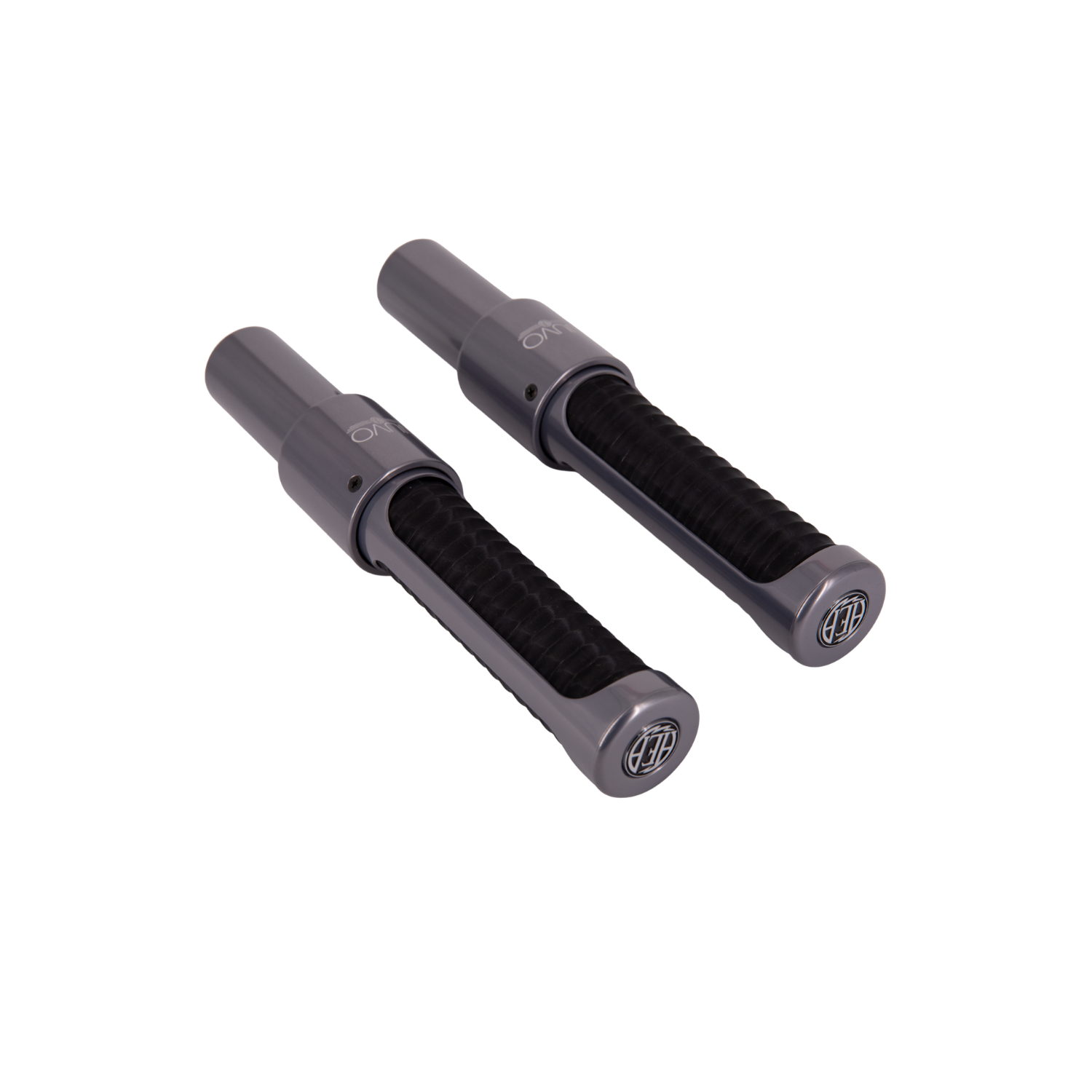

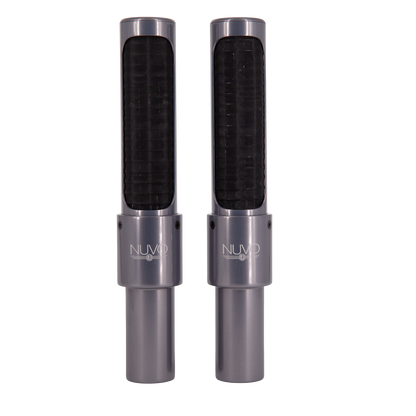

The AEA N13 is designed to be natural and open at a mid-field distance, with a particularly strong ability to pick up fast transients. Relatively bright for a ribbon mic, the N13 microphone excels in capturing drum overheads, strings, acoustic guitars, and piano.
With phantom-powered JFET electronics and a custom German transformer, the N13 performs equally well with a wide range of preamps ranging from vintage high-end models to USB audio interfaces common in home studio setups. The full potential of the N13 is perhaps best realized when configured in the NUVO Stereo Kit, as it draws on the same successful sonic concepts as the AEA R88 stereo mic.
Specifications:
Operating Principle: Pressure gradient transducer
Directional Pattern: Bidirectional
Frequency Range: <20 Hz to >20 kHz
Maximum SPL: 13 dB SPL (1% third harmonic > 1 kHz)
Sensitivity: 11.48 mV/Pa (-3. dBV) (at 1 kHz, no load)
Output Impedance: 92 Ω broadband
Rec Load Impedance: 1.0 kΩ or greater
Phantom Power: P48 phantom power, 7 mA
Polarity: Pin-2 high for positive pressure at the front of the microphone.
Off-Axis Response
Horizontal: Up to 90 dB rejection at right angles to the front/back axis.
Vertical: Level changes with angle of incidence, but frequency response is consistent.
Transducer Element
Material: Pure aluminum corrugated ribbon
Thickness: 1.2 μm
Width: 0.113 in (2.87 mm)
Length: 1.30 in (33.0 mm)
Microphone Dimensions
Height: 8.83 in (22.5 cm)
Width: 1.62 in (11.7 cm)
Depth: 1.62 in (9.5 cm)
Weight: 12 oz (335 g)
Shipping Weight: 1 lb 13 oz (810 g)
Connector: XLR-3M
