Elysia

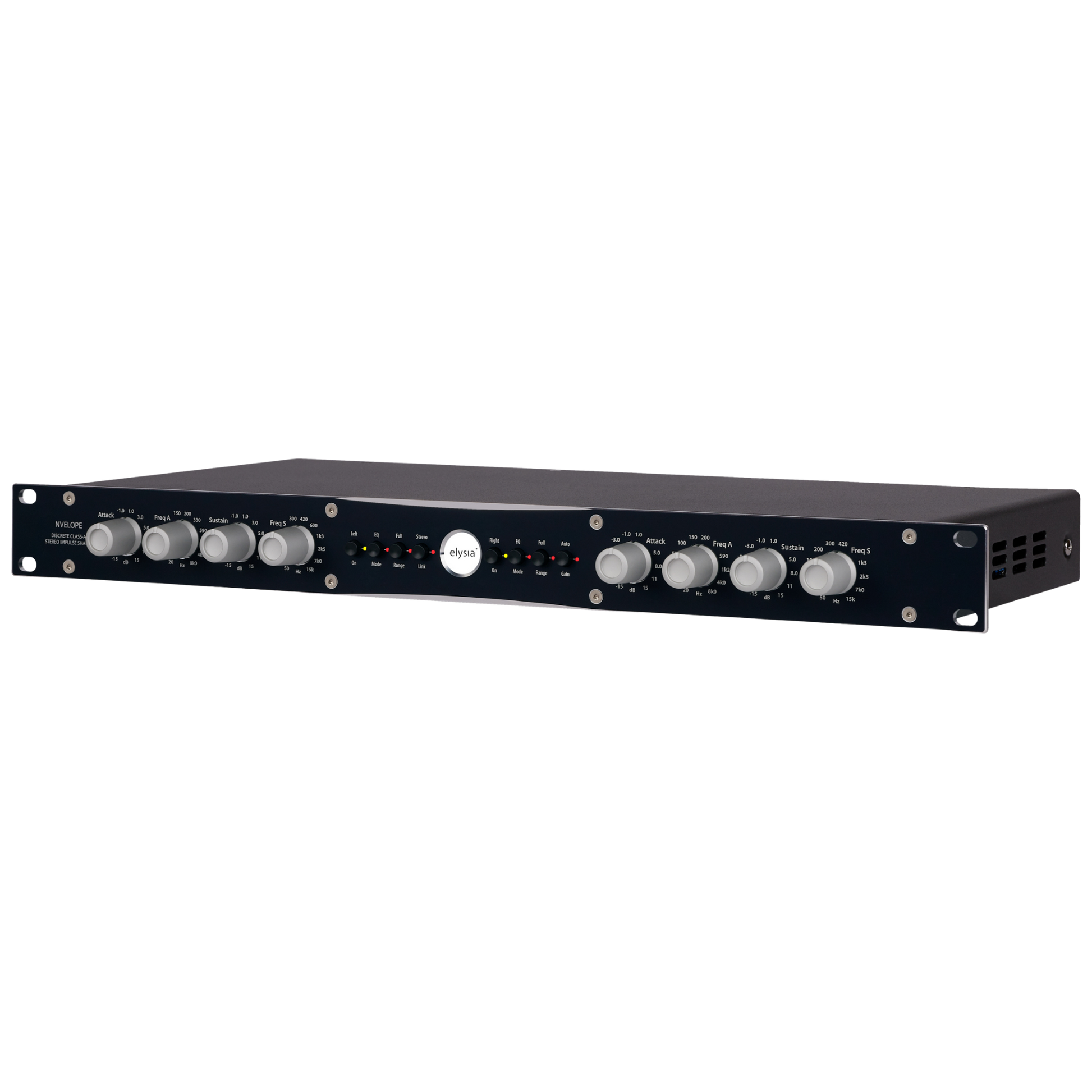

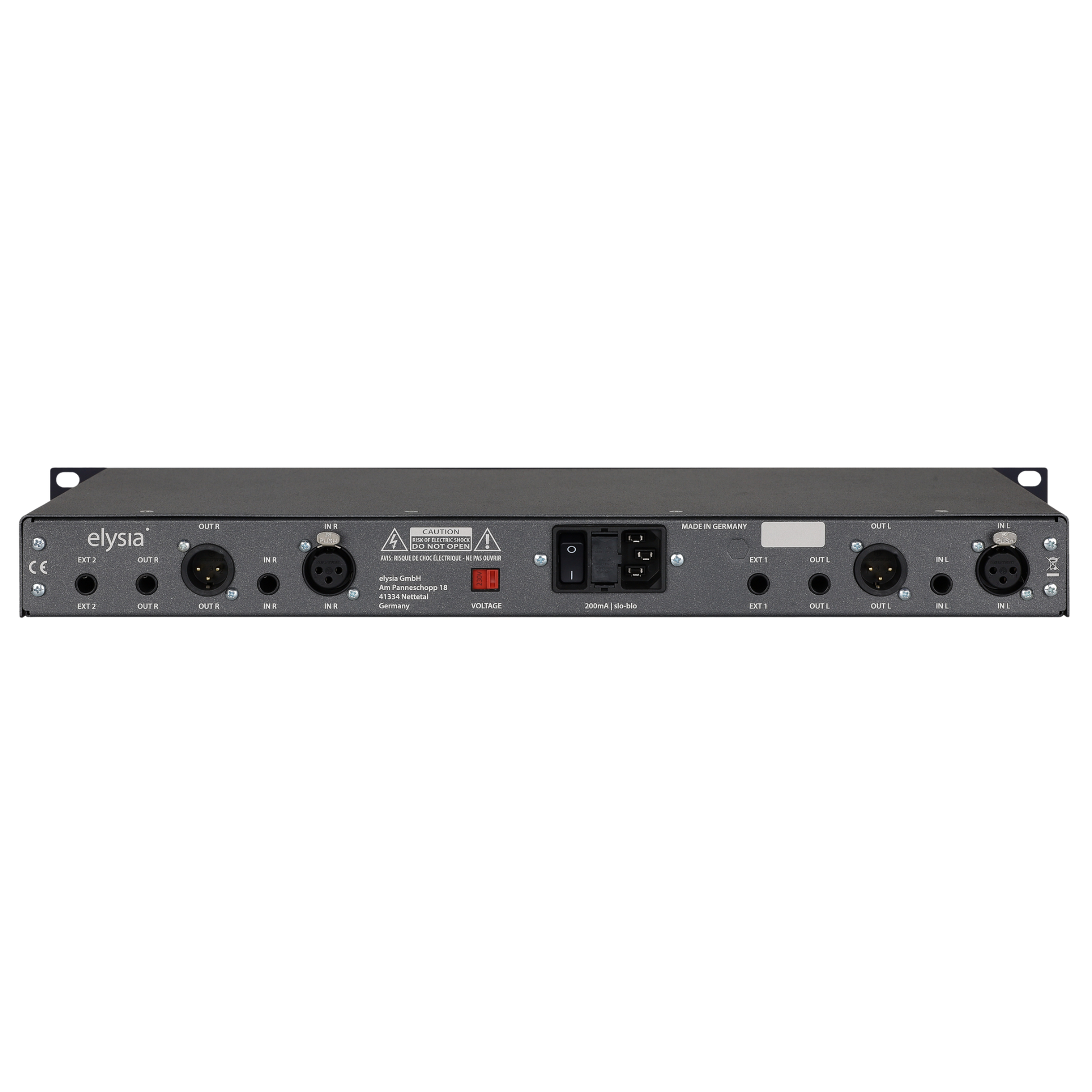

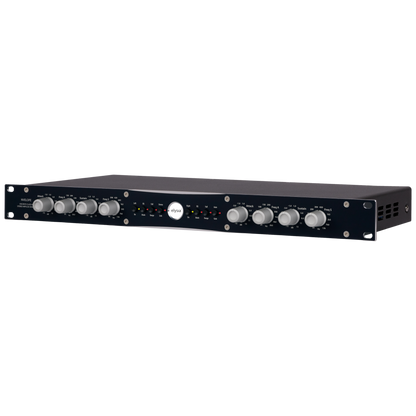

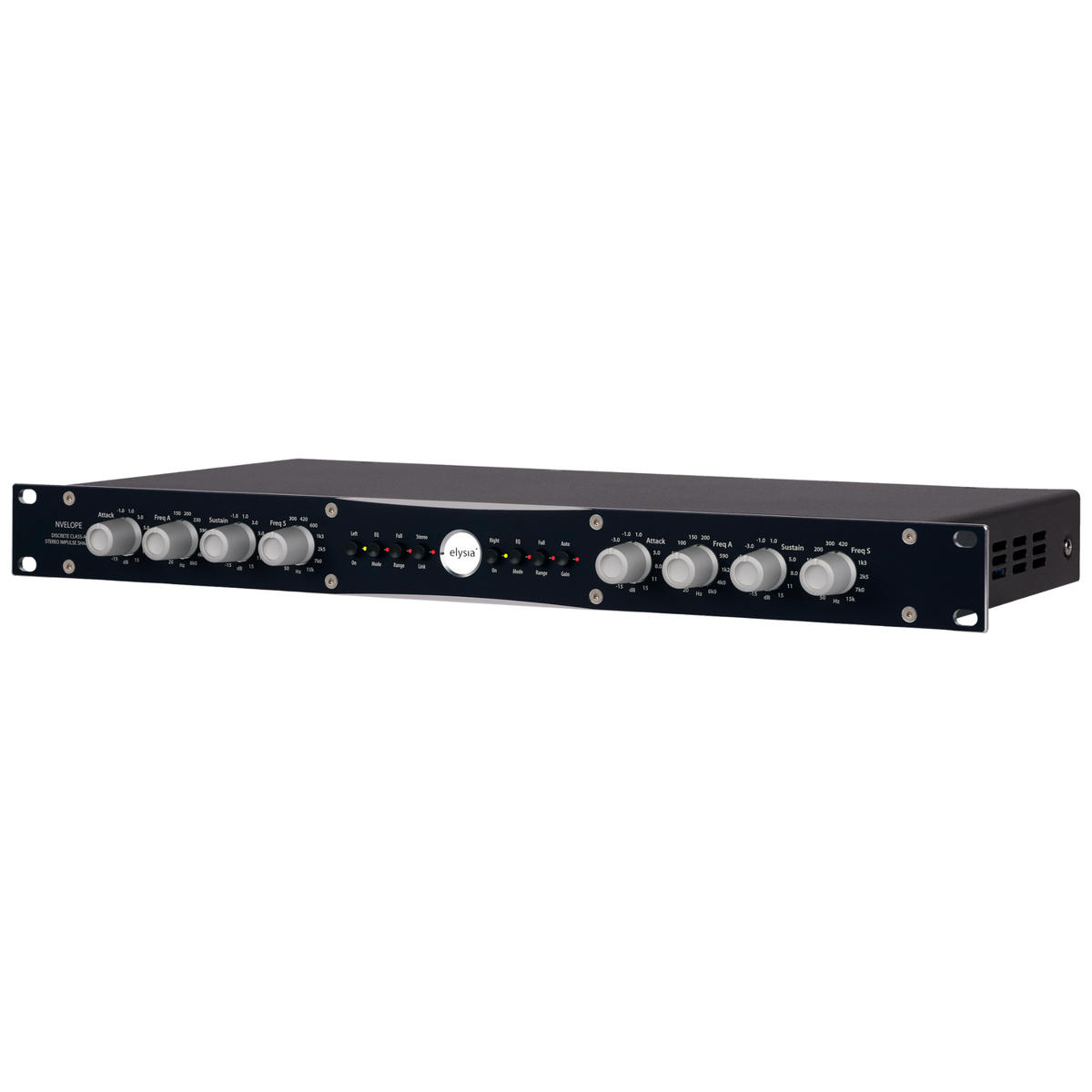

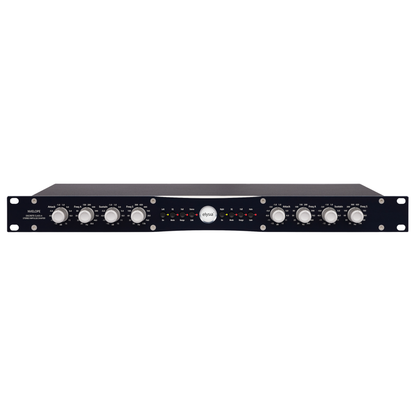

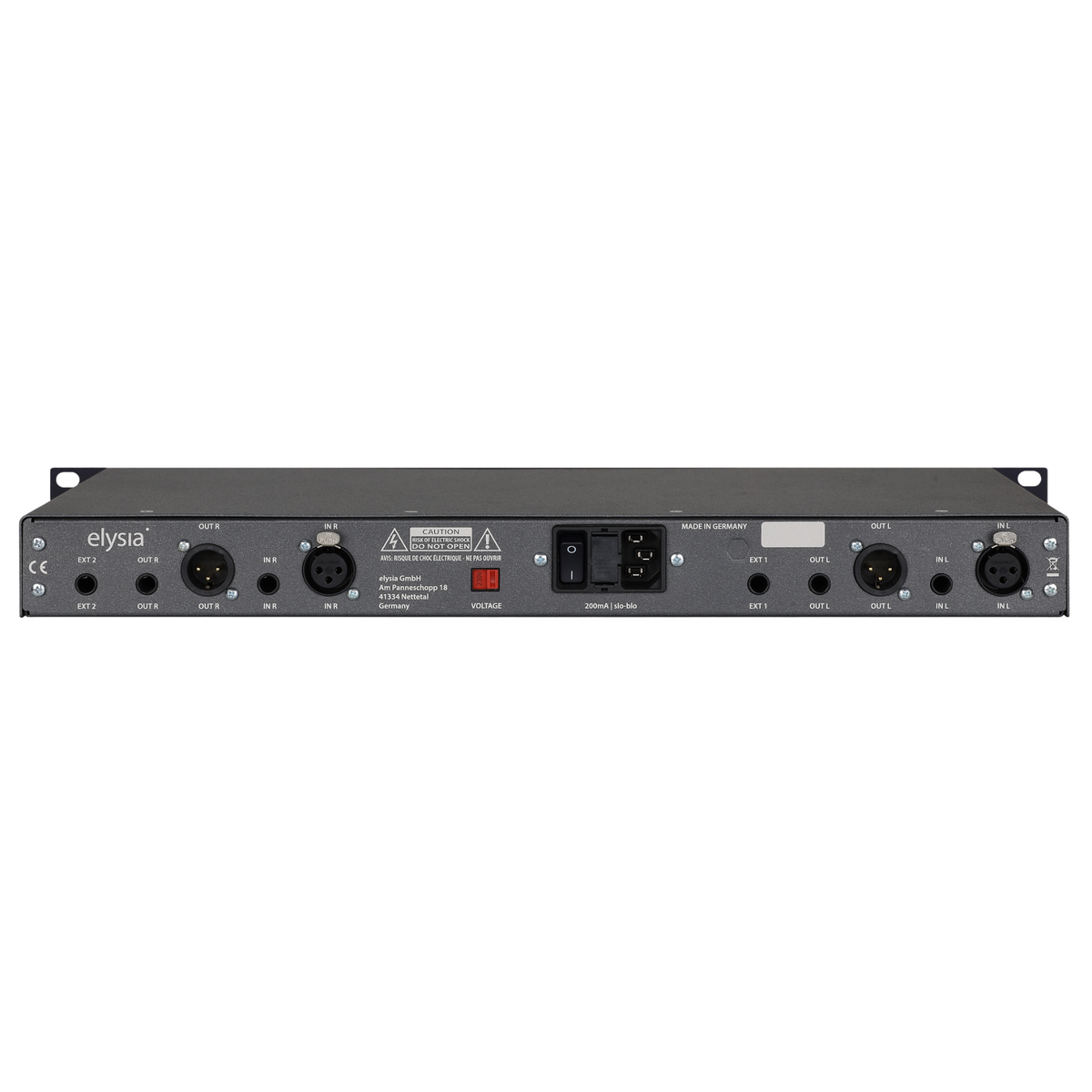

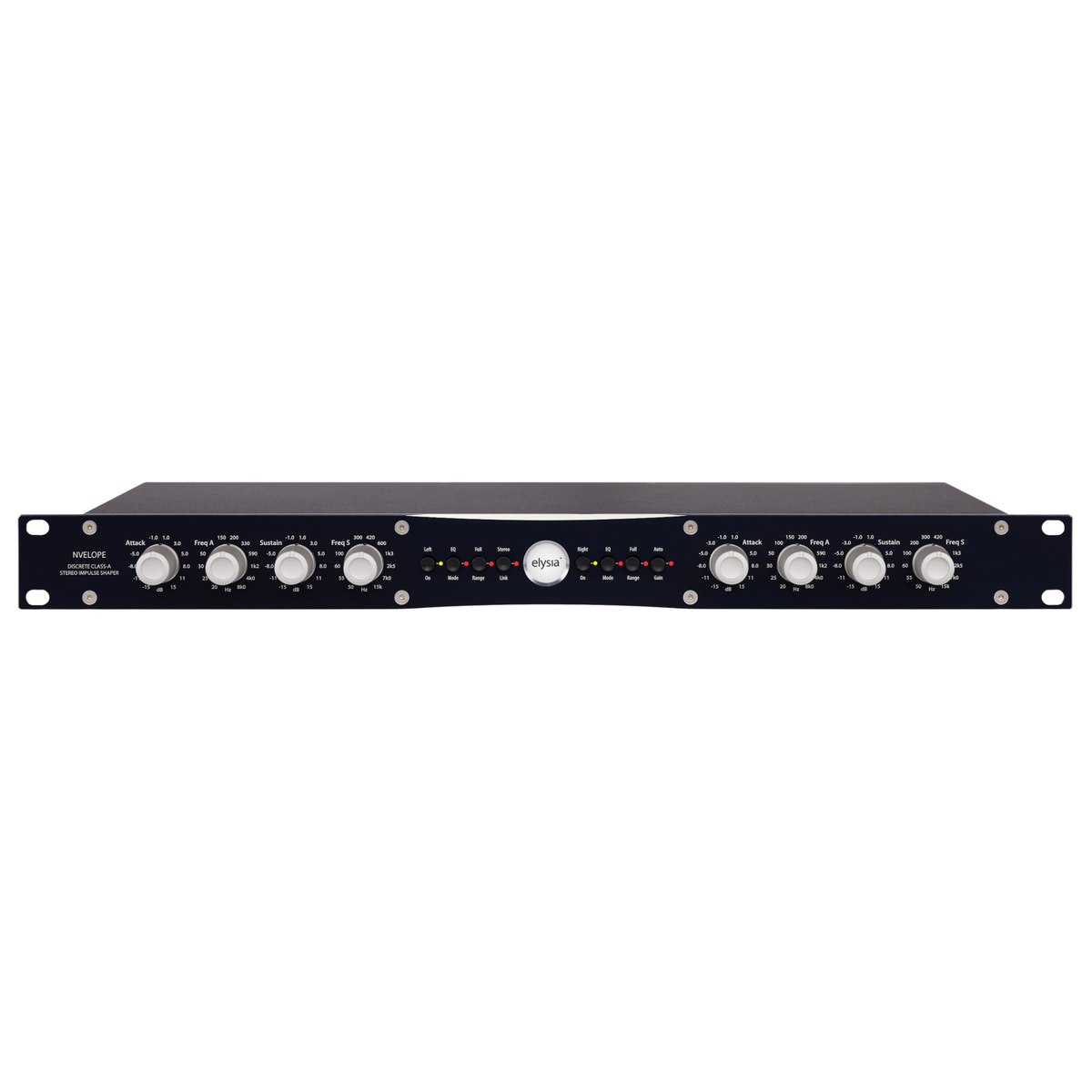

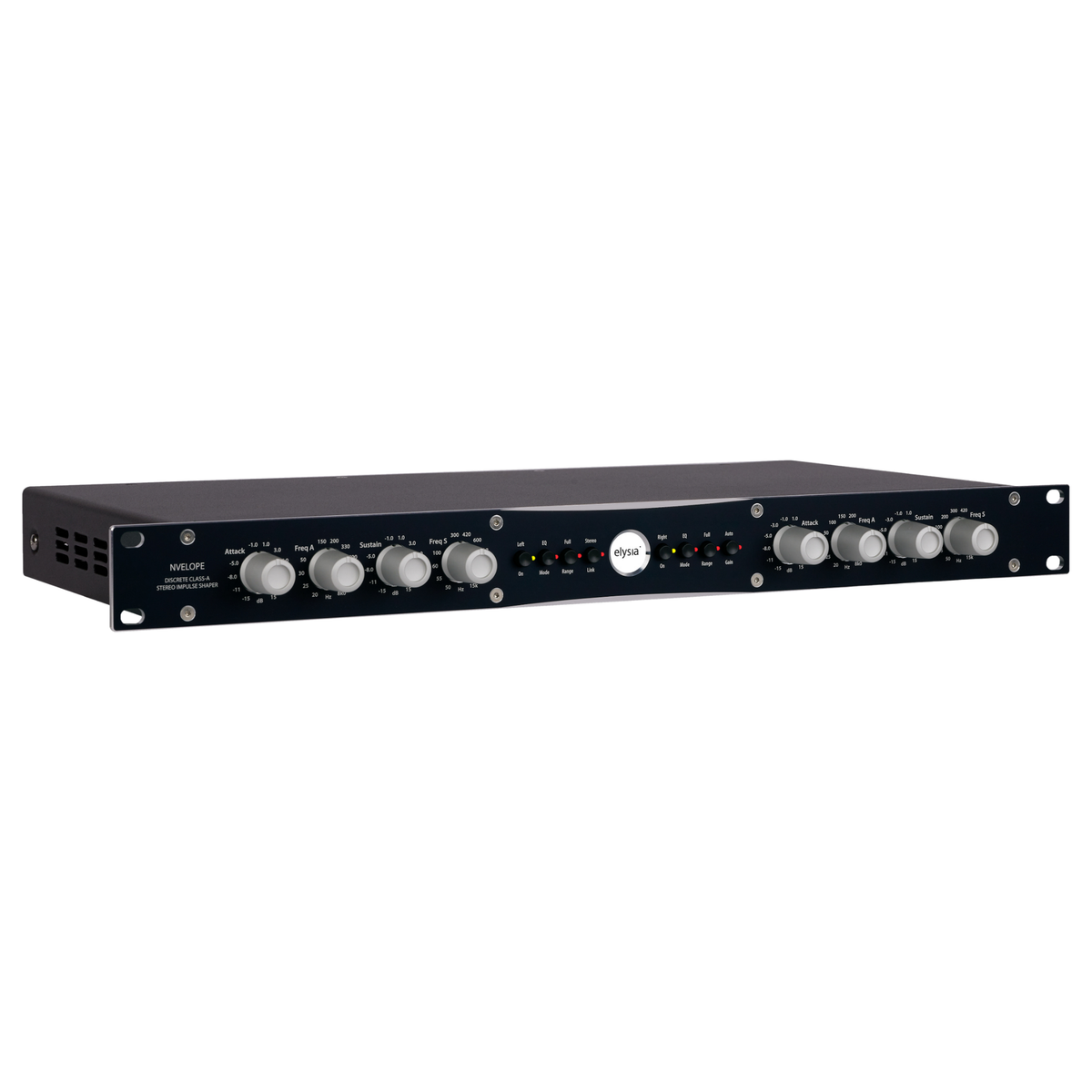

Nvelope Equalizer and Dynamics Processor

  • Sale
  • Regular price R 26,860.38

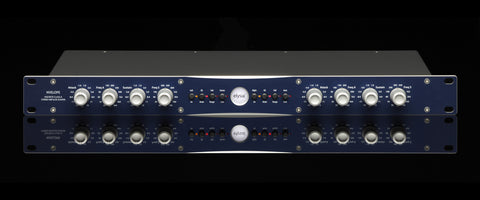

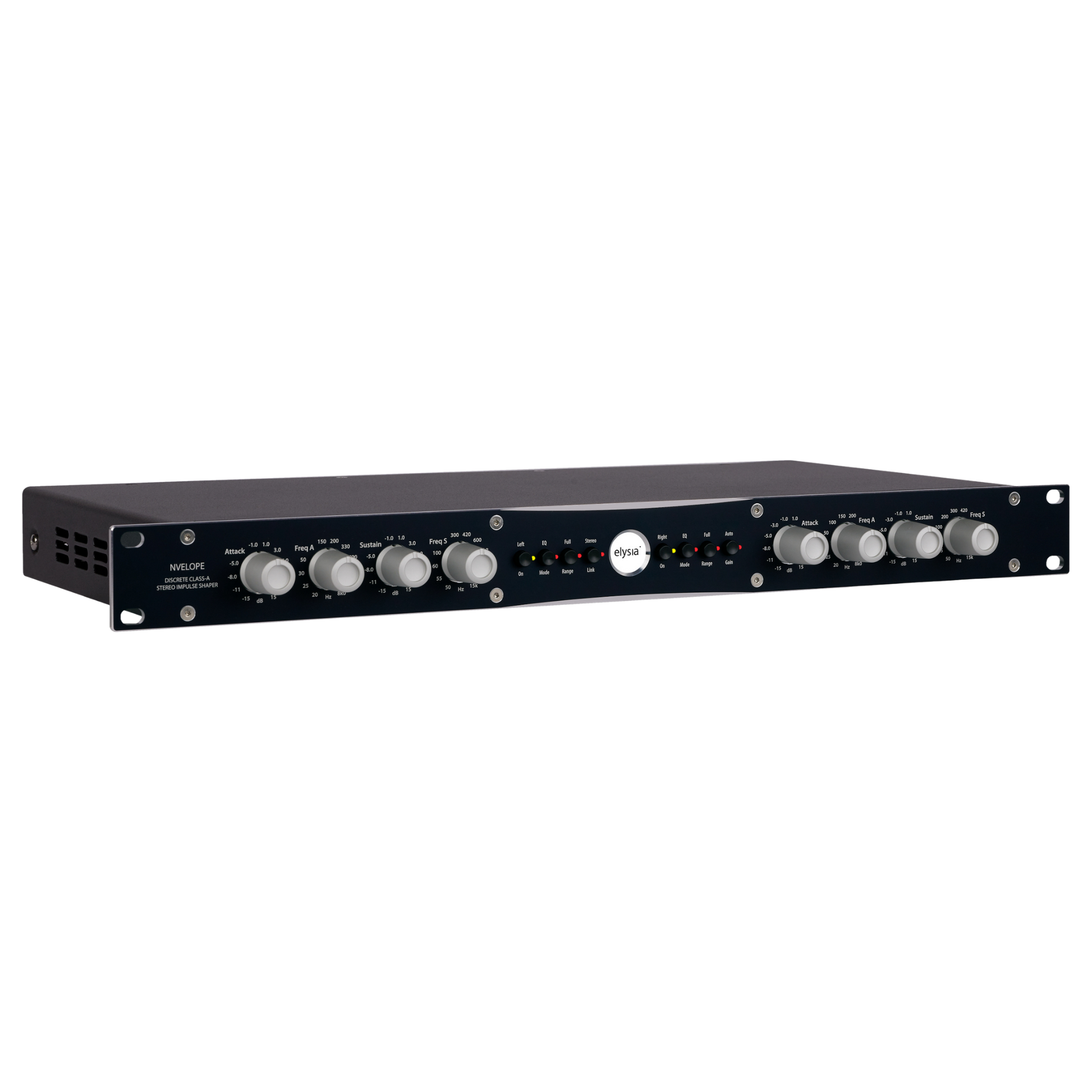

Nvelope – The Impulse Shaper


The nvelope is a powerful audio processor capable of making subtle or drastic changes to a sound by providing control over its attack and sustain characteristics. This is extremely useful for reshaping all sorts of individual tones, and is a wonderful tool in any mixing situation as well.

The nvelope operates independently of the specific level of a signal, and (unlike with compressors) you do not have to spend a lot of time trying to balance a set of complex controls to quickly get the results you seek.

FEATURES:

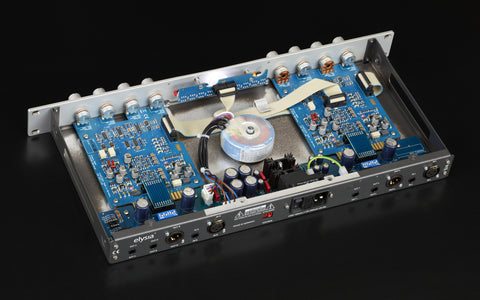

Discrete Class-A Topology

As a true elysia specialty, the audio path of the nvelope is completely based on discrete circuitry and does not use any integrated circuits at all.

Full Range Mode

In Full Range mode, the attack and sustain intensity of a signal can be raised or reduced fast and efficiently with just two controllers.

Dual Band Mode

This mode functions basically the same as Full Range, but it provides more tweakability by assigning the attack and sustain controls to individual frequency selectors.

EQ Mode

The nvelope can mutate into a two band equalizer with a high/low shelf characteristic, and even here the channel link for processing stereo material can be activated.

Mixed Mode

When Stereo Link mode is not active, the two individual channels can be used as completely different processors at the same time.

Dual Mono/Stereo Link

For ultimate flexibility, the nvelope offers true dual mono and linked stereo operation as well – no matter if you are using it in Full Range, Dual Band or EQ mode.

Auto Gain

Should distortion or huge jumps in level occur as an unwanted side effect of the attack processing, the Auto Gain function will compensate and get the level right.

Stepped Potentiometers

The frequency potentiometers have 41 steps for an easy recall, while the gain pots have a center detent for finding their neutral position at once.

SPECIFICATIONS:

Frequency response:

<10 Hz - 400 kHz (-3.0 dB)

THD+N:
@ 0 dBu, 20 Hz - 22 kHz
@ +10 dBu, 20 Hz - 22 kHz


0.006 %
0.01 %

Noise floor A-weighted:
20 Hz - 20 kHz (Full Range, EQ)
20 Hz - 20 kHz (Dual Band)


-90.0 dBu
-87.0 dBu

Dynamic range:
20 Hz - 22 kHz


112 dB

Maximum level:
Input
Output


+21 dBu
+21 dBu

Impedance:
Input
Output


10 kOhm
68 Ohm
