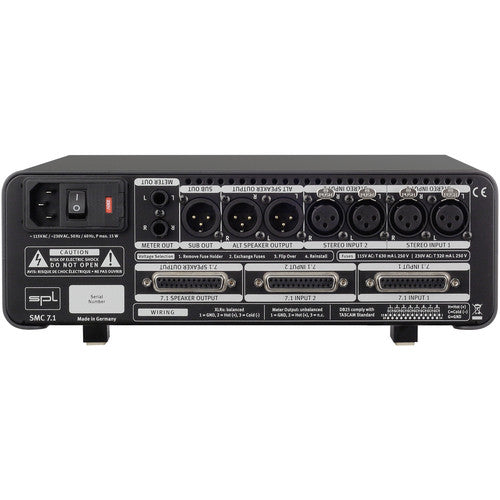

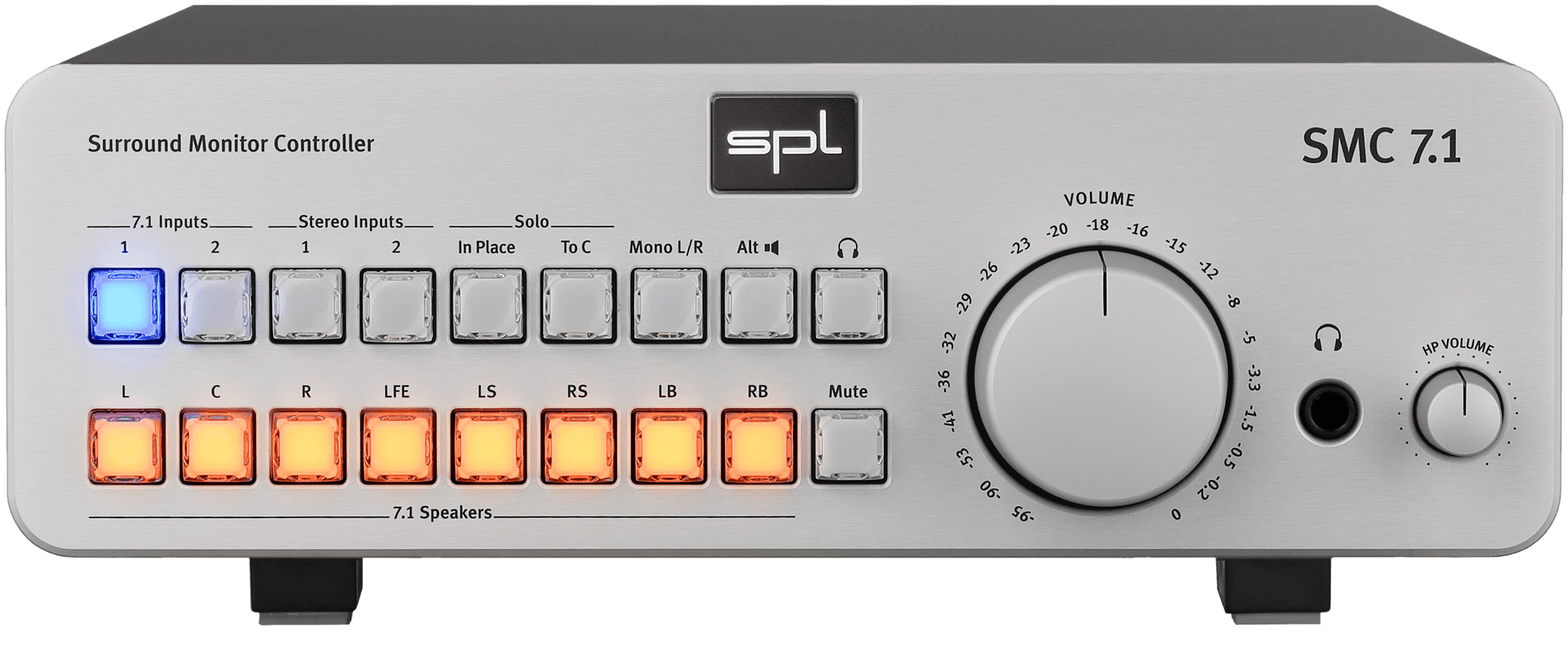

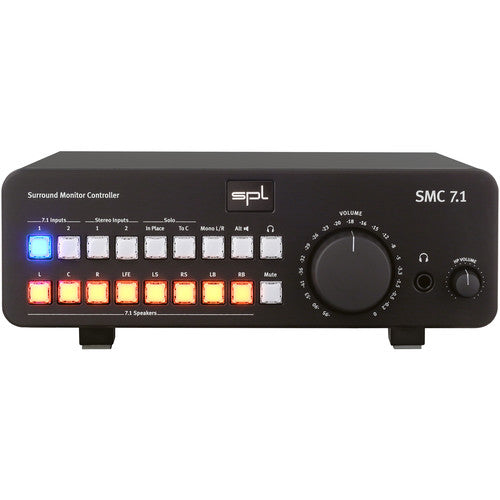

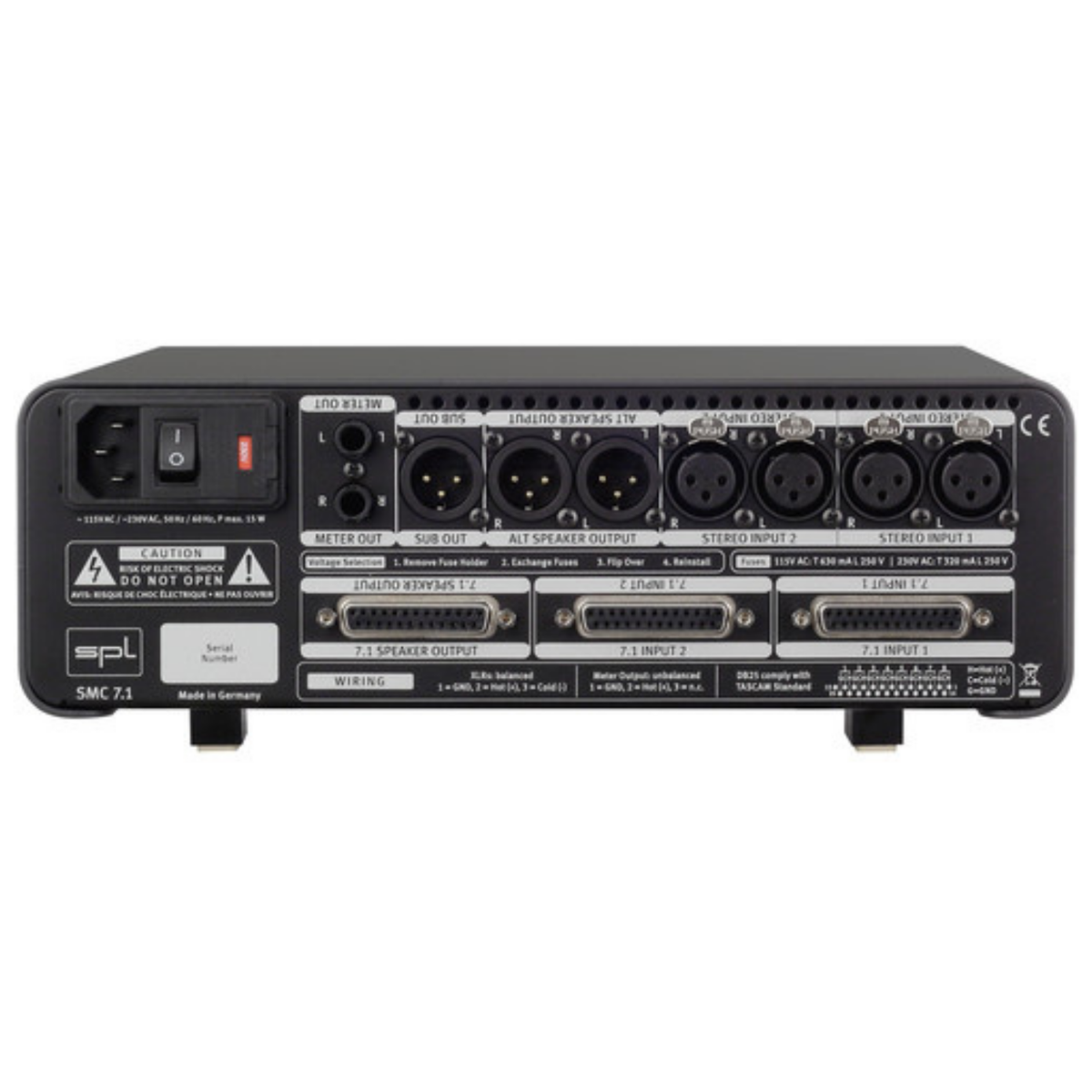

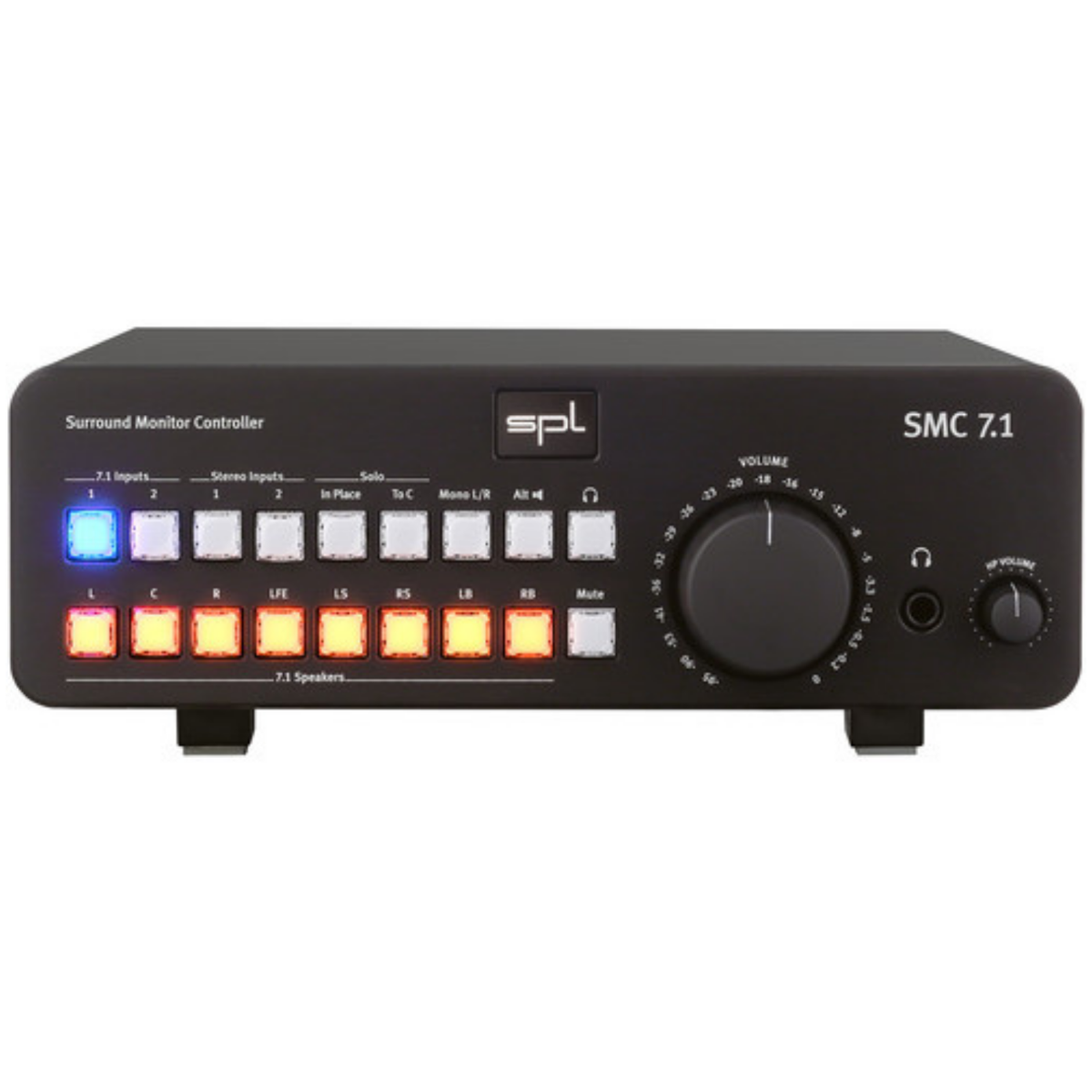

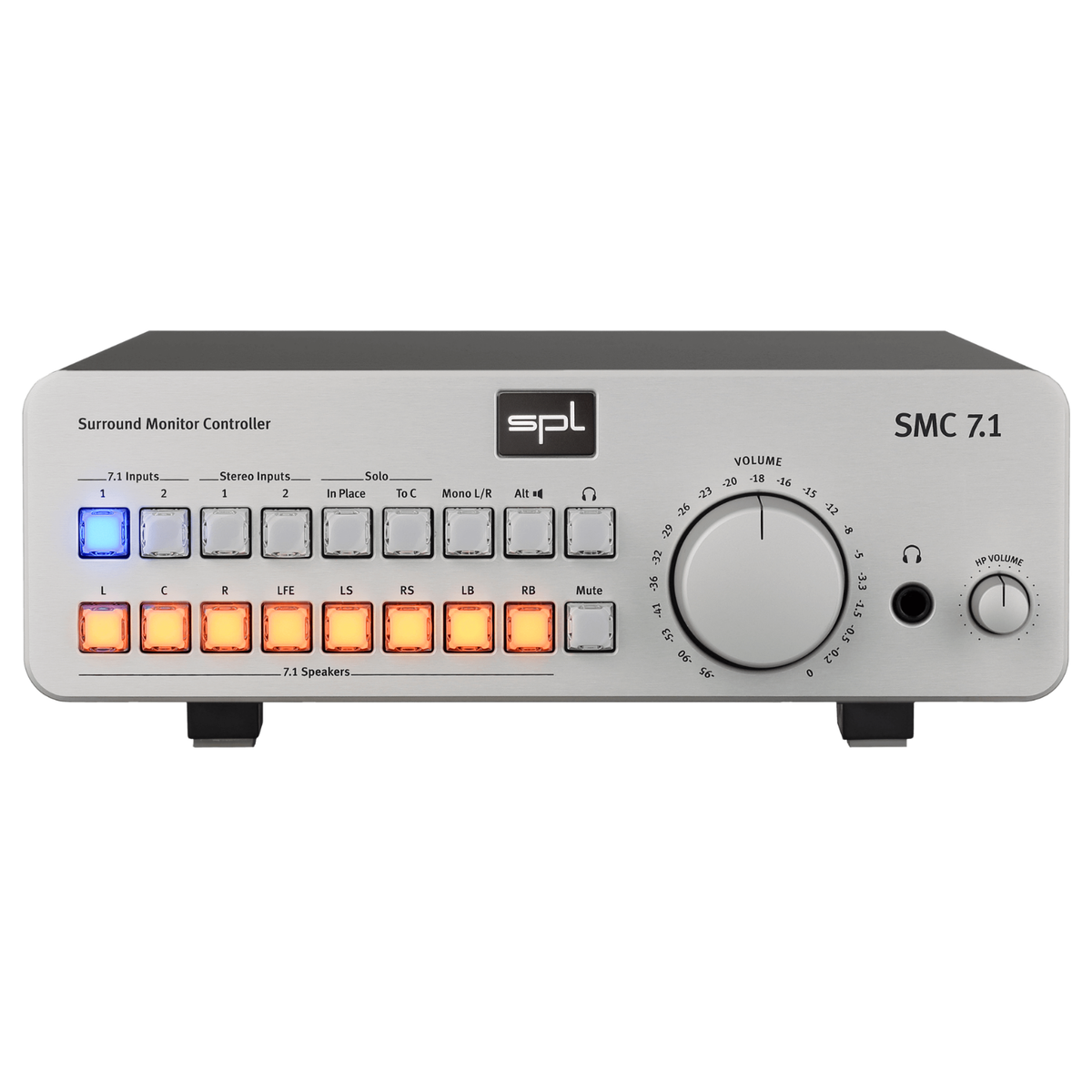

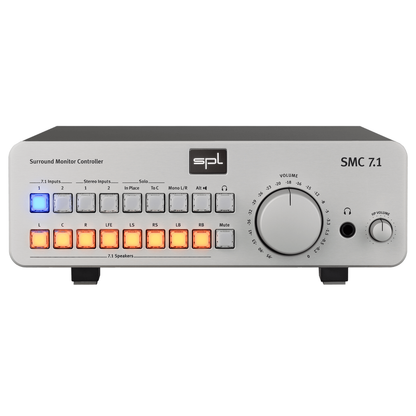

The SPL SMC 7.1 Surround Monitor Controller is an analogue controller for 7.1 and stereo sources. Each of the two balanced 7.1 inputs and the two balanced stereo inputs can be routed to the balanced 7.1 output. The L/R signals of the active input can be routed to the alternative stereo output is desired, and with the high-quality headphone amplifier, you can listen to the L/R signal of the active input as well as to single channels of the 7.1 inputs. The eight-ganged potentiometer controls the volume of all channels directly. The SMC 7.1 is built up in high-quality analogue circuitry that ensures a linear frequency response up to 100 kHz as well as an outstanding dynamic range.
Features:
- Inputs: Sub-D-25, Neutrik XLR
- Input Impedance: 20 kOhms
- Input CMR: -82 dB
- Max. Input level: +22 dB
- Outputs: Sub-D-25, Neutrik XLR Balanced, 6.3mm TRS Headphones
- Output Noise (A-weighted): -93 dB
- Power Supply: Analogue: +/- 18V PSU
- Mains Voltage (Switchable): 230V AC / 50Hz or 115V AC / 60Hz
- Fuses: 230V = T 500mA; 115V = T 1A
- Power Consumption: 25VA
- Dimensions: 278 x 103 x 333 mm
- Weight: 4.1 kg
Specifications:
Analog inputs & outputs; XLR & DB25 (balanced)
Maximum input: 22 dBu
Input impedance: 20 kΩ
Output impedance: 100 Ω
Frequency range (-3 dB): 10 Hz – 150 kHz
THD +N (10 Hz – 22 kHz, 0 dBu): 0.001 %
Noise (A-weighted): -93 dBu
Crosstalk (1 kHz): -92 dB
Common mode rejection (1 kHz): 82 dB
Dynamic range: 115 dB
Standard Headphones Output, 6.35 mm (1/4") TRS Jack
Wiring: Tip = Left, Ring = Right, Sleeve = GND
Frequency range (-3dB): 10 Hz – 80 kHz
Crosstalk (1 kHz): -70 dBu
Total harmonic distortion (0 dBu, 1 kHz, 40 kΩ load): 0.001 %
Noise (A-weighted): -93 dBu
Dynamic range: 115 dB
Internal Linear Power Supply with Toroidal Transformer
Operating voltage for analog audio: +/- 18 V
Operating voltage for relays and LEDs: +12 V
Mains Power Supply
Mains voltage (selectable, see fuse chamber): 230 V AC / 50; 115 V AC / 60 Hz
Sicherung für 230 V: T 500 mA
Sicherung für 115 V: T 1 A
Power consumption: max. 30 W
Maße & Gewicht
W x H x D: 278 x 100 x 330 mm / 11 x 4 x 13 inch
Unit weight: 4.1 kg / 9.04 lbs
