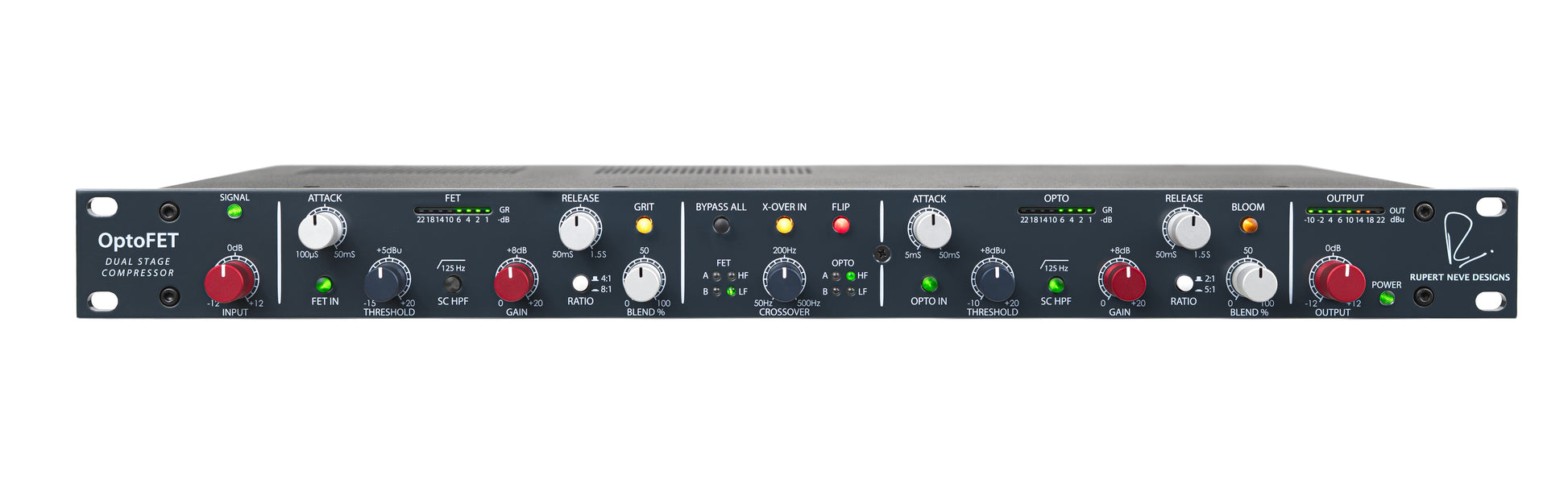

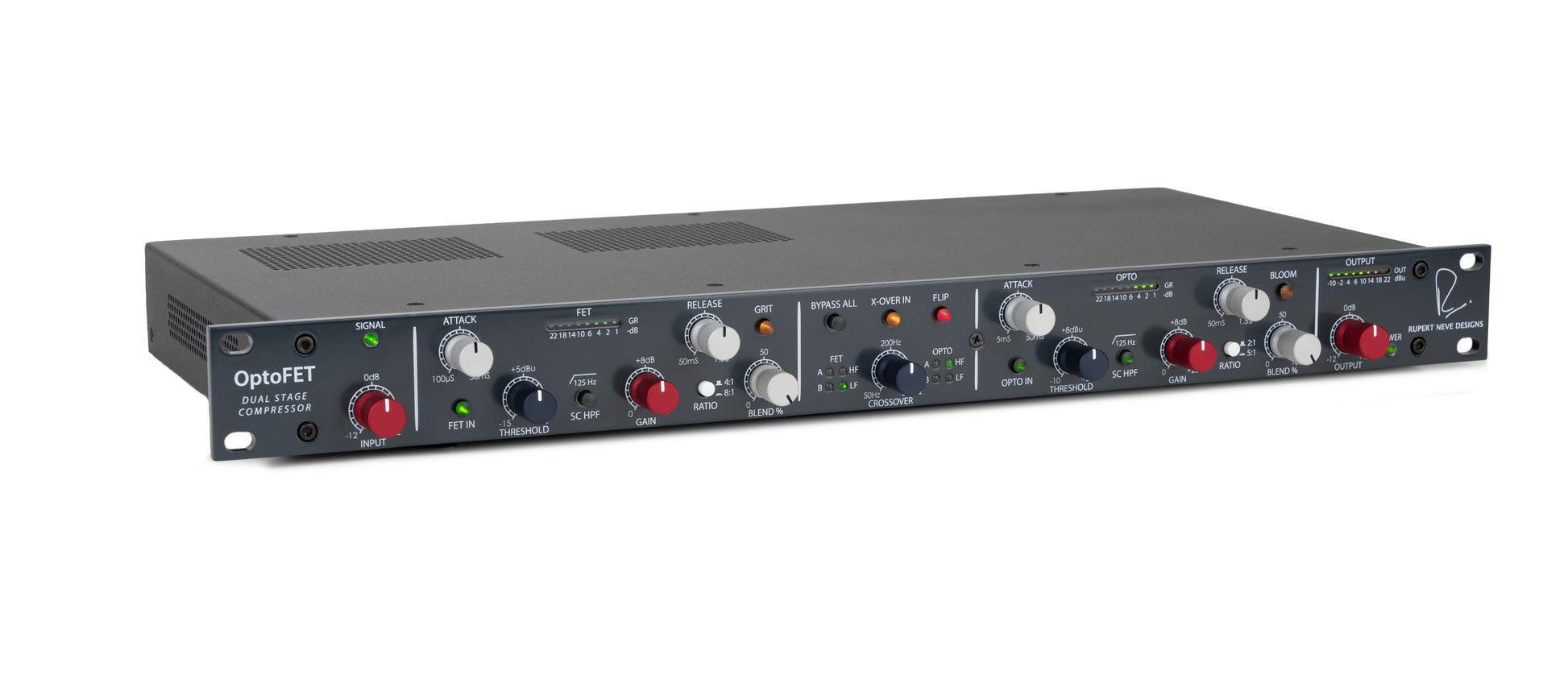

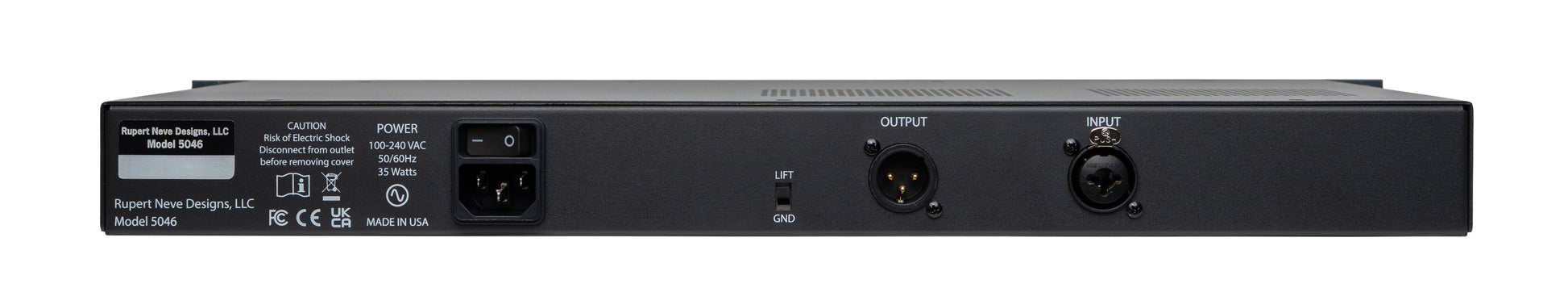

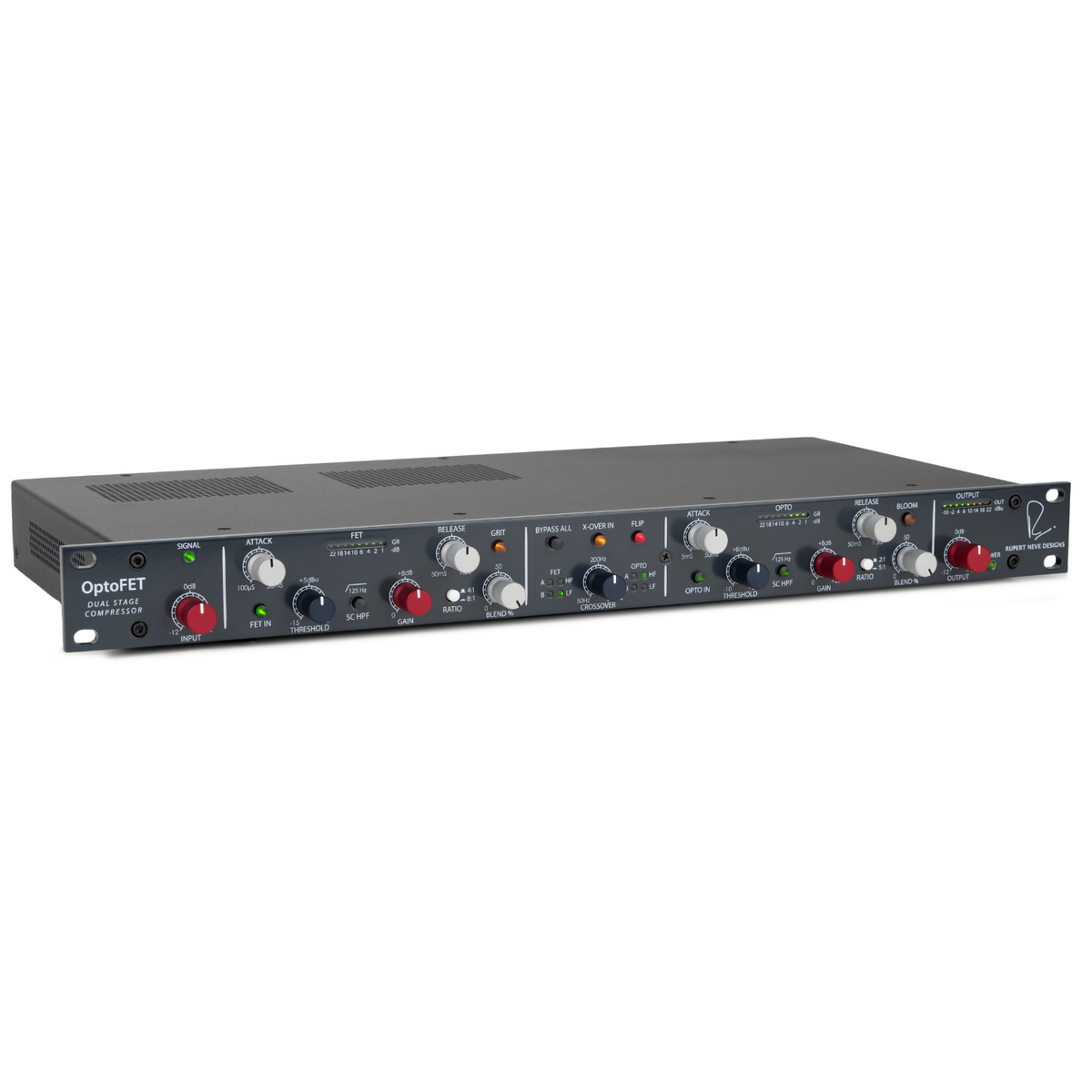

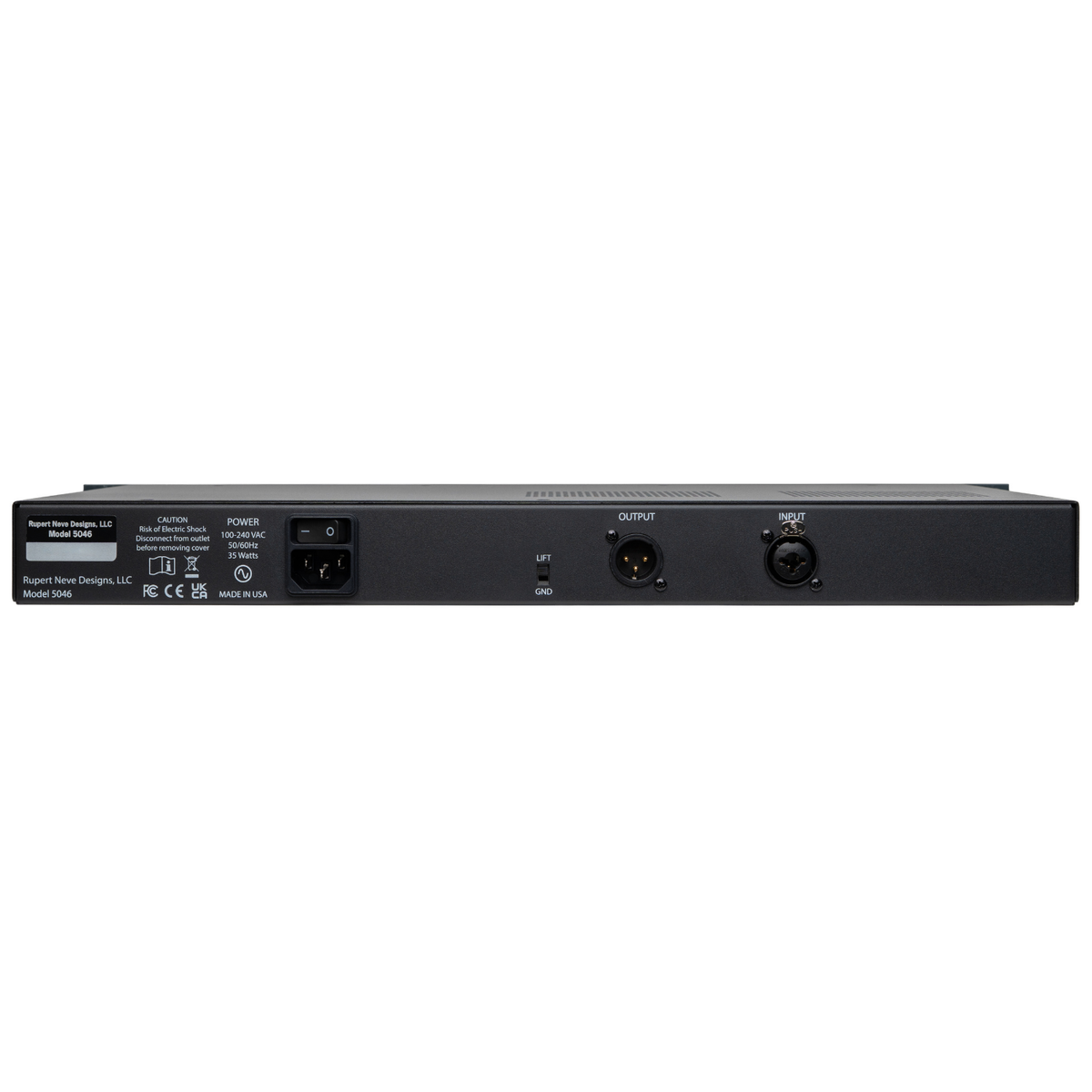

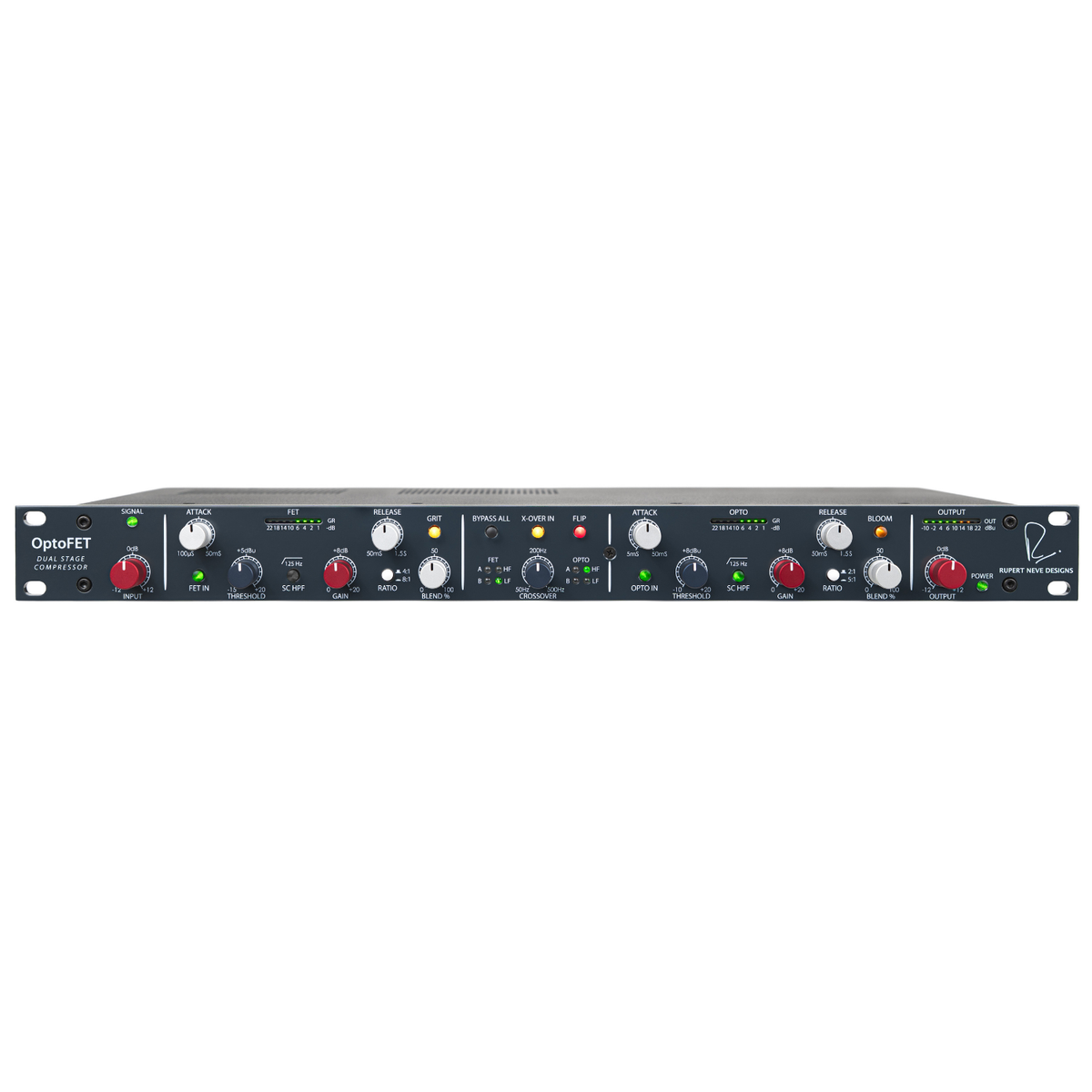

Rupert Neve Designs OptoFET® Dual Stage Compressor

The OptoFET has two primary compression modes: in Dual Stage mode, the FET and OPTO compressors are used in series for complete dynamic control over critical sources, accomplishing a common recording & mixing technique with ease. In Dual Band mode, each compressor is assigned to either a low or high frequency band that can then be processed independently, which expands the tone-shaping and dynamic control of the OptoFET into uncharted territory.

From transparent vocal smoothing to extreme envelope shaping with massive harmonic texture, the OptoFET offers seemingly infinite creative control. Not only does each compressor have fully variable attack, release, threshold, make-up gain and parallel blend controls – plus side-chain high pass filters and special ‘GRIT’ and ‘BLOOM’ harmonic modes – the OptoFET also includes global controls to flip the order of the two compressors in Dual Stage mode, plus a unique variable crossover control to fine-tune the compression across upper and lower frequency bands in Dual Band mode.

And though it is a single-channel unit, a pair of OptoFETs in dual mono – with 31-position fully detented controls – can add massive impact to stereo stems, groups, or even full mixes.

Specifications:

XLR Line IN to XLR Line OUT (Compressor Bypassed)

Input Impedance: 10 kΩ
Output Impedance: 40 Ω
Maximum Input Level @ 1 kHz: +24 dBu
Maximum Output Level @ 1 kHz: +24 dBu
Noise (22 Hz - 22 kHz BW): -96 dBu

Frequency Response:
6 Hz to 70 kHz:  +/- 0.1 dB
<5 Hz to 183 kHz:  -3 dB

THD+N @ 1 kHz:
0 dBu:  0.002%
+20 dBu:  0.0006%

FET COMPRESSOR SPECIFICATIONS

Noise (22 Hz - 22 kHz BW): -82 dBu
Attack Time: 100μS – 50mS
Release Time: 50mS - 1.5S

OPTO COMPRESSOR SPECIFICATIONS

Noise (22 Hz - 22 kHz BW): -93 dBu
Attack Time:  5mS – 50mS
Release Time: 50mS - 1.5S

Note: Compressor time constant ranges represent the full range achievable within all front panel settings.

UNIT DIMENSIONS
1RU: 19” W x 8.25” D x 1.75” H
(48.3 cm W x 21 cm D x 4.5 cm H)

UNIT WEIGHT
8 lbs. (3.6 kg)

SHIPPING DIMENSIONS
24” W x 13” D x 4” H
(61 cm W x 33 cm D x 10.2 cm H)

SHIPPING WEIGHT
9 lbs. (4.1 kg)
