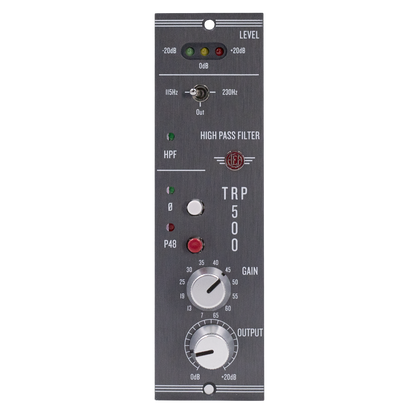

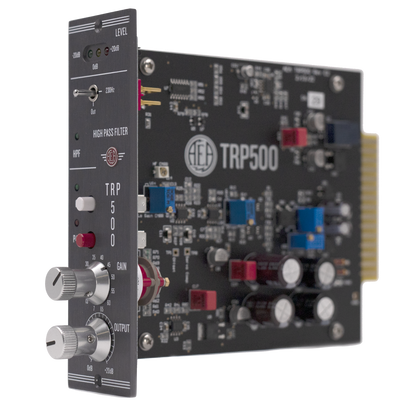

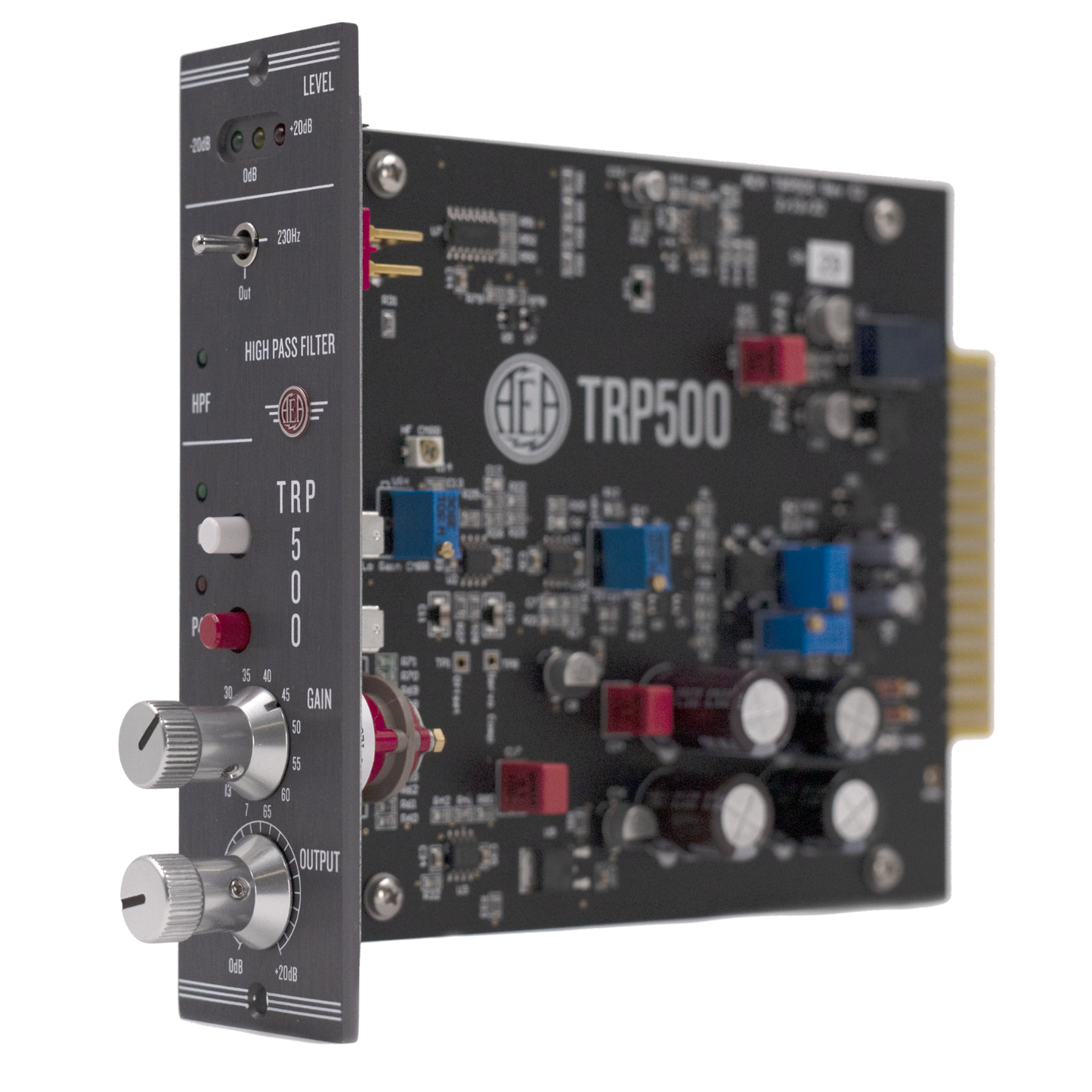

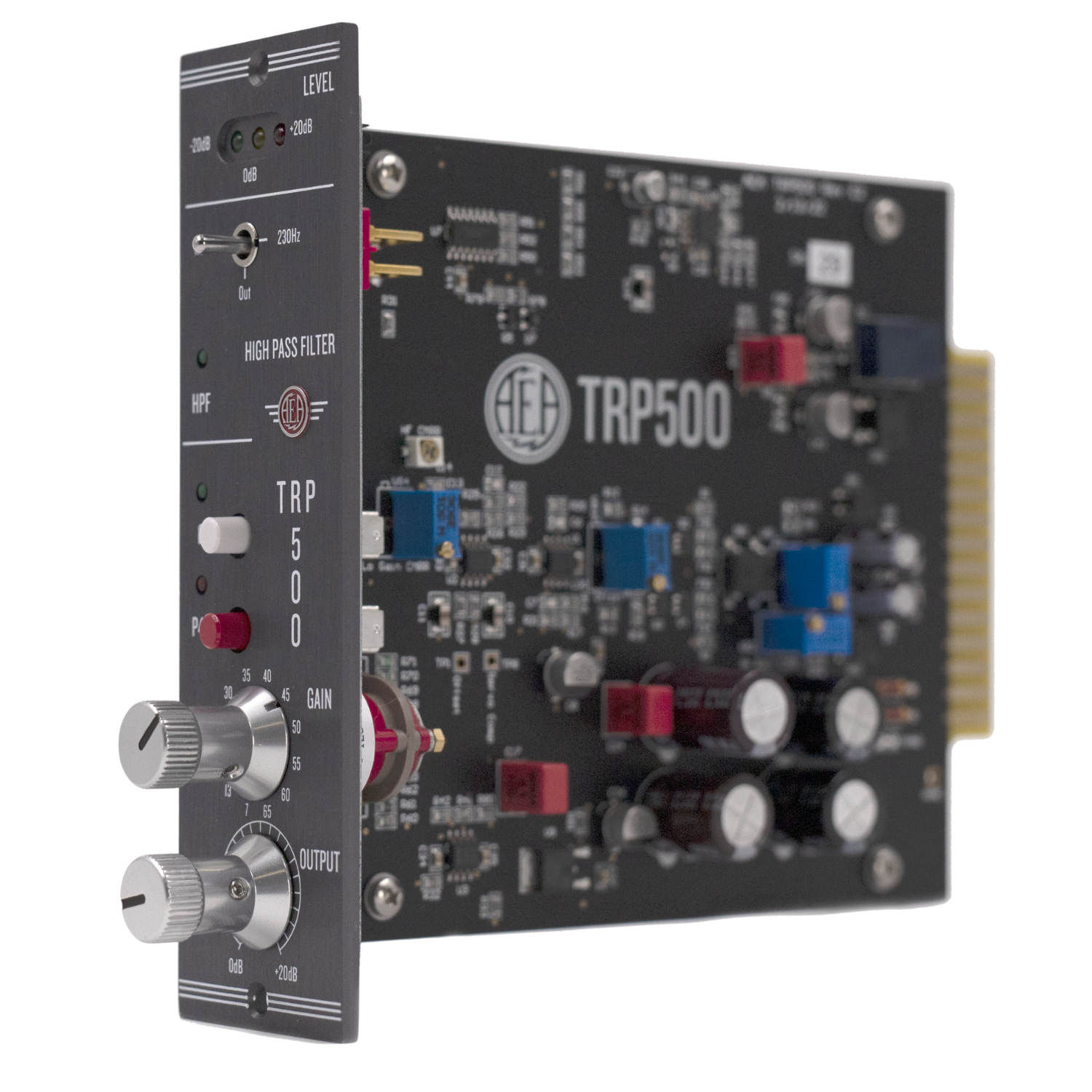

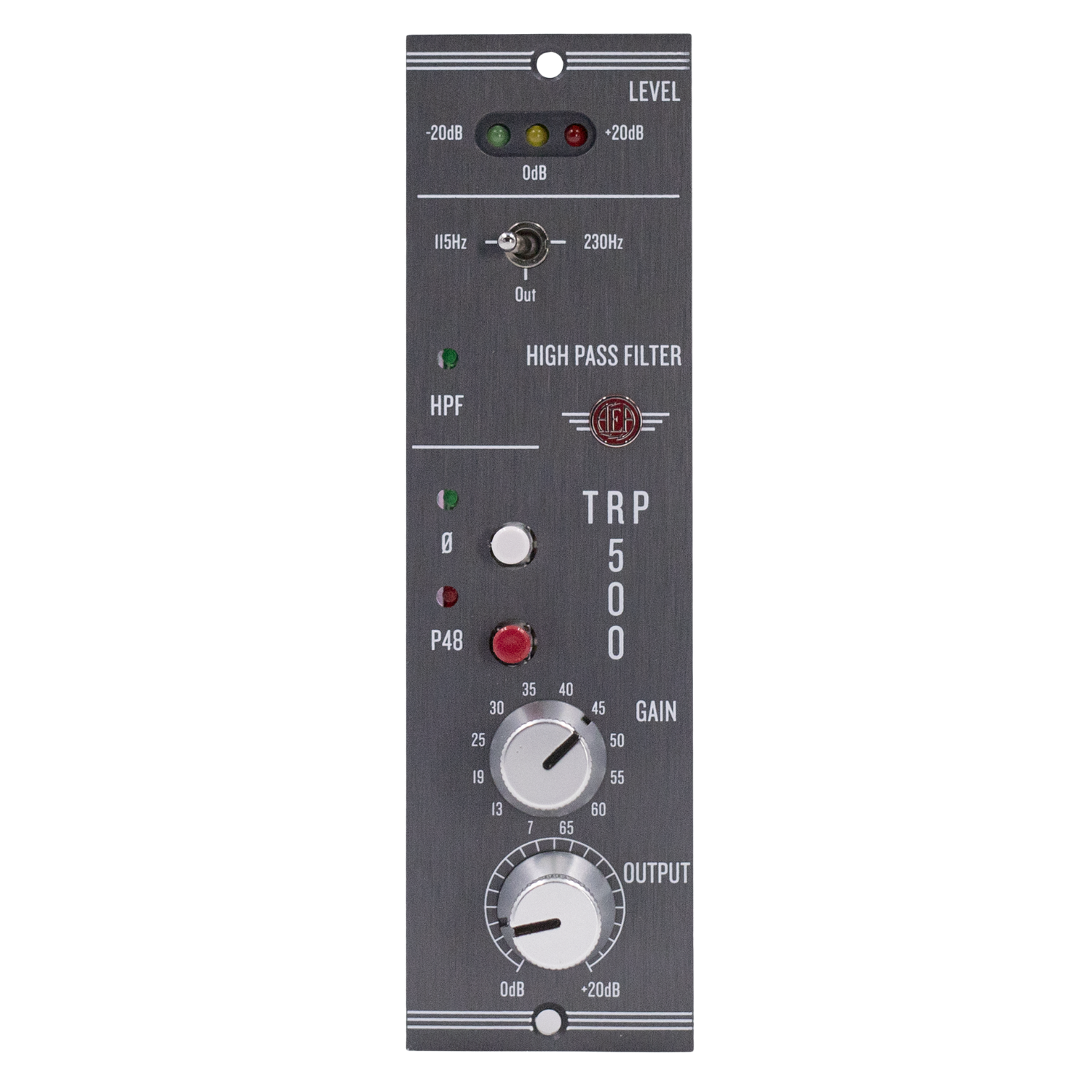

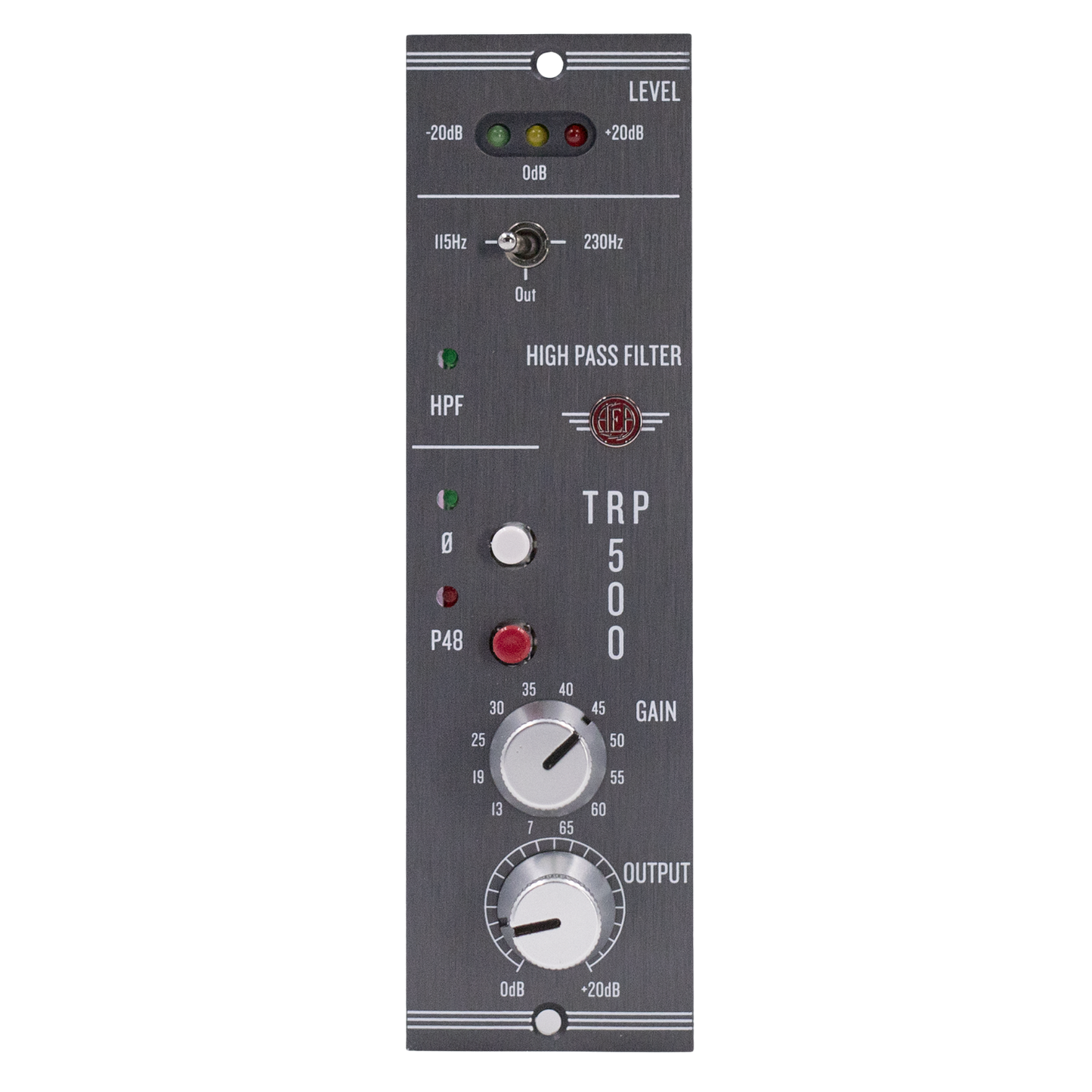

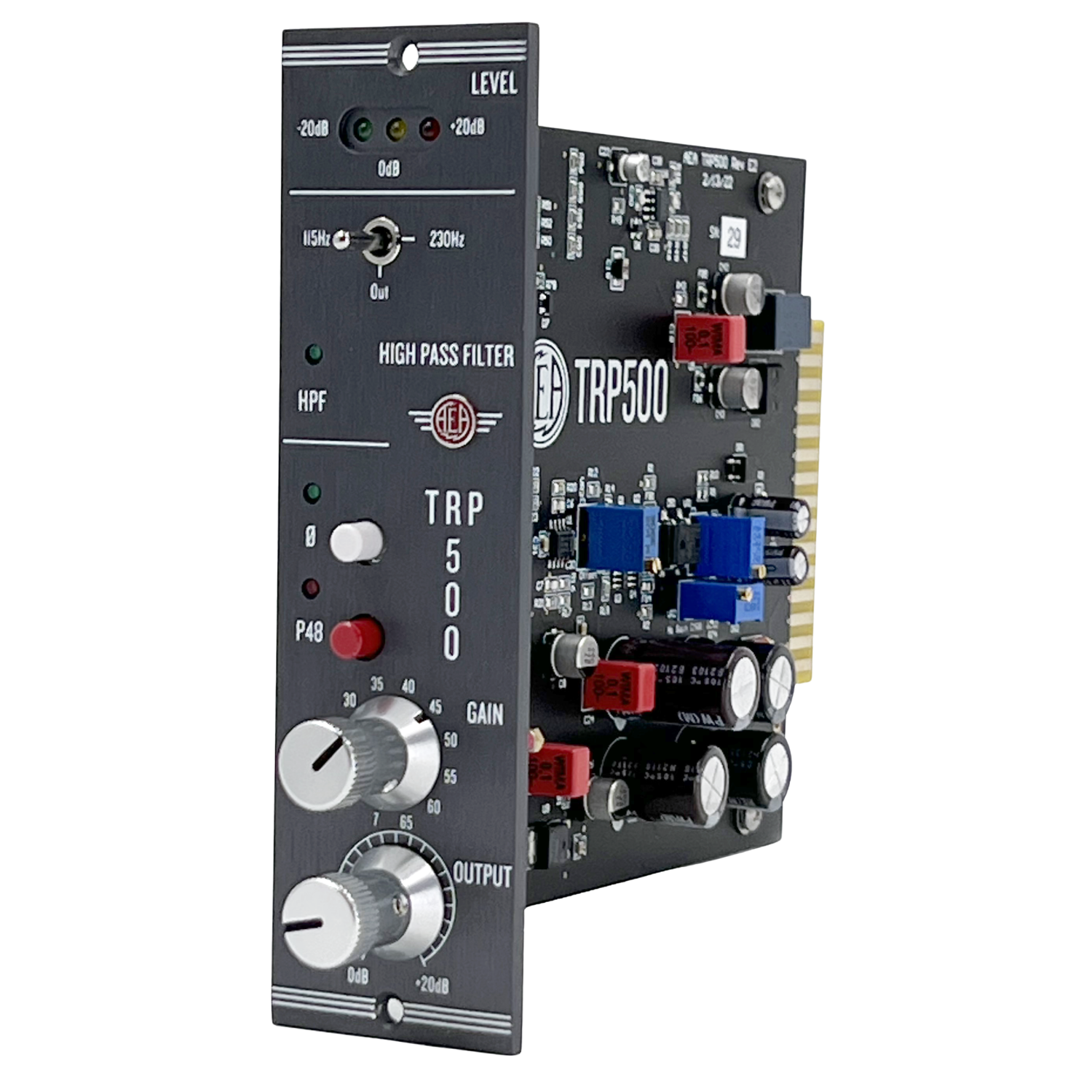

AEA TRP500 500 Series Microphone Preamp

Based on the circuit and topology of the company’s original AEA TRP preamp, the TRP500 has the low noise, musical sonics, and ultra-high gain and impedance (100,000 Ohms) that AEA is renowned for. The TRP500 excels at drawing out the warmth and lush sound of ribbon mics as well as other top-level microphones. With up to 85 dB of quiet DC-coupled gain, minimal path architecture, and a gentle 115 Hz or 230 Hz high pass filter, this preamp puts as little as possible between you and your audience.

Specifications:

Preamp Type: 500 Series Solid State Preamp
Number of Channels: 1
Frequency Response: 10Hz-200kHz
Phantom Power: Yes
Polarity Switch: Yes
Module Slot Size: Single
Power Usage: ±16V DC, +130mA
Depth: 6.8"
Weight: 10.1 lbs.
Manufacturer Part Number: TRP500
