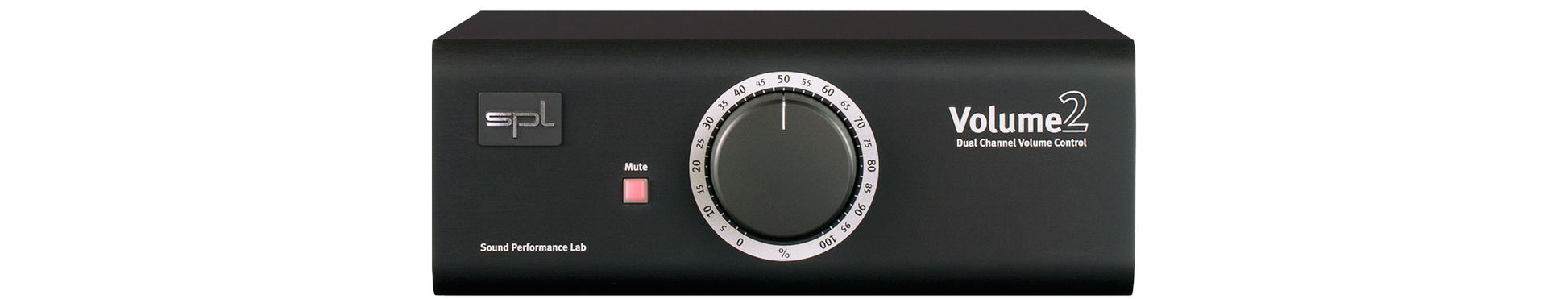

Volume 2

Stereo Volume Controller

The Volume 2 is a fully analog active stereo volume controller and a puristic high-end preamplifier.

  • High end volume potentiometer and illuminated mute switch from ALPS; the potentiometer controls signals directly (without VCA or DAC circuitry)
  • The mute switch allows for very fast reaction times in cases where loud speakers or ears should be protected (for example, with computer crashes)
  • In contrast to digital volume controls which reduce the bit resolution at lower listening levels there is no degration in sound with an analog volume control
  • In contrast to passive volume controls which alter the phase and frequency response there is no alteration in sound with an active volume control
  • Users of analog summing without monitoring facilities can cost effectively improve their systems
  • High quality balancing stages with extremely good common mode rejection minimize interferences and disturbances in the signal paths

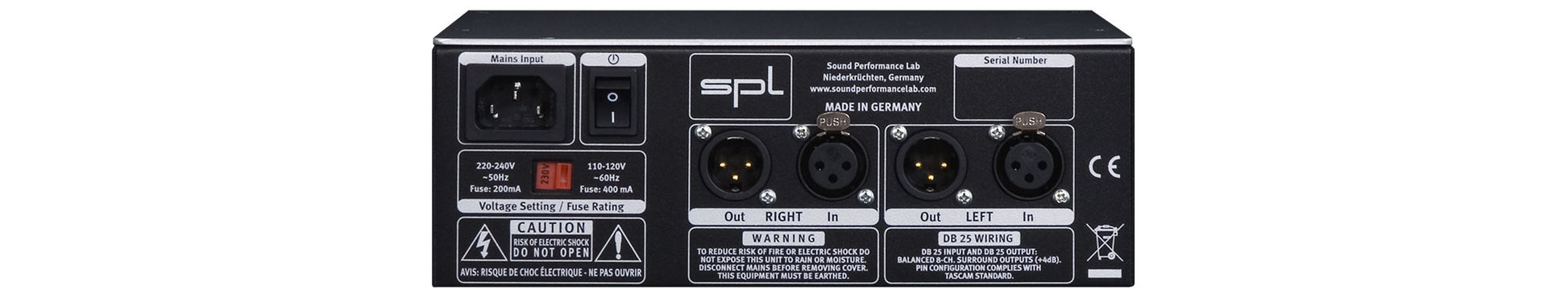

  • Balanced XLR in- and outputs
  • A high quality power supply with toroidal transformer
  • Massive, 45 mm diameter aluminum knobs ensure consistent, refined handling
  • The elegant, compact housing allows for flexible desktop positioning near or under a computer monitor.
  • Made in Germany



Inputs & Outputs

  • Instrumentation amplifier, electronically balanced (differential), transformerless
  • Nominal input level: +4dBu
  • Input impedance: =22kOhm
  • Output impedance: ‹600Ohm
  • Max. input level: ›+20dBu
  • Volume control range: -80dB bis -4dB


  • Frequency range: 10Hz-100kHz (100kHz = -3dB)
  • CMRR: ›60dBu@1kHz
  • THD & N (at +15dBu input level): ›-100dBu
  • S/N (A-weighted): -102dBu
  • Crosstalk L/R (at 1kHz): ›-80dBu
  • Dynamic range: 120dB

Power supply

  • Toroidal transformer: 3,5VA
  • Fuses: 250mA (230V), 500mA (115V)
  • Voltage selector: 230V/50Hz; 115V/60Hz
  • Power consumption: ca. 15W

Dimensions & Weight

  • (W x H x D): 215 x 80 x 220mm; 8.5" x 3.1" x 8.8"
  • Depth incl. Potentiometer, Sockets: 245mm/9.8 inches
  • Weight: 1.6kg/3.52lbs

0dBu = 0.775V. Subject to change without notice.
