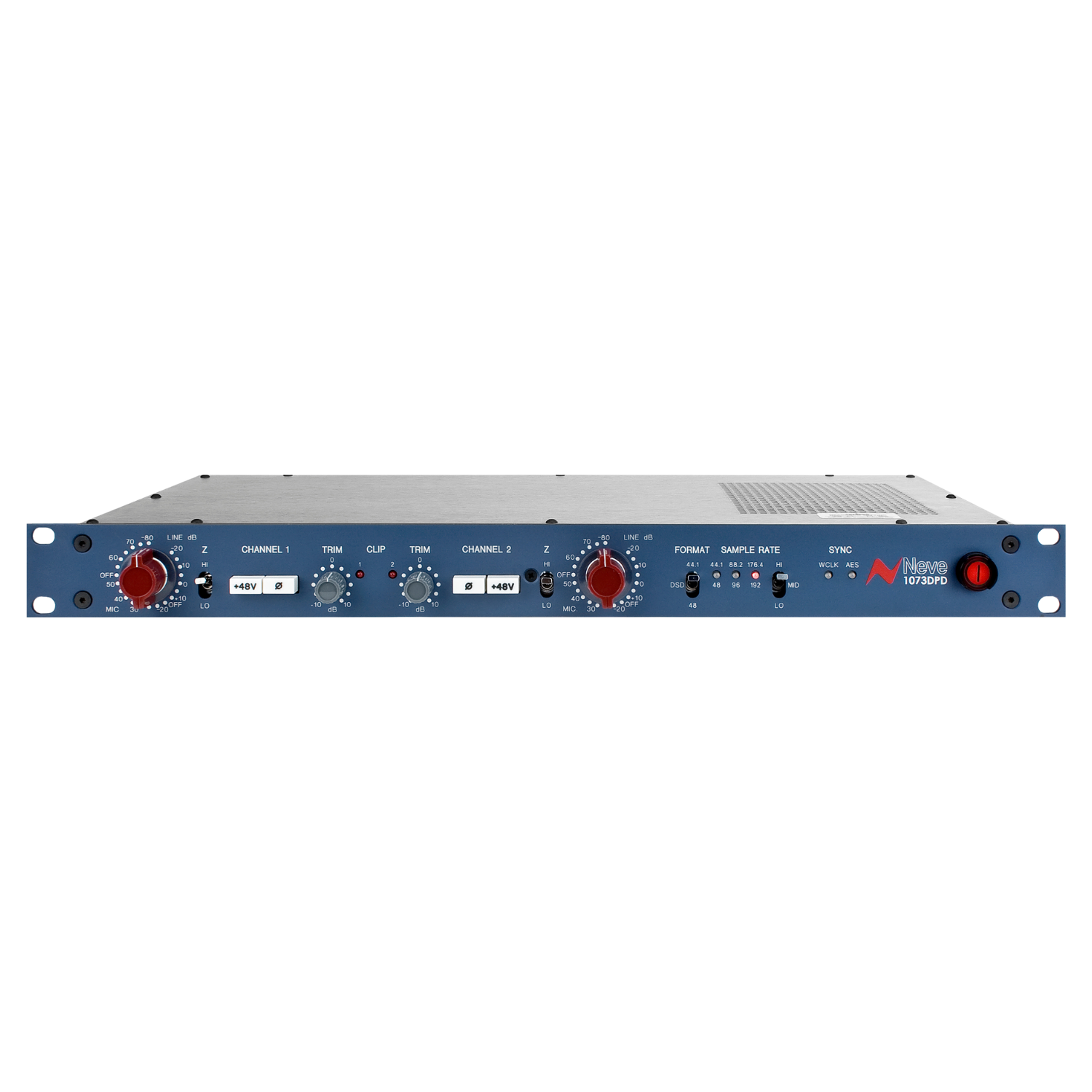

The 1073DPD combines two world-famous Class A 1073® microphone preamplifiers with flexible 192kHz digital output capabilities – all in a single rack space. With legendary analogue circuitry and superior digital conversion, the 1073DPD is the obvious choice as an ideal front-end recording system for modern digital workstations.
The 1073DPD’s superb analogue pedigree is complemented with high-headroom Neve-quality A/D conversion outputting high-resolution 24bit 192kHz digital via AES or DSD digital protocols. In addition, synchronization points via AES or word clock allow for seamless integration to a host of digital recording mediums.
Specifications:
- Two legendary 1073® microphone preamps in a convenient 1U rackmount design
- Exclusive Neve® Marinair® transformers used on input and output stages
- Superior Neve-designed analogue-to-digital 24-bit converters
- 192Khz operation with DSD conversion, selectable via front-panel controls
- Dedicated input Gain controls and output Trim controls on both channels
- +48V Phantom Power and Phase Reverse switch
- High-quality Input Selector switch
- Hand-crafted and hand-wired by Neve in Burnley, UK
Audio Performance
- Input Impedance: Mic – Switchable, 300 or 1200 Ohms – Line – 20k Ohms
- Frequency Response: 60dB gain into 600 Ohms 20Hz to 20kHz +/- 0.5dB
- EIN: Mic 60dB gain <-125dB (22 Hz to 22 kHz bandwidth)
- THD+Noise: +20dBu into 600 Ohms <0.07% (50Hz to 10kHz) (80 kHz bandwidth)
- A/D Converter Frequency Response: Input Impedance 20k Ohms 48kHz +/-1.25dB <10Hz to 20kHz – 96kHz +/-1dB <10Hz to 40kHz – 192kHz +/-1dB <10Hz to >40kHz
- Dynamic Range >106dB
