AMS Neve 1073OPX Dante Option

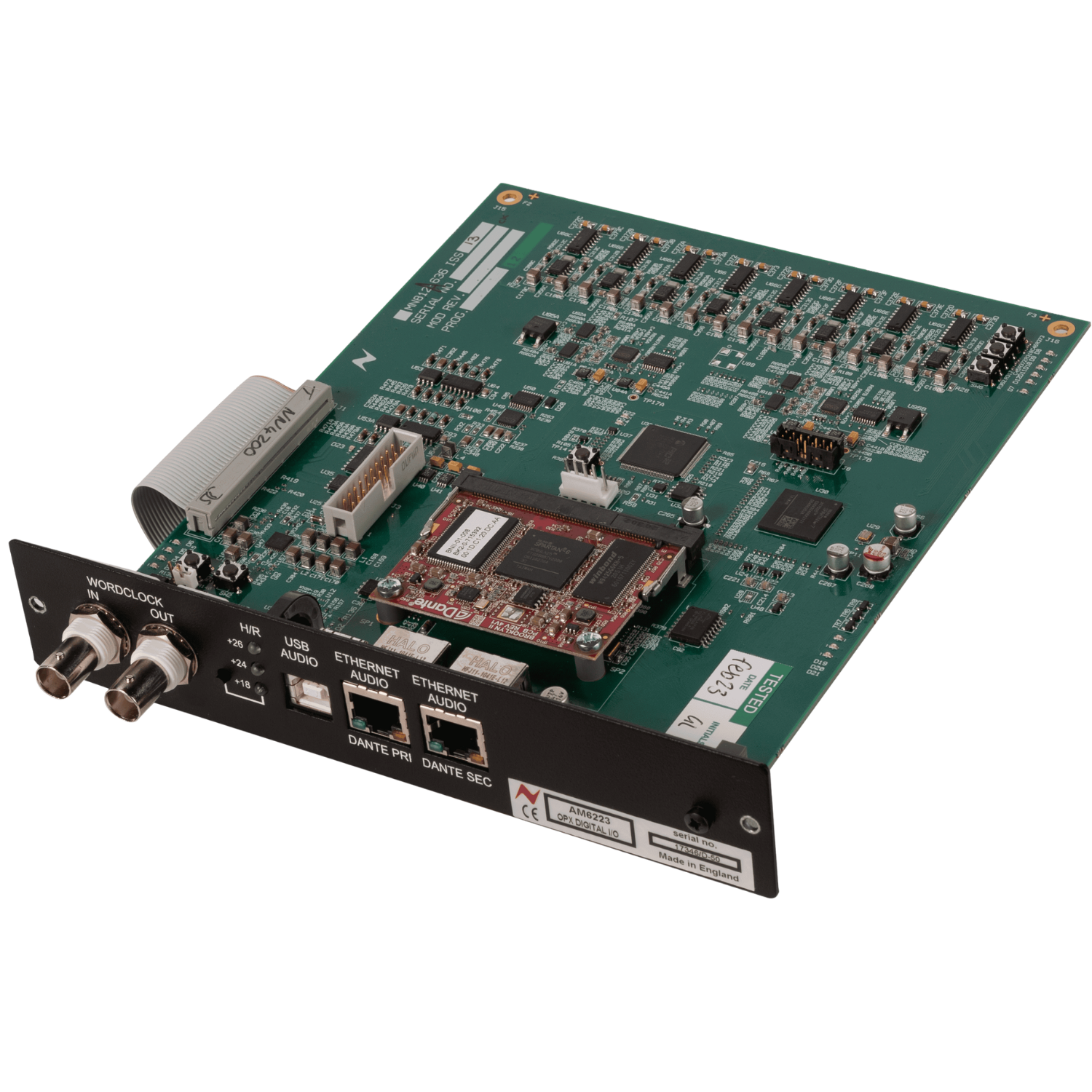

Factory installed in your AMS Neve 1073OPX, the Digital I/O card adds a USB and Dante AD/DA interface with eight channels of analog-to-digital conversion for each 1073OPX preamp output, plus two channels of digital-to-analog conversion for the digital monitor return signal path. The USB connection allows the 1073OPX to be connected to a DAW running on a PC or Mac and can serve as your primary/Core Audio interface. In addition to the USB connection, primary and secondary Dante connections permit the 1073OPX to be connected to any Dante Audio-over-IP network as a Dante-enabled preamp.

Specifications:

• 8 channels of remote-controlled 1073 mic/line/DI preamplifiers
• Proprietary Neve Marinair transformers on microphone input
• Class A transformer-less DI input
• Remote control software can control up to 8 1073OPX racks at a time (64 preamps)
• Automatic total recall of all settings
• Front-panel mic/line/DI combo input
• Rear-panel mic/line/DI D-type connection
• 80Hz highpass filter; 25dB pad; Polarity reverse
• Smart phantom power control
• Lo-Z button switches impedance from 1.3kΩ to 300Ω
• Microphone input: Gain 20dB to 70dB in 1dB steps
• Line input: Gain –20dB to +20dB in 1dB steps
• DI input: Gain 30dB to 60dB in 1dB steps
• Separate stereo monitor path with independent level control
• Latency-free monitoring of all signal sources
• 8 front-panel DI inputs for instrument tracking
• Front-panel headphone output

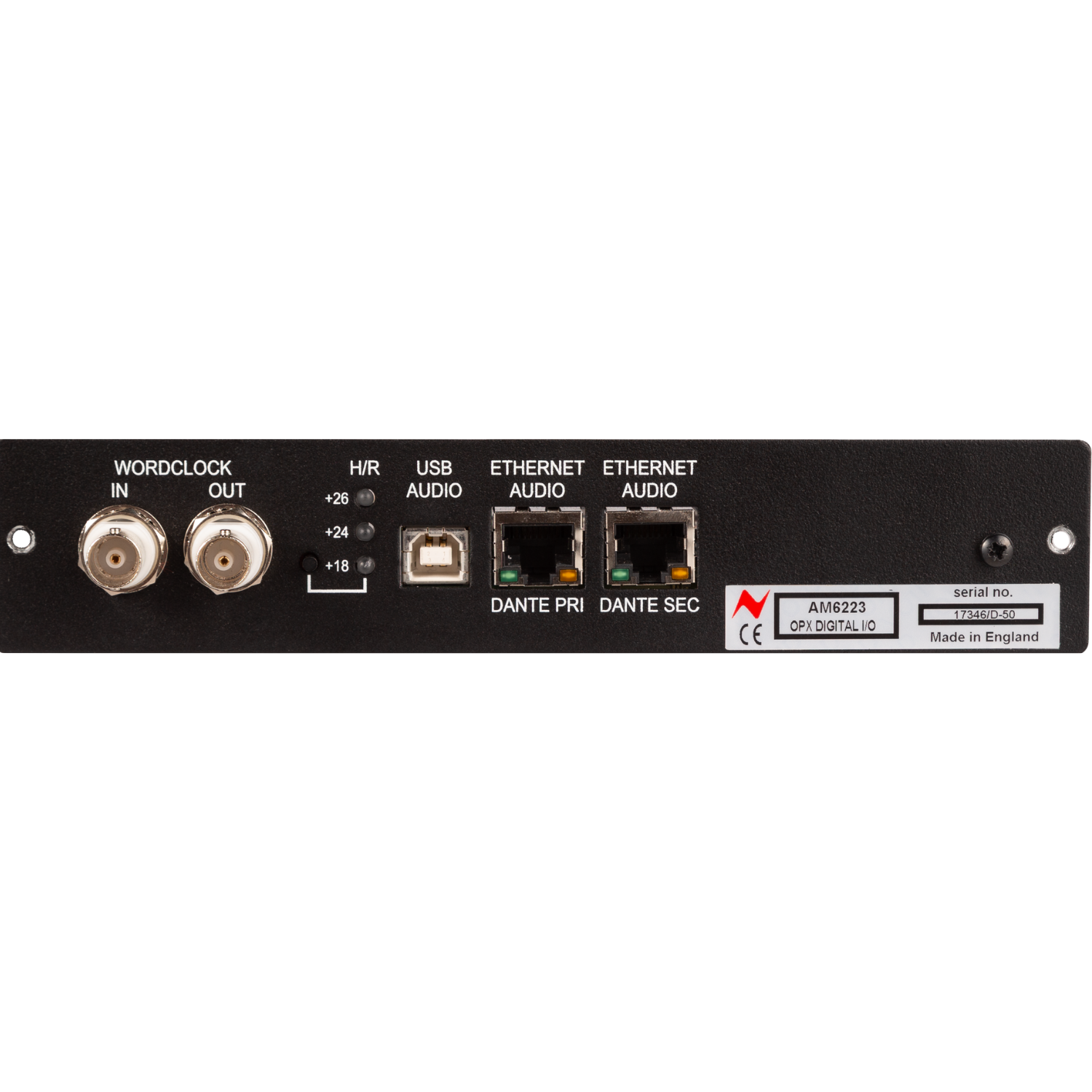

• Digital I/O module adds USB, Dante, and word clock connectivity
• Designed and crafted in England by AMS Neve engineers
