There’s never been a signal processor more famous or revered than the Neve 1073. With its uniquely euphonic tonal quality, seductive warmth, low-mid punch, and subtle harmonic distortion, the 1073 has provided studios with the industry’s most esteemed front end for producing radio-ready product that blasts right out of the speakers. Carrying on the 1073 pedigree, the Neve 1073SPX-D gives you a genuine 1073 preamp/EQ module seamlessly integrated with an innovative USB interface in a tidy 1U chassis with the superior build quality for which Neve is famous.
The 1073SPX-D also offers ADAT Lightpipe I/O that allows it to act as an audio expander for existing ADAT-equipped audio interfaces such as the Neve 1073OPX or another 1073SPX-D, making it easy to integrate a complete 1073 channel strip into your studio and expand your setup as necessary. Considering all that it does, the Neve 1073SPX-D is poised to simplify workflows across a broad range of audio production scenarios.
Specifications:
- Complete 1073 channel strip and audio interface in a 1U 19-inch rackmount chassis
- Seamless integration into modern studio configurations
- 1 Mic input, 1 Line input, 1 Line output, Insert send/return
- 8 x 8 ADAT Lightpipe optical I/O
- Discrete Class A circuit design delivers the legendary Neve sound
- 1073 Mic Preamp with 80dB of gain handles even your lowest output passive ribbon mics
- 48V phantom power accommodates your condenser microphones
- Classic 3-band 1073 inductor-based equalization
- 18dB/octave highpass filter, selectable at 50Hz, 80Hz, 160Hz and 300Hz
- Custom Neve Marinair input and output transformers
- Packed with versatile features, including balanced inserts, metering, output fader, and more
- Complete audio Interface provides a robust all-in-one solution for multiple studio workflows
- Pristine 24-bit/192kHz AD/DA conversion complements the classic 1073 analog circuitry
- Plug-and-play connectivity via class-compliant USB connection
- ADAT-to-USB integration enables I/O expansion for enhanced tracking and mixing capabilities.
- ADAT expansion mode augments an existing audio interface with a complete 1073 channel strip
- DIGI I/O routing lets you use the 1073 as a hardware insert in your DAW
- Multiple DAW monitoring pathways for enhanced flexibility
- Monitor Blend feature for customized, latency-free monitoring
- Powerful headphone amplifier drives any vintage or modern headphones
- Lo-Z button optimizes impedance for a wide range of vintage or modern mics

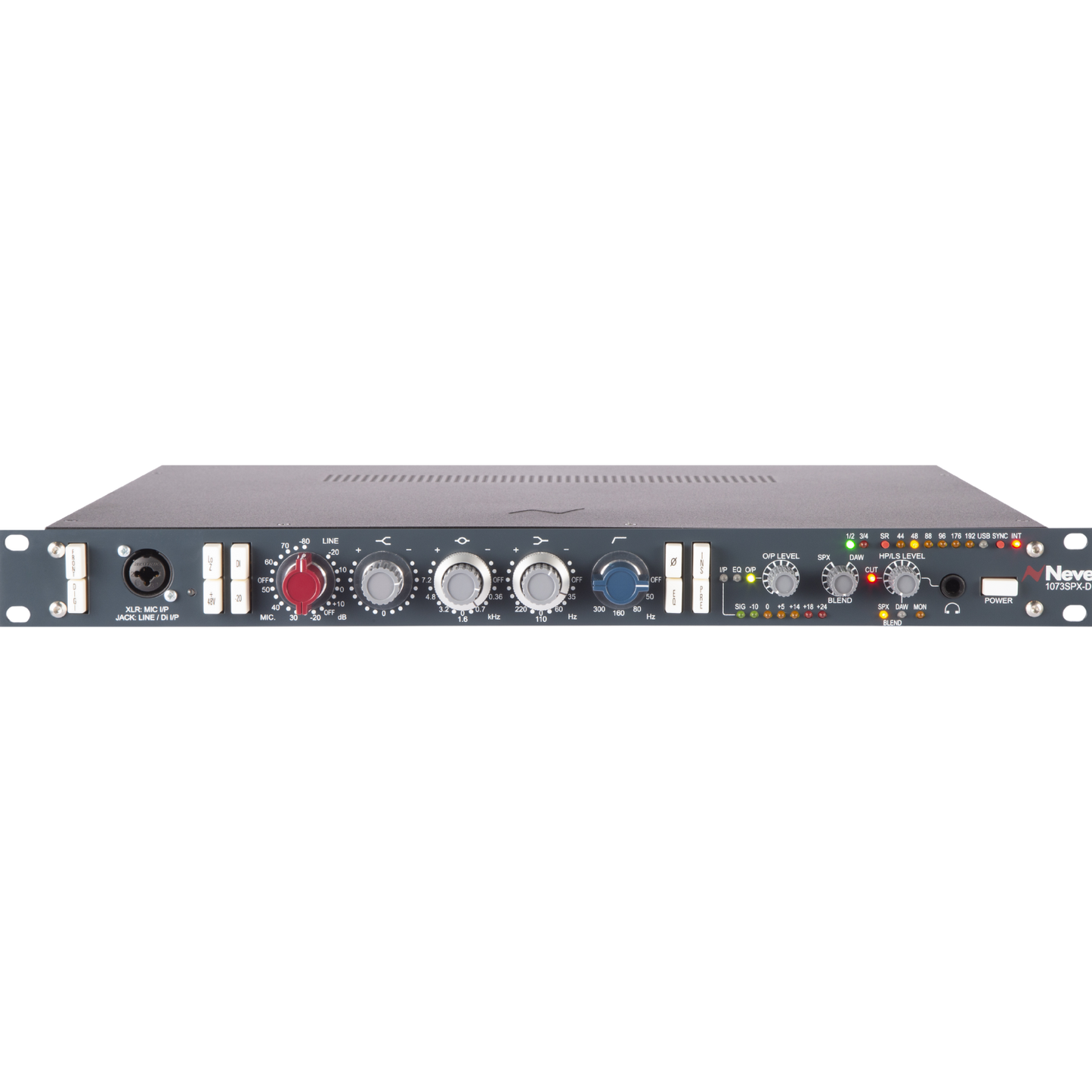

- Front-panel Combi input: XLR = Mic, 1/4-inch jack = Line/DI for instruments
- Stepped Elma rotary switch delivers accurate levels throughout the gain range, obviating the need for a mic/line switch
- 3 distinct gain stages provided by 2 independent preamps provide gain for DI, Line, and Mic signals

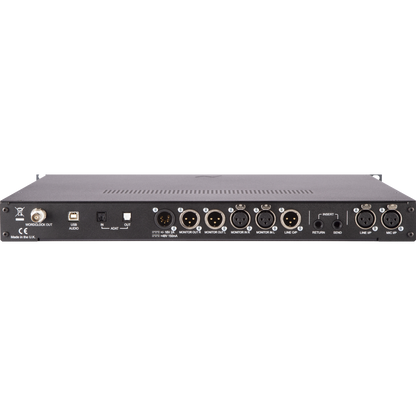

- USB-to-Host: Type-B USB 2.0 port for connection to Mac/PC
- L/R Monitor I/O
- Word clock out
- Meticulously crafted by Neve in the UK
