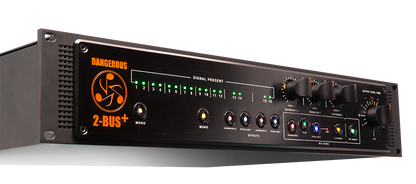

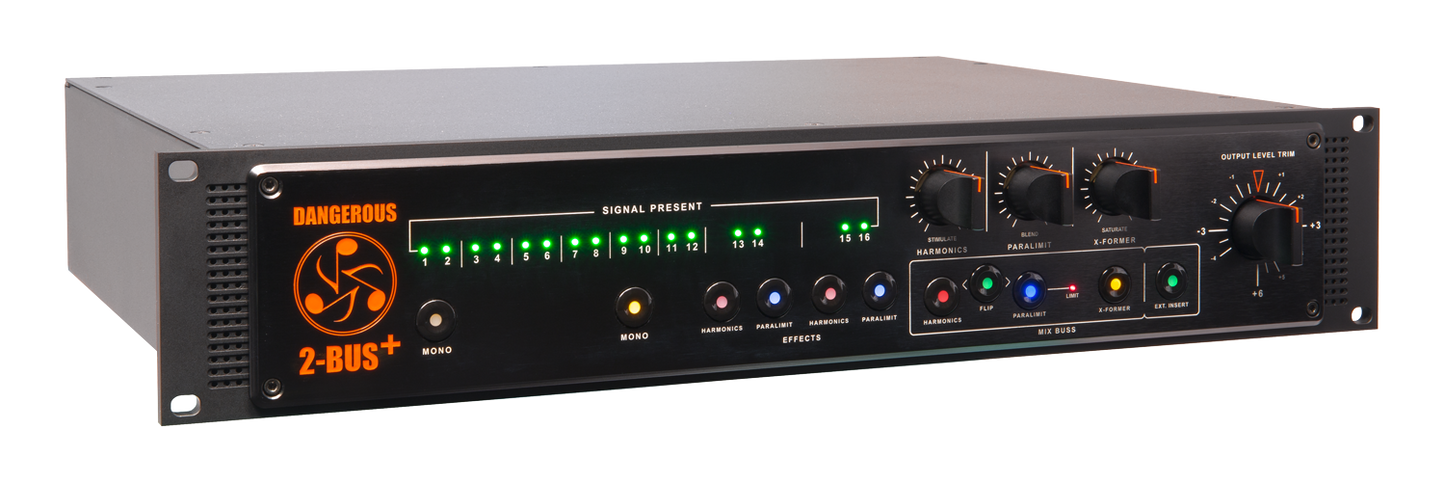

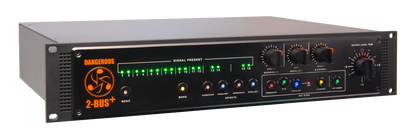

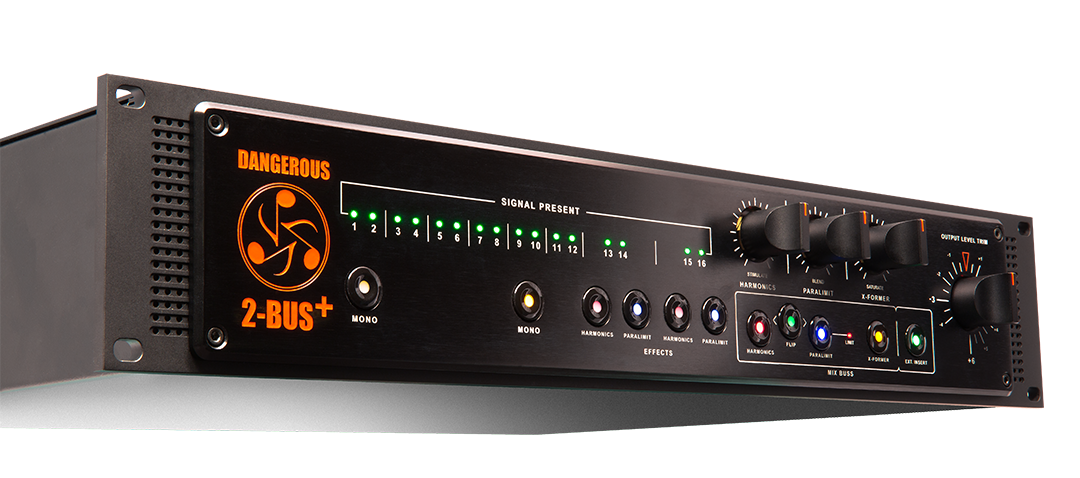

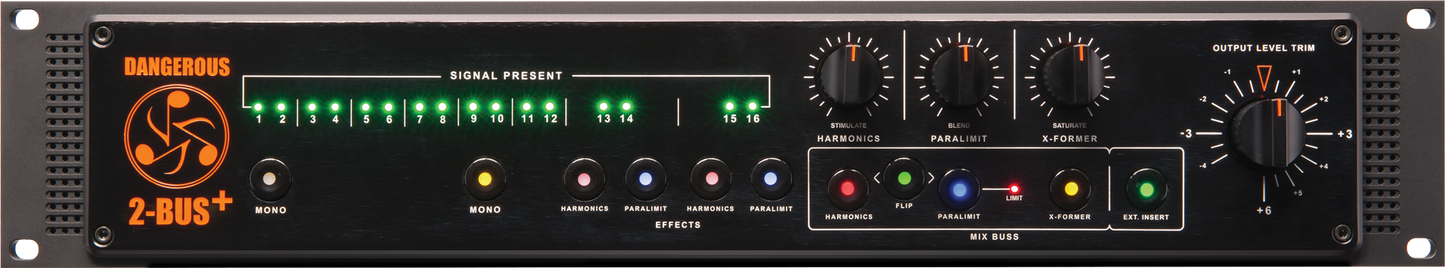

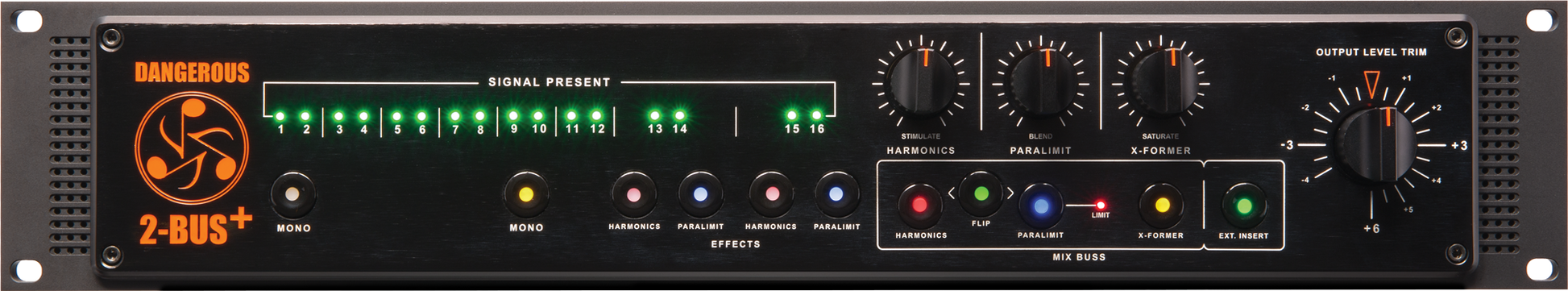

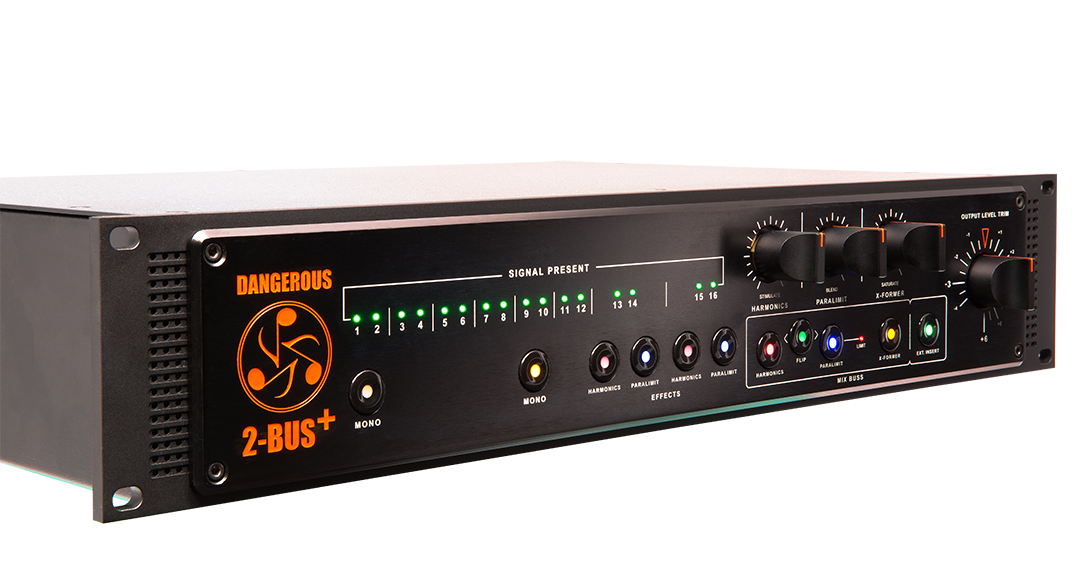

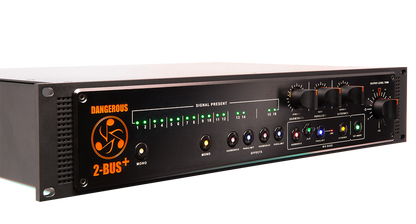

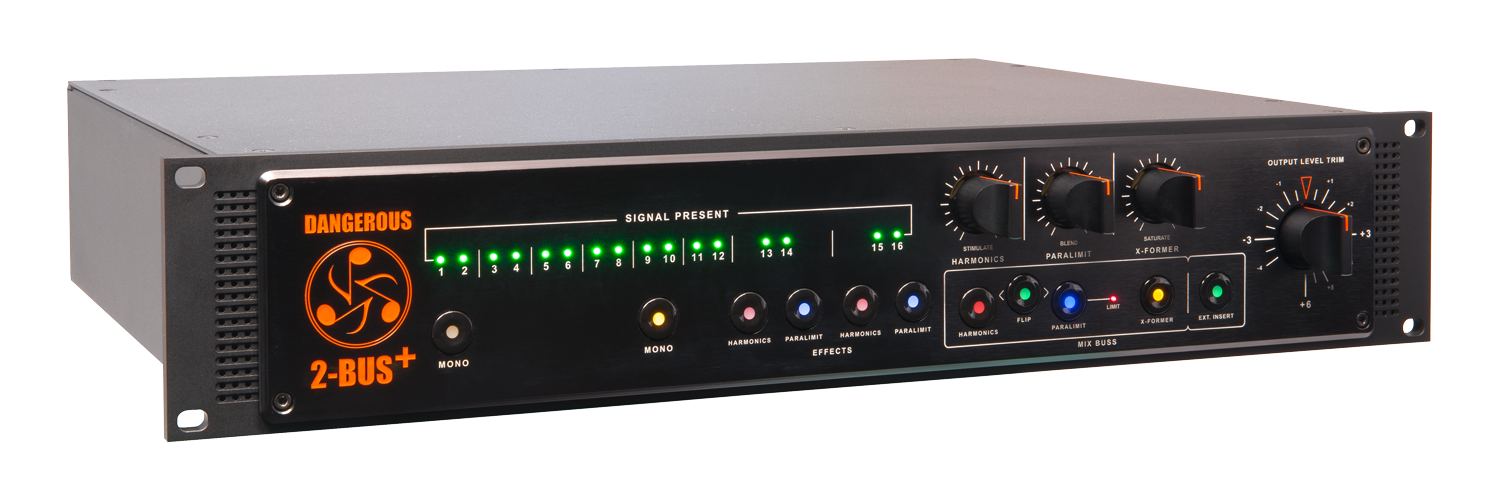

Dangerous Music invented the stand-alone analog summing mixer with the ground-breaking 2-BUS back in 1999, and now we’re redefining mixing yet again with the 2-BUS+. With a redesigned analog summing circuit that exceeds previous specifications, the 2-BUS+ delivers unsurpassed imaging, dimensionality, punch and headroom. While the 2-BUS+ active summing sounds incredible on its own, it now includes three innovative custom color circuits that provide a vast array of flexibly routed tonal options.
Harmonics is a euphoric odd- and even-order distortion generator; Paralimit is a hard-hitting FET-style limiter; and X-Former is a pair of custom wound Cinemag output transformers with an exclusive core-overdrive circuit. With it’s elegantly straightforward buttons and knobs, the 2-BUS+ puts endless combinations of robust analog sound at your fingertips.
Specifications:
- Max Input Level > +28 dBu
- THD+N @+4dBu: 1KHz, unweighted, 22Hz to 22kHz < 0.0048%
- THD+N @+22dBu: 1KHz, unweighted, 22Hz to 22kHz < 0.0026%
- IMD @ +4dBu: < 0.0038%
- IMD @ +22dBu: < 0.0021%
- Crosstalk rejection: > 108dBu @ 1KHz
- Noise at Unity Gain: 22Hz to 22KHz: < -86dBu
- Noise at Nominal Mix Setting: 22Hz to 22KHz: < -91dBu
- Frequency Response: Flat within 0.1dB from 10Hz -50kHz
- Input Impedance: 25K Ohms Balanced
- Output Impedance: 50 Ohms Balanced
