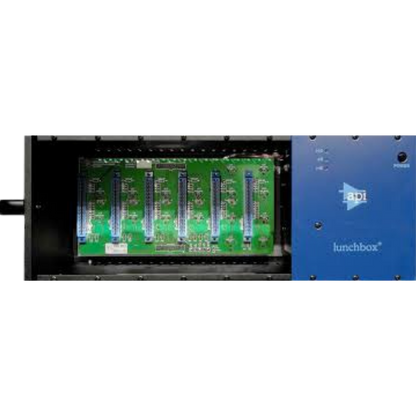

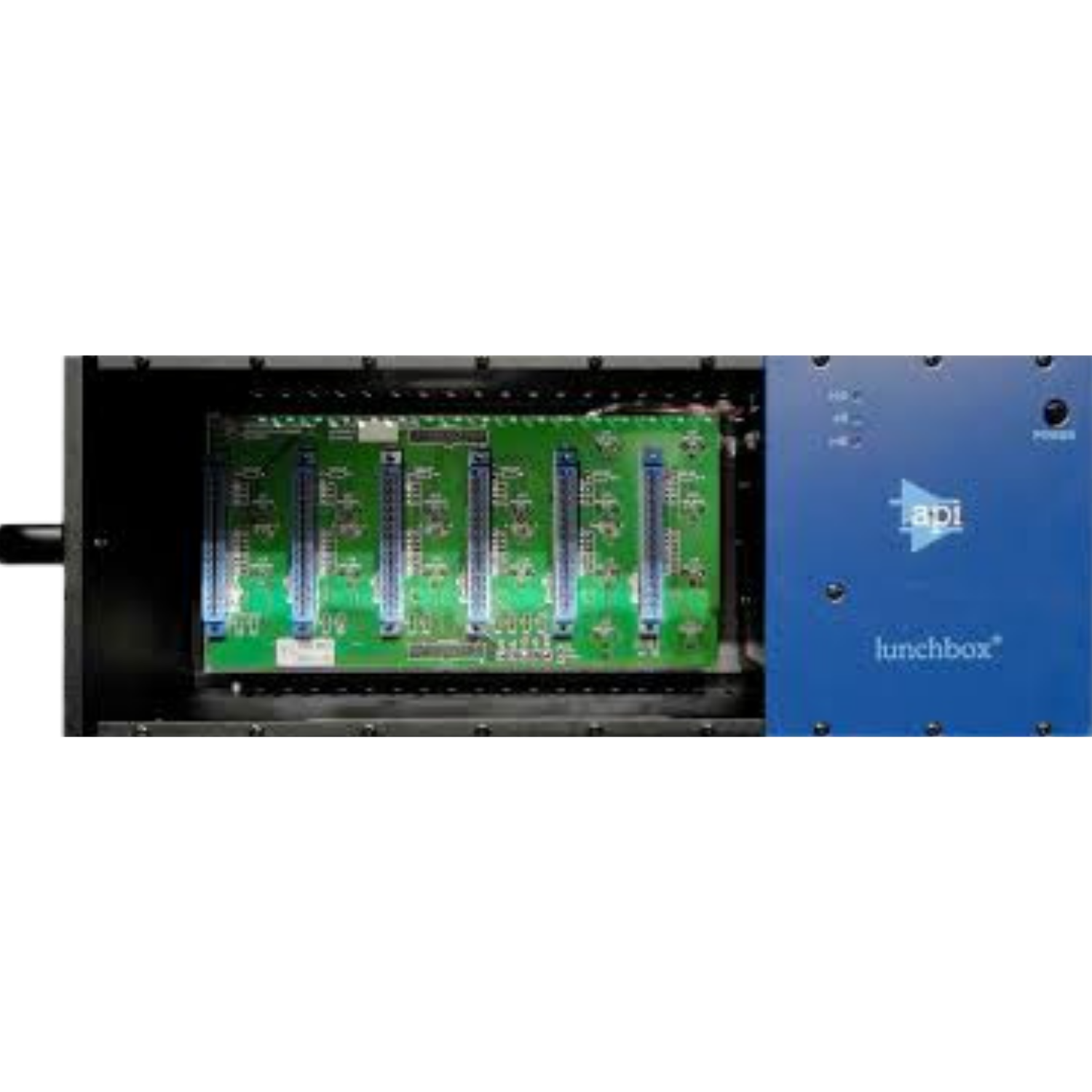

API 6-slot lunchbox® (6B-HC)

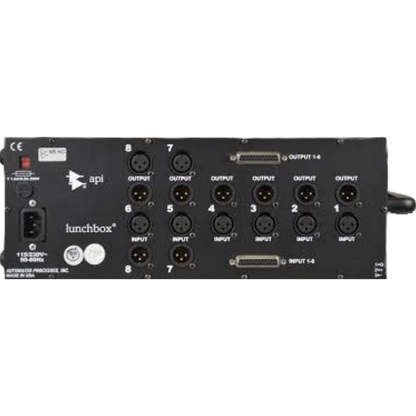

The API 500-6B Lunchbox is a 6-slot rack designed to accept all API standard 5.25" X 1.5" modules. The lunchbox is self-powered with a rear panel selected AC voltage switch and a removable power cord. The input/output jacks are XLR. The lunchbox comes standard with a +48 volt internal phantom power supply, bussed to pin 15 for interface with the API 512c Mic Preamplifier.

Specifications:

• Holds 6x standard 500 Series modules
• 215mA per slot
• DB-25 connectors for easy input and output connection
• XLRs to access channels 7 and 8 of the multipins
• Power rail LED indication
• Self-Powered, 100 to 250 Volts switchable, 47 to 63 Hz
• Rubber feet & carrying handle for portability
• Rugged steel chassis
• Perfect for remote recording of Vocalist and Instruments
