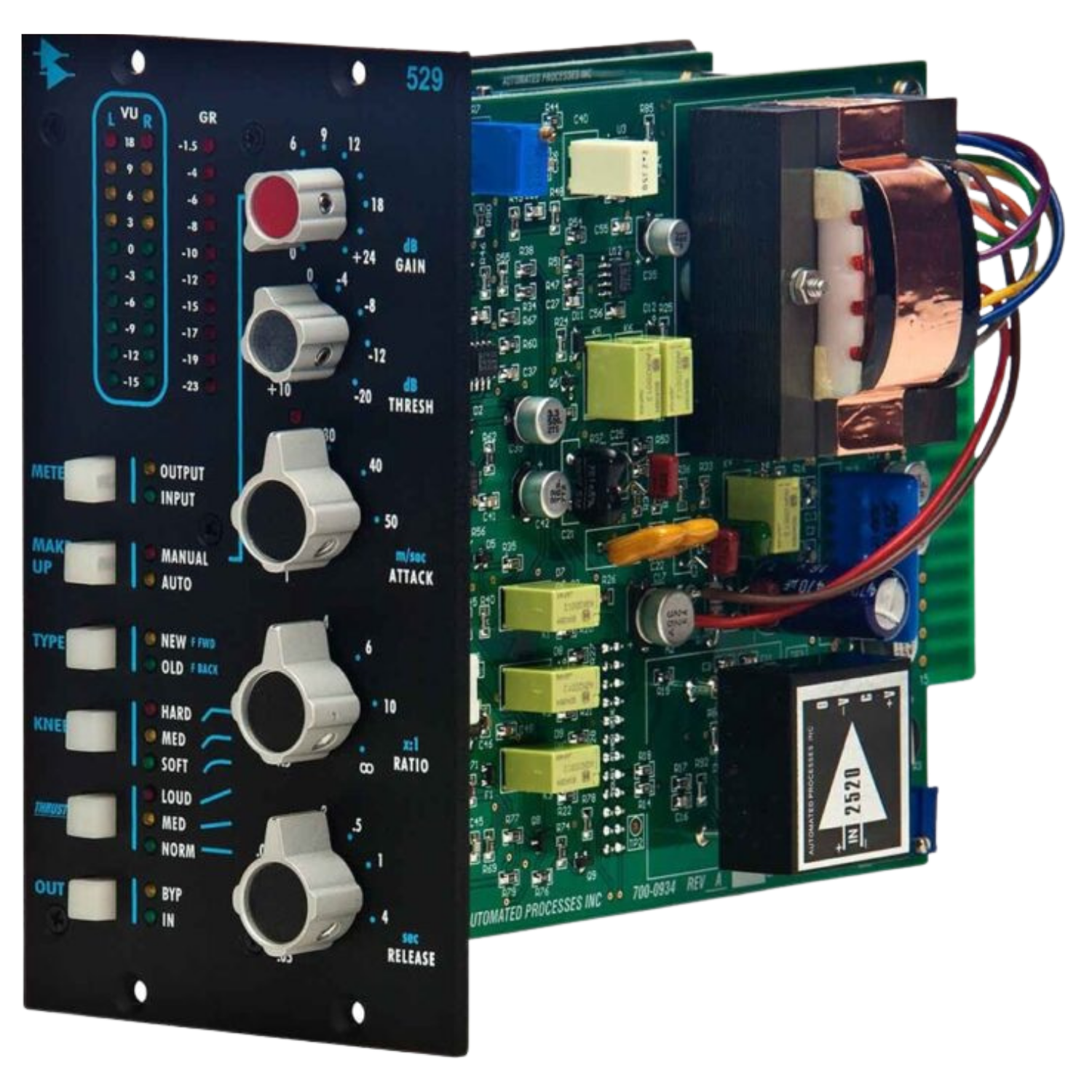

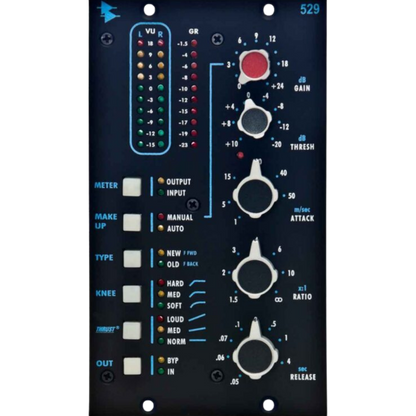

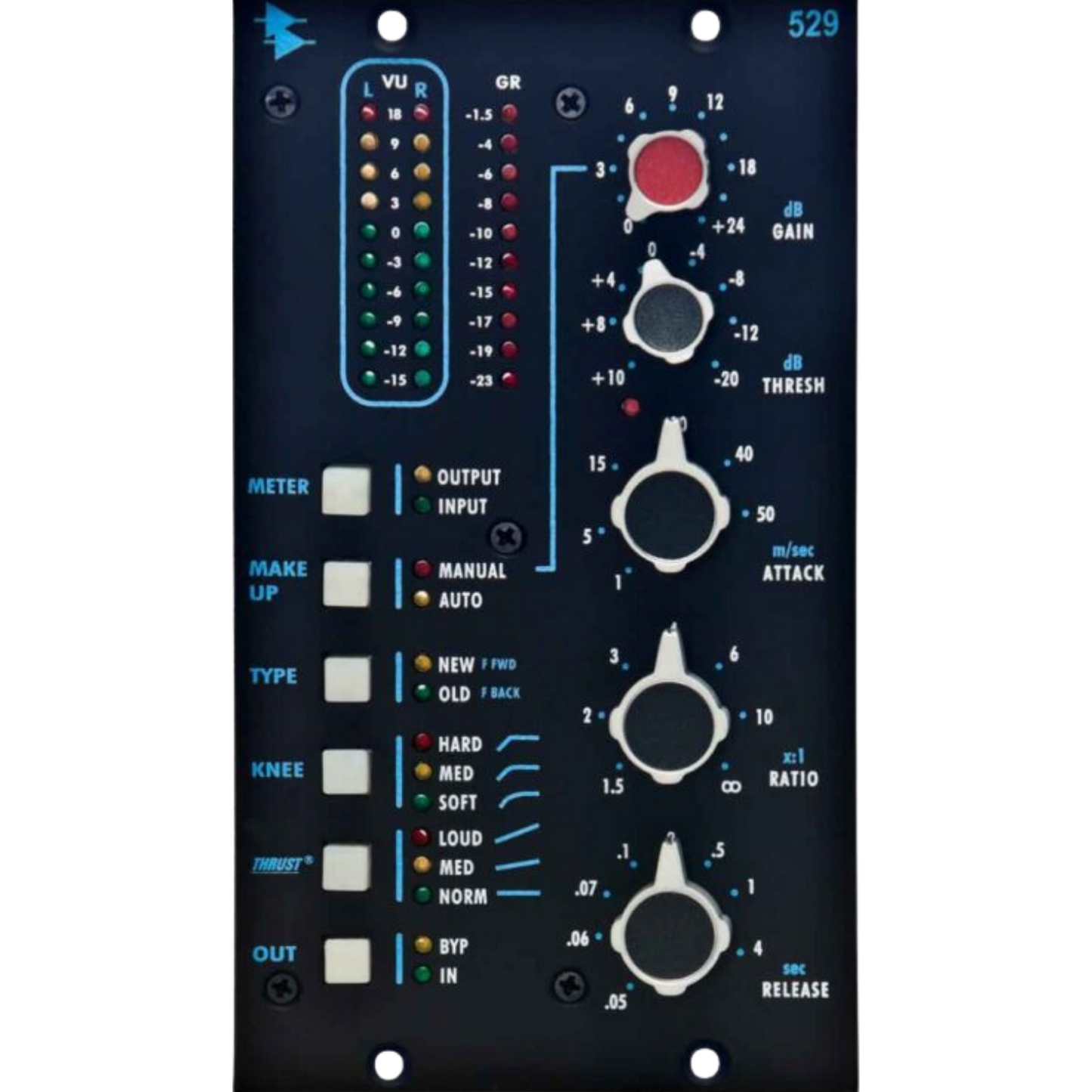

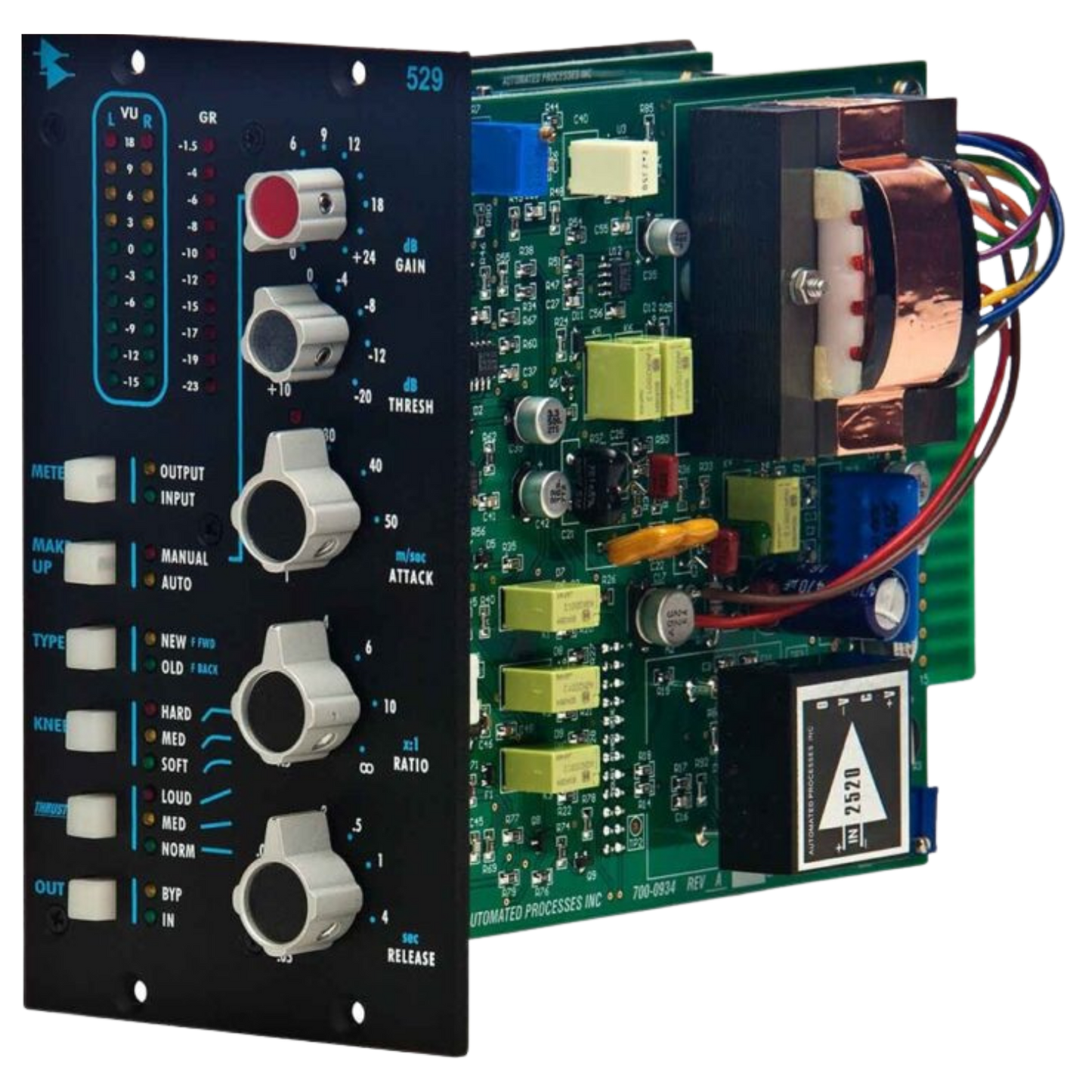

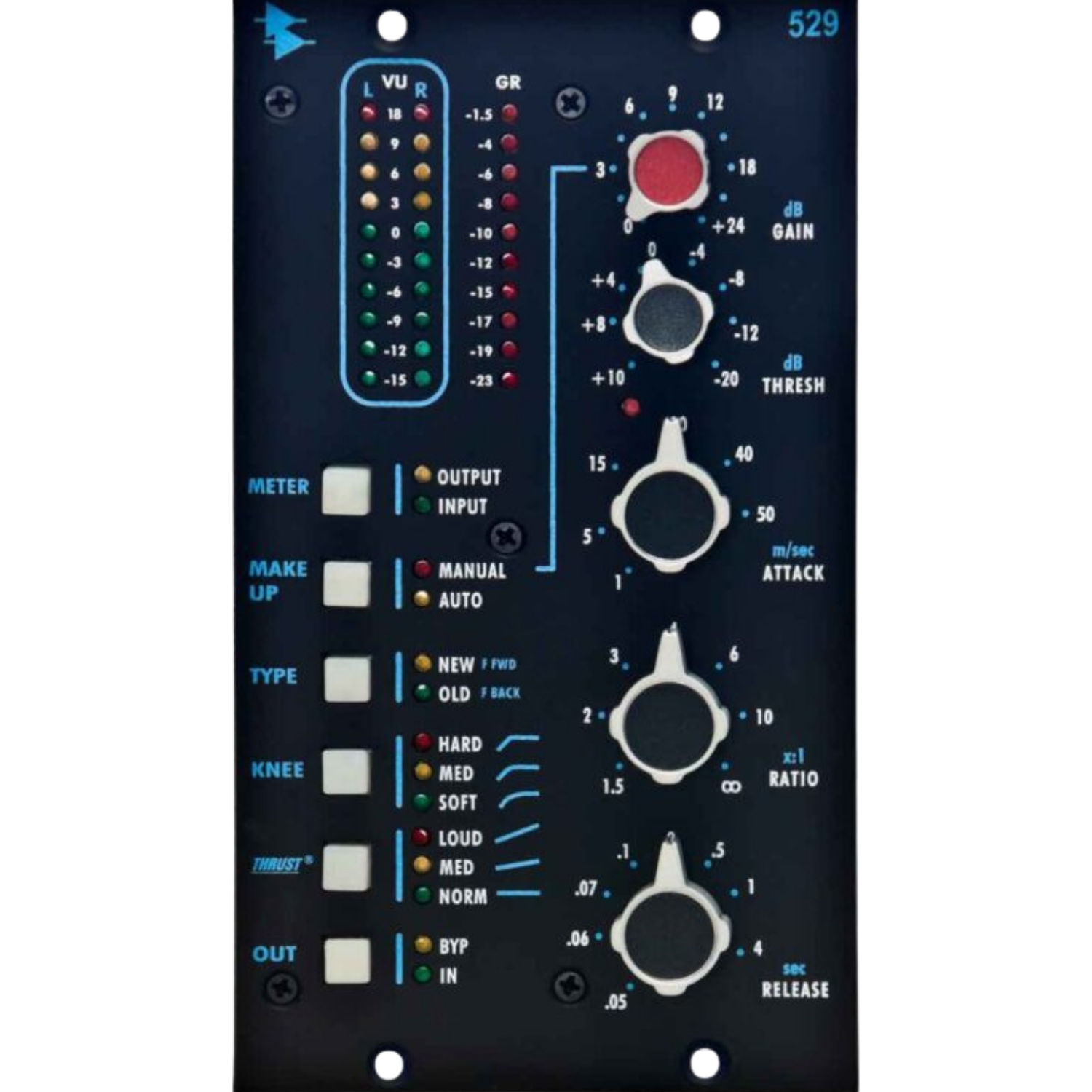

API 529 Stereo Compressor

The API 529 borrows many of the features and controls from the company's acclaimed 2500 bus compressor (a Sweetwater favorite) and packs them into a double-wide 500 Series module. This stereo unit features API's patented Thrust circuitry for a punchy low end, along with a New/Old switch that lets you choose between vintage and modern compression characteristics. Old delivers classic feedback compression; New serves up today's more prevalent feed-forward compression. The Auto makeup-gain button lets you adjust ratio and threshold without affecting your output level. Employing both 2510 and 2520 discrete op-amps, the 529 delivers legendary API analog sonics. It's the sound that launched a thousand hits — made-to-measure for the popular 500 Series format.

Specifications:

• Audio circuit uses 2510 and 2520 Discrete Op Amps with transformer output
• Detented, continuously variable Threshold, Ratio, Gain, Attack, and Release controls
• 10-segment LED meters display Gain Reduction and selectable Input/Output Level
• Over Threshold indicator LED
• Patented Thrust switch for frequency-dependent side chain control
• 3 selectable compression curve Knee settings
• Selectable New/Old switch for modern feed-forward or vintage feed-back operation
• Selectable variable or auto compressor make-up gain
• In/Out with options for compression in/out or hard relay bypass
• Not standalone — requires compatible 500 Series chassis/power supply
