JDK Audio

8MX2

  • Sale
  • Regular price R 43,662.59


8MX2

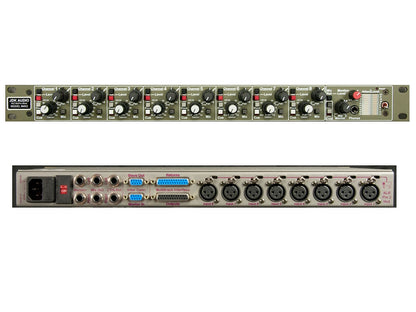

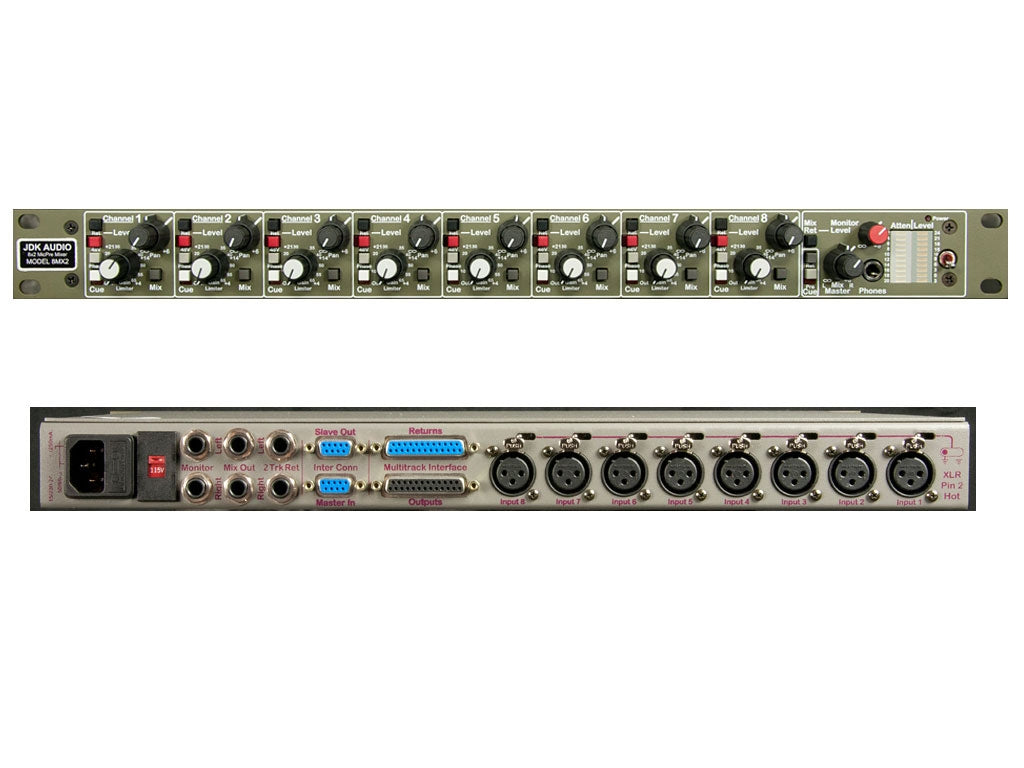

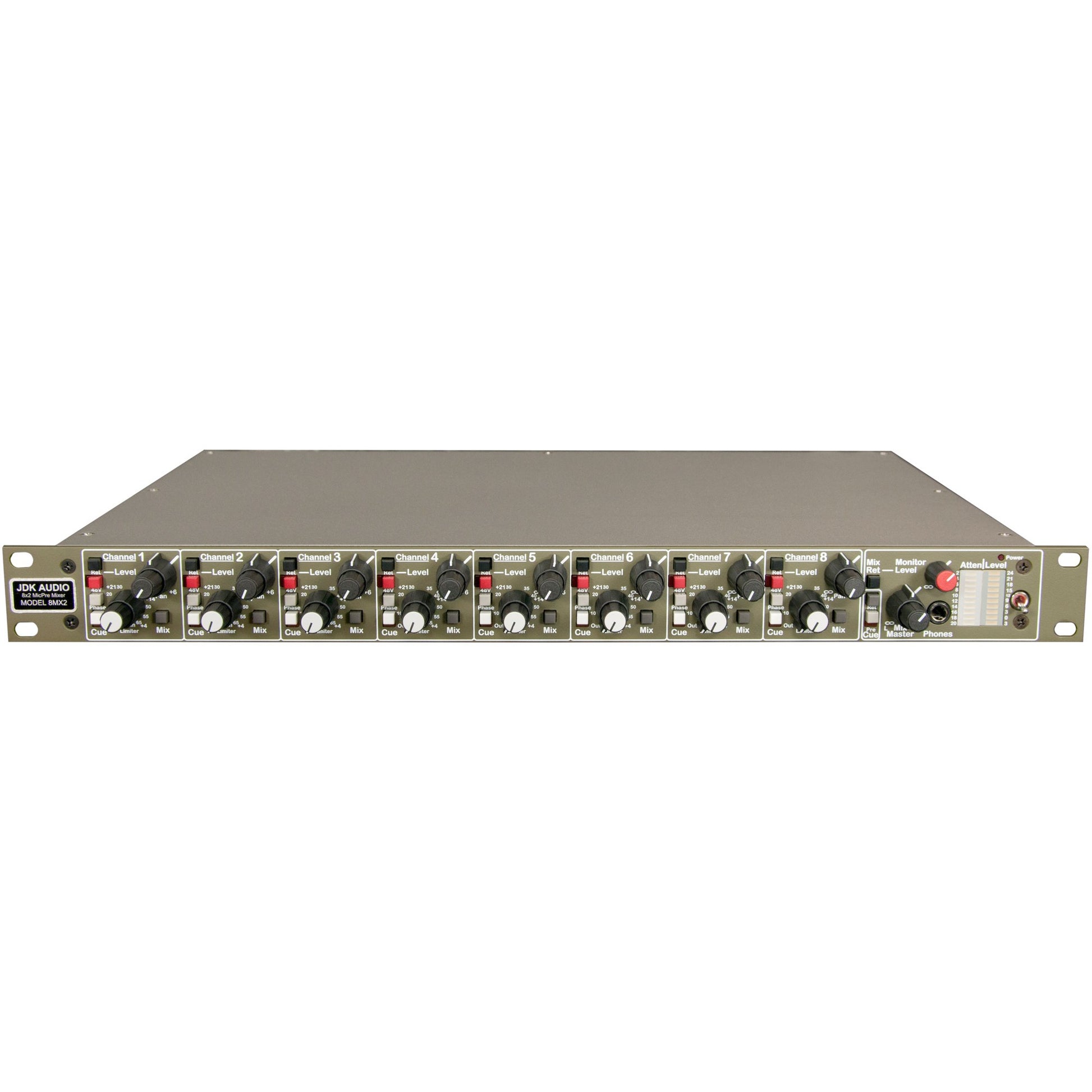

Compact, powerful 8 x 2 x 8 Mixer/Mic Pre

Features:

  • 8/2/8 mixer
  • Eight line level multi-track returns
  • Eight-into-two mix bus with pan
  • 10-segment Input/Mix LED meter
  • 10-segment Gain reduction meter
  • Headphone and speaker monitor Out
  • Eight channels in 1u rack space
  • Link multiple units

Each channel includes:

  • +/- 48v Hi-voltage mic pre
  • Threshold limiter
  • Direct "Out"
  • Selectable 48v phantom power
  • Cue Select
  • Return Level pot
  • Return Pan pot
  • Mix Bus Select
  • Phase Reverse Switch

The extremely versatile 8MX2 rack mount preamp/mixer provides a huge amount of flexibility while fitting into just one rack space. This unit is perfect for all critical digital and analog projects, including at-home and remote recording as well as live broadcast feeds. Boasting +24 db of headroom, the 8MX2's microphone preamplifiers can be driven hard without clipping. This mixer allows engineers to feed the mixbus while simultaneously feeding the direct outputs.



Specifications

Power Consumption, Quiescent: 53.76 Watts



Dimensions

Size: 19" X 1.75" (1U) X 12.5" Deep

Size (Boxed for Shipping): 23.25" X 6.5" X 16"

Actual Weight: 9.1 lbs

Shipping Weight: 13 lbs
