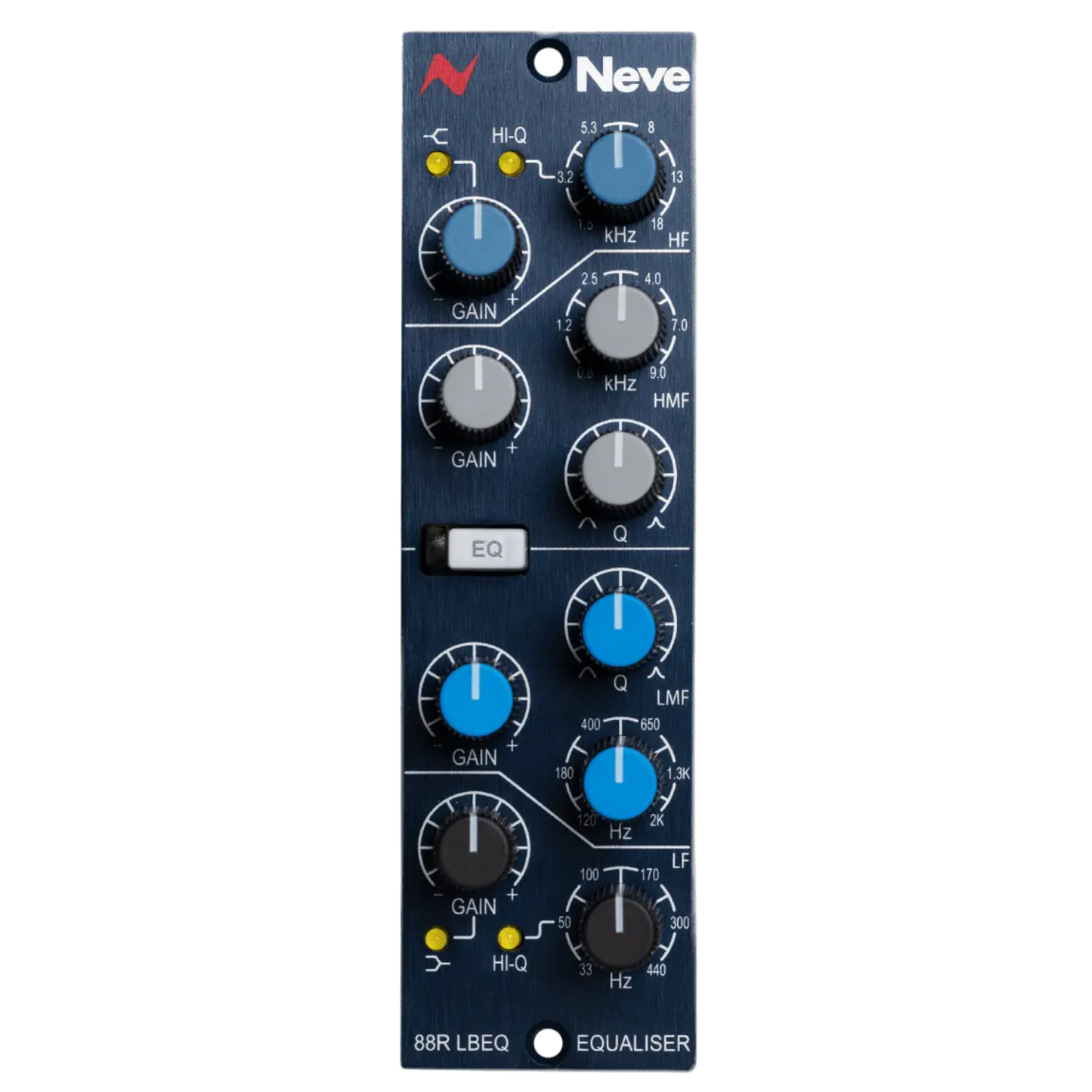

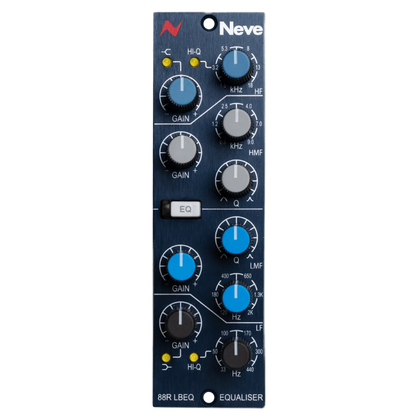

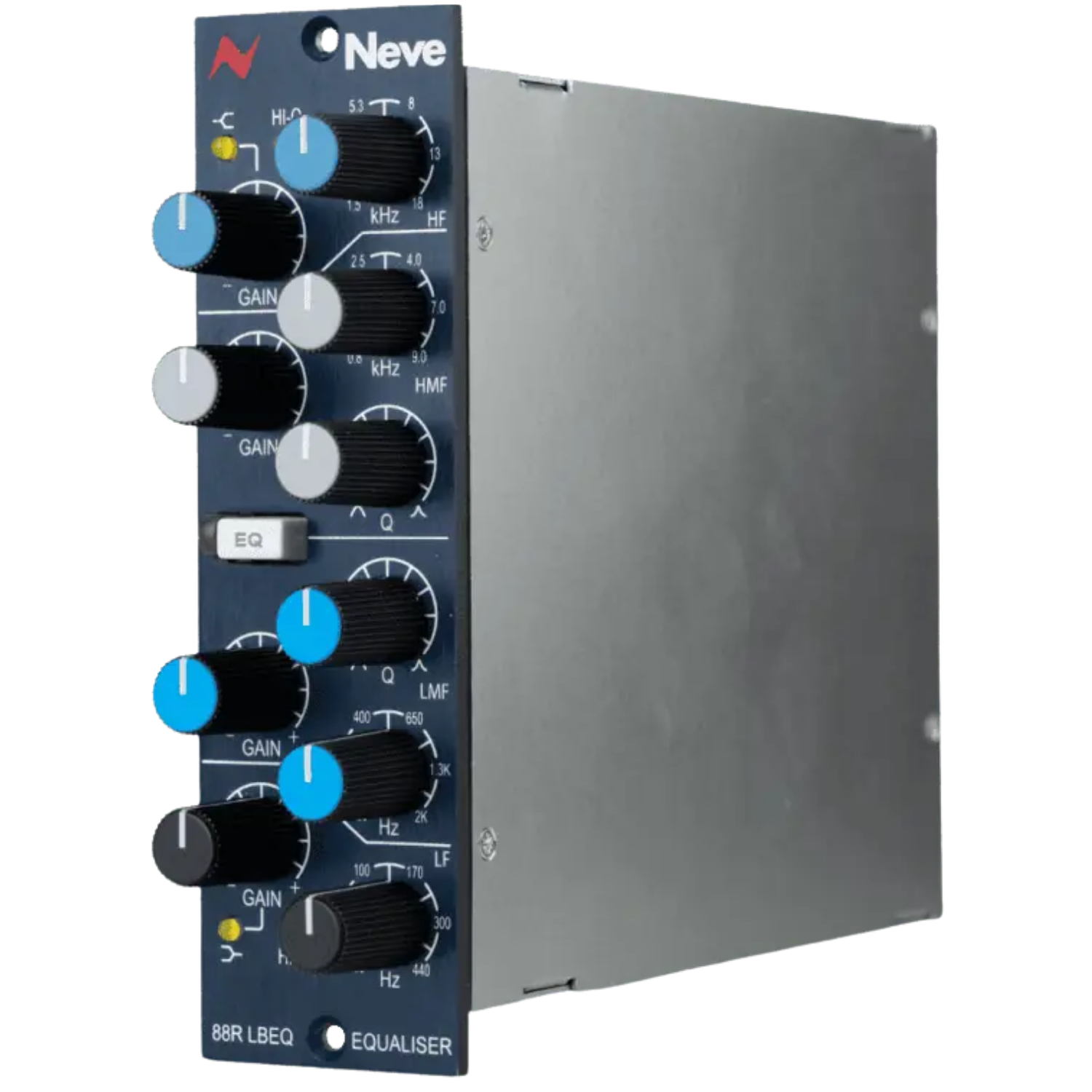

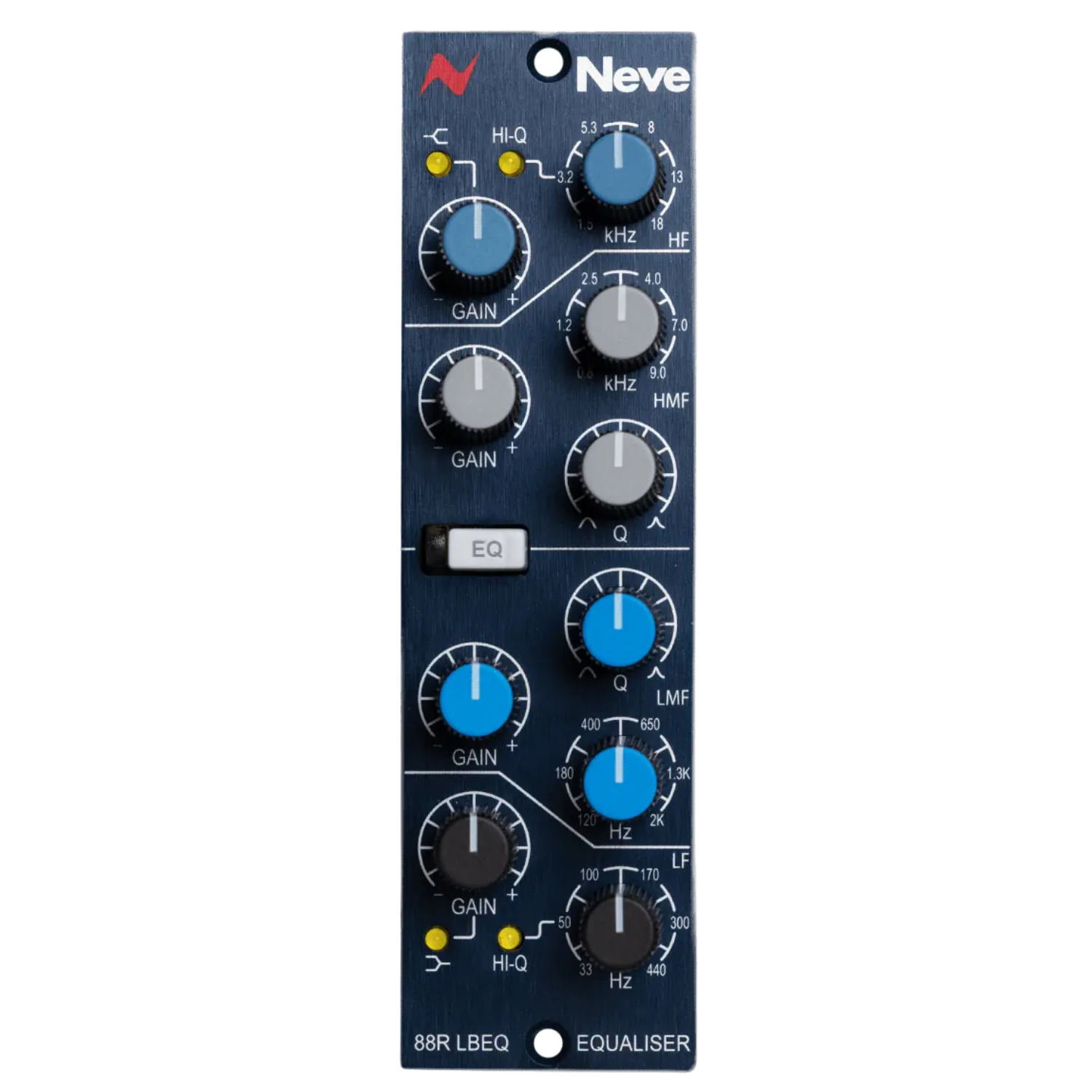

AMS Neve 88R LBEQ

The 88R LBEQ packs the acclaimed equalisation heritage of Neve’s flagship console designs into a compact, single-module 500-series format. Drawing on the revered circuitry of the 88RS analogue EQs, it delivers the musical precision, transparency, and control demanded by modern engineers and producers.

With ±20 dB of gain available on each of its four fully parametric bands, this 500-series EQ delivers exceptional tonal authority. From subtle shaping to dramatic boosts and cuts, it offers greater headroom and flexibility than most comparable modules, making it a powerful tool for precise and musical sound sculpting.

The four EQ bands are designed to overlap seamlessly across the frequency spectrum. Combined with variable Q control on each band, this allows narrow, surgical boosts or cuts to be used alongside wide, musical curves, providing complete flexibility for detailed tonal sculpting and characterful sound shaping.

General Specifications

• True Neve 88RS 4-band Parametric Equaliser circuit
• 500-Series form factor
• VPR Alliance Specification

Audio Performance

• Headroom: 27.2dBu @1kHz (0.1% THD)
• Distortion (THD+N): >0.004%
• General Noise: -88dBu (<-117dBu Bypassed)
• Frequency Response: > +/- 0.1dB
• Dynamic Range: >107dB
• Input Impedance: ≈24kΩ
• Output Impedance: ≈50Ω

Power Specifications 

• Max Draw: <145mA
• Surge: <145mA

Dimensions

• Height – 132mm (5.25 inches)
• Width – 38mm (1.5 inches)
• Depth – 145mm (5.75 inches)
• Weight – 0.57Kg (1.26 pounds)
