BD600+

Eventide BD-600

The Eventide BD-600 Broadcast Delay is a device used to delay broadcast audio for obscenity control. When activated this unit will delay programming up to 80 seconds in 8 second increments and fill with silence or recorded audio when obscenities are uttered.

Panic

A Secondary backup called PANIC is a WAV file stored on a compact flash card that plays while the delay is built in real time allowing programming to continue uninterrupted.

HD Upgrade

This delay features digital and analog audio capabilities for synchronization of audio into seamless broadcasting.

DUMP

This device offers user defined DUMP segments for specific protection.

Momentary Edit

The user can activate a SNEEZE button for a momentary edit for coughing sneezing or any other momentary audio anomaly.

Remote Operation

Remote operation can be accessed via RS-232.

Specs

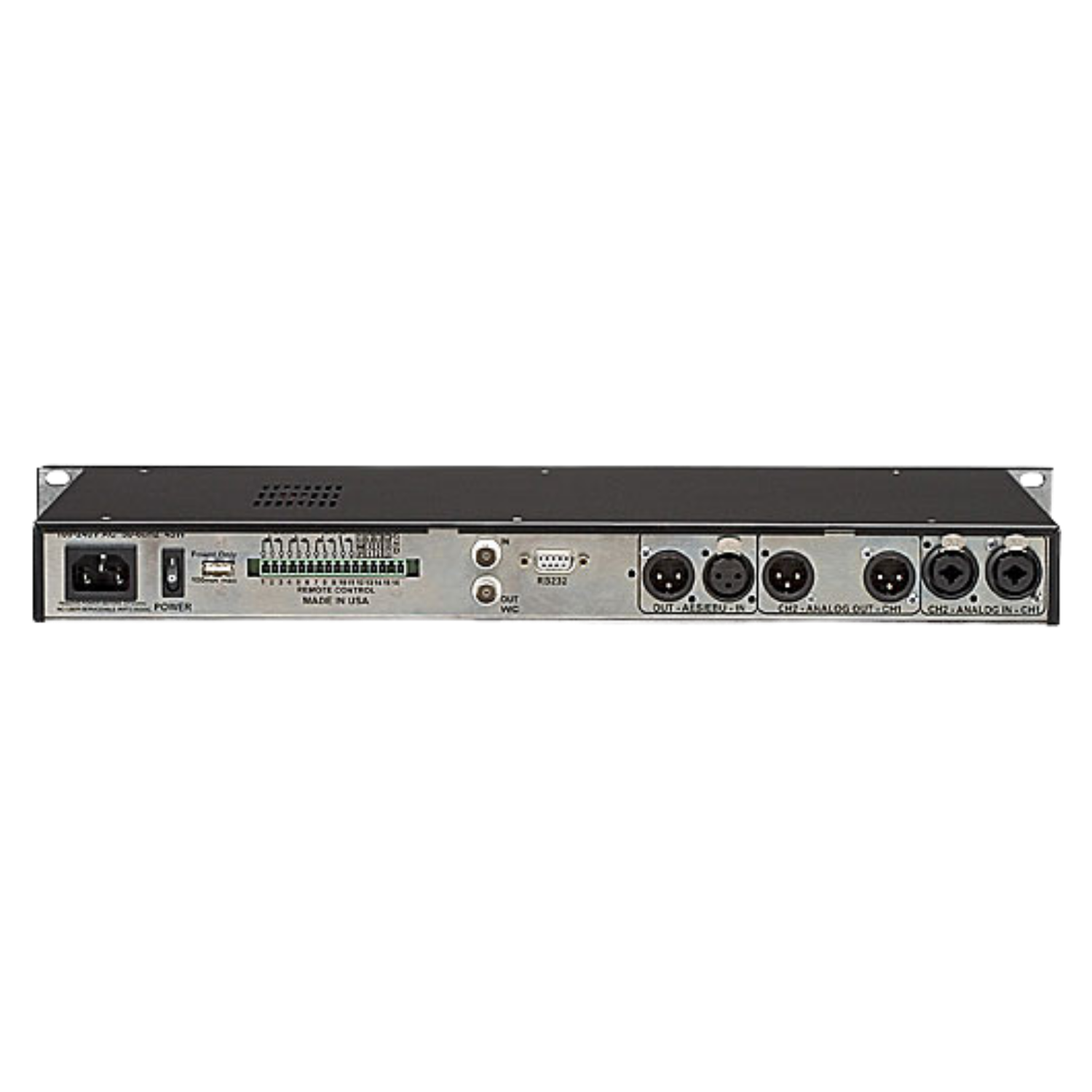

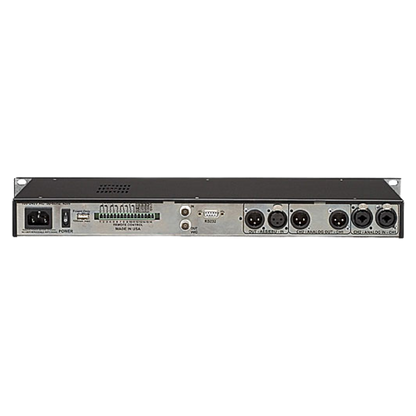

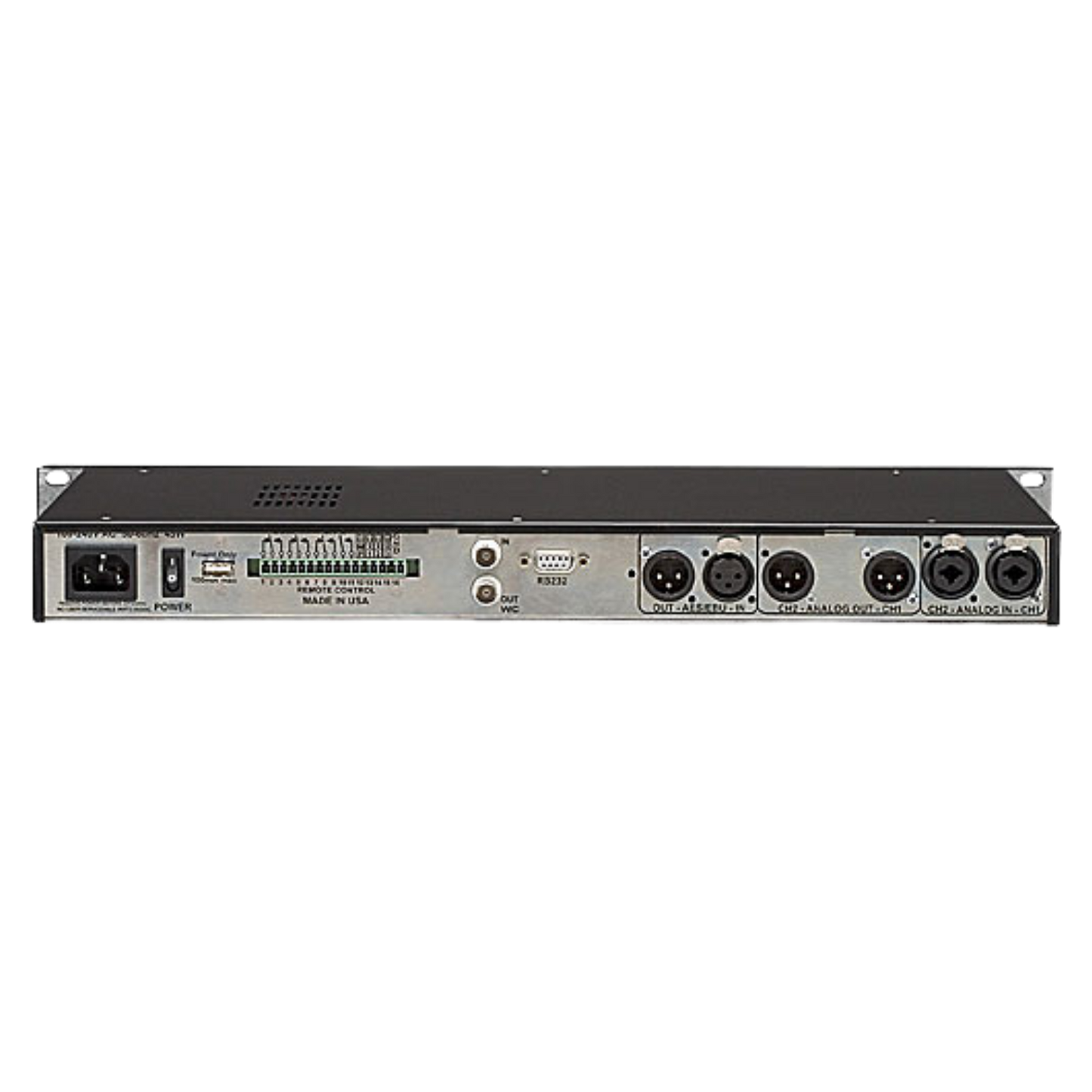

Input                                       Balanced Stereo Audio x2, @ 10K ohms, on 2 XLR                                                               connectors

                                               Digital Audio x2, 24 Bit AES/EBU, on XLR connectors

                                               RS-232, on a 9-Pin connector

Output                                    Balanced Stereo Audio, @ 50 ohms, on 2 XLR connectors

                                               Digital Audio x2, 24 Bit AES/EBU, on XLR connectors

                                               RS-232, on a 9-Pin connector

                                               Relay, closed contact, on an XLR connector

THD & Noise                          0.003%

Delay Range                          HD MicroPrecision .010 to 10 Seconds

                                               Profanity Delay 4,6,8,12,16,20,30,40,60 or 80 seconds

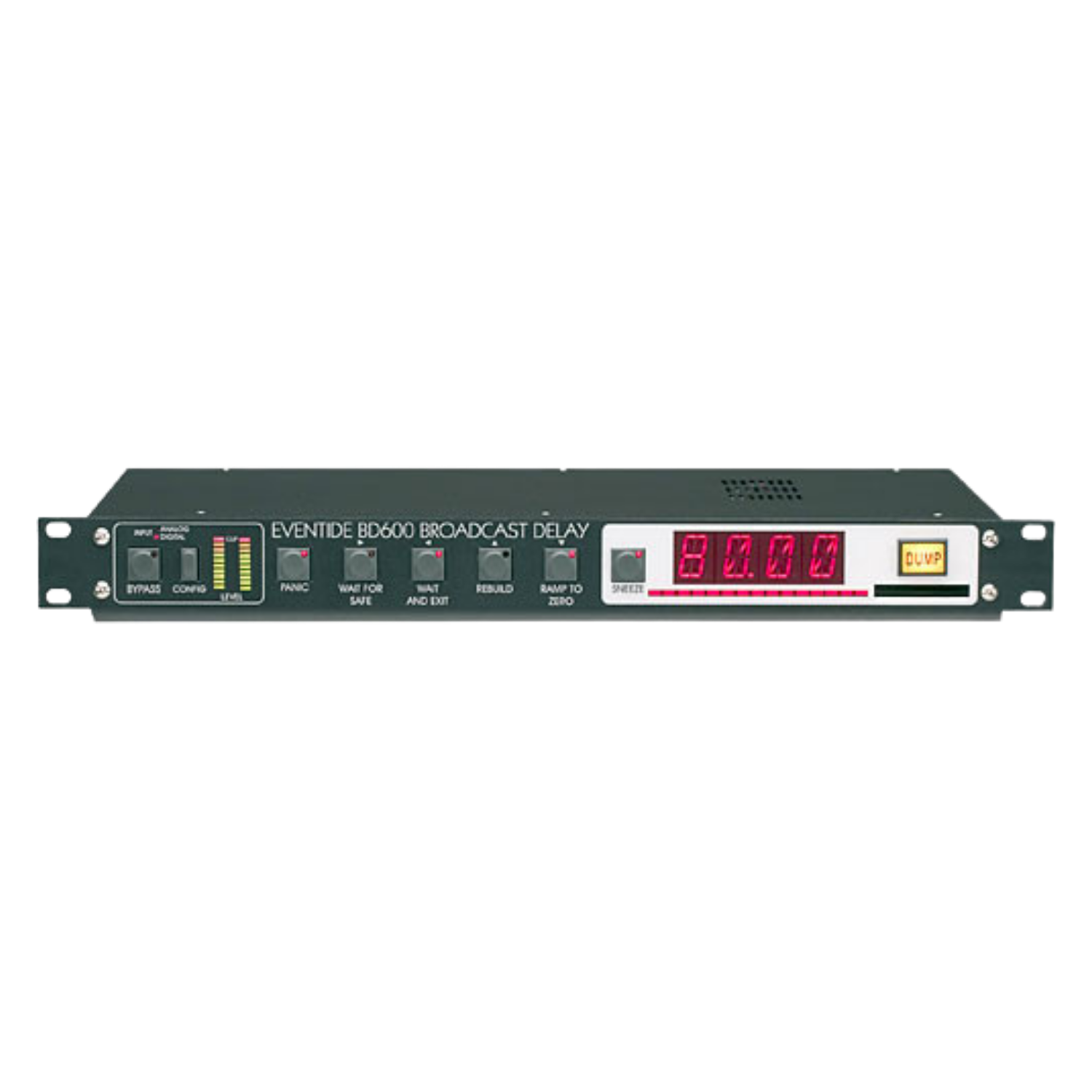

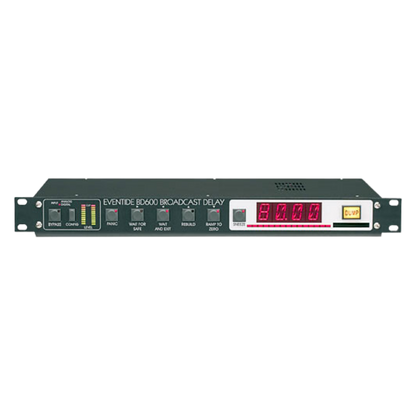

Control                                   Front Panel:
