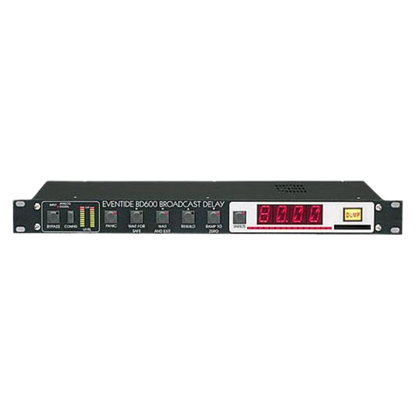

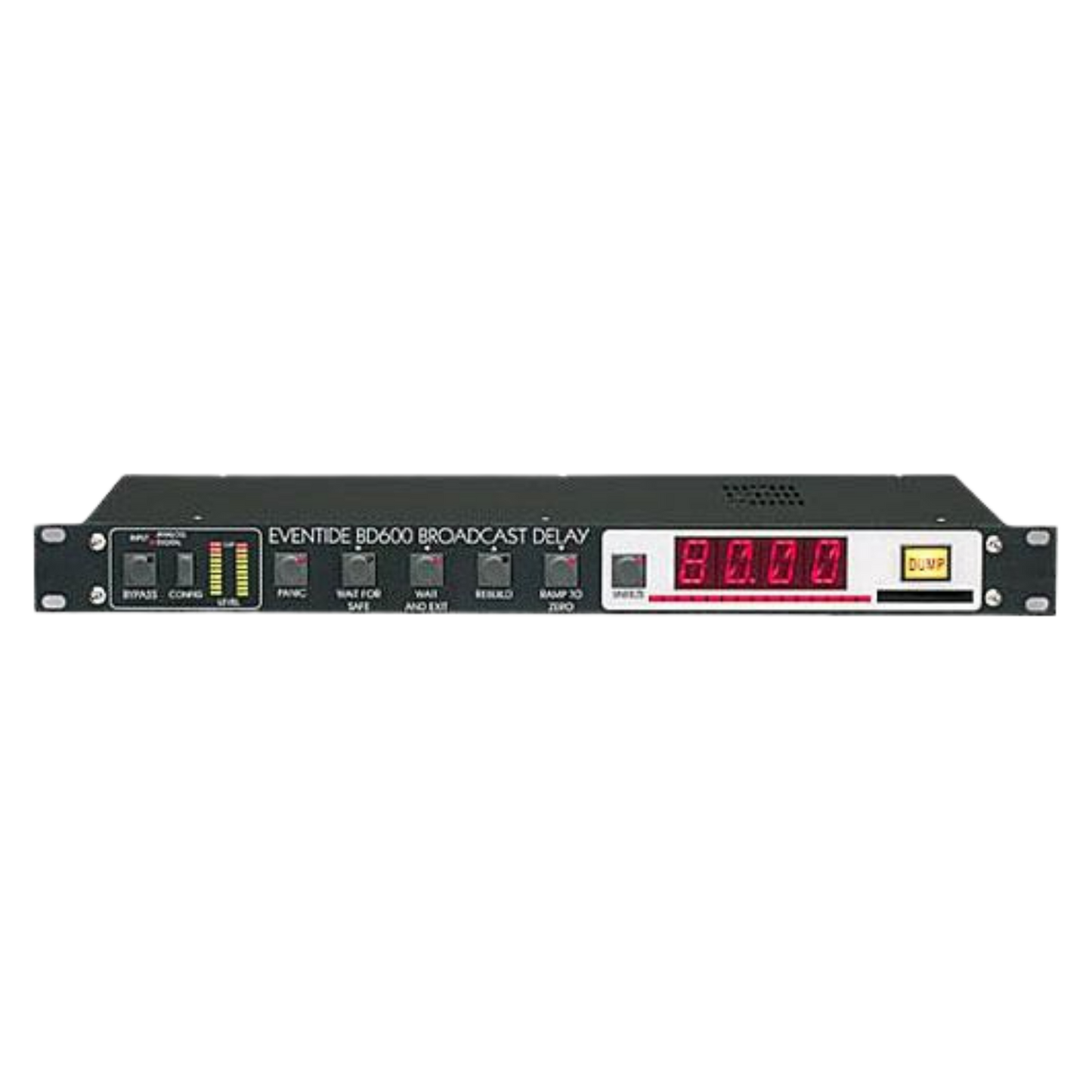

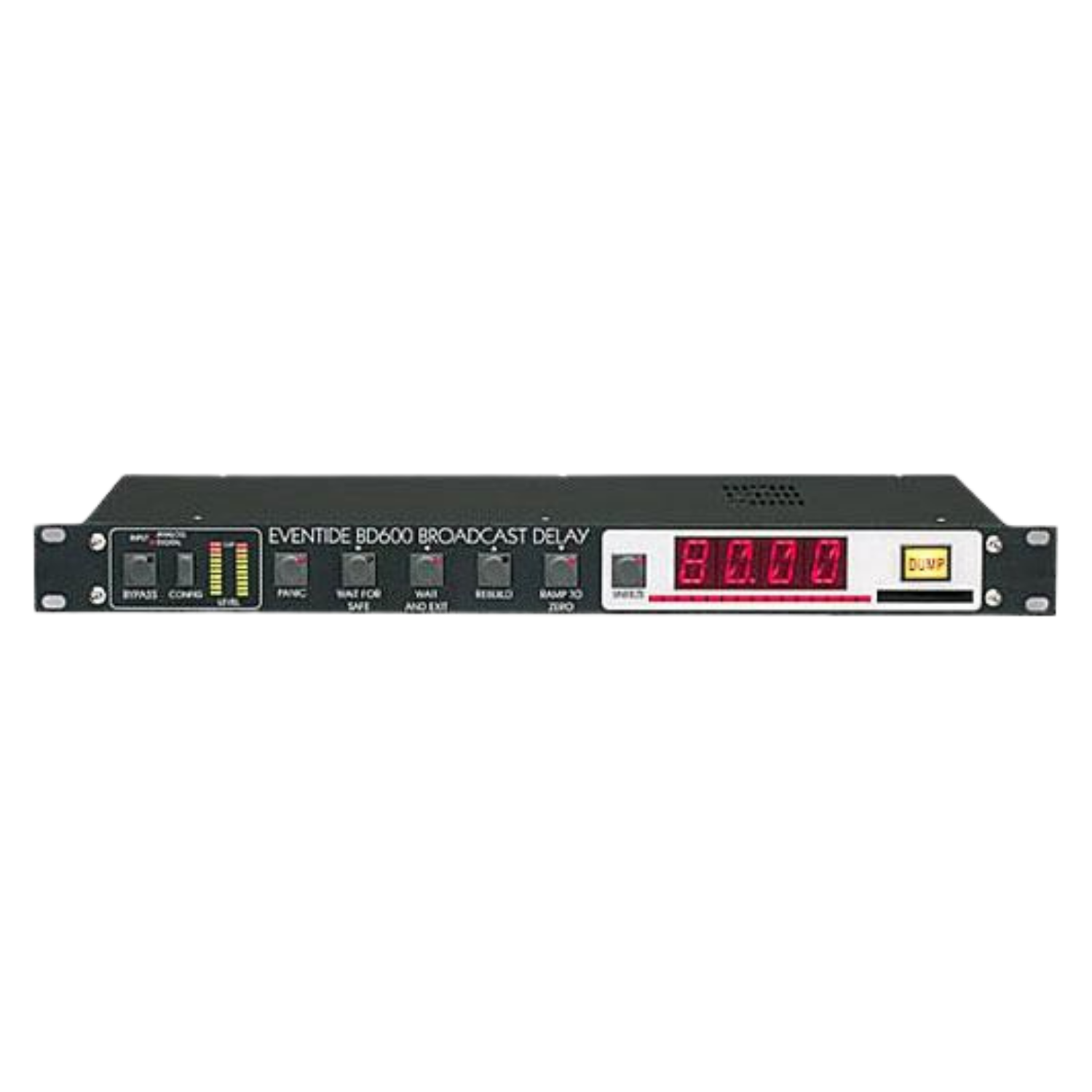

Eventide BD600E+

Eventide BD-600E

The Eventide BD-600E Broadcast Delay is a device used to delay broadcast audio for obscenity control. When activated this unit will delay programming up to 80 seconds in 8 second increments and fill with silence or recorded audio when obscenities are uttered. This model comes with an extended remote.

Panic

A Secondary backup called PANIC is a WAV file stored on a compact flash card that plays while the delay is built in real time allowing programming to continue uninterrupted.

HD Upgrade

This delay features digital and analog audio capabilities for synchronization of audio into seamless broadcasting.

DUMP

This device offers user defined DUMP segments for specific protection.

Momentary Edit

The user can activate a SNEEZE button for a momentary edit for coughing sneezing or any other momentary audio anomaly.

Extended Remote

Remote option offers 16 Bi-polar opto-isolated inputs and 16 open collector outputs.

Remote Operation

Remote operation can be accessed via RS-232.

Specs

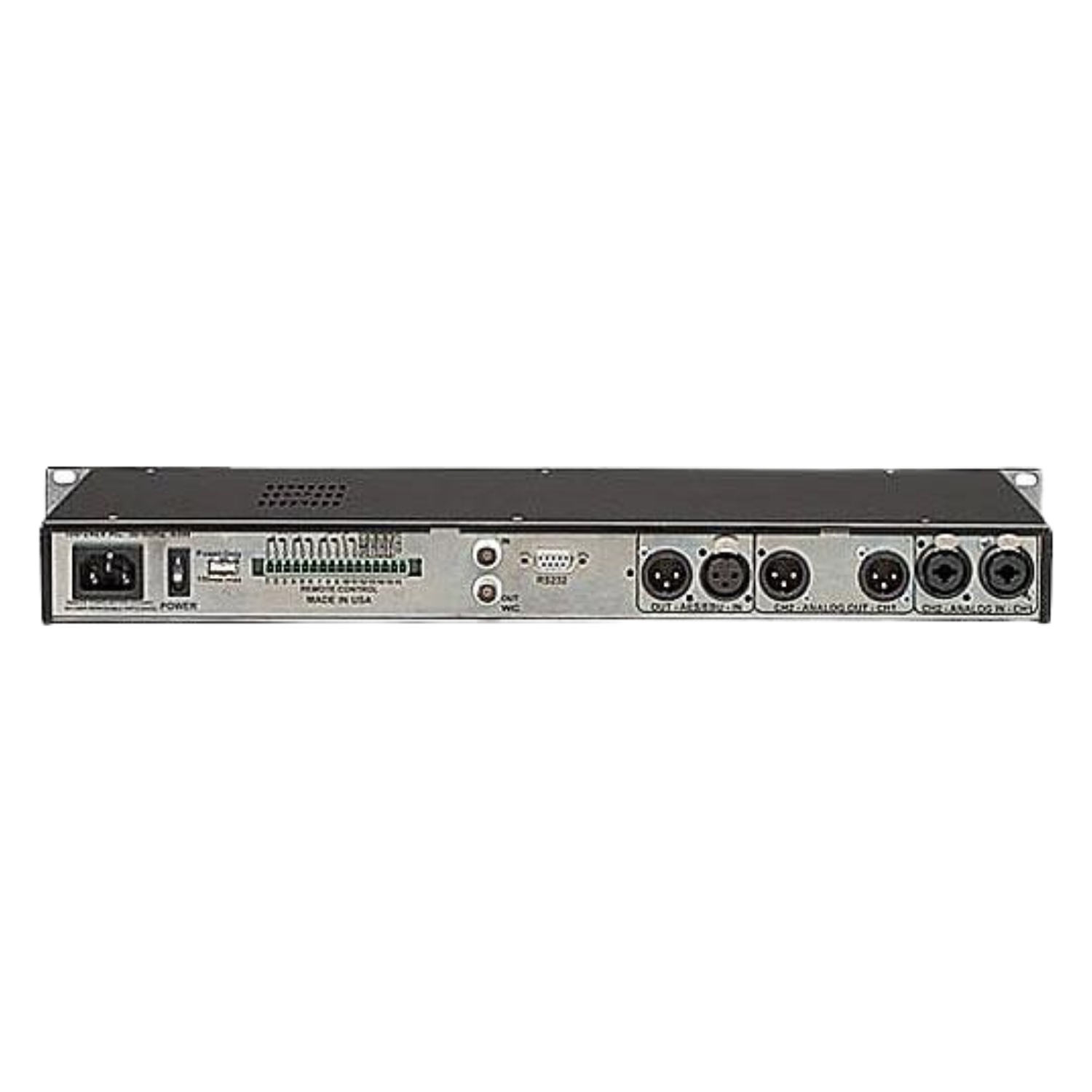

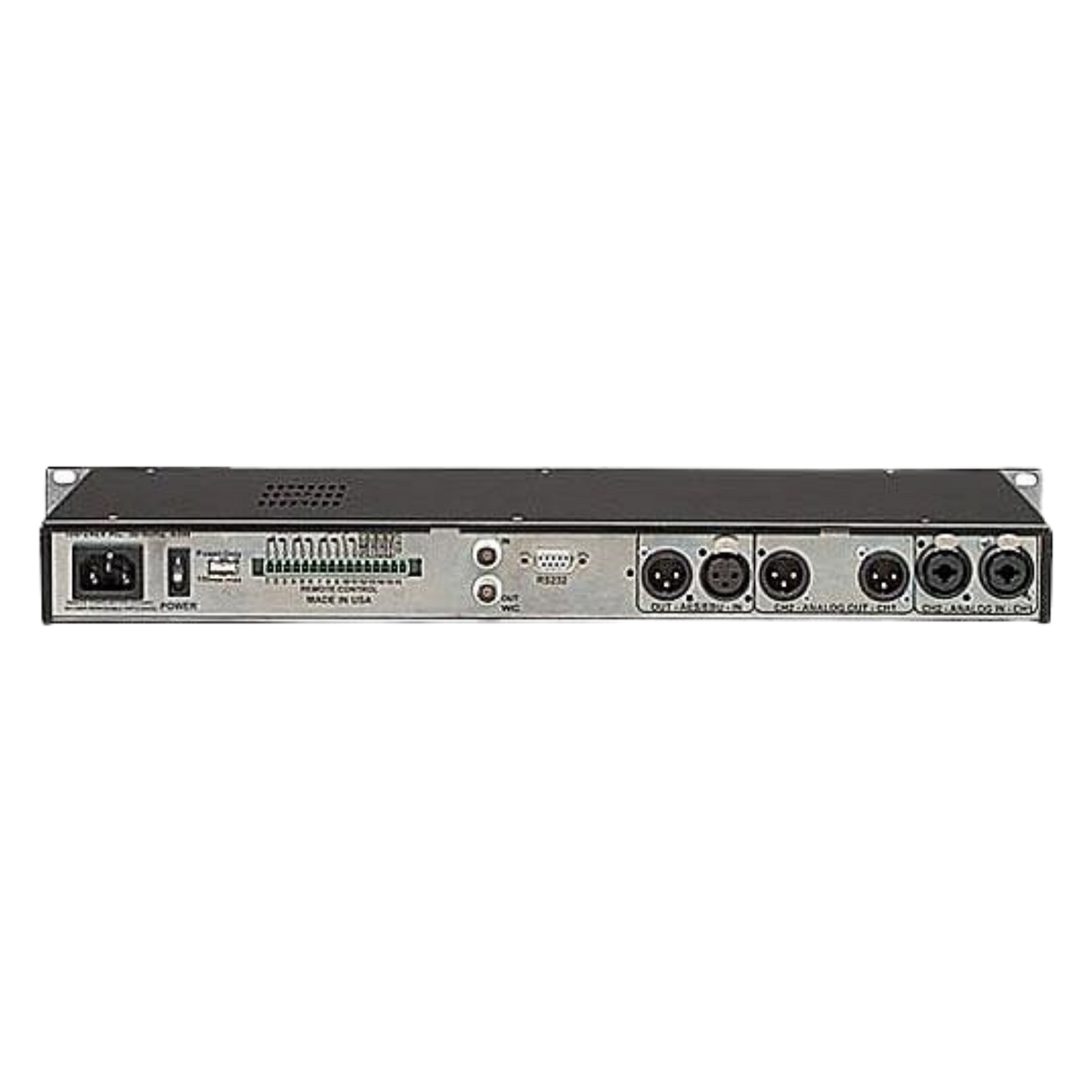

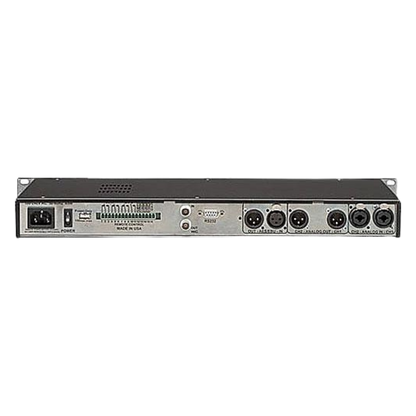

Input                                       Balanced Stereo Audio x2, @ 10K ohms, on 2 XLR                                                               connectors

                                               Digital Audio x2, 24 Bit AES/EBU, on XLR connectors

                                               RS-232, on a 9-Pin connector



Output                                    Balanced Stereo Audio, @ 50 ohms, on 2 XLR connectors

                                              Digital Audio x2, 24 Bit AES/EBU, on XLR connectors

                                              RS-232, on a 9-Pin connector

                                              Relay, closed contact, on an XLR connector



THD & Noise                          0.003%

Delay Range                           HD MicroPrecision .010 to 10 Seconds

                                                Profanity Delay 4,6,8,12,16,20,30,40,60 or 80 seconds

 Control                                  Front Panel:



Power Source                       100 to 240 VAC @ 50/60 Hz



Dimensions (WxDxH)           19 x 10.5 x 1.75"

                                             48.26 x 26.67 x 4.45cm



Weight                                    9 lbs

                                               4.1 kg



Packaging Info



Package Weight                     13.9 lb

Box Dimensions (LxWxH)      22.0 x 18.0 x 8.0"
