CMIT 5 SHOTGUN MICROPHONE

  • Sale
  • Regular price R 35,399.13


The CMIT 5 is SCHOEPS' shotgun microphone which has set a new standard for shotgun microphones since its release. The CMIT 5's directionality increases smoothly with higher frequencies, which results in a very balanced sonic character. In addition to this, the microphone's sound level decreases softly yet steadily for off-axis sounds, allowing these to be recorded neutrally as well as reducing the effects of movement during boom operation. The CMIT 5 also has a much stronger directionality than one might expect from a microphone of its length. If required, the CMIT 5 can also be used for music recordings, for example opera recordings.

The similar MiniCMIT offers the features of a CMIT 5 in a compact design and is especially recommended for use with digital wireless transmitters.

**Lead times apply - Please Check**



TECHNICAL SPECIFICATIONS

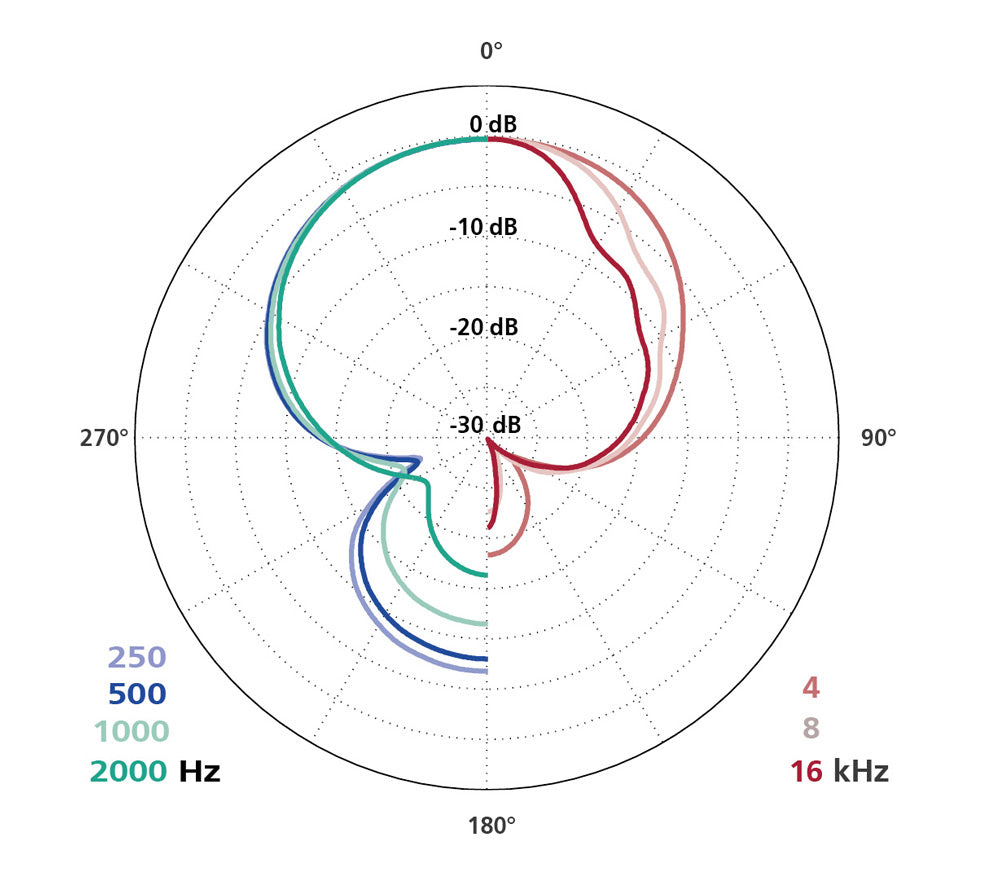

Pickup pattern
Supercardioid / lobe-shaped

Frequency range
40 Hz - 20 kHz

Sensitivity
-35 dB (V/Pa), 18 mV/Pa

Equivalent noise level (A-weighted)
13 dB

Equivalent noise level (CCIR)
24 dB

Signal-to-noise ratio (A-weighted)
81 dB

Maximum sound pressure level (THD < 0.5 %)
131 dB-SPL (P48)

Maximum output voltage
1.3 V (2.5 dBV) with 1 kΩ load

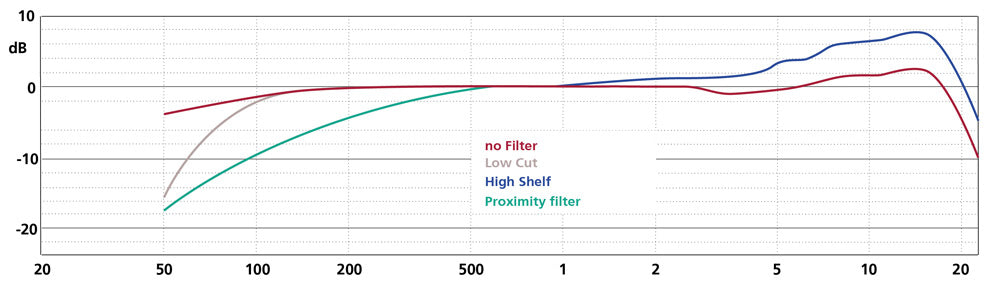

High shelf filter
switchable, +5 dB at 10 kHz

Low cut filter
switchable, 80 Hz, 18 dB/oct.

Proximity filter
switchable, 300 Hz, 6 dB/oct.

Minimum recommended load impedance
1 kΩ

Output impedance
50 Ω

Maximum cable length
> 400 m

SCHOEPS RFI Shield
Yes

Powering standard / Valid range
P48 / >34 V

Current consumption
4.4 mA (P48)

Common mode rejection ratio (at 1 kHz)
> 65 dB

Output
XLR-3M, analog, 1 channel

Length
251 mm

Diameter
21 mm

Weight
95 g

ORDER NUMBER:

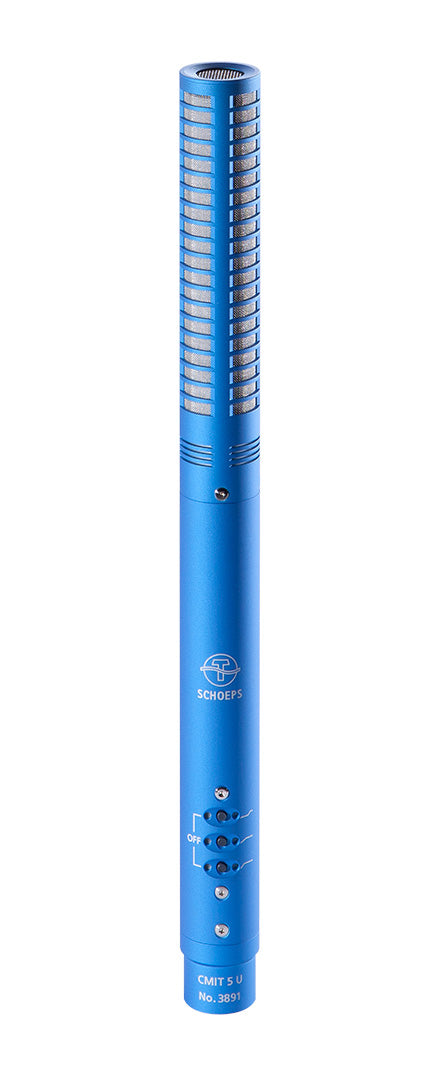

No. 140101 standard blue

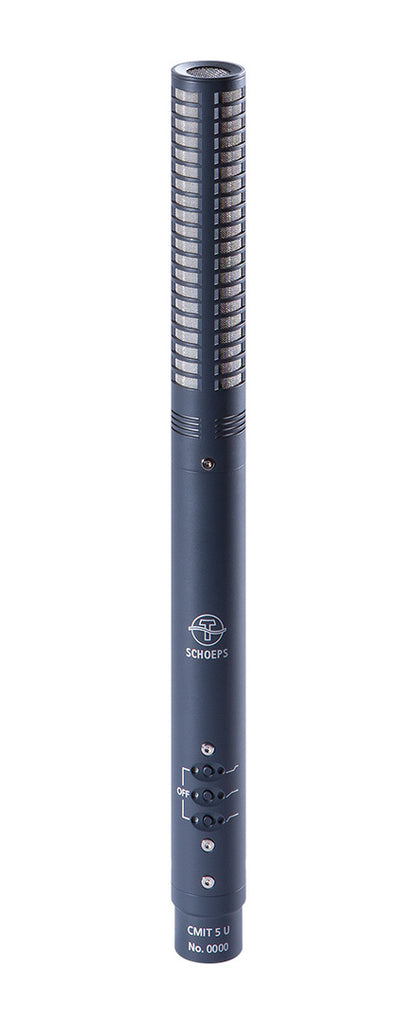

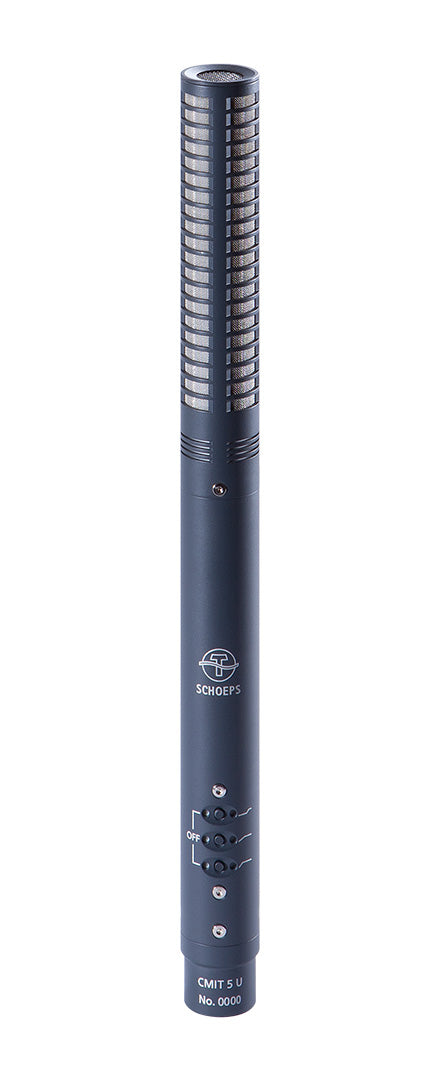

No. 140102 anthracite gray

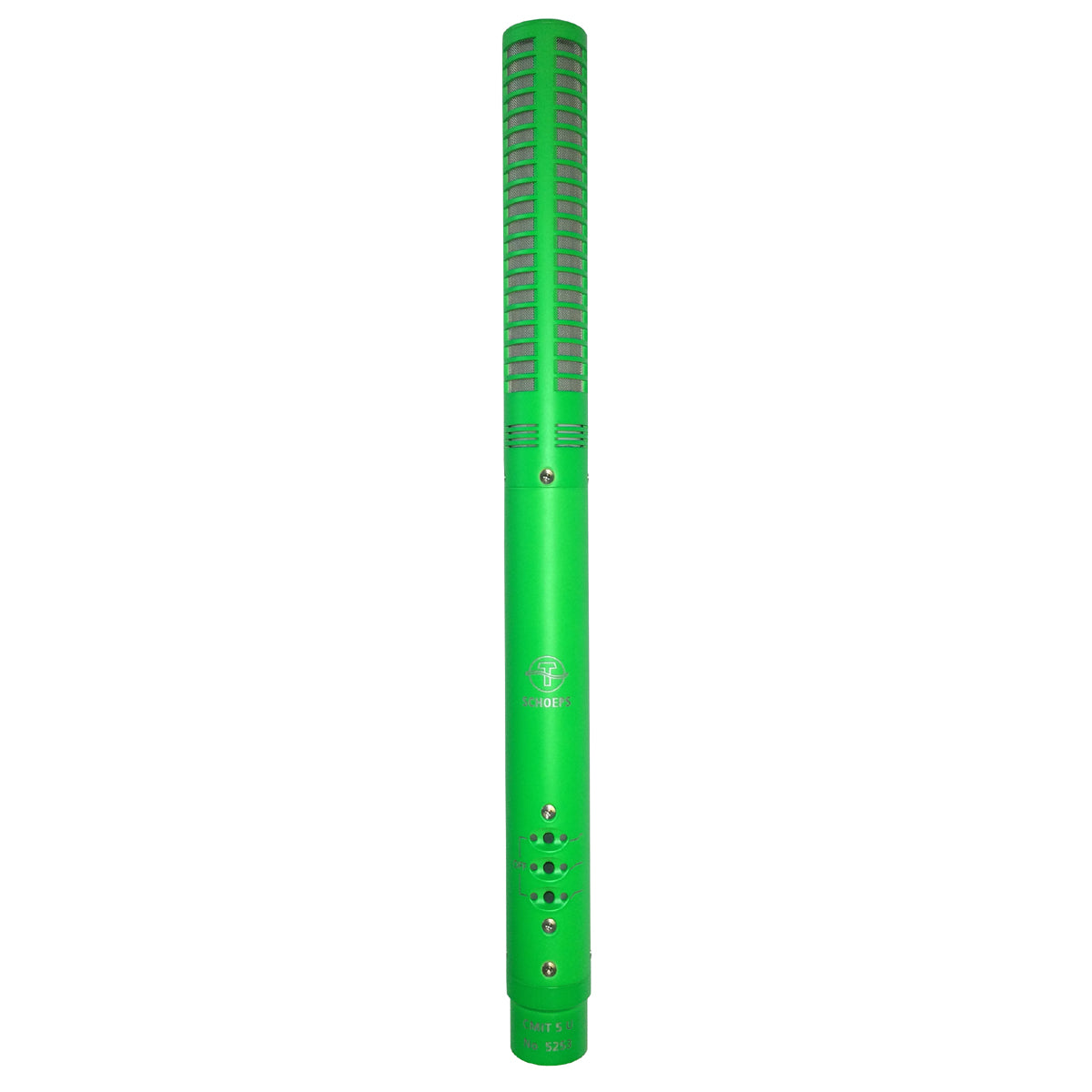

No. 140105 chromagreen
