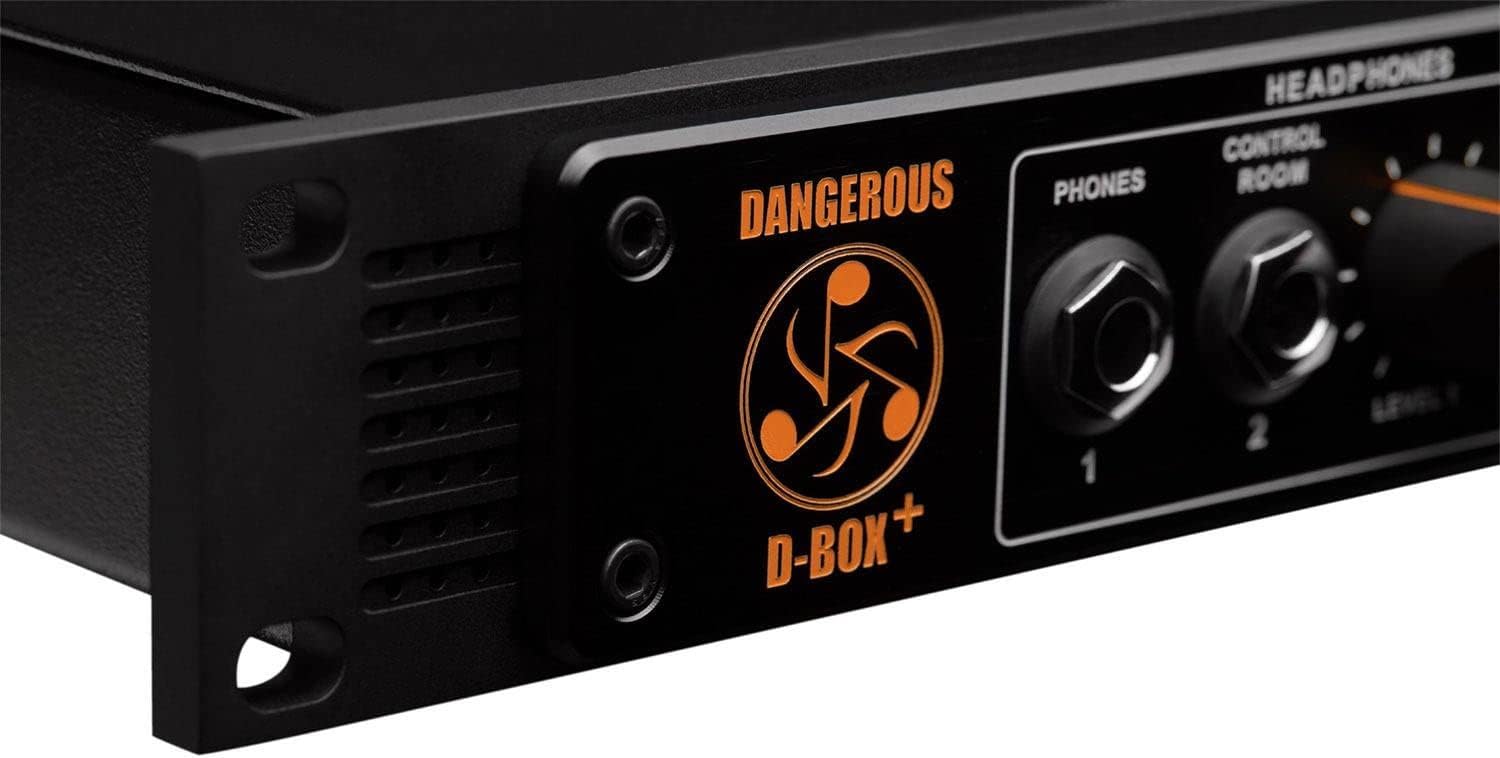

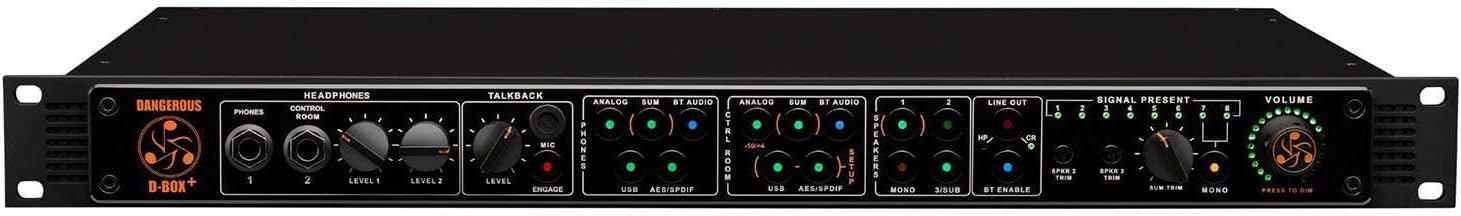

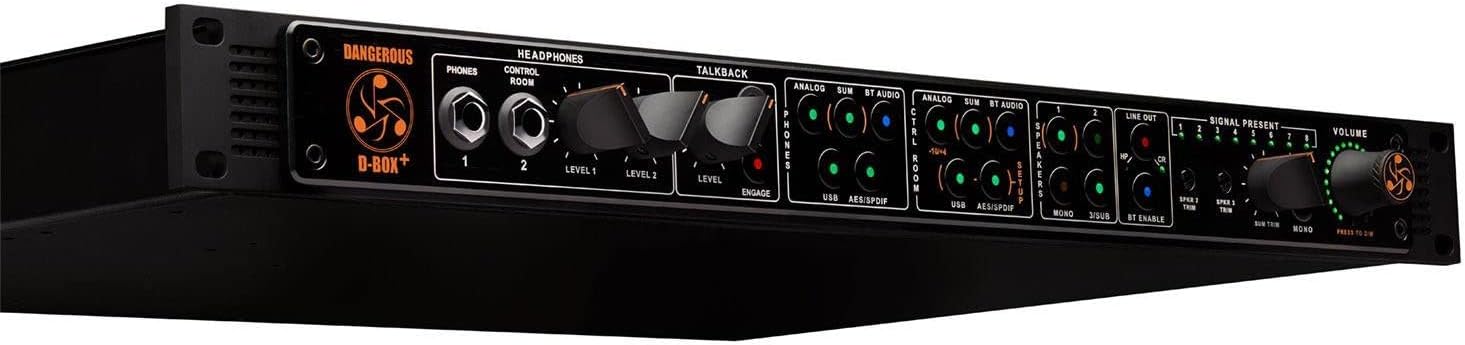

The Dangerous D-BOX+ is a ground-up dramatic redesign of the award-winning controller and summing mixer that provided countless studios the superior sound and versatile control of an analog mixer, all in just one rack space. The newly designed 8-channel summing mixer and D-A stereo converter provide Dangerous Music’s bold and clear sound, while newly added features like Bluetooth connectivity and an app for remote control of all major functions unleash a cutting edge feature set that puts the D-BOX+ far ahead of the competition.
Specifications:
SUMMING SECTION
-
Frequency Response Flat within 0.1dB from 10Hz to 50kHz
-
THD+N @ +4dBu 0.0019%
-
IMD 0.0020%
-
Crosstalk Rejection >114dB @ 1kHz
-
Noise floor @ unity gain 22Hz to 22kHz <-90dBu
-
Maximum Input Level +27dBu
SELECTED LINE OUTPUT
-
Frequency Response Flat within 0.5dB from 10Hz to 50kHz
-
THD+N @ +4dBu 0.0027%
-
IMD 0.0027%
-
Crosstalk Rejection >110dB @ 1kHz
-
Noise Floor 22Hz to 22kHz <-89dBu
-
Maximum Input Level +26dBu
MONITOR SECTION
-
Frequency Response Flat within 0.5dB from 10Hz to 50kHz
-
THD+N @ +4dBu 0.0049%
-
IMD 0.0090%
-
Crosstalk Rejection >106dB @ 1kHz
-
Volume off signal rejection >120dB
-
Noise floor at unity gain 22Hz to 22kHz <-90dBu
USB & AES DACS, MEASURED AT 96KHZ SAMPLE RATE:
-
Frequency Response Flat within 0.5dB from 10Hz to 30kHz
-
THD+N @ -14dBfs 0.0027%
-
Crosstalk Rejection >115dB @ 1kHz
-
Dynamic Range >106dB
HEADPHONE AMPS:
-
4 ohm minimum load per amplifier (6-8 pairs of typical studio dynamic headphones)
-
Power Output 3 Watts / Channel
-
THD+N 0.0066%
-
Crosstalk Rejection >100dB
