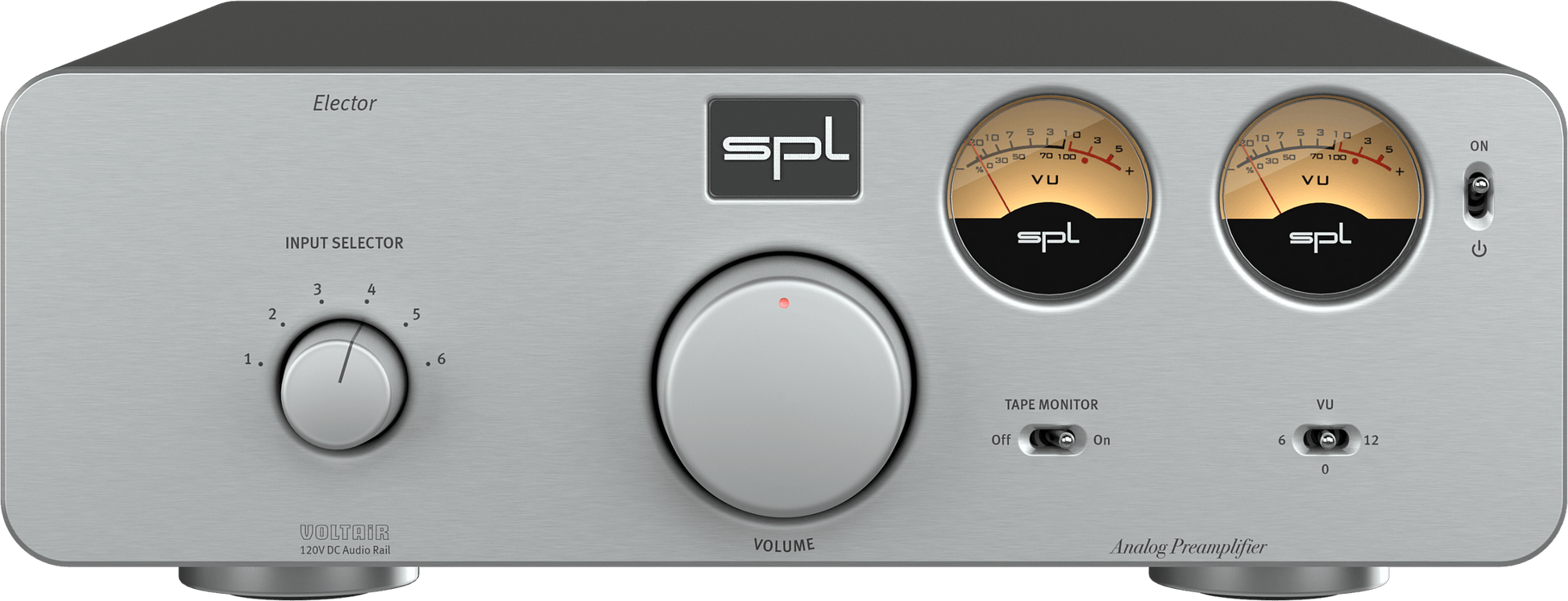

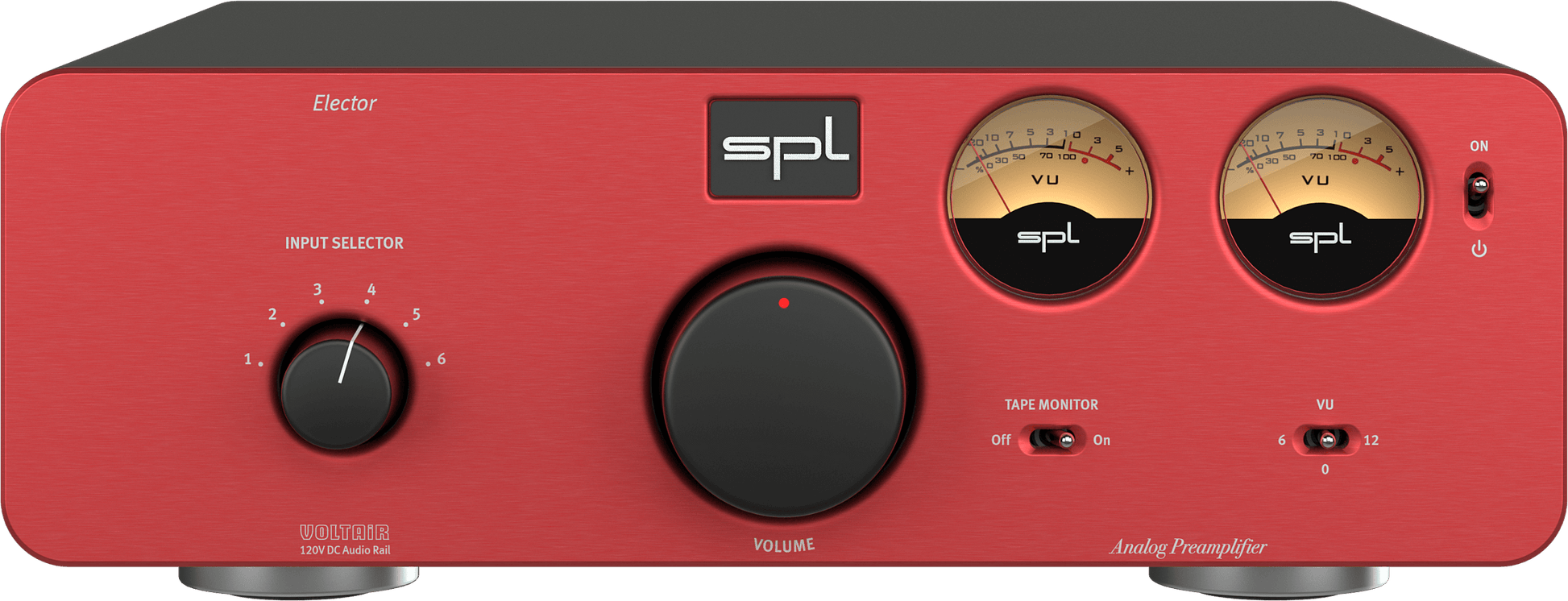

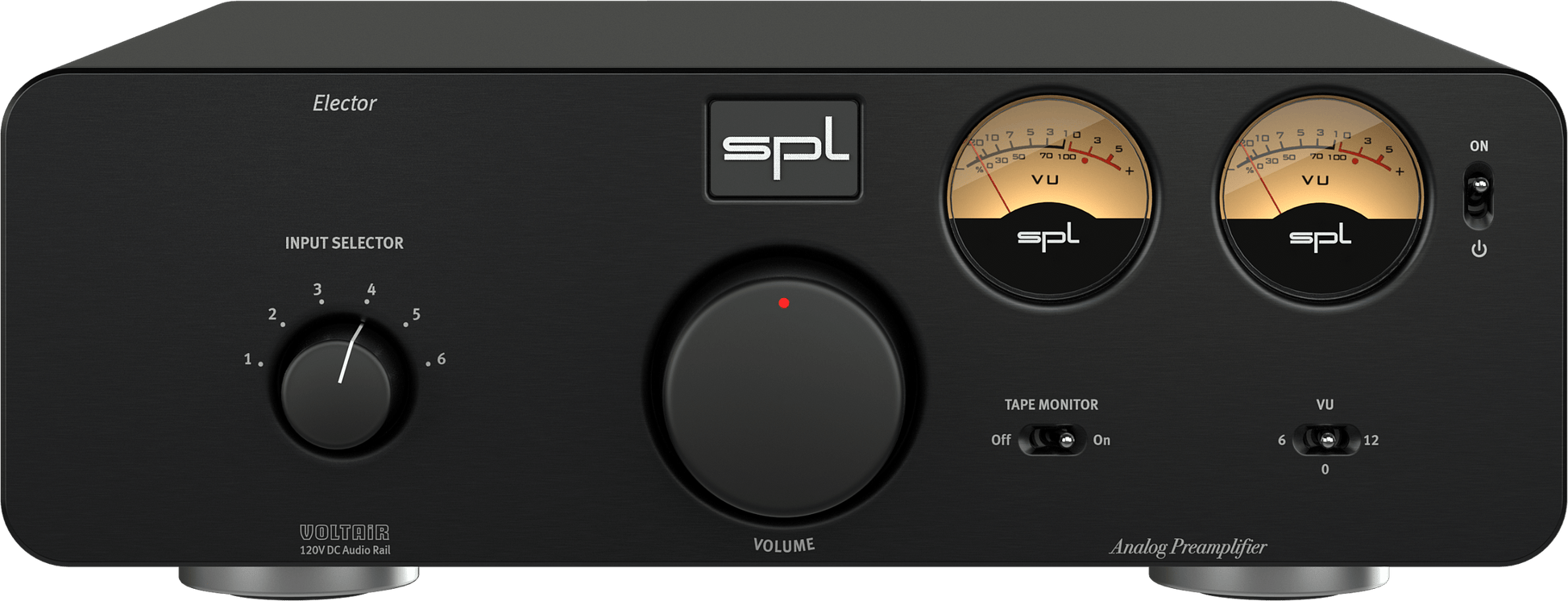

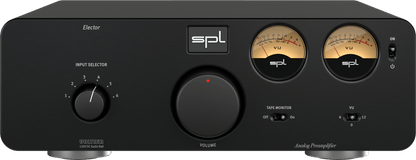

SPL Elector

SPL Elector

R 61,795.00 ZAR
R 61,795.00 ZAR
Sale Sold out

The Elector is the perfect preamplifier for the lover of pure analog technology. With motorized, remote volume control, tape monitor path, retro-look-VU-meter and the all superior VOLTAiR technology the Elector brings analog sources to new life.

Milled from solid

The massive 45mm volume control knob milled from aluminum is a haptic highlight. Its mass together with the motorized Alps RK27 “Big Blue” potentiometer enhances the “spoon in the honey” feeling even further.

The red marker LED ensures good visibility of the volume parameter even in darkened environments.

Remote control

The volume control can be remotely controlled with any infrared remote control.

The Elector learns to communicate with it with the simple push of a button.



Specifications:

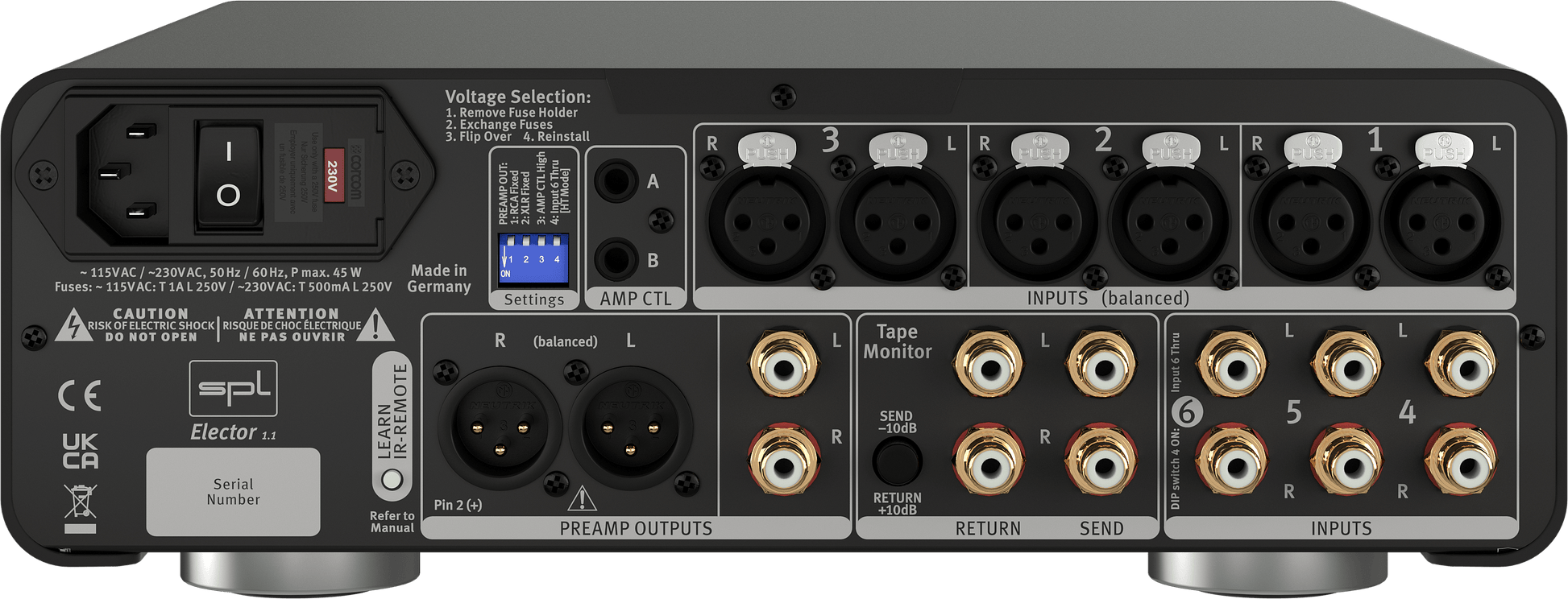

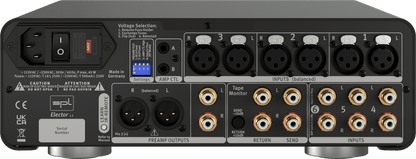

Analog Inputs & Output; XLR (balanced) and RCA

Maximum input & output gain: 32.5 dBu
Input impedance (RCA): 47 kΩ
Input impedance (XLR): 20 kΩ
Output impedance: 75 Ω
Common mode rejection ratio (XLR): -75 dBu
Frequency range (0 dBu): 10 Hz – 100 kHz
Crosstalk (0 dBu, 1 kHz): -112 dBu
THD + N (0 dBu, 1 kHz): 0.00179 %
Noise (A-weighted): -99 dBu
Dynamic range: 132.5 dB

Internal Linear Power Supply with Shielded Toroidal Transformer

Operating voltage for analog audio: +/- 60 V
Operating voltage for relays and LEDs: + 12 V

Mains Power Supply

Mains voltage (selectable, see fuse chamber): 230 V AC / 50; 115 V AC / 60 Hz
Fuse for 230 V: T 0.5 A
Fuse for 115 V: T 1 A
Power consumption: max. 40 VA
Stand-by power consumption: < 0.3 W

Dimensions & Weight

W x H x D: 278 x 100 x 300 mm / 11 x 4 x 11.81 inch
Unit weight: 4.25 kg / 9.37 lbs

Product features

Materials and care

Merchandising tips

View full details
