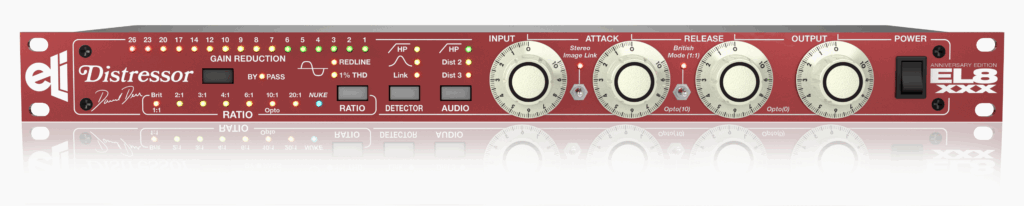

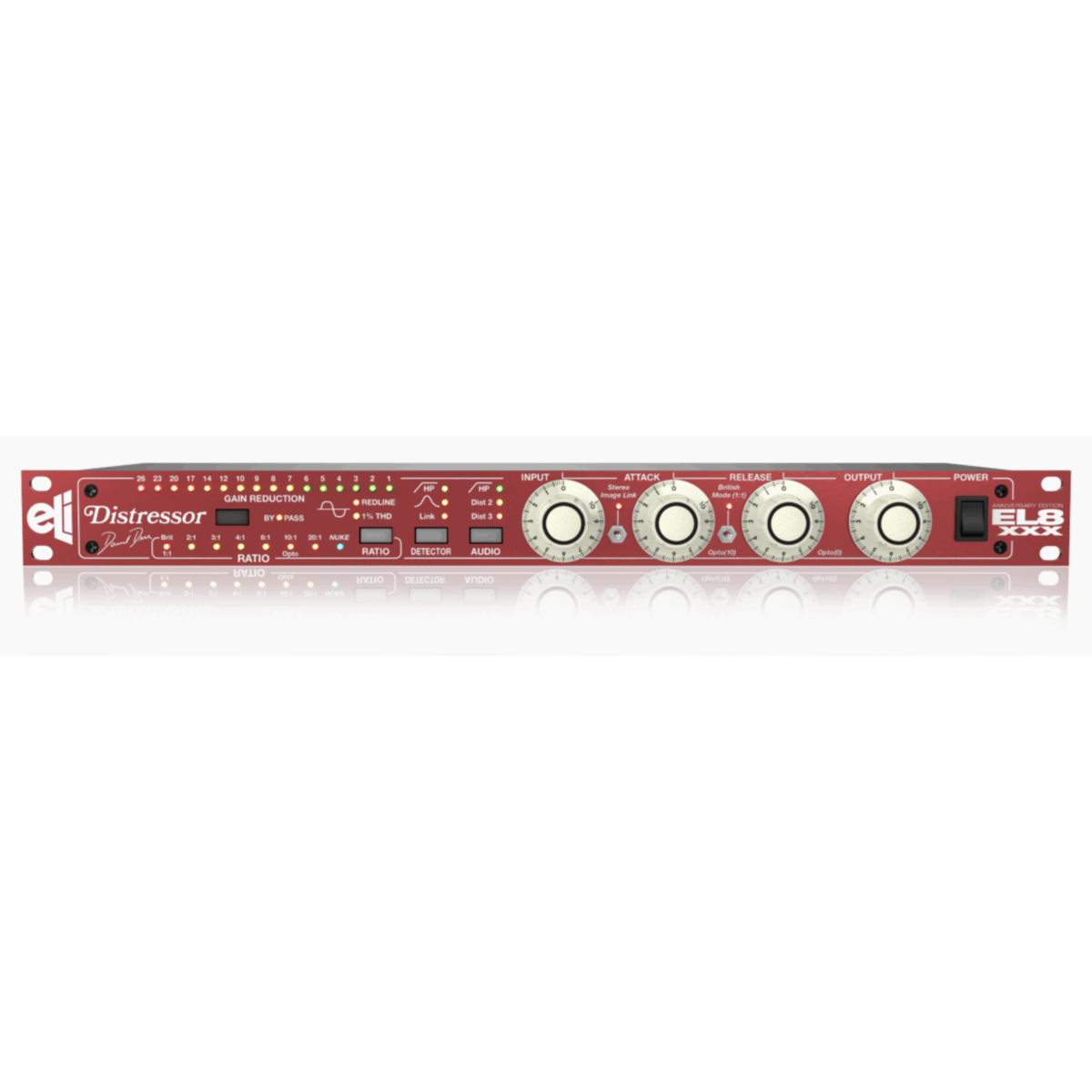

Empirical Labs 30th Anniversary Edition - EL8-XXX
Empirical Labs 30th Anniversary Edition - EL8-XXX
Regular price
R 47,045.00 ZAR
Regular price
Sale price
R 47,045.00 ZAR
This Limited Edition of the EL8 Distressor includes all of the upgraded features found on the EL8-X (Stereo Image Link and Brit Mode), now coupled with the award-winning Triad HS-56 transformer at the input stage, known for its ability to add clarity and “size” to sub content. In addition to saturation and color, this transformer also greatly reduces input impedance to 600 ohms. Lastly, different discrete components were selected allowing the XXX model to saturate earlier than the classic EL8.
Specifications
- Frequency Response – 2 Hz to 160 kHz in clean audio mode (+0, -3 dB). Response is shaped in distortion modes (Dist 2, Dist 3).
- Dynamic Range – 110 dB from max. output to min. output in 1:1 mode. Greater than 100 dB signal to noise in distort 3 mode.
- Distortion – ranges between .02% and 20% depending on distortion mode and release times set on front panel.
- I/O – DC Coupled input and outputs.
- Time Constants – Attack range 50uS – 50mS. Release range .05 sec to 3.5 seconds, normal modes and up to 20 seconds in 10:1 opto mode. Time constants are dependent on ratio.
- Power Consumption – 15 Watts Max.
- Metal Chassis – single height 1.75″ high, 10″ deep, 19″ wide.
- Shipping info – 12.1 lbs mono, 24.2 lbs Stereo pair. Mono box dimensions 22.5″ x 18.5″ x 3 1/4″. Stereo Pair box dimensions 22.5″ x 18.5″ x 6 1/4
