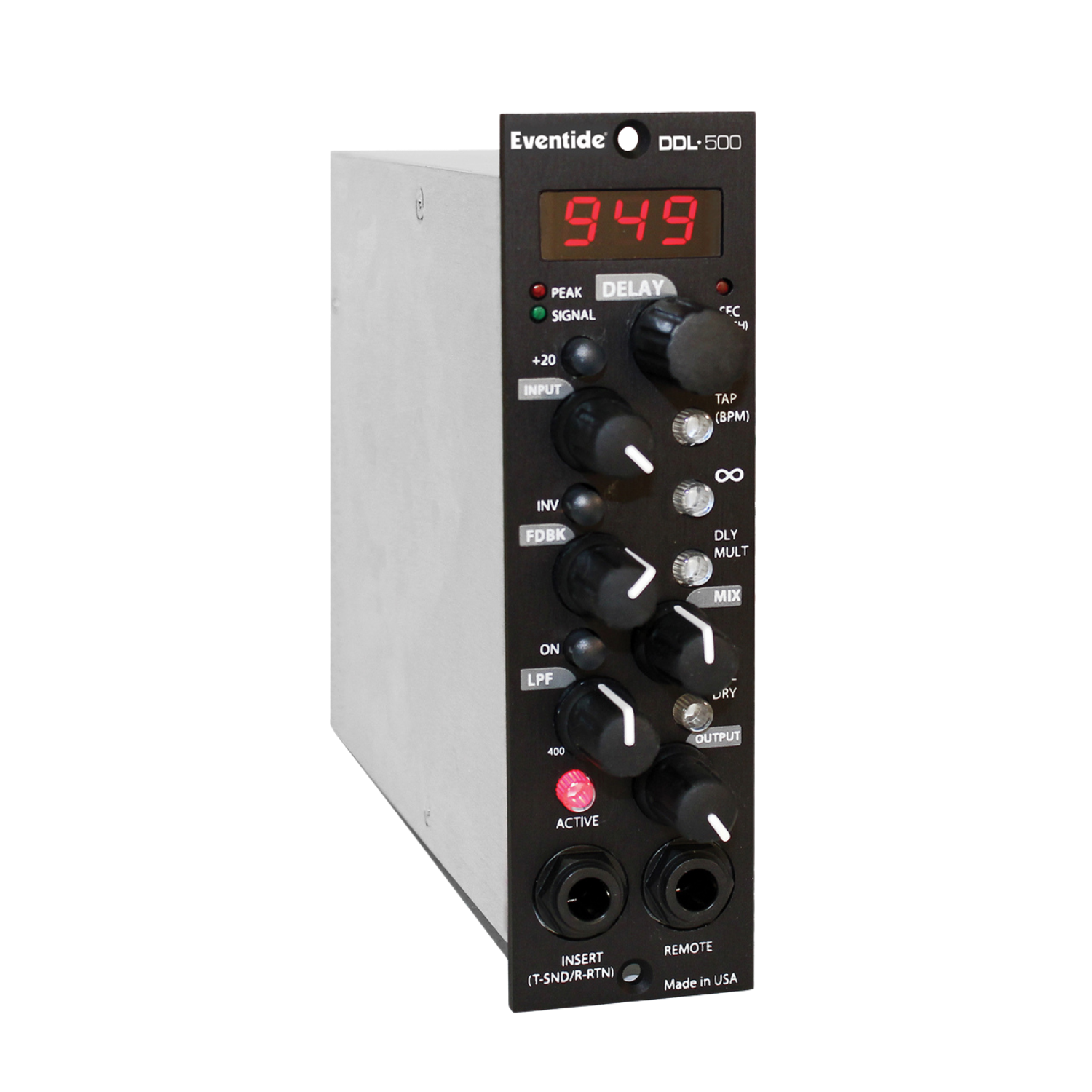

DDL-500 500 Series Digital Delay Line

  • Sale
  • Regular price R 9,460.00


A Digital Delay Line with an Analog Soul

The DDL-500 features 10 seconds of pristine delay at a 192 kHz sample rate and a unique design that strictly limits the amount of digital circuitry to the bare minimum. Soft saturation clipping, low pass filter, feedback, insert loop, relay bypass, and +20 dB boost are all analog.

Delay time can be varied smoothly either manually or by connecting an LFO to the remote input allowing short delays to be used for comb filter and flanging effects. The DDL-500 is also capable of extremely long delays (up to 160 seconds at a 16 kHz sample rate) allowing long passages to be captured for looping.

From short delays for double tracking, to ridiculously long delays for whatever reason, to creating swept delay and tape echo class effects, the DDL-500 brings it all in a single 500 series slot.


Sample Rate: 192kHz to 12kHz

Resolution: 24 bits

Minimum Delay: 0.11 milliseconds

Maxiumum Delay: 10 seconds @ 192kHz 60 seconds @ 12kHz

Input: Max 24dBu, 18k­ impedance

Output: Max 24dBu, 50­ impedance

Insert Send: Max 10dBu, 2k­ impedance

Insert Return: Max 20dBu, 50k­ impedance

Power: +16V 200mA, -16V 100mA


Sample Rate                                       192kHz to 12kHz

Resolution                                          24 bits

Minimum Delay                                 0.11 milliseconds

Maximum Delay                                10 seconds @ 192kHz

                                                          160 seconds @ 12kHz


Input   Max                                         24dBu, >18k impedance

Output Max                                         24dBu, 50k impedance

Insert Send                                        Max 10dBu, 2k impedance

Insert Return                                     Max 20dBu, 50k impedance


Power                                                 +16V 200mA, -16V 100mA
