One Pedal to Rule them All
A complete pedalboard in one pedal, the H9 Harmonizer® is full of Eventide’s iconic reverb, chorus, delay, modulation, pitch-shifting and distortion effects. With the H9, you can evoke the sonic landscape of legendary albums and open the doors to the creation of new sounds never heard before. Faithfully recreate the iconic sounds used by top artists, engineers and producers such as Steve Vai, Jimmy Page, Frank Zappa, Eddie Van Halen, Richard Devine, Suzane Ciani and many more.

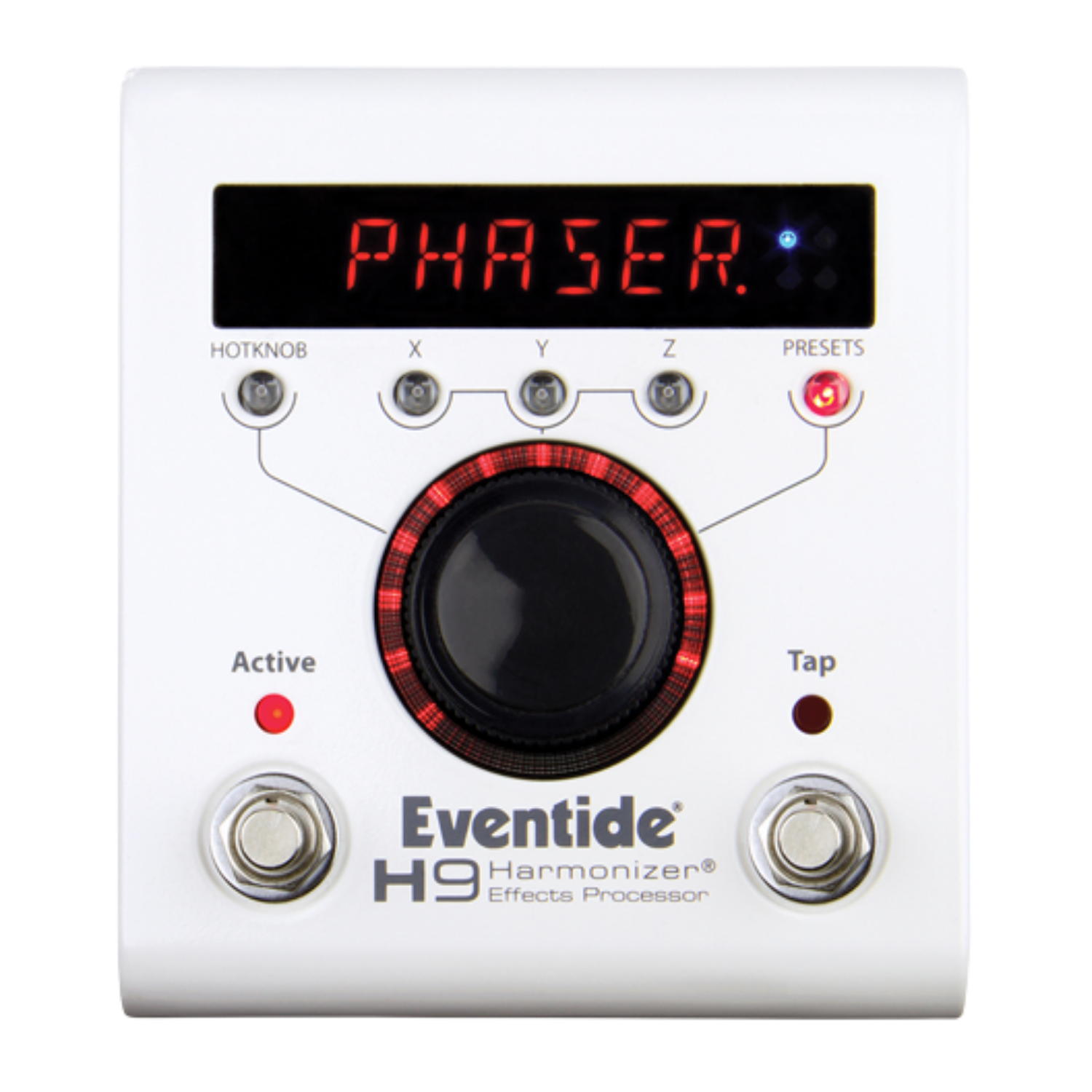

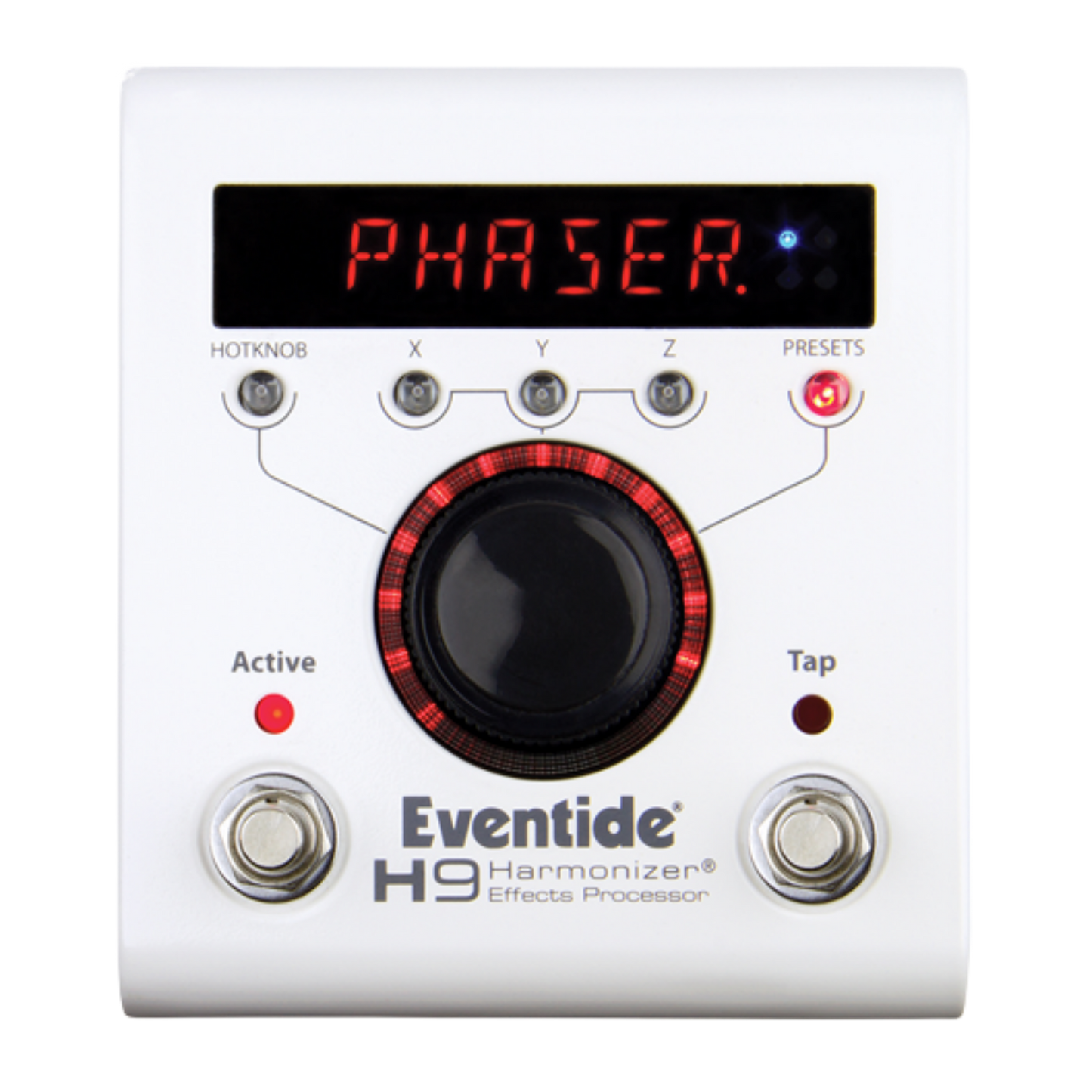

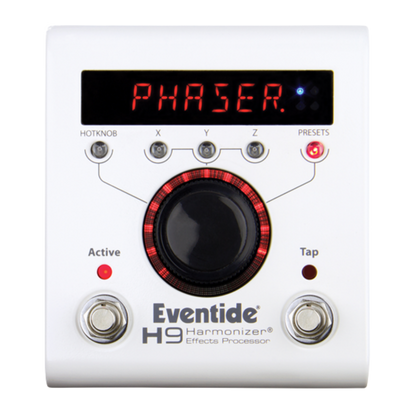

The award-winning design of the H9 features a simple, one-knob user interface which allows easy effect editing and preset selection. Two onboard footswitches let you change presets, tap tempo, and bypass with your feet during live performance. The H9 offers studio quality sound, stereo I/O and full MIDI compatibility. With the free H9 Control app for PC, Mac and iOS, you can purchase additional algorithms, create set lists, edit and manage presets wirelessly via Bluetooth or USB.
The H9 can run all of the effect algorithms from our TimeFactor (delay), ModFactor (modulation), PitchFactor (pitch shifting), and Space (reverb) pedals as well as some created just for the H9.
True analog bypass
Real-time MIDI control
Power supply included
MIDI via DIN and USB
Fast accurate tuner included
Expression pedal and AUX footswitch input
Sync to the beat with tap tempo or MIDI
Algorithms & Presets
There are 49 effect algorithms, and more than 500 presets available for H9 that include reverbs, delays, pitch shifting, chorus, distortion and everything in between.
Sculpt Distortion Algorithm
PitchFuzz is a new multi-effect algorithm that combines fuzz, three pitch shifters and two delays for an amazing range of tonal shapes. It’s the equivalent of 3 high-quality effects pedals in a single stompbox.
SpaceTime is a multi-effects algorithm combining Modulation, two Delays, and Reverb into one, easy to use effect. Unique to SpaceTime is the ability to route the Delays and Reverb in series or parallel after modulation.
Sculpt Distortion Algorithm
Sculpt is a multi-band distortion algorithm that carves the audio signal into high and low frequency bands and then allows different levels of gain and filtering for each.

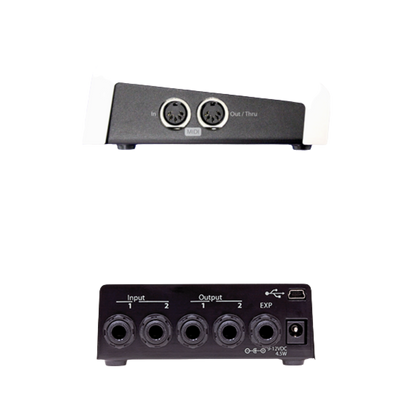

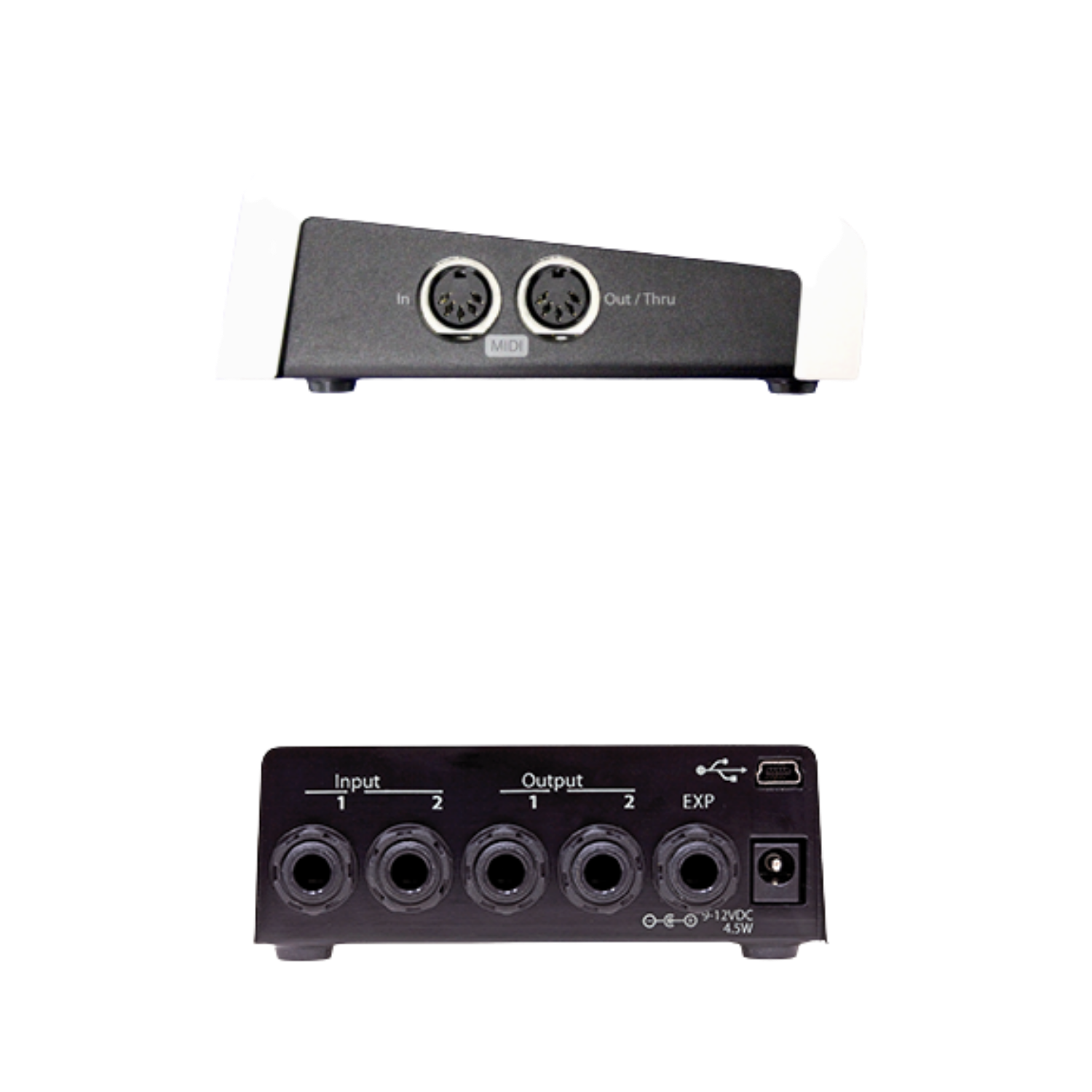

Input 1 (mono) ¼ inch mono phone jack
Input 2 ¼ inch mono phone jack
Output 1 (mono) ¼ inch mono phone jack
Output 2 ¼ inch mono phone jack
Expression Pedal ¼ inch mono phone jack
Mini USB Use 2.0 cables only
MIDI In Five pin DIN (Female)
MIDI Out/Thru Five pin DIN (Female)
AC Adapter Jack Power supply included (see below)
Input Impedance 600K ohms (mono or stereo)
Output Impedance 470 ohms
Recommended Load Impedance 10K ohms or greater
Power 9VDC, 500mA, center pin(+)
Dimensons English: 5.25" (H) x 4.65" (W) x 1.96" (D)
Metric: 133 (H) x 118 (W) x 50 (D) mm
Weight 1.53lbs, 0.7kg / Retail box 3 lbs, 1.36 kg
