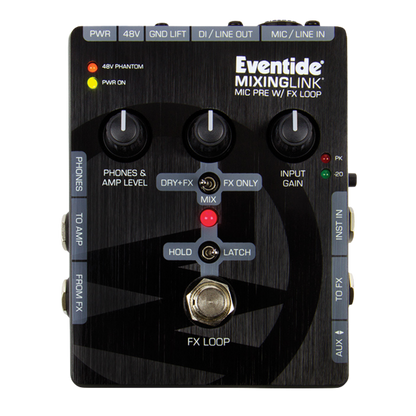

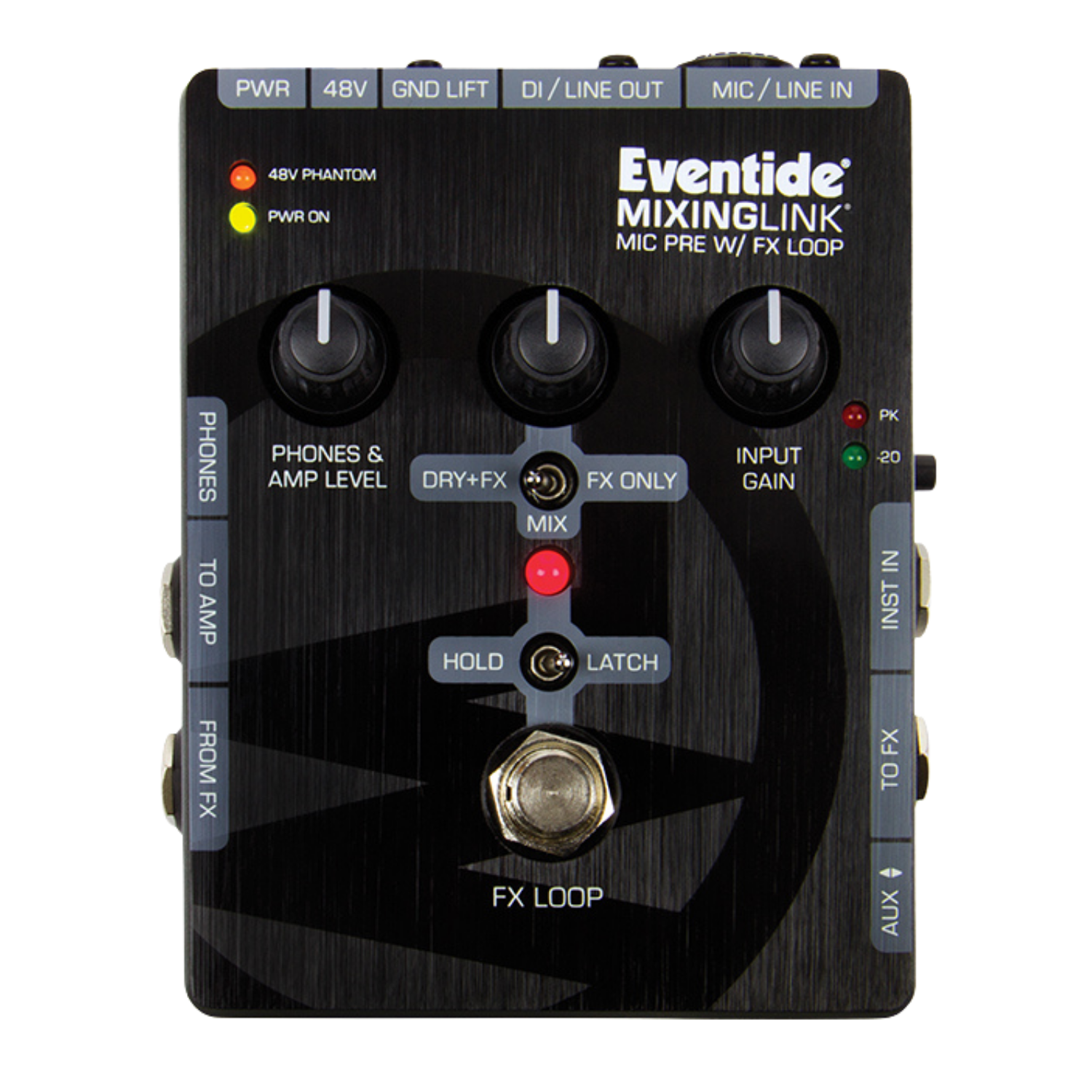

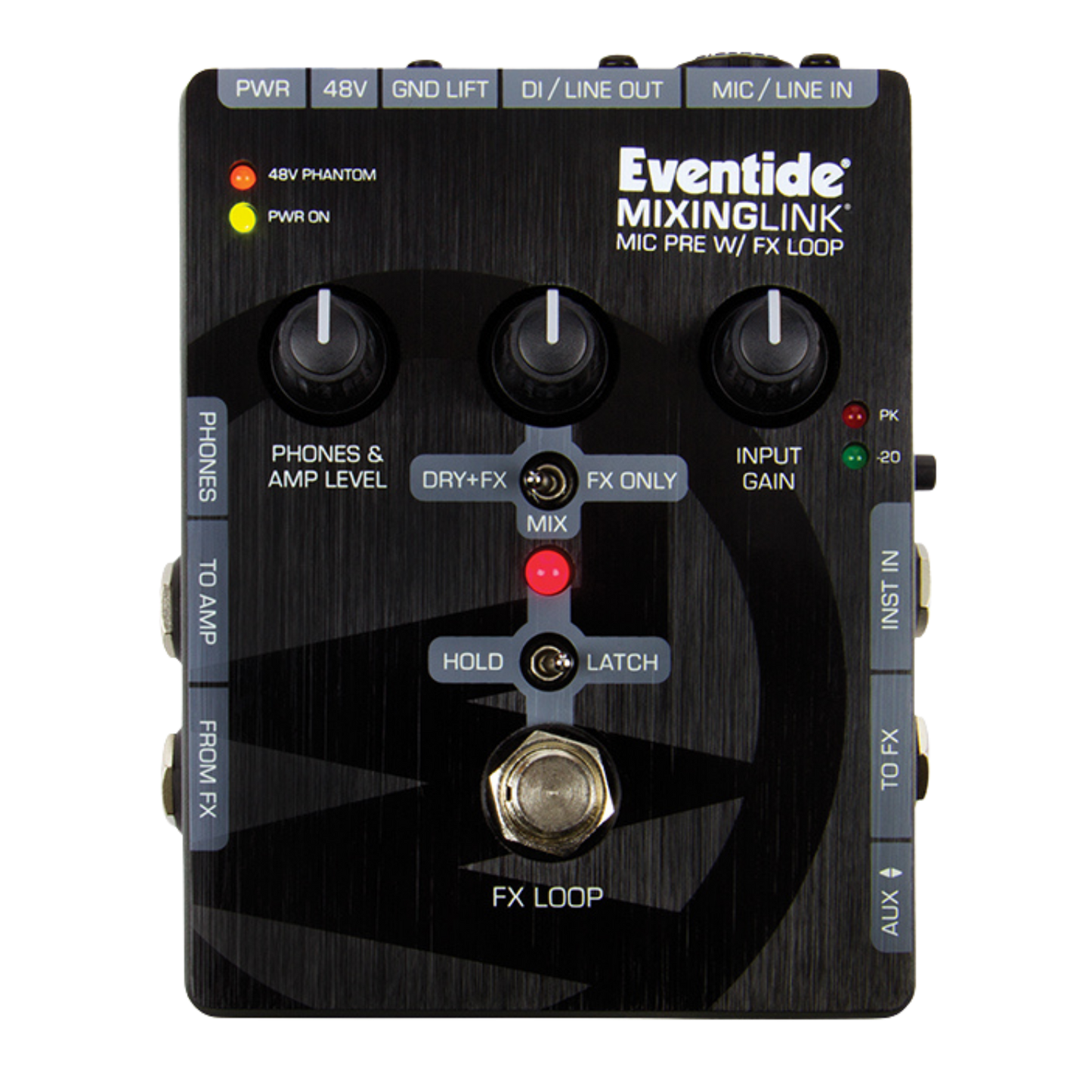

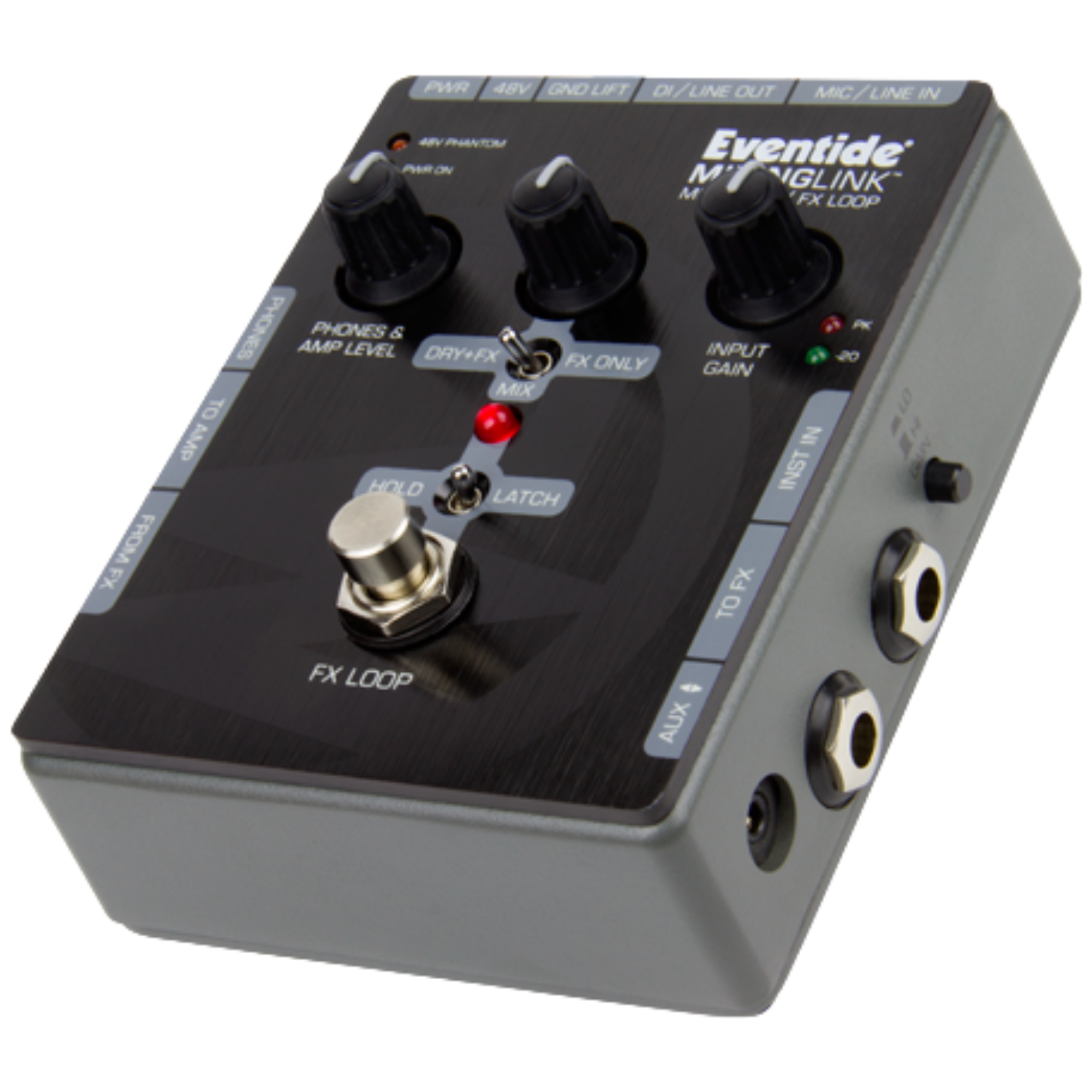

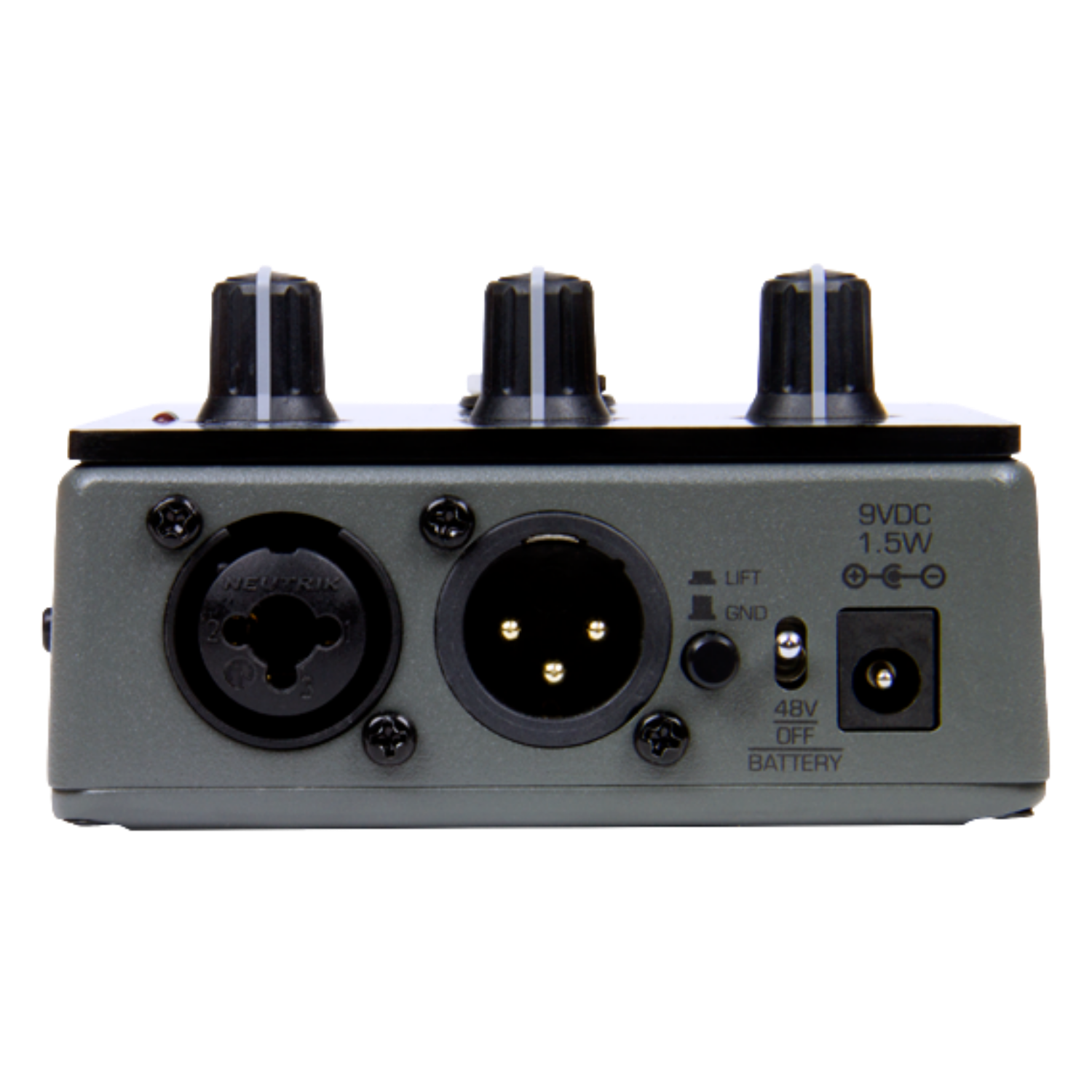

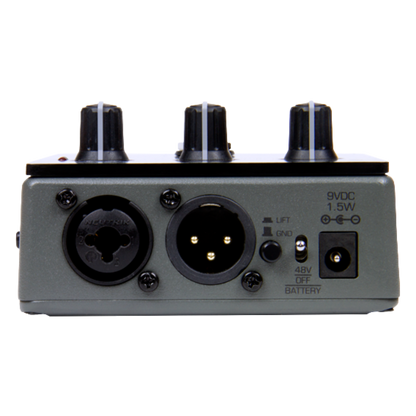

MixingLink
High quality mic pre with FX loop in a compact form factor
A stompbox size audio toolkit for on stage, in studio and everywhere in between. Includes a quiet high gain mic-pre, 48V phantom power and enough I/O and control for applications such as FX Loop for microphone signal processing (vocals, horns, strings, etc) , signal splitting and combining, complete re-amp setup, impedance and gain matching, mixing and more.
Features
FX loop send and return supports balanced and unbalanced signals - interfaces with consoles or guitar pedals easily
Latching or momentary footswitch control of FX loop for performance effects
Works with a wide range of microphones including condenser and ribbon mics with up to 65dB of clean gain
Aux I/O connection supporting stereo input and send
Guitar amp output and headphone monitor output with separate master volume control
Ultimate Versatility
International universal power supply included
Operates on 9V battery (no phantom power when operating on a battery)
48V phantom power for condenser mics
Balanced XLR output which supports DI and line levels
Instrument and balanced line level inputs
Versatile mix control supports 3 modes
100% Dry w/FX blended in
Mic/FX balance control
100% FX (no Dry)
Specifications
Input
Analog Input MAX Input Levels, Input Impedance
INST IN +10dBu, 500kΩ
1/4" Line IN +24dBu, 22kΩ
XLR Mic IN +4dBu, 2kΩ
FROM FX +10dB, 200kΩ
AUX IN +4dBu, 5.0kΩ
Output
Analog Output MAX Output Levels, Output Impedance
TO FX +10dBu, 400Ω
TO AMP +10dBu, 250Ω
PHONES 150mW per channel, min Load = 8 Ohms
DI/LINE OUT (DI) -10dBu, (LINE) +18dBu, 200Ω
AUX OUT 18mV, 200Ω (mobile mic level)
Physical
Power Supply 9 VDC, 500 ma, center pin (-)
Min. required current at 9VDC = 200mA
Dimensions English: 3.6” (H) x 2.65” (W) x 1.5” (D)
Metric: 91(H) x 67(W) x 38(D) mm
Weight .96 lb / .43 kg
